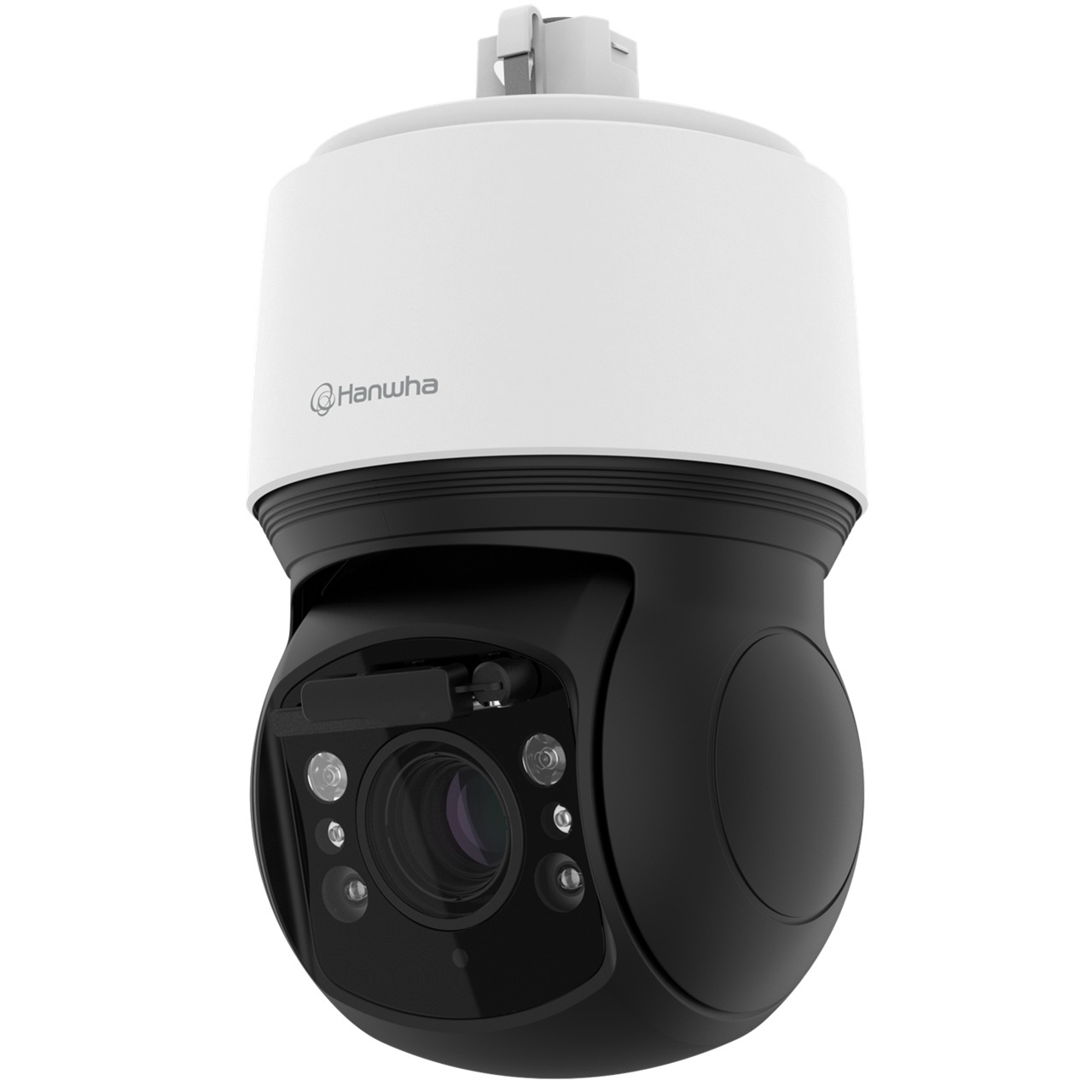

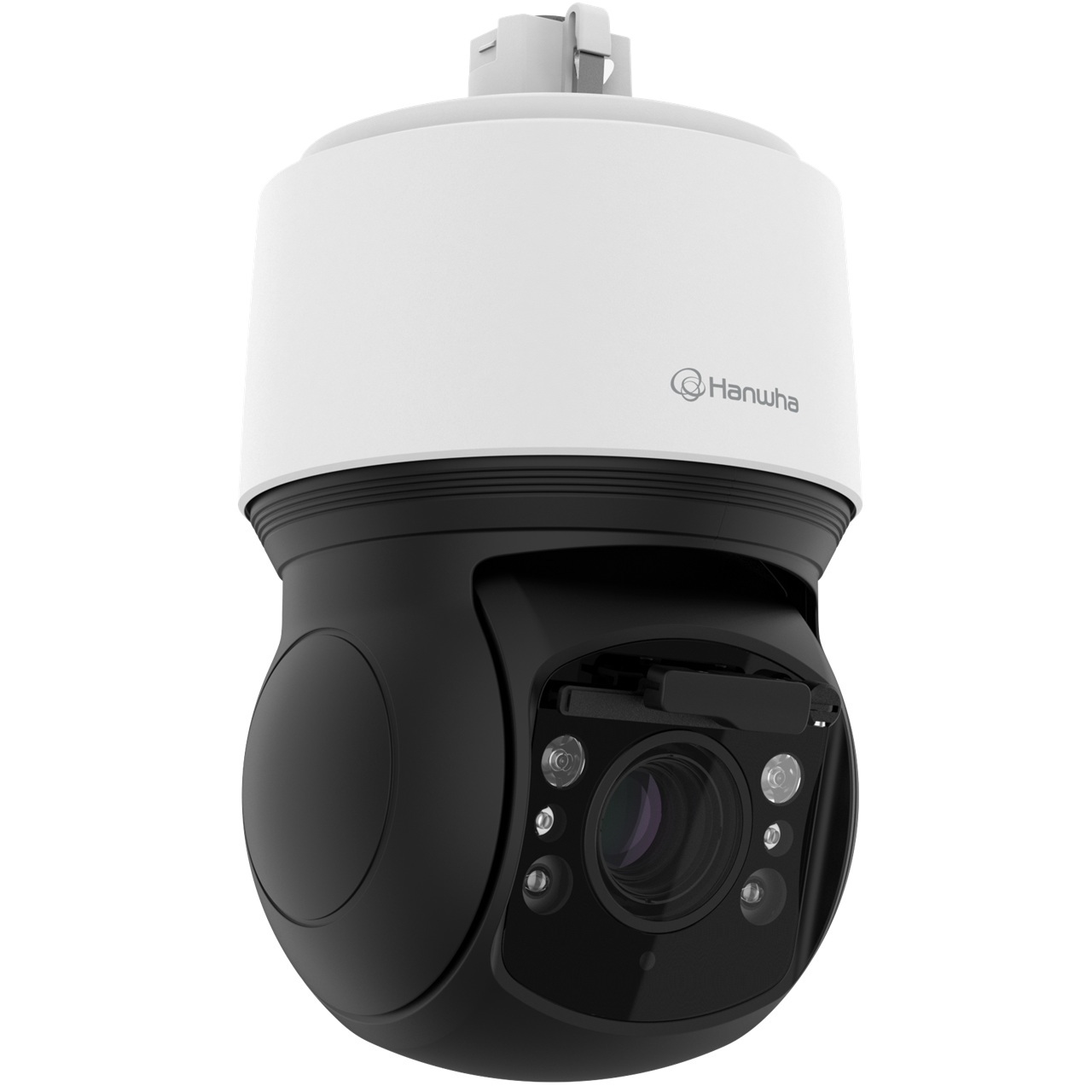

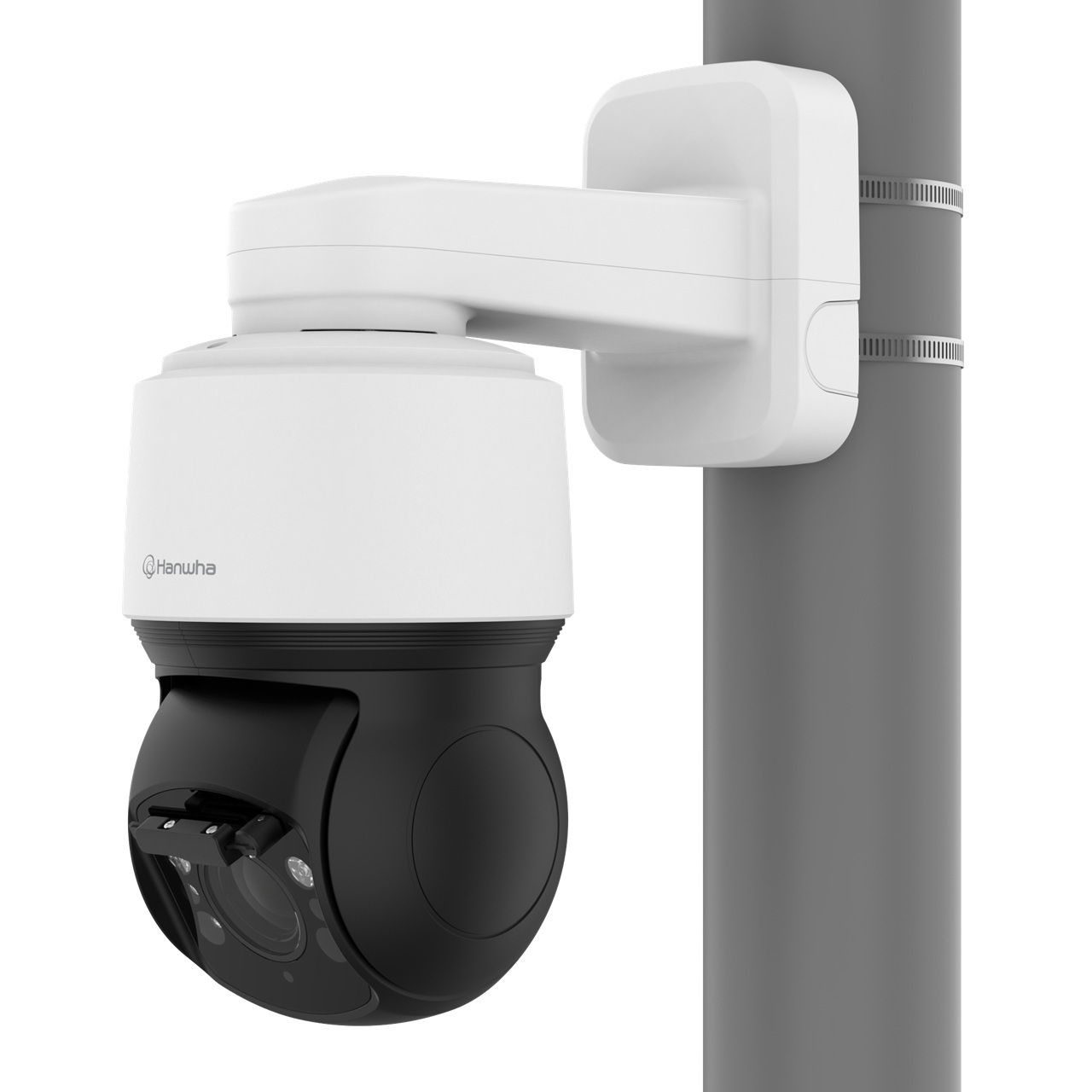

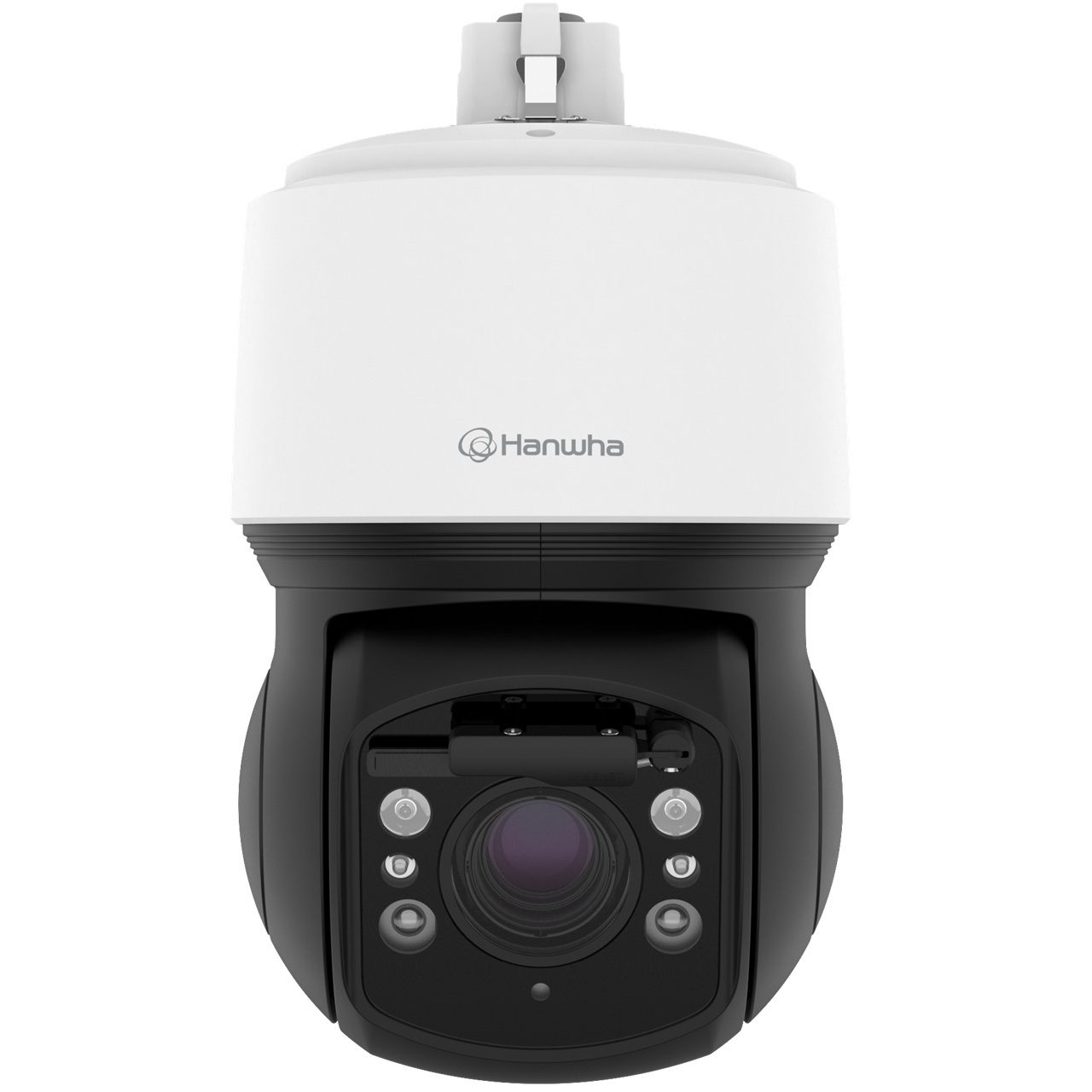

XNP-6400RW Hanwha Vision X Series 4.25-170mm 60FPS @ 2MP Outdoor IR Day/Night WDR PTZ IP Security Camera PoE

Specifications

Video

• Imaging Device - 1/2.8" CMOS
• Resolution - 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
• Max. Framerate - H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
• Min. Illumination - Color: 0.05Lux(F1.6, 1/30sec) BW: 0Lux(IR LED On)

Lens

• Focal Length (Zoom Ratio) - 4.25~170mm(40x) zoom (digital 32x, total 1280x zoom)
• Max. Aperture Ratio - F1.6(Wide)~F4.95(Tele)
• Angular Field of View - H: 65.66°(Wide)~1.88°(Tele) / V: 39.4°(Wide)~1.09°(Tele)
• Min. Object Distance - 3m(9.84ft)
• Focus Control - Oneshot AF, Focus save
• Lens Type - DC auto iris

Pan / Tilt / Rotate

• Pan Range - 360° Endless
• Pan Speed - Max. 500°/sec, Manual: 0.024°/sec~250°/sec
• Tilt Range - 110°(-20°~90°)
• Tilt Speed - Max. 350°/sec, Manual: 0.024°/sec~250°/sec
• Sequence - Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
• Preset Accuracy - Up to ±0.1°, Pan/Tilt correction

Operational

• Camera Title - Displayed up to 85 characters
• Direction Indicator - Support
• Day & Night - Auto(ICR)/Color/BW/Schedule
• Backlight Compensation - BLC, HCL, WDR, SSDR
• Wide Dynamic Range - Extreme WDR(150dB)
• Digital Noise Reduction - SSNRâ…¤
• Digital Image Stabilization - Support(built-in gyro sensor)
• Defog - Support
• Motion Detection - 8ea, 8 Point Polygonal zones
• Privacy Masking - 32ea, polygonal Support - Color: Grey/Green/Red/Blue/Black/White - Mosaic
• Gain Control - Max / Manual
• White Balance - ATW /Narrow ATW /AWC /Manual /Indoor /Outdoor /Mercury /Sodium
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker (2~1/12,000sec)
• Video Rotation - Flip&Mirror
• Analytics - Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Shock detection * Audio detection, Sound classification(with NW I/O Box)
• Alarm Triggers - Analytics, Network disconnect * Alarm input(with NW I/O Box)
• Alarm Events - File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers PTZ Preset Handover * Alarm output(with NW I/O Box)
• IR Viewable Length - Wise IR 200m(656.17ft)
• Water Removal - Support(with Wiper)
• Auto Tracking - Object auto tracking(Person/Vehicle), Target lock tracking

Network

• Ethernet - Metal shielded RJ-45(10/100BASE-T)
• Video Compression - H.265/H.264: Main/Baseline/High, MJPEG
• Smart Codec - Manual(5ea area), WiseStreamâ…¡
• Video Quality Adjustment - H.264/H.265: Target bitrate level control MJPEG: Target bitrate level control
• Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
• Streaming - Unicast(20 users) / Multicast (128 user) Multiple streaming(Up to 10 profiles)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour,LLDP, SRTP
• Security - HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) Device certificate(Hanwha Techwin Root CA) Cyber security assuarance program UL CAP(UL 2900-1)
• Application Programming Interface - ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform

General

• Webpage Language - English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Edge Storage - Micro SD/SDHC/SDXC 2slot 1TB
• Memory - 4GB RAM, 512MB Flash

Environmental & Electrical

• Operating Temperature / Humidity - Normal : -40°C~+55°C(-40°F ~ +131°F) / Maximum Temperature based on NEMA-TS 2(2.2.7) : +74°C(+165°F) * Start up should be done at above -30°C Less than 95% RH(Non-condensing)
• Storage Temperature / Humidity - -50°C~+60°C (-58°F~+140°F) / Less than 95% RH(Non-condensing)
• Certification - IP66, IK10, NEMA4X, NEMA-TS 2(2.2.8, 2.2.9)
• Input Voltage - HPoE(IEEE802.3bt, Class6, Type3, Injector included)
• Power Consumption - Typical 20W, Max 42W

Mechanical

• Color / Material - White, Black / Aluminum+Polycarbontate
• RAL Code - White: RAL9003 / Black: RAL9005
• Product Dimensions / Weight - Ø184.9x318.8mm(7.28x12.55") / 5.4Kg(11.90lb)

DORI (EN62676-4 standard)

• Detect (25PPM/ 8PPF) - Wide: 59.5m(195.3ft) / Tele: 2340.4m(7678.4ft)
• Observe (63PPM/ 19PPF) - Wide: 23.8m(78.1ft) / Tele: 936.2m(3071.4ft)
• Recognize (125PPM/ 38PPF) - Wide: 11.9m(39.1ft) / Tele: 468.1m(1535.7ft)
• Identify (250PPM/ 76PPF) - Wide: 6.0m(19.5ft) / Tele: 234.0m(767.8ft)

XNP-6400RW Specifications PDF
