NV-EC1701PLS-LK NVT 1701+ Link Ethernet and PoE Over Coax Extender

Search available promotions and discounts for this Item

SKU: NV-EC1701PLS-LK

Brand: NVT

Pair with 1701+ Base Extender NV-EC1701PLS-BSE
For UTP usage add BNC screw terminal adaptor NV-BNCA
Data rate up to 420 Mbps with up to 8,000 ft (2.4km) reach
Negotiates with 802.3at/af IP endpoint
Can provide up to 25W of power on 2 pairs if 1701+ Link adapter is powered by 1701+ Base extender
If 1701+ Link adapter is locally powered can provide up to 50W of power on 4 pairs, or 25W on 2 pairs
328ft (100m) reach from the adapter to the IP endpoint via CAT5 or better cable
10/100/1000 Base-T, Auto-MDIX interface with IP endpoint
LED Indicators (power, link, data)

More details...

Search available promotions and discounts for this Item

MPN: NV-EC1701PLS-LK

MSRP Price: $454.00

Online Price: $454.00

New to DWG? - Sign Up for immediate access to dealer pricing and benefits.

Already a DWG Customer? - Sign In to view pricing.

Product Details

The NVT Phybridge 1701+ Extender Solution is designed to supercharge the downlink ports of a standard Ethernet switch, delivering up to 420Mbps and PoE+ over Coax, single pair UTP or 2 wire infrastructures with reach of up to 8,000ft (2.4km) on RG6. That™s 24X the reach of standard Ethernet switches, thus removing the costs and disruptions associated with multiple IDF location requirements.

With the 1701+ Extender Solution, IP IoT devices can be connected to the existing Coax, UTP or 2 wire cabling infrastructure, delivering optimal performance while saving cost, time, and environmental e-waste. Furthermore, the cost savings realized by using the 1701+ Extender Solution can enable system designers to transfer budget and resources towards higher-quality applications and IEEE 802.3at/af compliant IoT devices, including IP-enabled phones, cameras, access control, speakers, and even facilities lighting.

Specifications

Model - 1701+ Link
Part Number - NV-EC1701PLS-LK
Dimensions - 4.15" L x 2.11" W x 1.33" H
Weight - 4.87oz
Interface Line Side - 1 BNC port
Interface IEEE side (IP Device) - 1 RJ45 port, 1 RJ45 port, will negotiate power with 802.3at/af compliant endpoints
Line side Data rate - Up to 420 Mbps, HPAV2.1 (2-86 MHz)
IEEE side Data rate - 10/100/1000 Mbps
Power Supply - 37-55VDC, 50W locally powered, delivered on 4 pairs, 25W locally or line powered, delivered on 2 pairs

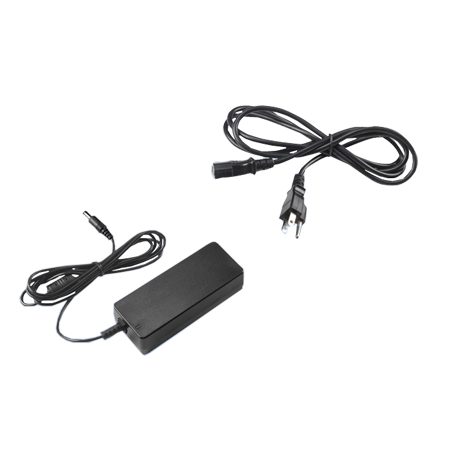

DC IN (Local) - Optional (sold separately), 37V-55VDC via an external AC/DC Power Adapter. Jack (Male) 2x5.5mm. Note 1: Local Power Adapter must have its output isolated from Earth potential.
Power Consumption - 2W
Operating Temperature - -4°F to 140°F
Humidity - 10% to 95% (non-condensing) at 95°F
MTBF - 20+ years

Compliance and Agency Approval

EMC - Emissions: FCC Part 15, ICES-003, EN 55032:2012, EN 50121-4:2016 Class B Immunity: EN 55024:2010, EN 50121-4:2016
Safety - UL 60950-1 2nd Ed 2019-05-09, CAN/CSA C22.2 No. 60950-1-07 2nd Ed 2014-10 IEC 62368-1:2014, EN 62368-1:2014, AS/NZS 62368.1:2018
Environment - RoHS Directives 2011/65 and 2015/863

NV-EC1701PLS-LK Specifications PDF
