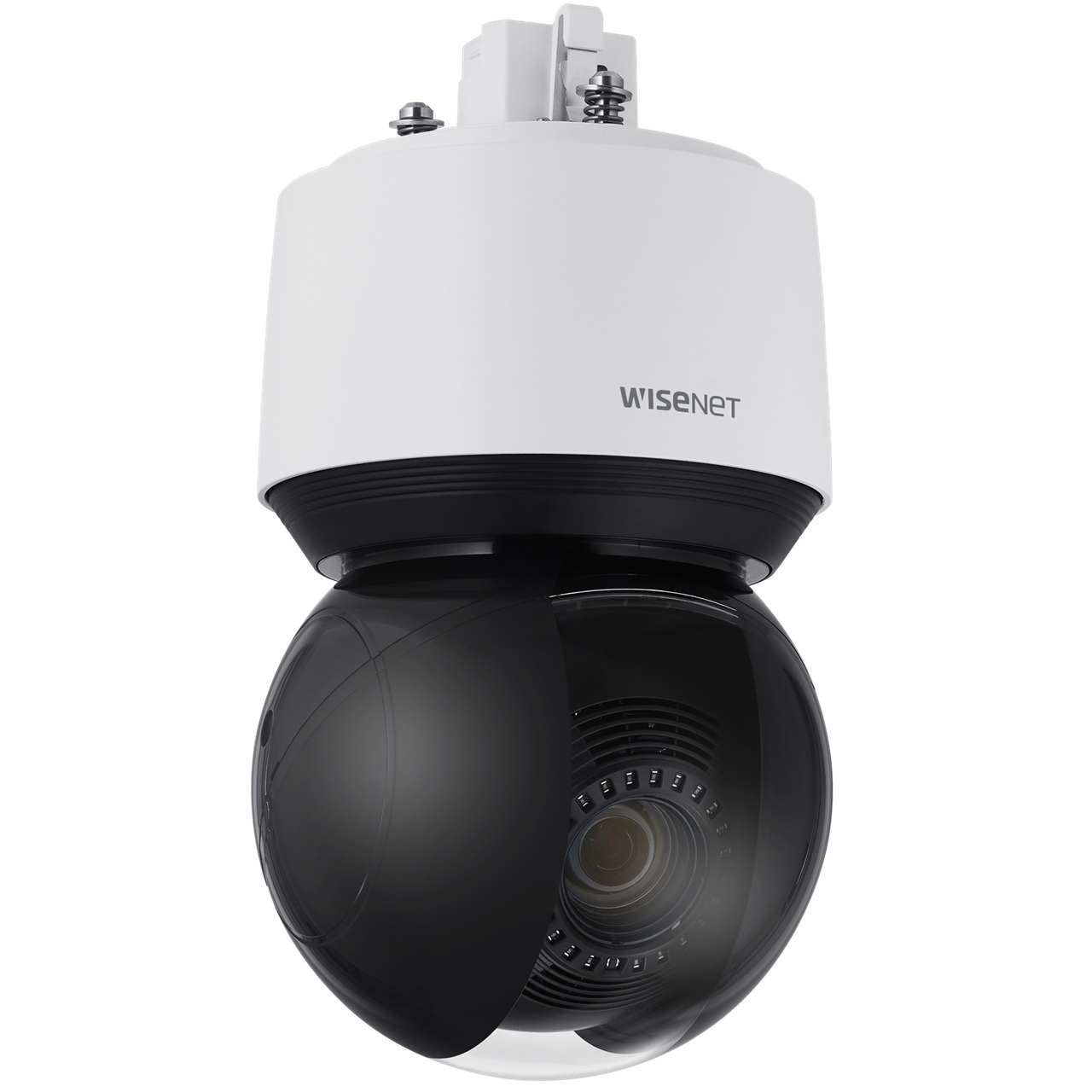

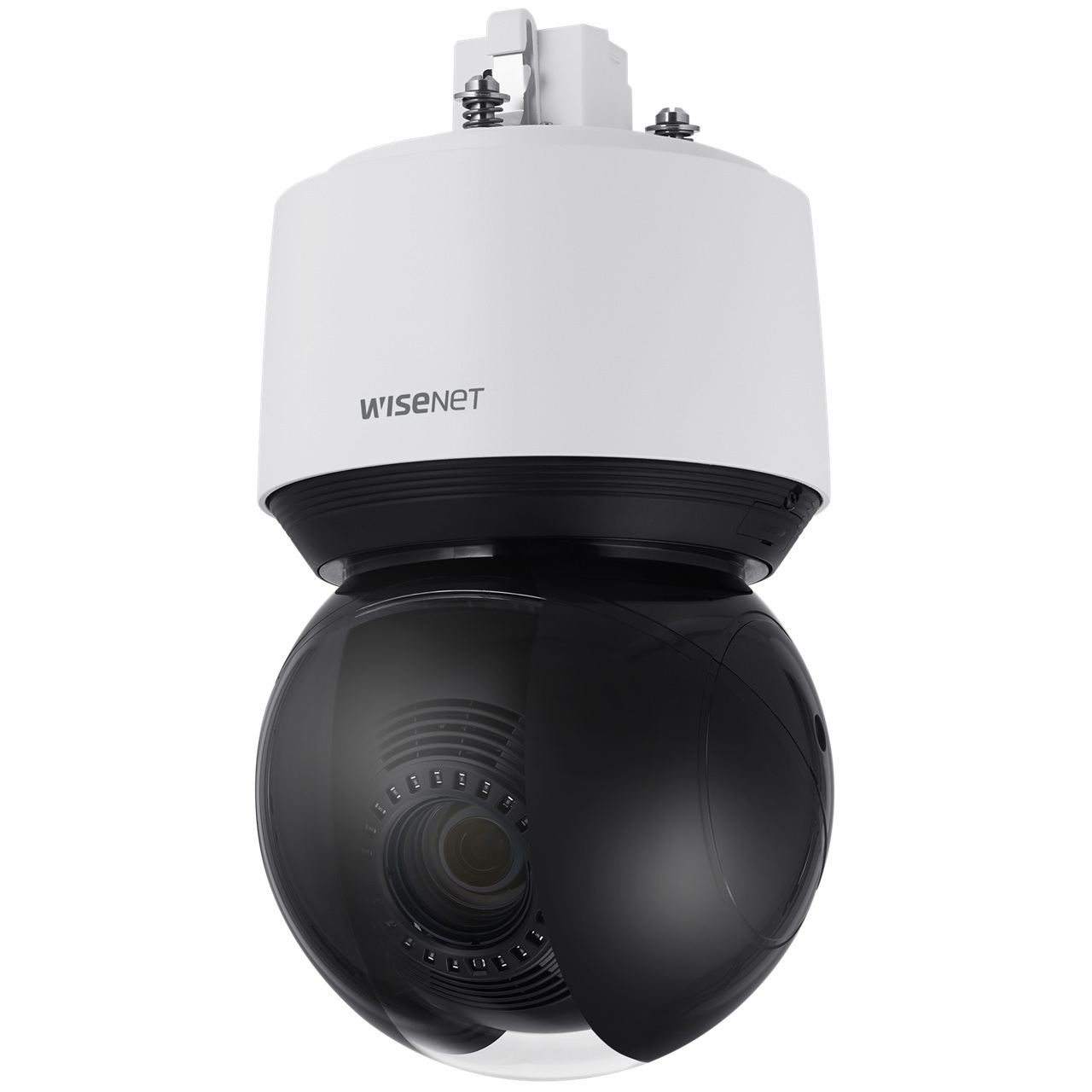

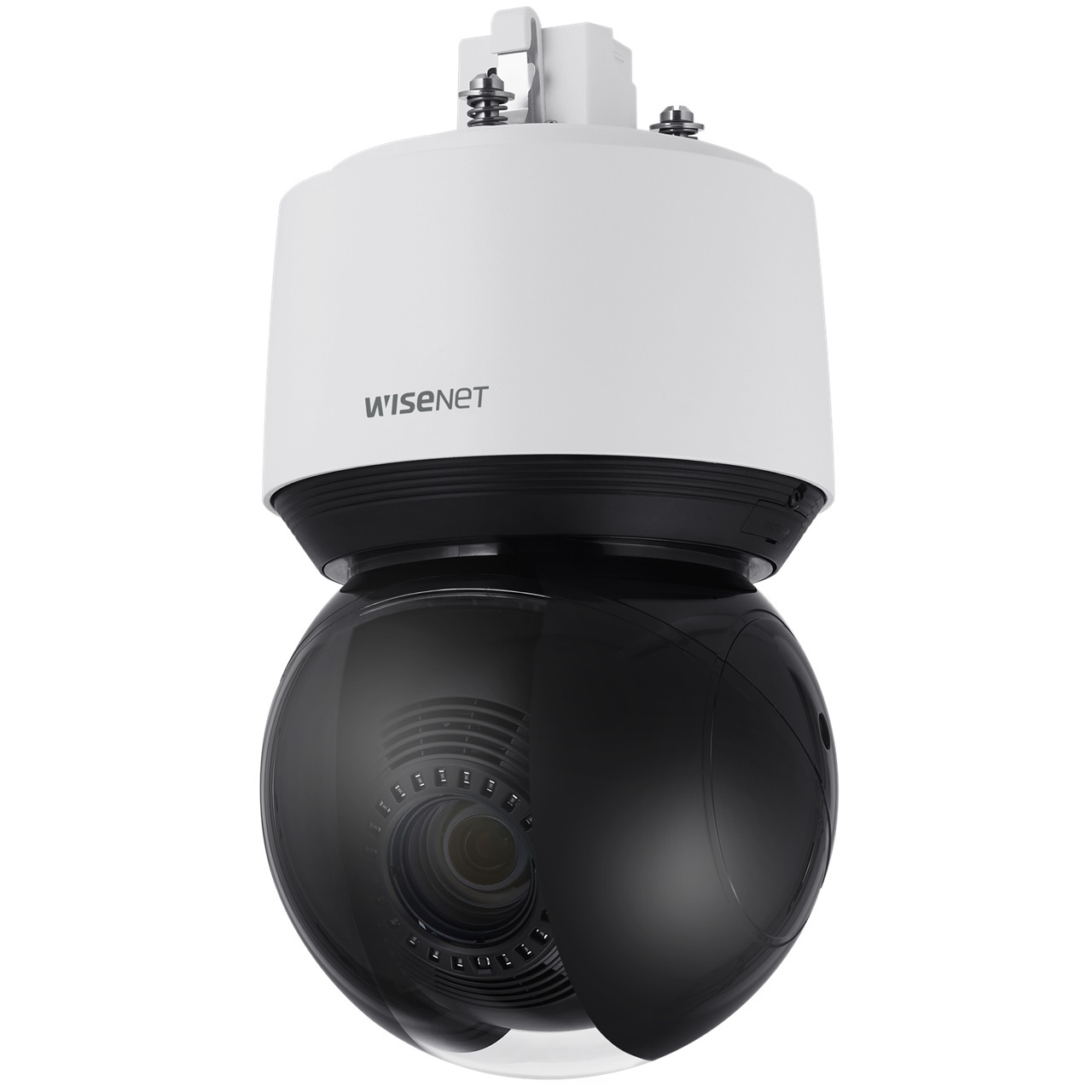

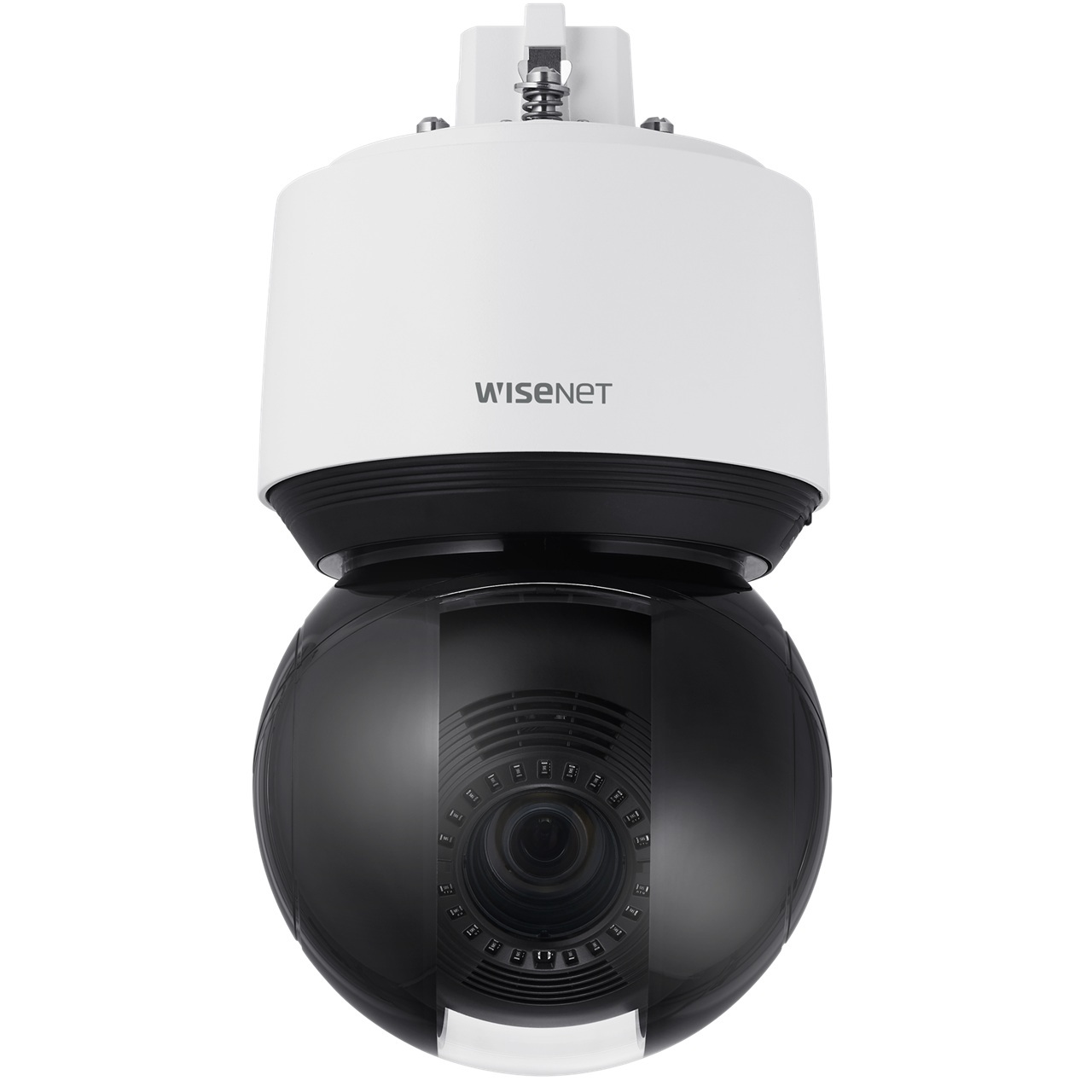

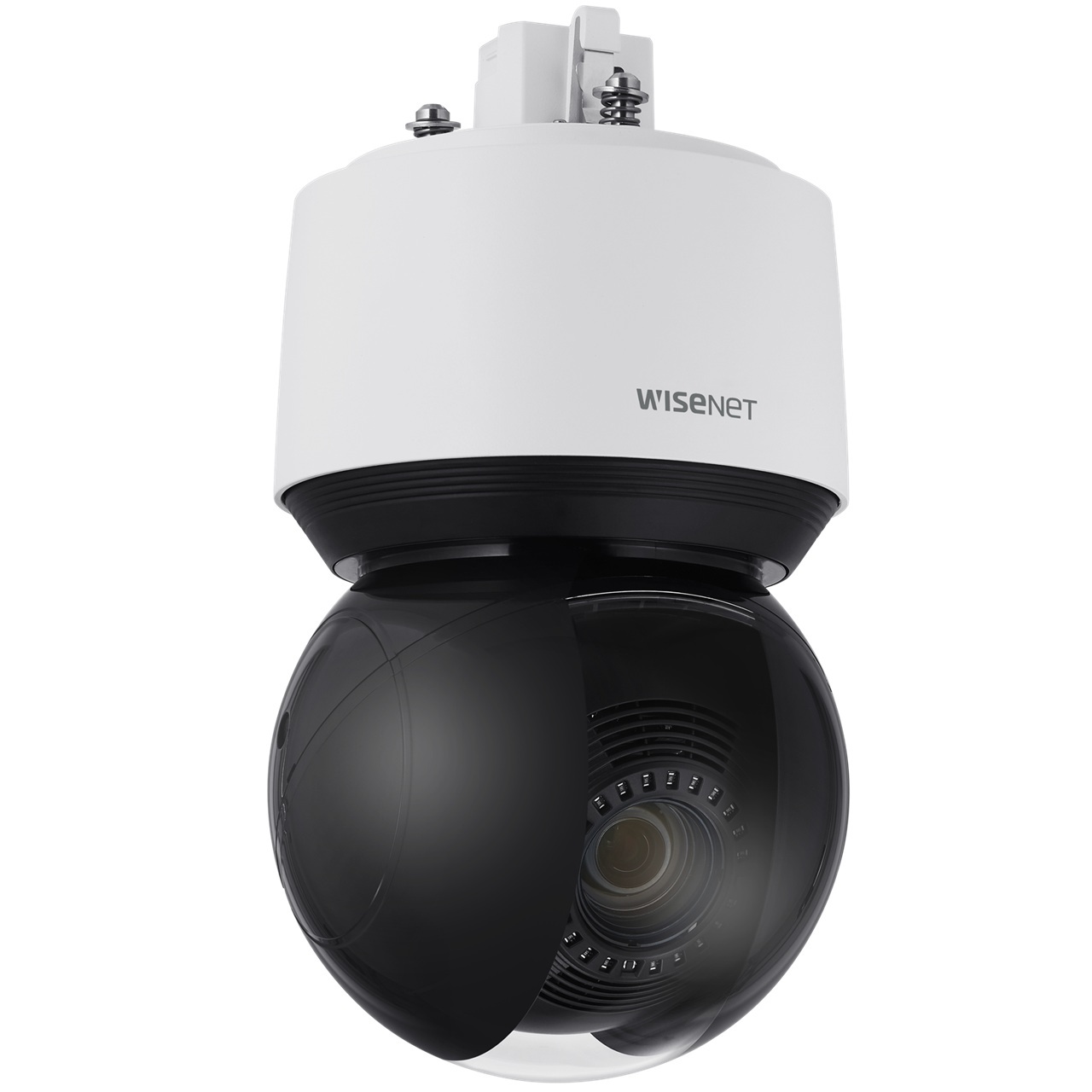

XNP-9250R Hanwha Vision X Series 5~125mm 25x Optical Zoom 30FPS @ 8MP Outdoor IR Day/Night WDR PTZ IP Security Camera POE

Specifications

Video

• Imaging Device - 1/2.8" CMOS
• Resolution - 3840x2160, 2592x1944, 2592x1464, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
• Max. Framerate - H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps (@8MP Max. 5fps)
• Min. Illumination - Color(1/30sec.30IRE) 0.1, BW:(1/30sec.30IRE) 0.01

Lens

• Focal Length (Zoom Ratio) - 5~125mm(25x) zoom (digital 32x)
• Max. Aperture Ratio - F1.6(Wide)~F3.73(Tele)
• Angular Field of View - H: 57.42°(Wide)~2.71°(Tele) / V: 33.54°(Wide)~1.55°(Tele)
• Min. Object Distance - 5m(16.4ft)
• Focus Control - Oneshot AF, Focus save
• Lens Type - DC auto iris

Pan / Tilt / Rotate

• Pan/Tilt/Rotate Range - 360° Endless 90°~-20°
• Pan Speed Preset / Manual - Max. 700°/sec, Manual: 0.024°/sec~250°/sec
• Tilt Speed - Max. 500°/sec, Manual: 0.024°/sec~250°/sec
• Sequence - Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
• Preset Accuracy - Up to ±0.1°, Pan/Tilt correction

Operational

• Direction Indicator - Support
• Day & Night - Auto(ICR)
• Backlight Compensation - BLC, HCL, WDR, SSDR
• Wide Dynamic Range (dB) - 120
• Digital Noise Reduction - SSNRâ…¤
• Digital Image Stabilization - Support(built-in gyro sensor)
• Defog - Support
• Motion Detection - 8ea, 8 Point Polygonal zones
• Privacy Masking - 32ea, 4point Quadrangle zones - Color: Gray/Green/Red/Blue/Black/White - Mosaic
• Gain Control - Low, Middle, High
• White Balance - ATW / AWC / Manual / Indoor / Outdoor
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker (2~1/12,000sec)
• Video Rotation - Flip&Mirror
• Alarm Interface Others - Support alarm I/O via optional I/O box
• Alarm Triggers - Analytics, Network disconnect, Alarm input
• Alarm Events - When alarm trigger occurred - File upload(image) : e-mail/FTP/SFTP - FIle upload(video clip): FTP/SFTP - Notification : e-mail - Recording : SD/SDHC/SDXC or NAS recording at event triggers Alarm output - Handover: PTZ preset, send message by HTTP/HTTPS/TCP - Audio clip playback - MQTT: publication
• Audio In - Support via optional I/O box
• Audio Out - Support via optional I/O box
• Light Type - IR LED
• Light Viewable Length IR - Wise IR 200m(656.17ft)
• IR Wavelength - 850nm
• Water Removal - Support(Spin dry, Lens heater)
• Auto Tracking - Support Object auto tracking(Person/Vehicle) Target lock tracking
• Thumbnail - DetectionShot
• Analytics Events - Motion detection, Tampering, Fog detection, Face detection, Audio detection, Sound classification, Shock detection, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction)

Network

• Ethernet - Metal shielded RJ-45(10/100BASE-T)
• Video Compression - H.265/H.264: Main/Baseline/High, MJPEG
• Smart Codec - Manual, WiseStreamâ…¡
• Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
• Streaming - Unicast(20 users) / Multicast/ Multiple streaming(Up to 10 profiles)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP/SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), NTCIP1205, MQTT, NTCIP 1205
• Application Programming Interface - ONVIF Profile S/G/T SUNAPI(HTTP API) Hanwha Vision open platform
• Direct Cloud Connection - Support

Security

• OS / Firmware Protect - Encrypted Firmware, Secure boot, Signed Firmware
• User authentication - Digest Authenticaton, Prevent brute-force attack
• Network authentication - IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
• Secure Communication - HTTPS, WSS(WebSocket Secure), SRTP
• Access Control - IP-based access control
• Data Protect - Encryption Credentials, Encrypt compress for live recording file export
• Audit - Access / System / Event Log management
• Device ID - Device certificate(Hanwha Vision Root CA)
• Secure Storage - TPM(Trusted platform module), HTPM(Hanwha trusted platform module), SDcard partition encrypt
• Security Certificate - CyberSecurity assuarance program UL CAP(UL 2900-2-3 L2)

General

• Memory - RAM 4GB, Flash 512MB
• Edge Storage - Micro SD/SDHC/SDXC Max. 512GB x2slot(Total 1TB)

Environmental & Electrical

• Operating Temperature / Humidity - -40°C~+55°C(-40°F ~ +131°F) / 0~100% RH(condensing) +74°C(+165°F) (MAX) based on NEMA-TS 2(2.2.7) * Start up should be done at above -30°C Humidity control with AIR vent
• Storage Temperature / Humidity - -50°C ~ +60°C(-58°F ~ +140°F) / 0~90% RH (non-condensing)
• EPA(Effective Projected Area) - 0.035㎡
• Input Voltage - PoE++(IEEE802.3bt type3, Class6)
• Power Consumption - POE, Max 40W, Typical 20W

Mechanical

• Color / Material - White / Black / Aluminum , pc Polycarbontate Hard-coated dome
• RAL Code - RAL9003 RAL9005
• Product Dimensions / Weight - ø158x293.3mm(6.22x11.55") / 3200g(7.05lb)

DORI (EN62676-4 standard)

• Detect (25PPM/ 8PPF) -Wide: 140.2m(460.0ft) / Tele: 3246.9m(10652.4ft)
• Observe (63PPM/ 19PPF) - Wide: 56.1m(184.0ft) / Tele: 1298.7m(4261.0ft)
• Recognize (125PPM/ 38PPF) - Wide: 28.0m(92.0ft) / Tele: 649.4m(2130.5ft)
• Identify (250PPM/ 76PPF) - Wide: 14.0m(46.0ft) / Tele: 324.7m(1065.2ft)
