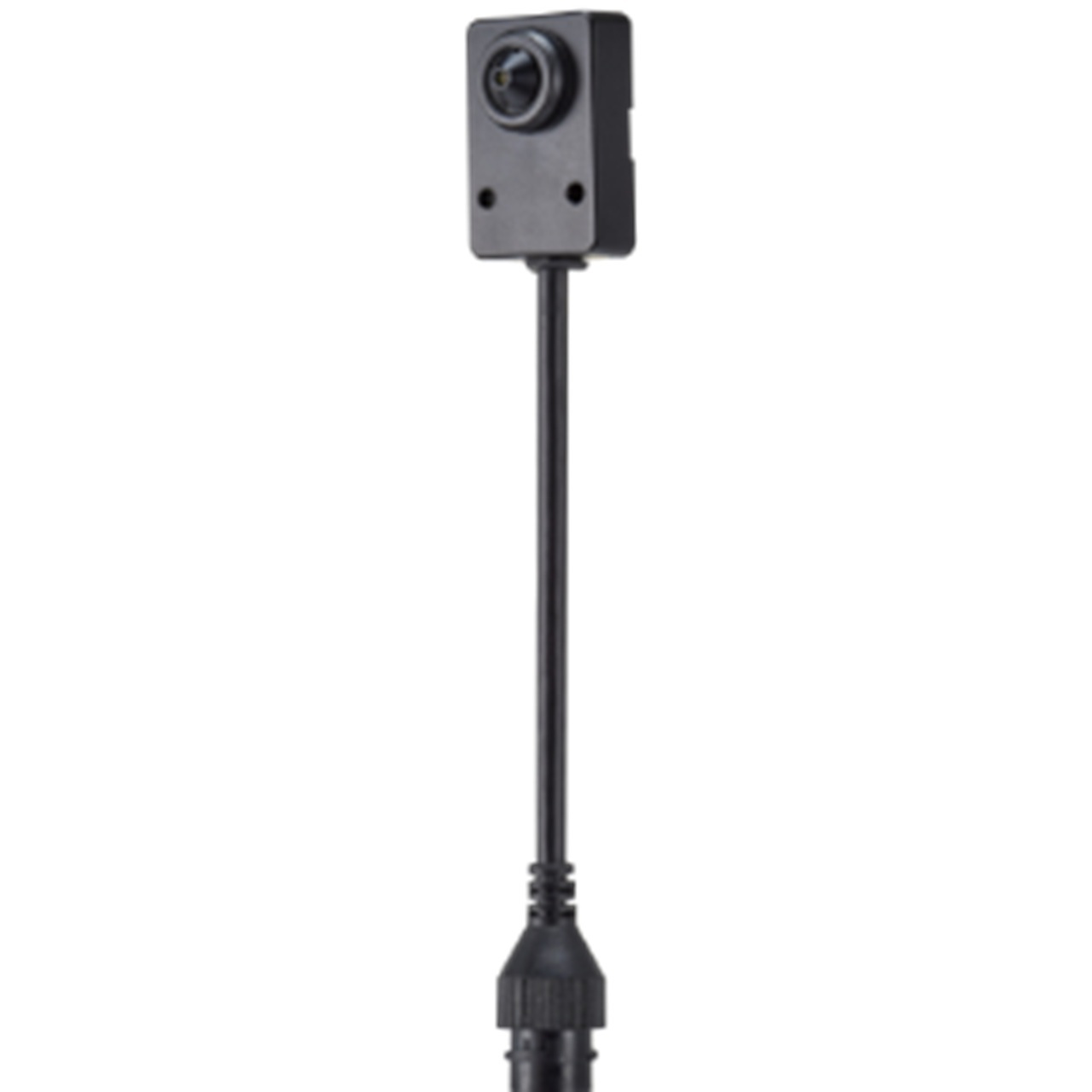

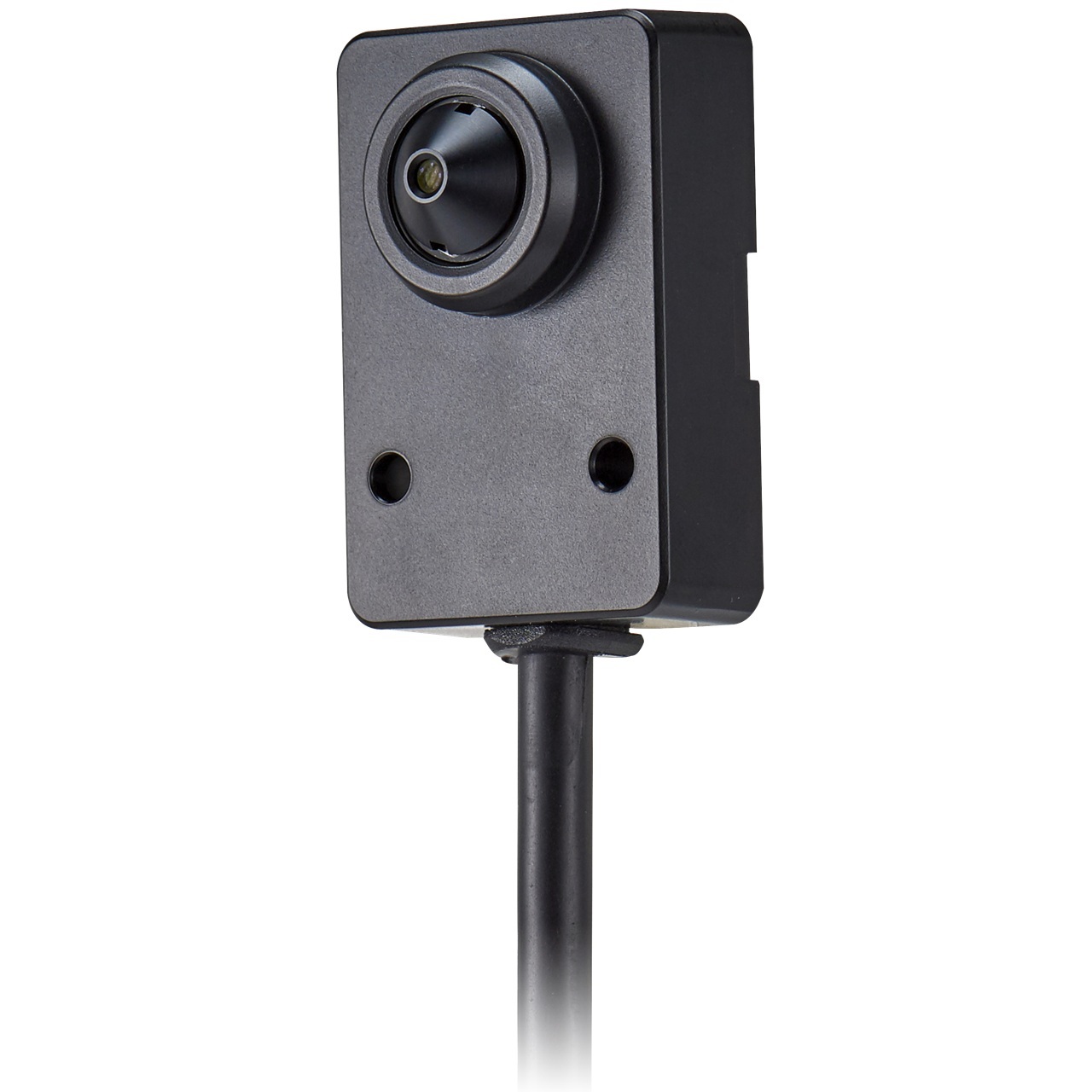

SLA-T4680VA Hanwha Vision 4.6mm Pinhole Lens Module

SLA-T4680VA Hanwha Vision 4.6mm Pinhole Lens Module

SLA-T4680VA Hanwha Vision 4.6mm Pinhole Lens Module

SLA-T4680VA Hanwha Vision 4.6mm Pinhole Lens Module	SLA-T4680VA Hanwha Vision 4.6mm Pinhole Lens Module	SLA-T4680VA Hanwha Vision 4.6mm Pinhole Lens Module
(Click to see larger image and other views)

SLA-T4680VA Hanwha Vision 4.6mm Pinhole Lens Module

SLA-T4680VA Hanwha Vision 4.6mm Pinhole Lens Module

SLA-T4680VA Hanwha Vision 4.6mm Pinhole Lens Module	SLA-T4680VA Hanwha Vision 4.6mm Pinhole Lens Module	SLA-T4680VA Hanwha Vision 4.6mm Pinhole Lens Module
(Click to see larger image and other views)

There are currently no active sales or promotions related to this item.

SKU: SLA-T4680VA

Brand: Hanwha Vision

4.6mm Pinhole Lens Module

Features:

4.6mm pinhole lens module
compatible with the PNM-9000QB / XNB-6002
right angle body style
2MP, 0.06 Lux
120dB WDR
73 horizontal field of view
8 meters/ 26 feet cable
Cable can be shortened as needed
Metal shielded cable/connector.

NDAA

More details...

There are currently no active sales or promotions related to this item.

MPN: SLA-T4680VA
EAN: 8801089195890

Add to List

Already a DWG Dealer? - Sign In to view pricing.

Product Details

Specifications

Video

Imaging Device - 1/2.8" 2MP CMOS
Min. Illumination - Color: 0.06Lux(F2.5, 1/30sec)

Lens

Focal Length (Zoom Ratio) - 4.6mm fixed focal
Max. Aperture Ratio - F2.5
Angular Field of View - H: 73˚, V: 39˚, D: 85˚
Mount Type - RJ12 connected with main unit
Focus Control - Fixed

Mechanical

Color - Black
Material - Plastic
Product Dimensions/ weight - W30xH27.9xD45mm, 321g

SLA-T4680VA Specifications PDF

Check out some additional items that you may need to purchase with this product:

PNM-9000QB Hanwha Vision P Series 30FPS @ 2MP Indoor Day/Night WDR Remote Head IP Security Camera 12VDC/POE - No Lens

PNM-9000QB Hanwha Vision P Series 30FPS @ 2MP Indoor Day/Night WDR Remote Head IP Security Camera 12VDC/POE - No Lens

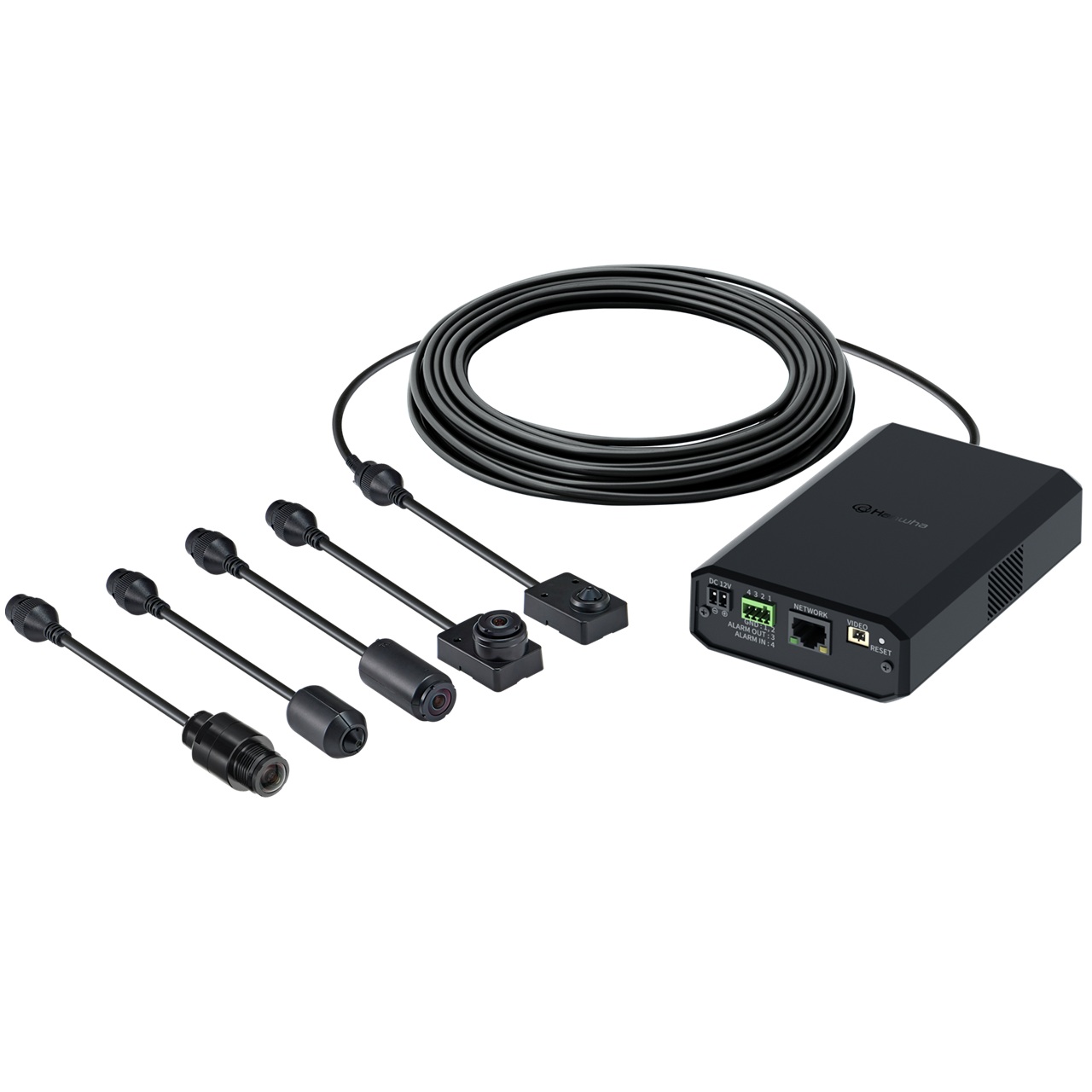

XNB-6002 Hanwha Vision X Series 60FPS @ 2MP Covert Camera Main Module

XNB-6002 Hanwha Vision X Series 60FPS @ 2MP Covert Camera Main Module

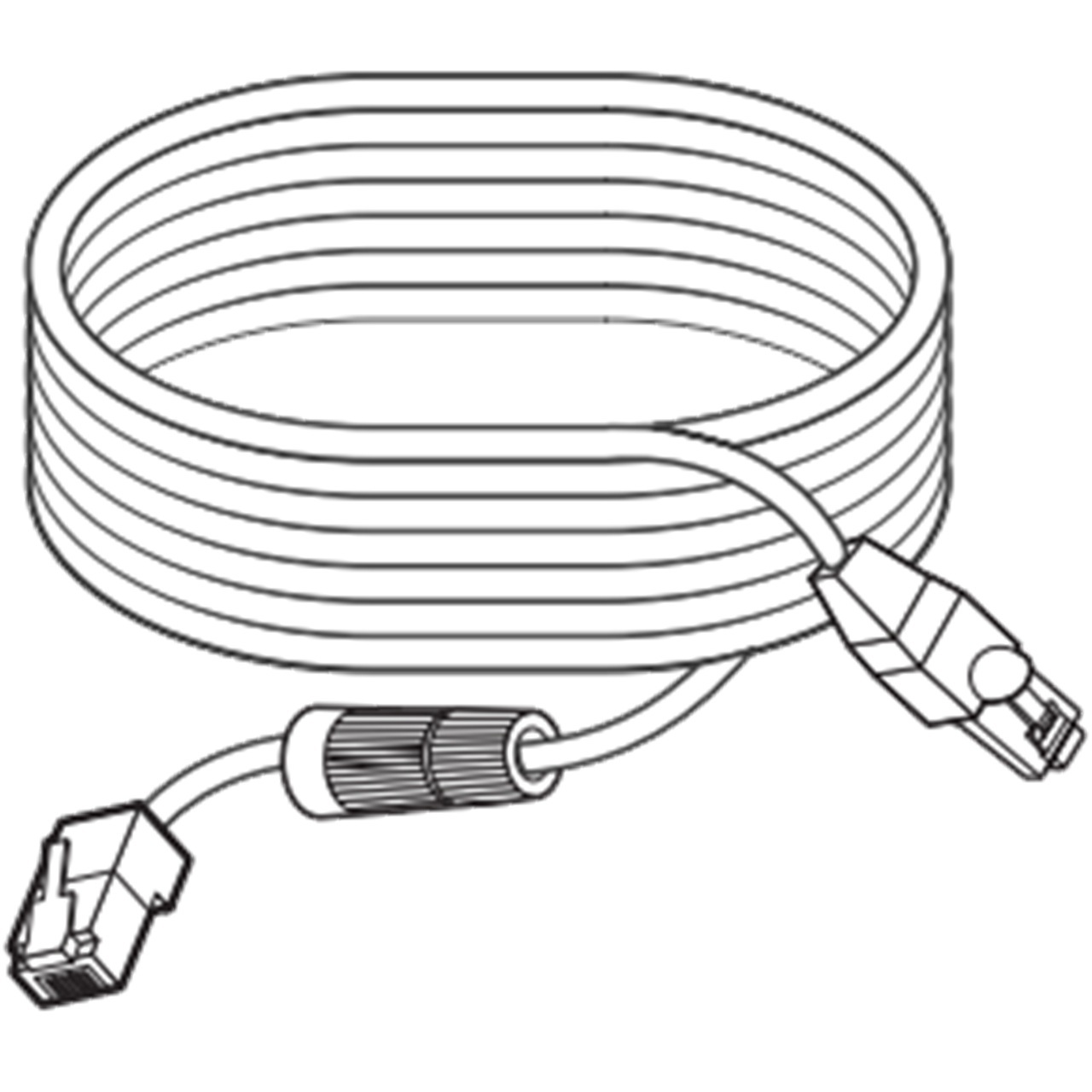

SCL-150 Hanwha Vision Extension Cable for Remote Head Lens
