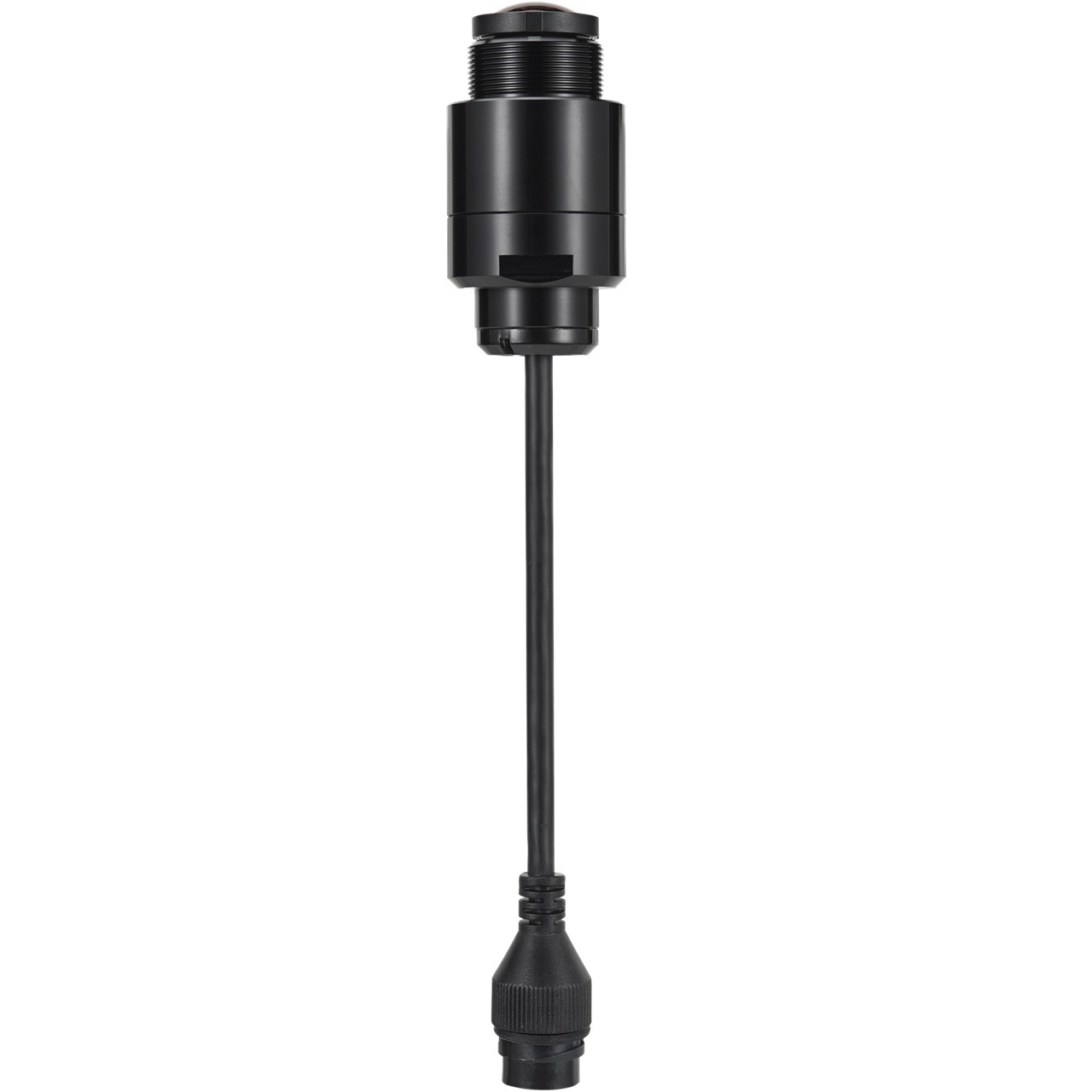

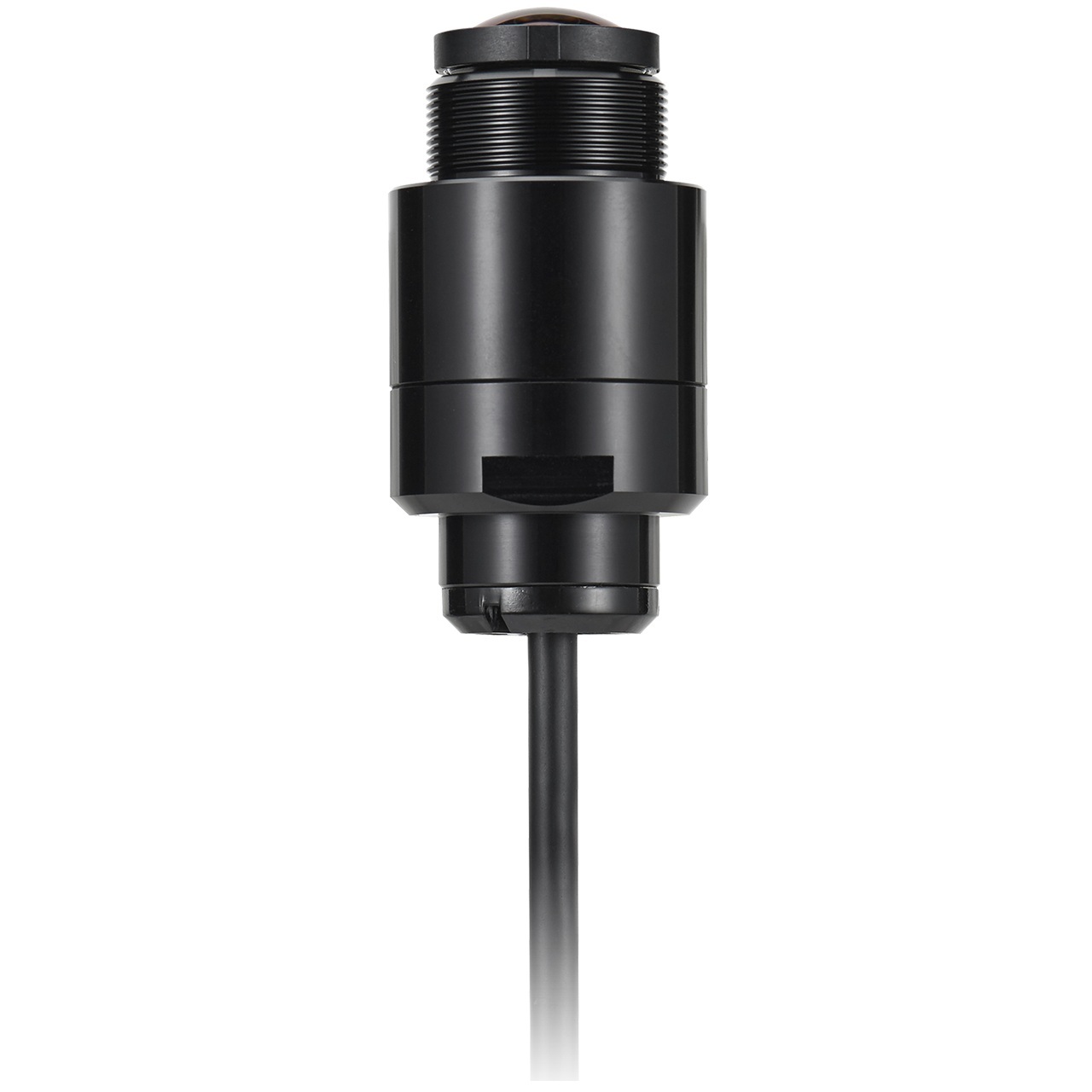

SLA-T1080FA Hanwha Vision 1.6mm Fisheye Lens Module

SLA-T1080FA Hanwha Vision 1.6mm Fisheye Lens Module	SLA-T1080FA Hanwha Vision 1.6mm Fisheye Lens Module	SLA-T1080FA Hanwha Vision 1.6mm Fisheye Lens Module
(Click to see larger image and other views)

SLA-T1080FA Hanwha Vision 1.6mm Fisheye Lens Module

SLA-T1080FA Hanwha Vision 1.6mm Fisheye Lens Module	SLA-T1080FA Hanwha Vision 1.6mm Fisheye Lens Module	SLA-T1080FA Hanwha Vision 1.6mm Fisheye Lens Module
(Click to see larger image and other views)

SKU: SLA-T1080FA

Brand: Hanwha Vision

1.6mm Fisheye Lens Module

Features:

1.6mm fixed lens module
compatible with the PNM-9000QB / XNB-6002.
Featuring straight body style
2MP 0.03 Lux
120dB WDR
187° horizontal field of view
8 meters cable (26 foot cable).
Cable can be shortened as needed
Metal shielded cable/connector.

More details...

MPN: SLA-T1080FA
EAN: 8801089196552

MSRP Price: $310.00

Web Price$310.00

Quantity:

Add to List

DWG Dealer Program Become a DWG Dealer to see your pricing. Dealer pricing, quoting, volume discounts, and sales support on thousands of products.

Become a DWG Dealer → DWG Dealer Sign In

Product Details

Specifications

Video

Imaging Device - 1/2.8" 2MP CMOS
Min. Illumination - Color: 0.03Lux(F1.6, 1/30sec)

Lens

Focal Length (Zoom Ratio) - 1.6mm fixed focal
Max. Aperture Ratio - F1.6
Angular Field of View - H: 187˚, V: 113.9˚
Mount Type - RJ12 connected with main unit
Focus Control - Fixed

Mechanical

Color - Black
Material - Metal
Product Dimensions/ weight - Ø35xL68.9mm, 430g/li>

SLA-T1080FA Specifications PDF
