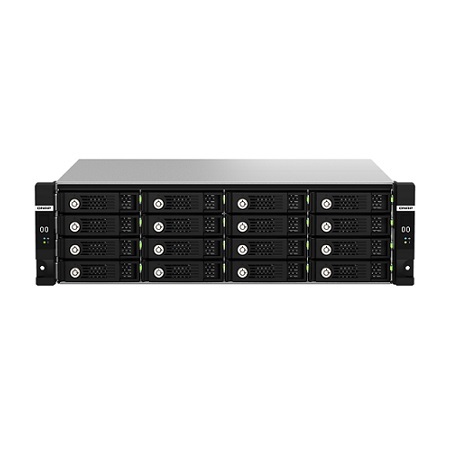

TL-R1620SDC-US QNAP 16-Bay 3U Rackmount SAS 12Gbps JBOD Dual Controller Expansion Enclosure with SAS Expander

Featuring dual controllers, an OLED indicator, and a short-depth rackmount design, the 3U 16-bay TL-R1620Sdc SAS 12Gb/s storage expansion enclosure is ideal for expanding the storage capacity of dual-controller QNAP NAS. Both controllers have three Mini-SAS HD (SFF-8644) ports, supporting 12Gbps SAS and Broadcom SAS DataBolt bandwidth optimization technology. The dual path mini-SAS design sustains continuous operations even if an external JBOD cable is disconnected. Up to 7 TL-R1620Sdc units can be daisy-chained via high-speed Mini-SAS HD cables, providing scalability and high reliability for mission-critical storage of file servers, virtualization, surveillance, medium-sized data center, multimedia, and more.

Specifications

• Model Number - TL-R1620Sdc
• Drive Bay - 16 x 3.5-inch SAS 12Gb/s, SAS/SATA 6Gb/s
• Drive Compatibility - 3.5-inch bays: 3.5-inch SAS hard disk drives, 2.5-inch SAS hard disk drives, 2.5-inch SAS solid state drives
• Hot-swappable - Yes
• Gigabit Ethernet Port(RJ45) - 1
• Form Factor - 3U Rackmount
• Host Interface - 3 x 12Gb/s SAS 3.0 wide ports (4-wide port) Mini-SAS HD (SFF-8644) for each controller
• LED Indicators - HDD 1-16, Status, Power, Fan, Temperature, SAS connector status
• Buttons - Power, OLED
• Dimensions (HxWxD) - 131.3 x 482.2 x 425.3 mm
• Max. number ofHDDs/SSDs supported - 16
• Hard Drive Type - 3.5" or 2.5" SAS12Gb/s 6Gb/s drives
• Operating temperature - 0 - 40 °C (32°F - 104°F)
• Storage Temperature - -20 - 70°C (-4°F - 158°F)
• Relative Humidity - 5-95% RH non-condensing, wet bulb: 27 ̊C (80.6 ̊F)
• Power Supply Unit - 550W(x2), 100-240V
• Fan - 3 x 80mm, 12VDC
• System Warning - Buzzer
• Management - Managed via NAS QES OS and JBOD Manager for Windows

TL-R1620Sdc-US Specifications PDF
