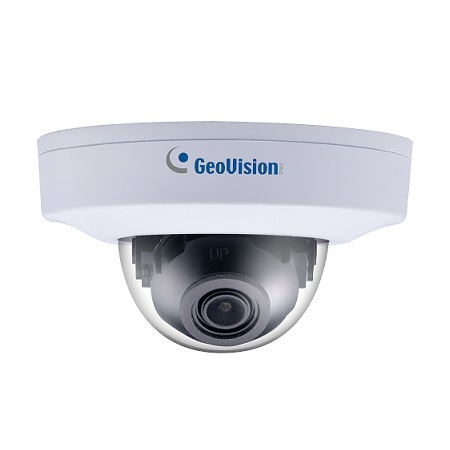

[DISCONTINUED] GV-TFD4700 Geovision 2.8mm 30FPS @ 4MP Indoor IR Day/Night WDR Dome IP Security Camera 12VDC/PoE

GV‐TFD4700 is an indoor, fixed, network camera equipped with an automatic IR‐cut filter and an IR LED for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. With the super low lux CMOS image sensor, the camera is capable of providing a color live view in near darkness

Specifications

• Image Sensor - 1/3" progressive scan super low lux CMOS
• Picture Elements - 2688 (H) x 1520 (V)
• Minimum - Color: 0.01 Lux (F2.0, AGC ON)
• Illumination - IR ON: 0 Lux
• Shutter Speed - Auto / Manual (1 ~ 1/100000 sec)
• White Balance - Auto / Manual
• Gain Control - Auto / Manual
• S/N Ratio - 52 dB
• WDR Pro - Yes
• Dynamic Range - 120 dB

Lens

• Megapixel - Yes
• Day / Night - Yes (with removable IR‐cut filter)
• Lens Type - Fixed
• Focal Length - 2.8 mm
• Maximum Aperture - F/2.0
• Mount - M12
• Horizontal FOV - 95°
• Operation
  • Focus - Fixed
  • Zoom - Fixed
  • Iris - Fixed
• IR LED Quantity - 1 IR LED
• Max. IR Distance - 30 m (100 ft)

Operation

• Video Compression - H.265, H.264, MJPEG
• Video Streaming - Triple streams from H.265, H.264 or MJPEG
• Video Resolution
  • Main Stream - 2688 x 1520, 2560 x 1440 (Default), 2304 x 1296, 1920 x 1080
  • Sub Stream - 1280 x 720, 704 x 576, 704 x 288, 640 x 480, 640 x 360 (Default), 352 x 288
  • Third Stream (Closed by Default) - 640 x 360, 352 x 288
• Frame Rate - 30 fps @ 2688 x 1520, 30 fps @ 2560 x 1440, 30 fps @ 1920 x 1080 (60 / 50 Hz) *The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes)
• Video Analytics - Motion Detection, Tampering Alarm, Audio Detection, *Tampering alarm and audio detection are only accessible through the camera's Web interface, which can be used to trigger alerts such as e‐mail and FTP
• Image Setting - Brightness, Contrast, Saturation, Sharpness, Flicker‐less, 3D Noise Reduction, Image Orientation (Flip, Mirror, 0°, 180°), Exposure Mode, Shutter Speed, Gain Control, Slow Shutter, Backlight Compensation (BLC), Metering Control, D/N Sensitivity, WDR, Smart Illumination, White Balance, Defog
• Audio Compression - G.711
• Audio Support - Two‐way Audio (external speaker required)
• Digital I/O
  • Input - 1 Input, dry contact, NO / NC
  • Output - 1 Relay Output (1A 30V DC / 0.3A 125V AC)

Network

• Interface - 10/100 Ethernet
• Protocol - ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, PPPoE, RTCP, RTP, RTSP, SMTP, TCP, UDP, UPnP, ONVIF (Profile G, S, T)

Mechanical

• Temperature Detector - No
• Camera Angle Adjustment
  • Pan - 3° ~ 360°
  • Tilt - 0° ~ 68°
  • Rotate - 3° ~ 360°
• Connectors
  • Power - 2‐pin terminal block (DC 12 V, 1.25 A), PoE
  • Ethernet - RJ‐45 Connector
  • Audio - 1 in (built‐in microphone), 4‐pin terminal block pitch 2.5 mm (0.1") (Audio In & Audio Out)
  • Digital I/O - 4‐pin terminal block pitch 2.5 mm (0.1")
  • Local Storage - Micro SD card slot (SD/SDHC/SDXC/UHS‐I, Class 10) *UHS‐II card types are not supported

General

• Operation Temperature - ‐ 35°C ~ 60°C (‐31°F ~ 140°F)
• Humidity - 0% ~ 95% (no condensation)
• Power Source - 12V DC / PoE (IEEE802.3af)
• Max. Power Consumption - 5.5W
• Dimensions - Ø 108.6 x 61.8mm (Ø4.28" x 2.43")
• Weight - 0.22 kg (0.49 lb)
• Ingress Protection - IP67
• Regulatory - CE, FCC, RoHS compliant

Web Interface

• Installation Management - Web‐based configuration
• Maintenance - Firmware upgrade through Web Browser or GV‐IP Device Utility
• Access from Web Browser - Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Defog, Digital Zoom, Text Overlay, Image Masking
• Language - Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Traditional Chinese

Web Interface

• Software Supported - GV‐VMS (V17.4.1 / V18.2.1), GV‐DVR / NVR (V8.9.1), GV‐Control Center (V3.8.0), GV‐Recording Server / Video Gateway (V2.0.0), GV‐Edge Recording Manager Win version (V2.0.0), GV‐Redundant / Failover Server (V1.2.0), GV‐Mobile Server (V1.5.1)
• Smart Device Access - GV‐Eye for iOS and Android
• Live Viewing - Browser (IE, Edge, Chrome, Firefox, Safari), Mobile App

GV-TFD4700 Specifications PDF
