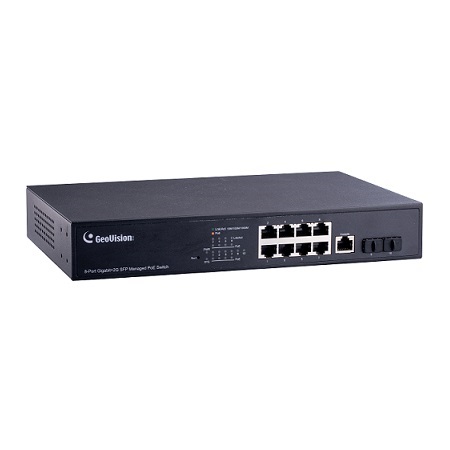

GV-APOE0811 Geovision 8-Port Gigabit 802.3at Web Management PoE Switch

GV‐APOE0811 is a 8‐Port 10/100/1000BaseT(X) PoE+ Web Smart PoE Switch with 2 SFP uplink ports. The switch supports IEEE 802.3at Power over Ethernet standard for a maximum power consumption of 150 W. GV‐APOE0811 allows power supply over network cables of up to 250 m (820 ft) in length, at 10 Mbps.

Specifications

Ethernet

• Layer Supported - L2

Ports

• Number of Ports
  • 8‐port 10/100/1000BaseT(X) with RJ‐45 Connectors, PoE+
  • 2‐port SFP Uplink Port
  • 1 Console Port (Not functional)

Performance

• MAC Address - 8 K, Auto‐Learning, Auto‐Aging
• Buffer Memory - 4.1 M bits
• Transmission Method - Store and Forward
• Transmission Media - 10/100BaseT(X) Cat. 5 UTP/STP, 1000BaseT Cat. 5e, 6 UTP/STP
• Filtering/Forwarding Rates - 14.88 Mpps
• Backplane Capacity - 20 Gbps

Smart Features

• VLAN - VLAN Basic, Config, Voice VLAN, Protocol VLAN, MAC VLAN, GVRP, Surveillance VLAN
• Network - IPv4 / IPv6, DHCP Client / DHCPv6 Client
• IGMP Snooping - IGMP Snooping / Filter, MLD Snooping, MVR
• Link Aggregation - Load Balance, LAG, LACP
• Quality of Service (QoS) - QoS Queue Scheduling, Cos / DSCP / IP Precedence Mapping
• ARP - IP Source Guard, Dynamic ARP Inspection, DoS
• DHCP - IP DHCP Snooping, Option82
• STP - STP / MSTP / RSTP, BPDU Guard, BPDU Filter
• SNMP - SNMP Community, SNMP View, SNMP Trap, SNMP (V1, V2C, V3)
• RMON - RMON (1, 2, 3, 9)
• ACL - MAC ACL / ACE, IPv4 ACL / ACE, IPv6 ACL / ACE
• AAA - TACACS+, Radius, AAA
• Discovery - LLDP, MED
• ONVIF - ONVIF Detect, ONVIF Discover, ONVIF Server
• PoE Configuration - POE Global Configuration, POE Port Configuration, PD Alive Monitor
• Diagnostics - Ping / Ping6, Traceroute, Copper Test, DDMI
• Port Management - Basic config (speed, duplex, flow control), Statistics, Storm Control, Rate Limit, Port‐Security, Port Mirror, Port Protected, EEE, Jumbo Frame
• Administrator Management - Basic info, System Status, User Management, SNTP, Import/Export Config, Firmware Upgrade, System Reboot, Restore Factory

Mechanical Characteristics

• LED Indicators - Per Port: Link/Act, PoE Act/Status, Power, System

Electrical Characteristics

• PoE Power
• Input - 100 ~ 240 V / AC, 50 ~ 60 Hz
• Output - IEEE 802.3at Compliant Voltage, Per Port Max. 32 watts (8 Ports at Full 15.4 W / 4 Ports at Full 32 W)
• PoE Mode - Mode A
• Max. Power Consumption - 150 W
• POE Budget - 140 W

General

• Dimensions (H x W x D) - 280 x 180 x 44 mm (11.02" x 7.08" x 1.73")
• Weight - 1.68 kg (3.7 lb)
• Operating Temperature - 0°C ~ 40°C (32°F ~ 104°F)
• Storage Temperature - ‐ 40°C ~ 70°C (‐40°F ~ 158°F)
• Humidity - 10 to 90% RH (non‐condensing)
• Surge Protection - ±6 kV

Standards and Regulatory

• Standards
  • IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.ab 1000BaseT, IEEE 802.3z
  • 1000BaseSX/LX
  • IEEE 802.3x Full‐duplex and Flow Control
  • IEEE 802.3ad Link Aggregation Control Protocol
  • IEEE 802.1Q VLAN
  • IEEE 802.1p Class of Service
  • IEEE 802.1D Spanning Tree Protocol
  • IEEE 802.1w Rapid Spanning Tree Protocol
  • IEEE 802.1s Multiple Spanning Tree Protocol
  • IEEE 802.1X Port‐based Network Access Control
  • IEEE 802.3at Power Over Ethernet (PoE+)
• Regulatory - CE, FCC Class A, RoHS compliant
