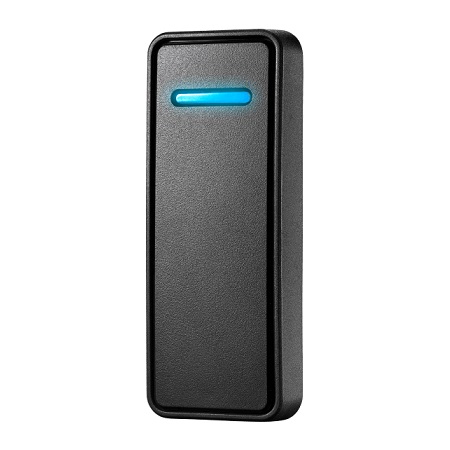

BT125-W Linear Indoor/Outdoor Reader Bluetooth and 125 kHz Wiegand with 2-N-1 Mullion and Single Gang Mount

An excellent fit for both new projects and existing installations, the BT125-W combines the power of Bluetooth technology with 125 kHz prox. New installations will benefit from the reader's touchless Bluetooth capabilities.Migrate existing installations to Bluetooth at your own pace as users can continue to use their 125 kHz prox credentials during the transition to Bluetooth credentials. Reads most prox cards made by HID, AWID and Farpointe (HAF). Reader-to-Controller data is output in Wiegand format, making it compatible with a vast majority of existing access control panels.

Specifications

• Frequency - BLE 2.4 GHz + 125 kHz (contactless prox card)
• Mounting - Includes slim mullion mount AND single-gang mount
• Dimensions
  • Mullion - 1.48" W x 4.74" H x 0.54" D (37.5 mm x 120 mm x 13.7 mm)
  • Single-Gang - 2.99" W x 4.74" H x 0.54" D (76.2 mm x 120 mm x 13.7 mm)
• Certifications - FCC, CE, RCM, ETL, IP67
• Voltage - 8-14 VDC
• Current Draw - BT125-W: 60 mA Typical. 120 mA peak
• Read Range
  • Mobile Credentials - Up to 2", Up to 10", Up to 15', Up to 30', Tap and Go
  • Physical Credentials - Up to 3"
• Cabling
  • Less than 300 ft - 24 AWG minimum, multi-conductor stranded with an overall foil shield recommended
  • 300 - 500 ft - 22 AWG minimum, multi-conductor stranded with an overall foil shield recommended
• Interfaces Supported - Linear Bluetooth Mobile Credentials HID, AWID and Farpointe (HAF) prox cards and fobs
• Operating Temp - -31° F to 150° F (–35° C to +66° C)
• Operating Humidity - 0% to 90% Relative Humidity
• Audio Tone Beeper - Included Standard
• Ratings - IP67
• Warranty - Limited Lifetime
