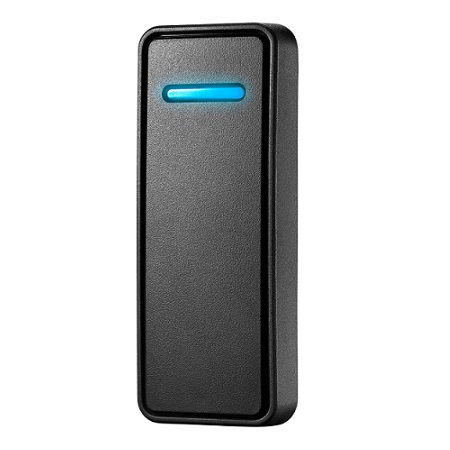

BT135-W Linear Indoor/Outdoor Reader Bluetooth and 13.56 MHz Wiegand with 2-N-1 Mullion and Single Gang Mount

BT135-W is our most advanced reader yet. It combines the power of Bluetooth mobile credentials with the enhanced security of 13.56 Smart cards and fobs. Bluetooth mobile credentials provide users the flexibility of accessing doors with their smartphones, while 13.56 MHz Smart cards offer something that traditional cards & fobs cannot: 128-bit AES encryption. BT135-W outputs reader-to-controller data in Wiegand format, making it compatible with a vast majority of existing access control panels.

Specifications

• Frequency - BLE 2.4 GHz + 13.56 MHz (contactless prox card)
• Mounting - Includes slim mullion mount AND single-gang mount
• Dimensions
  • Mullion - 1.48" W x 4.74" H x 0.54" D (37.5 mm x 120 mm x 13.7 mm)
  • Single-Gang - 2.99" W x 4.74" H x 0.54" D (76.2 mm x 120 mm x 13.7 mm)
• Certifications - FCC, CE, RCM, ETL, IP67
• Voltage - 8-14 VDC
• Current Draw - 60 mA Typical. 250 mA peak
• Read Range
  • Mobile Credentials - Up to 2", Up to 10", Up to 15', Up to 30', Tap and Go
  • Physical Credentials - Up to 3"
• Cabling
  • Less than 300 ft - 24 AWG minimum, multi-conductor stranded with an overall foil shield recommended
  • 300 - 500 ft - 22 AWG minimum, multi-conductor stranded with an overall foil shield recommended
• Interfaces Supported - Linear Bluetooth Mobile Credentials Linear Smart cards and fobs
• Operating Temp - -31° F to 150° F (–35° C to +66° C)
• Operating Humidity - 0% to 90% Relative Humidity
• Audio Tone Beeper - Included Standard
• Ratings - IP67
• Warranty - Limited Lifetime
