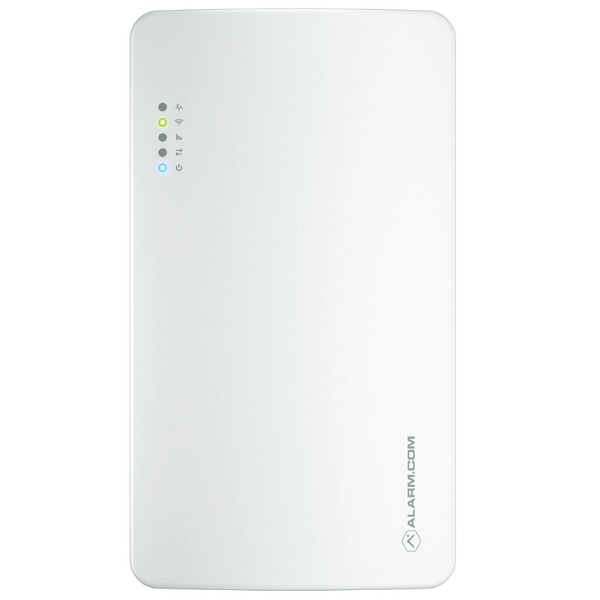

ADC-SEM300-VT-AT Alarm.com System Enhancement Module Vista Dual Path 4G LTE - AT&T

Benefits

• Enable wireless reporting of alarms and other system events using the LTE wireless (cellular) network and Broadband Ethernet
• Configure and support installations from any browser or smartphone using Alarm.com’s familiar and easy-to-use web and mobile support tools, including the Partner Portal and MobileTech
• Enable Alarm.com interactive monitoring and alerting for end users
• Integrate Alarm.com’s home automation and energy management services with the SEM’s built-in Z-Wave Plus capabilities
• ETL listed to UL985, UL1023, and ULC S545

Specifications

• Power requirements: - 12 V nominal, 125 mA nominal (continuous), 230 mA max
• Cellular network: - 4G LTE with 3G HSPA, 2G GSM fallback
• Panel interfaces: - Two keypad BUS connections, 12 V power and ground
• Enclosure indicators: - Five LEDs (red, green, yellow, or blue)
• Operating temperature: - 14 to 131°F (-10 to 55°C)
• Storage temperature: - -30 to 140°F (-34.4 to 60°C)
• Humidity: - 90% relative humidity non-condensing
• Enclosure dimensions: - 7.66 x 4.35 x 1.65 in. (19.46 x 11.05 x 4.19 cm)
• Enclosure color: - White
• Case material: - Fire-retardant PC/ABS, PC

ADC-SEM300-VT-AT Specifications PDF
