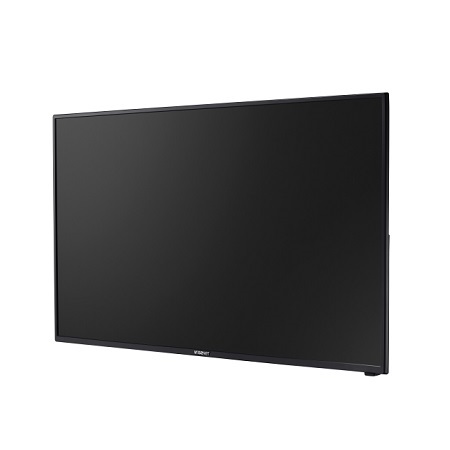

SMT-4343 Hanwha Techwin 43" LED Monitor, 2160p (4K) DVI HDMI VGA CVBS

Specifications

Display

• Screen Size - 42.5"
• Max Resolution - 3840 x 2160
• Brightness - 300 cd/m²
• Contrast Ratio - 800:1(Min)1000:1(Typ)
• Aspect Ratio - 16:09
• Viewing Angle H-V - 178°/178°
• Display Colour - 1.07G (8bits + FRC )
• Response Time - 8ms(G to G)
• Panel Life - 30,000 hours

Interface

HDMI

• Connector - HDMI 1EA
• Available Format
  • 640 x 480@60Hz/70Hz/72Hz/75Hz (VGA), 720 x 400@50Hz/60Hz/70Hz
  • 720x576@50Hz, 800 x 600@56Hz/60Hz/72Hz/75Hz (SVGA)
  • 832 x 624@75Hz, 1,024 x 768@60Hz/70Hz/75Hz (XGA)
  • 1,152 x 864@60Hz/75Hz, 1,280 x 720@60Hz, 1,280 x 800@60Hz
  • 1,280 x 1,024@60Hz/75Hz (SXGA), 1,360 x 768@60Hz
  • 1,440 x 900@60Hz/75Hz, 1,600 x 900@60Hz, 1,680 x 1,050@60Hz
  • 1,920 x 1,080i@60Hz, 1,920 x 1,080p@60Hz,1920x1440@60Hz, 2560x1440@60Hz, 3840x2160p@30Hz/60Hz

DP

• Connector - DP 1EA
• Available Format
  • 640 x 480@60Hz/70Hz/72Hz/75Hz (VGA), 720 x 400@50Hz/60Hz/70Hz
  • 720x576@50Hz, 800 x 600@56Hz/60Hz/72Hz/75Hz (SVGA)
  • 832 x 624@75Hz, 1,024 x 768@60Hz/70Hz/75Hz (XGA)
  • 1,152 x 864@60Hz/75Hz, 1,280 x 720@60Hz, 1,280 x 800@60Hz
  • 1,280 x 1,024@60Hz/75Hz (SXGA), 1,360 x 768@60Hz
  • 1,440 x 900@60Hz/75Hz, 1,600 x 900@60Hz, 1,680 x 1,050@60Hz
  • 1,920 x 1,080i@60Hz, 1,920 x 1,080p@60Hz,1920x1440@60Hz, 2560x1440@60Hz,3840x2160p@30Hz/60Hz

Audio

• Connector - Audio Out
• Output Signal - Loop-through line level(PC only), Speakers : 2x10W
• Application Support - Remote Controller

On Screen Display (OSD)

• Functions - VESA DPM Compatible
• Language - Korean, English, Pусский, Deutsch, Français, Españo, Italiano, Português, Chinese (Simplified,Traditional), Japanese, Arabic

General

Electrical

• Input Voltage - AC 100 ~ 240V(50/60Hz)
• Power Consumption - <80W

Environmental

• Operating Temperature - +32°F ~ +104°F (0 ~ +40°C)
• Operating Humidity - 10% ~ 80% (non-condensing)

Mechanical

• Dimensions without Stand - 38.07" x 22.04" x 2.89" (967.0 x 560.0 x 73.5mm)
• Bezel Size - 8.6/16.4mm(Top/Bottom)
• Weight without Stand - 16.75lb (7.6Kg)
• Cabanet Color - Black
• VESA Mounts Interface - 100*100mm /400*200mm

Accessory

• Power cable, HDMI Cable, Remote Controller. Optional desktop stand SBM-4343

SMT-4343 Specifications PDF
