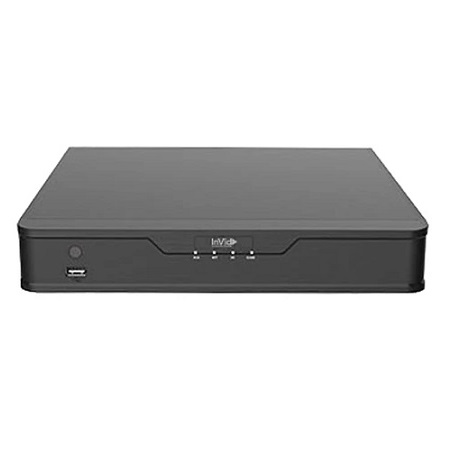

VIS-D1A-16/20TB InVid Tech 16 Channel HD-TVI/HD-CVI/AHD/Analog + 8 Channel IP DVR 60FPS @ 8MP - 20TB

Specifications

• Model - VIS-D1A-16

Video/Audio Input

• Analog Video Input - 16-ch, BNC
• IP Video Input - 8-ch(only IP up to 24ch), each channel up to 4K
• Supported Analog Camera Types
  • Support AHD input: 8MP@15fps(channel1-channel4) 5MP@20fps, 4MP@30fps, 3MP@30fps (channel1-channel4), 1080P@30fps, 720P@60fps
  • Support TVI input: 8MP@15fps(channel1-channel4), 5MP@20fps, 4MP@30fps, 3MP@20fps (channel1 - channel4), 1080P@30fps, 720P@60fps
  • Support CVI input: 8MP@15fps(channel1-channel4), 4MP@30fps, 1080P@30fps, 720P@60fps, Support CVBS input
• Audio Input - 1-ch, RCA
• Two-way Audio - 1-ch, RCA
• Channel Associated Audio - 1-ch, RCA

Network

• Incoming Bandwidth - 72Mbps
• Outgoing Bandwidth - 80Mbps
• Remote Users - 128
• Protocols - TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE

Video/Audio Output

• CVBS Output - 1-ch, BNC
• VGA Output - 60fps @ 1920x1080p, 50fps @ 1920x1080p, 60fps @ 1600x1200, 60fps @ 1280x1024, 60fps @ 1280x720, 60fps @ 1024x768
• HDMI Output - 60fps @ 1920x1080p, 50fps @ 1920x1080p, 60fps @ 1600x1200, 60fps @ 1280x1024, 60fps @ 1280x720, 60fps @ 1024x768
• Recording Resolution - 8MP Lite/5MP Lite/4MP Lite /3MP/1080P/960P/720P/960H/4CIF/CIF
• Audio Output - 1-ch, RCA
• Synchronous Playback - 16-ch

Encoding

• Recording Frame Rate - Main stream: 8MP Lite@8fps channel1-channel4, 5MP Lite@12fps, 4MP Lite@15fps, 3MP@15fps(channel1 - channel4), 2MP@15fps, 720P@30fps, Sub stream: D1@30fps(Max)
• Recording Resolution - 8MP Lite/5MP Lite/4MP Lite /3MP/1080P/960P/720P/960H/4C IF/CIF

Hard Disk

• SATA - 2 SATA interface
• Capacity - up to 14TB WD/Up to 18TB Seagate

External Interfaces

• Network Interface - 1RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces
• USB Interface - Rear panel, 1 x USB3.0, Front panel 1xUSB2.0
• Serial Interface - 1 x RS485

General

• Power Supply - 12V DC, Power Consumption: ≤ 12 W( without HDD )
• Working Environment - 14°F~+131°F (-10°C~+ 55°C), Humidity ≤ 90% RH (non-condensing)
• Dimensions(WxDxH) - 15" x 12.4"x2.1" (380mm x315mmx 53mm)
• Weight ( without HDD ) - 4.19lb (≤1.9 Kg)

VIS-D1A-16/20TB Specifications PDF
