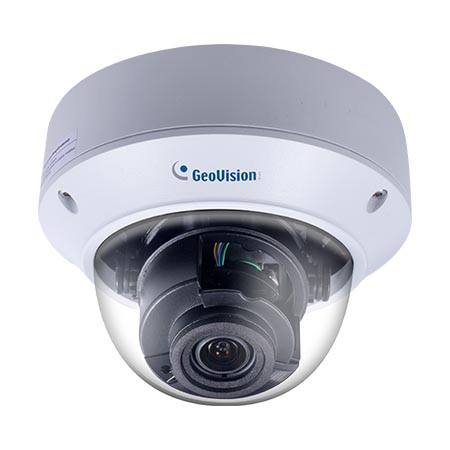

GV-TVD4810 Geovision 2.7-13.5mm Motorized 30FPS @ 4MP Outdoor IR Day/Night WDR Vandal Proof Dome IP Security Camera 12VDC/PoE

GV-TVD4810 is an outdoor, network camera equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera adheres to IK10 and IP67 standards, and can be powered through PoE.

Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. Integrated with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real time alert, events playback and more.

Specifications

Camera

• Image Sensor - 1/3" progressive scan super low lux CMOS
• Picture Elements - 2688(H) x 1520 (V)
• Minimum illumination - Color: 0.002 Lux (F1.2, AGC ON), IR On: 0 Lux
• Shutter Speed - Automatic, Manual (1/6 ~ 1/100000 sec.)
• White Balance - Automatic, Manual
• Gain Control - Automatic, Manual
• S/N Ratio - 56db
• WDR Pro - Yes
• Dynamic Range - Up to 120 dB

Lens

• Megapixel - 4MP
• Day/Night - Yes (with removable IR-Cut Filter)
• Focal Length - 2.7 ~ 13.5 mm
• Lens Type - Motorized varifocal lens
• Maximum Aperature - F/1.2
• Mount - Ø14 mm
• Horizontal FOV - 98° ~ 31°
• Operation - Focus - Automatic / Manual, Zoom - 5x Optical Zoom, Fixed
• IR LED Quantity - 2 IR LEDs
• Max. IR Distance - 130 ft.

Operation

• Video Compression - H.265, H.264, MJPEG
• Video Streaming - Triple Streams
• Frame Rate - 30 fps at 2688 x 1520, 30 fps at 2560 x 1440, 30 fps at 2304 x1296 (60 / 50 Hz) * The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes).
• Video Analytics - Motion Detection, Tampering Alarm, Audio Detection *Tampering alarm and audio detection are only accessible through the camera's Web interface, which can be used to trigger alerts such as e-mail and FTP
• Image Setting - Brightness, Contrast, Saturation, Sharpness, Flicker-less, 3D Noise Reduction, Image Orientation (Flip, Mirror, 0°, 90°, 180°, 270°‐including Corridor format)
• Audio Compression - G.711
• Audio Support - Two‐way Audio (external speaker required)
• Digital I/O - Input: 1 Input, dry contact, NO / NC, Output: 1 Relay Output (1A 30V DC / 0.3A 125V AC)

Face Detection

• Environment - 100 lux
• Detectable face angle - Tilt (Up/Down): ≤ 10°, Swing (Left/Right): ≤ 30°
• Max. number of faces - Up to 40
• Min. face image pixel requirement - 80 pixels

Deep Learning Function

• AI Analytics - Intrusion, Crossing Line, Entering Area, Face Detection, Leaving Area (Human & Vehicle classification), People Flow Counting, Crowd Density Monitoring

Video Resolution

• Main Stream - 2688 x 1520 (Default), 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720
• Sub Stream - 1280 x 720, 720 x 576, 704 x 288, 640 x 360 (Default), 640 x 480, 352 x 288
• Third Stream (Closed by Default) - 720 x 576, 704 x 288, 640 x 360,352 x 288

Network

• Interface - 10/100 Ethernet
• Protocol - 802.1x, ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP, ONVIF (Profile G, S, T)

Mechanical

• Camera Angle Adjustment - Pan - 0° ~ 355°, Tilt - 0° ~ 80°, Rotation - 0° ~ 355°
• Connectors - Power - DC JACK (DC 12 V, 1.25 A), PoE, Ethernet - RJ-45, Audio - 1 In (built‐in or external microphone with power supply); 1 Out (Audio Out Wire), Digital I/O 4‐pin terminal block pitch 3.5 mm (0.14"), Local Storage - Micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10) * UHS-II card type is not supported

General

• Environment Temperature - -22°F ~ 140°F
• Humidity - 0% to 95% (no condensation)
• Power Source - 12V DC / PoE (IEEE 802.3af)
• Max. Power Consumption - 7 W
• Dimensions - Ø 5.8 x 4.4"
• Weight - 2.03 lbs
• Ingress Protection - IP67
• Vandal Resistance - IK10 for metal casing
• Regulatory - CE, FCC, RoHS compliant

Web Interface

• Installation Management - Web‐based configuration
• Maintenance - Firmware upgrade through Web Browser or Utility
• Access from Web Browser - Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Text Overlay, Image Masking
• Language - Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Traditional Chinese

Applications

• Software Supported - GV‐VMS (V17.4.2 / V18.2.1), GV‐DVR / NVR (V8.9.1), GV‐Control Center (V3.8.0), GV‐Recording Server / Video Gateway (V2.0.0), GV‐Edge Recording Manager Win version (V2.0.0), GV‐Redundant / Failover Server (V1.2.0), GV-Mobile Server (V1.5.1)
• Smart Device Access - GV-Eye for iOS and Android
• Live Viewing - Browser (Chrome, Edge, Firefox, Safari), Mobile App

GV-TVD4810 Specifications PDF
