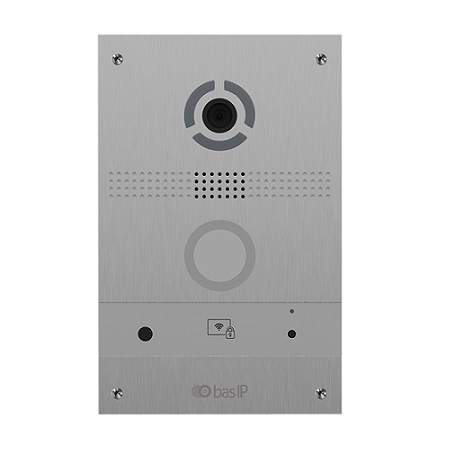

AV-08FB-SILVER BAS-IP Individual Entrance Panel with Face Recognition - Silver

BAS-IP AV-08FB is a stylish and unique individual entrance panel with face recognition. The panel is equipped with a 2-megapixel camera and a piezoelectric call button.

Specifications

• Panel type - Individual
• Camera - 1/3"
• Angle - 100° horizontal
• Resolution - 2.0 Мpx
• Output video - 1080p (1920x1080), H.264 Main Profile
• Night backlight - 6 LEDs
• Light sensitivity - 0.01 Lux
• ONVIF - Yes
• RTSP - Yes (video + audio)
• Operating temperature - -40 – +65 °С
• Storage Humidity - 0% – 60%
• Operating Humidity - 0% – 86%
• Protection class - IP65
• IK-Code - IK07
• Power consumption - 6.5 W, in standby – 3.8 W
• Power supply - PoE, +12 V DC (+8% -4%)
• Case - Aluminum
• Call button - Piezoelectric
• Colours - Silver, Black, Gold
• Dimensions - 125x199x48 mm
• Box dimensions - 222x142x100 mm
• Gross weight - 1.31 kg
• Installation Type - Flush mounting, Wall mounting (with BR-AV8)
• Interface - Multi-language, WEB-interface
• Talking mode - Duplex
• Identifiers in the panel memory - 20000
• Face recognition identifications - 10000
• Authentication - Separate password allowing access to the settings for the WEB-interface
• Integration with ACS - Output WIEGAND-26, 32, 34, 37, 40, 42, 56, 58, 64; Input WIEGAND-26, 34, 58
• Lock opening - By means of a monitor, Face Recognition Identification, By QR code, By guest link, By Pin, By access card, By license plates, The BAS-IP Link app, The BAS-IP Intercom app, The BAS-IP UKEY app, From API
• Access control - Face Recognition, UKEY (EM-Marin/ MIFARE/NFC/Bluetooth), Multi-factor authentication
• Additionally - SIP P2P, Built-in Relay, PoE electromechanical lock Power supply, 2 Separate inputs for Door sensors, Proximity Sensor, Tamper sensor, Open API, Link Software support

AV-08FB-SILVER Specifications PDF
