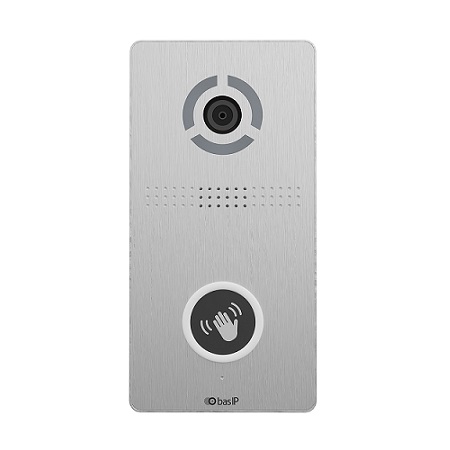

AV-05SD-SILVER BAS-IP Individual Entrance Panel with Touch-Free Button - Surface Mounted - Silver

BAS-IP AV-05SD - stylish vandal-proof panels with installation by the surface method. This individual entrance panel is suitable for installation both in apartments and in the office, factory, gas station, etc.

Specifications

• Panel type - Individual
• Camera - 1/3"
• Camera Angle - 100° horizontal
• Resolution - 2.0 Мpx
• Output video - 720p (1080x720), H.264 Main Profile
• Night backlight - 6 LEDs
• Light sensitivity - 0,01 Lux
• Response distance - 15-25 cm
• Protection class - IP65
• IK-Code - IK08
• Working temperature - -40 – +65 °С
• Operating humidity - 0% – 89%
• Storage Humidity - 0% – 60%
• Power consumption - 6,5 W, in standby – 3,6 W
• Power supply - PoE, +12 V DC (+12% -6%)
• Case - Aluminum
• Colors - Black, silver, gold
• Dimensions of the panel - 88x173.5x41 mm
• Installation - Wall mounting
• Gross weight - 0,76 kg

AV-05SD-SILVER Specifications PDF
