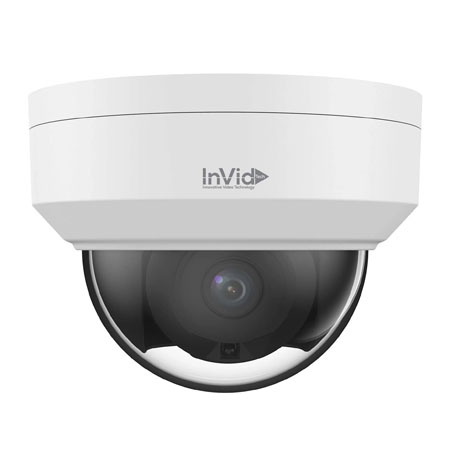

VIS-P5DRXIR28NH-LC InVid Tech Vision Series 2.8mm 25FPS @ 5MP Outdoor IR Day/Night WDR Dome IP Security Camera 12VDC/PoE

Specifications

Camera

• Sensor - 1/2.7", 5.0 megapixel, progressive scan, CMOS
• Lens - 4.0mm@F1.6
• DORI Distance - Lens (mm) - 4, Detect(ft) - 295.3(90m), Observe(ft) - 118.1(36m), Recognize(ft) - 59.1(18m), Identify(ft) - 29.5(9m)
• Angle of view(H) - 91.2°
• Angle of View (V) - 47.9°
• Angle of View (O) - 95.9°
• Adjustment angle - Pan: 3° ~ 360° Tilt: 0° ~ 68° Rotate: 3° ~ 360°
• Shutter - Auto/Manual, 1 ~ 1/100000s
• Minimum Illumination - Support Easystar: Colour: 0.003Lux (F1.6, AGC ON), 0Lux with IR on
• Day/Night - IR-cut filter with auto switch (ICR)
• Digital noise reduction - 2D/3D DNR
• S/N - >56dB
• IR Range - Up to 98ft (30m) IR range
• Wavelength - 850nm
• IR On/Off Control - Auto/Manual
• Defog - Digital Defog
• WDR - 120dB

Video

• Video Compression - Ultra 265, H.265, H.264, MJPEG
• H.264 code profile - Baseline profile, Main profile, High profile
• Frame Rate
  • Main Stream - 5MP (2880x1620), Max 25fps;4MP (2560x1440), Max 25fps; 3MP (2304x1296), Max 30fps; 1080P (1920x1080), Max 30fps
  • Sub Stream - 720P (1280x720), Max 30fps; D1 (720x576), Max 30fps; 640x360,Max 30fps; 2CIF(704x288), Max 30fps; CIF(352x288), Max 30fps;
• Video Bit Rate - 128 Kbps~16 Mbps
• 9:16 Corridor Mode - Supported
• OSD - Up to 4 OSDs
• Privacy Mask - Up to 4 areas
• ROI - Up to 8 areas
• Motion Detection - Up to 4 areas


• White Balance - Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Digital Noise Reduction - 2D/3D DNR
• Smart IR - Support
• Flip - Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
• HLC - Supported
• BLC - Supported

Smart

• Behavior Detection - Cross line, intrusion (based on human body detection) motion detection, tampering alarm, audio detection
• General Function - Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication

Network

• Protocols - IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, 802.1x, SNMP
• Compatible Integration - ONVIF (Profile S, Profile G, Profile T), API
• Clients - InVid Vision (Mobile App), Vision Tools (IP Utility), InVid CMS
• Web Browser - Plug-in required live view: IE9+, Chrome 41 & below, Firefox 52 & below, Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+

Storage

• Edge Storage - Micro SD, up to 256 GB
• Network Storage - ANR,NAS(NFS)

Interface

• Network - 10/100M Base-TX Ethernet
• Built-in Mic - Supported

Certifications

• Certifications - CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15

General

• Power - DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 4.5W
• Dimensions (Ø x H) - Ø4.3” x 3.3” (Φ109 x 83mm)
• Net Weight - 0.79lb (0.36kg)
• Material - Metal + Plastic
• Working Environment - -22°F ~ 140°F (-30°C ~ 60°C), Humidity: ≤95% RH (non-condensing)
• Strorage Environment - -22°F ~ 140°F (-30°C ~ 60°C), Humidity: ≤95% RH (non-condensing)
• Surge Protection - 4KV
• Ingress Protection - IP67
• Vandal Resistant - IK10
