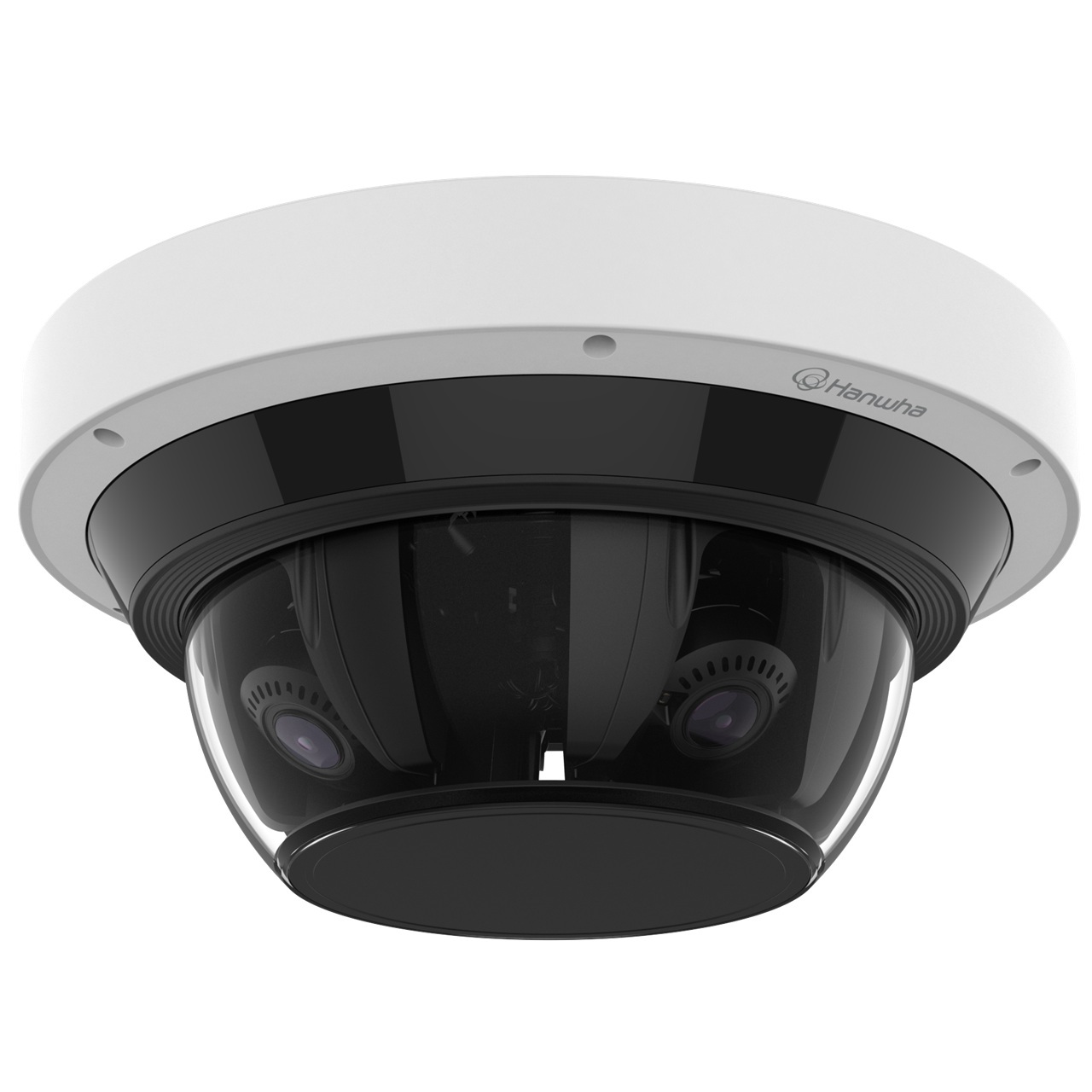

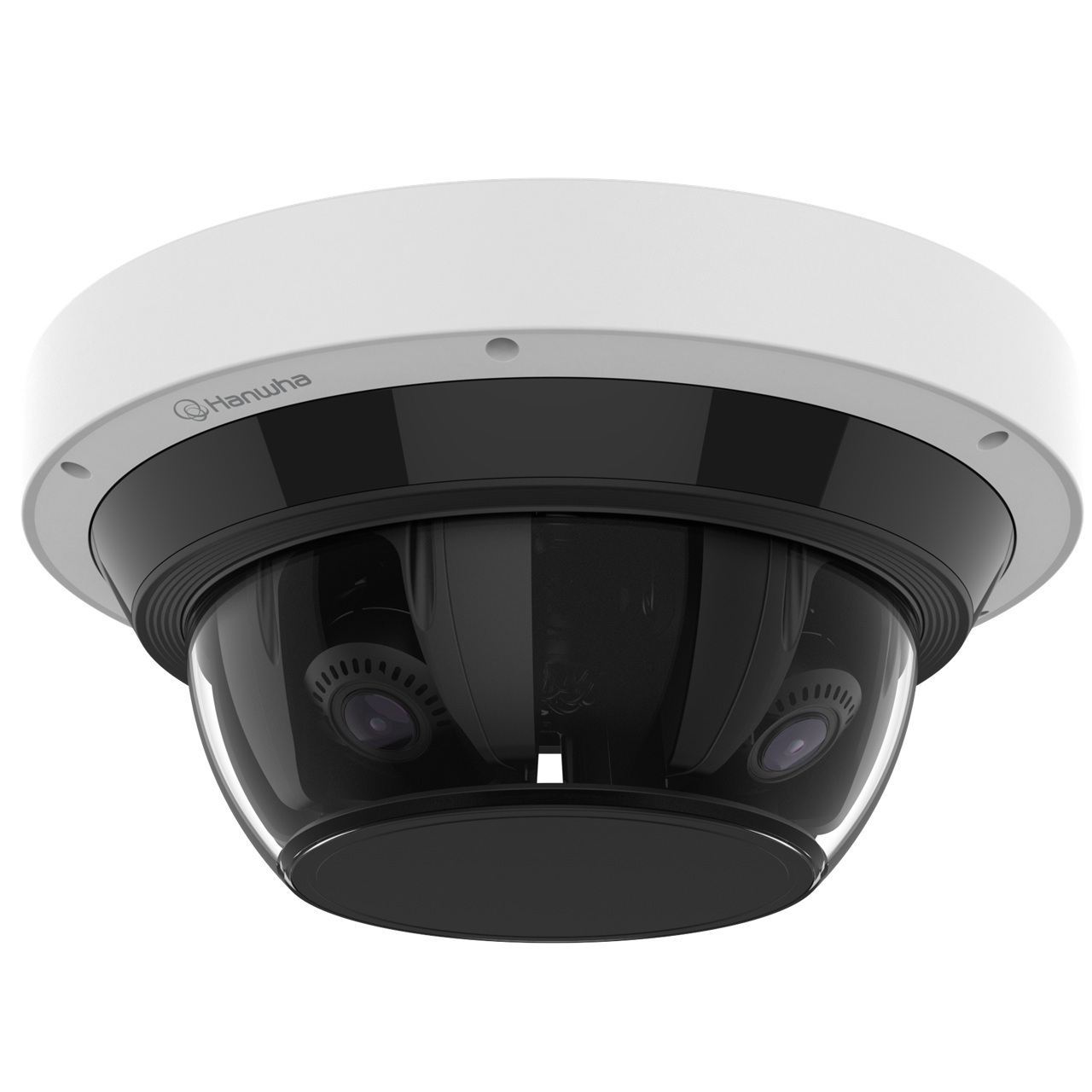

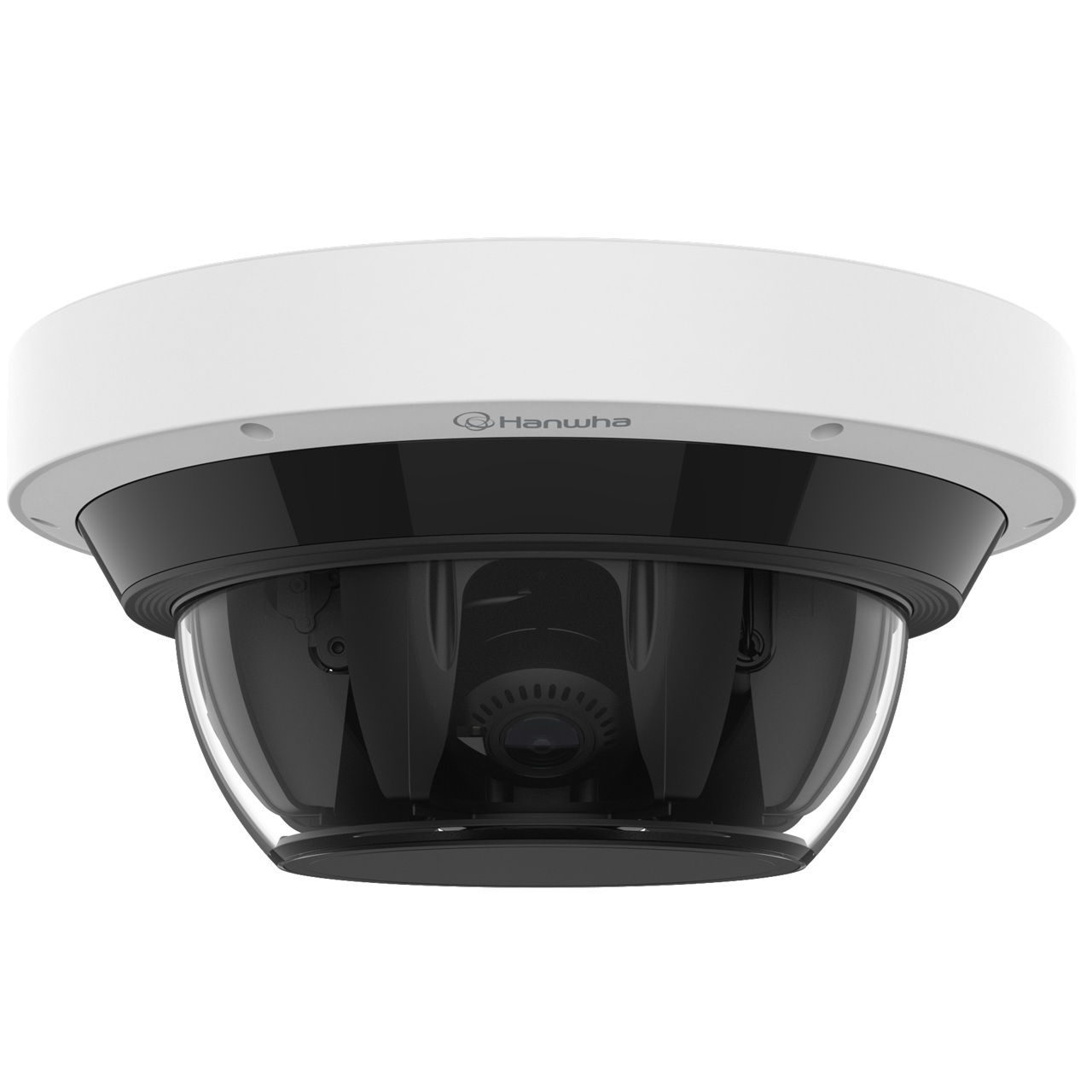

PNM-9084RQZ1 Hanwha Vision 3.2~10mm Motorized 60FPS @ 2MP Outdoor IR Day/Night WDR Dome IP Security Camera 12VDC/PoE

Specifications

Video

• Imaging Device - Size: 1/2.8"", Type: CMOS
• Resolution - 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
• Max. Framerate - H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
• Min. Illumination (Lux) - Color: 0.05lux(F1.6,30 IRE) BW: 0Lux(IR LED on)

Lens

• Focal Length (Zoom Ratio) - 3.2~10mm(3.1x) motorized varifocal
• Max. Aperture Ratio - F1.6(Wide)~F2.9(Tele)
• Angular Field of View - H: 109.0°(Wide)~33.2°(Tele), V: 57.4°(Wide)~18.7°(Tele), D: 132.0°(Wide)~38.0°(Tele)
• Min. Object Distance - 0.5m(1.64ft)
• Focus Control - Simple focus
• Lens Type - DC auto iris

Pan / Tilt / Rotate

• Pan/Tilt/Rotate Range - Remote adjustment (Max. 200cycles) 0~360Ëš / 30~80Ëš / 0~90Ëš

Operational

• Camera Title - Displayed up to 85 characters
• Day & Night - Auto (ICR)
• Backlight Compensation - BLC, HLC, WDR, SSDR
• Wide Dynamic Range (dB) - 120 dB
• Digital Noise Reduction - SSNRV
• Digital Image Stabilization - Support
• Defog - Support
• Motion Detection - Quantity: 8ea, Shape: 8point Polygonal zones
• Privacy Masking - 32ea, polygonal zones - Color: Grey, Green, Red, Blue, Black, White - Mosaic
• Gain Control - Low, Middle, High
• White Balance - ATW, AWC, Manual, Indoor, Outdoor
• LDC - Support
• Electronic Shutter - Mode: Minimum, Maximum, Anti, flicker; Speed Range: 2~1/12,000sec
• Video Rotation - Flip, Mirror
• Analytics - Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection
• Alarm I/O - In/Out: Input 1ea, Output 1ea
• Alarm Triggers - Analytics, Network disconnect, Alarm input
• Alarm Events When Alarm Trigger Occurred - File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC at event triggers Alarm output Handover
• Audio In - Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
• Audio Out - Line out, Max.output level: 1Vrms
• IR Viewable Length - 30m(98.43ft)

Network

• Ethernet - Metal shielded RJ-45(10/100/1000BASE-T)
• Video Compression - H.265 / H.264: Main / Baseline / High, MJPEG
• Audio Compression - G.711 u-law /G.726 G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
• Smart Codec - Manual(5ea area), WiseStreamâ…¡
• Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
• Streaming - Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP
• Security - HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) Device Certificate(Hanwha Techwin Root CA)
• Application Programming Interface - ONVIF Profile S/T SUNAPI(HTTP API) Wisenet open platform
• Direct Cloud Connection - Optional (needs gateway)

Security

• User authentication - Digest Authentication
• Network authentication - IEEE 802.1X(EAP-TLS, EAP-LEAP)
• Secure Communication - HTTPS
• Access Control - IP-based access control
• Data Protect - Encryption credentials, Encrypt compress for live recording file export
• Audit - Access / System / Event Log management
• Device ID - Device certificate(Hanwha Vision Root CA
• Secure Storage - SDcard partition encrypt(AES-256)

General

• Webpage Language - English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Memory - 5GB RAM, Flash: 1280MB
• Edge Storage - Micro SD/SDHC/SDXC: Max. 256GB x 4slot(Total 1TB)

Environmental & Electrical

• Operating Condition - Temperature: -40°C~+55°C(-40°F~+131°F), Humidity: 0~90% RH(non-condensing), Others: Start up should be done at above -35°C
• Storage Condition - Temperature: -50°C~+60°C(-58°F~+140°F), Humidity: 0~90% RH(non-condensing)
• EPA(Effective Projected Area) - 0.036㎡
• Input Voltage - HPoE(IEEE802.3bt type4, Class8), 12VDC
• Power Consumption - PoE: Max. 42 W, Typical 30 W 12VDC: Max. 38 W, Typical 28.2 W

Mechanical

• Color - White
• Material - Aluminum
• RAL Code - RAL9003
• Product Dimensions - ø315x145.9mm(12.40x5.74"")
• Product Weight - 5,200g(11.5lb)
• Compatible Conduit Hole - 19.1mm(3/4"")(M25)
• Compatible Gang Box - Single, Double, 4"" Octagon, Square

Certifications & Standards

• Environment - IEC 60529 IP66, IEC 62262 IK10, NEMA 250 type 4X

DORI (EN62676-4 Standard)

• Detect (25PPM/ 8PPF) - Wide: 27.4m(89.9ft) / Tele: 128.8m(422.6ft)
• Observe (63PPM/ 19PPF) - Wide: 62.5m(35.9)ft) / Tele: 51.5m(169.0ft)
• Recognize (125PPM/ 38PPF) - Wide: 5.5m(18.0ft) / Tele: 25.8m(84.5ft)
• Identify (250PPM/ 76PPF) - Wide: 2.7m(9.0)ft) / Tele: 12.9m(42.3ft)

PNM-9084RQZ1 Specifications PDF
