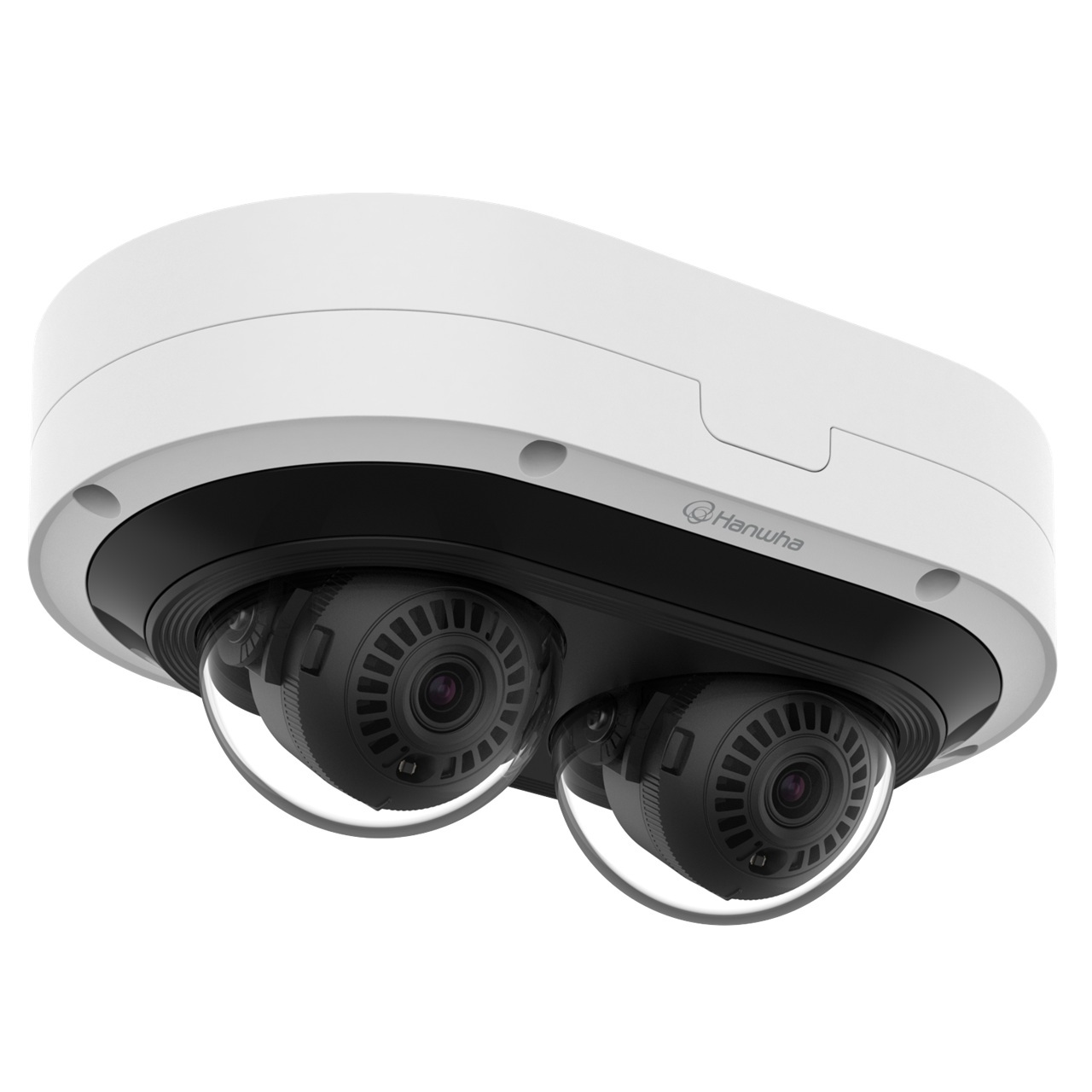

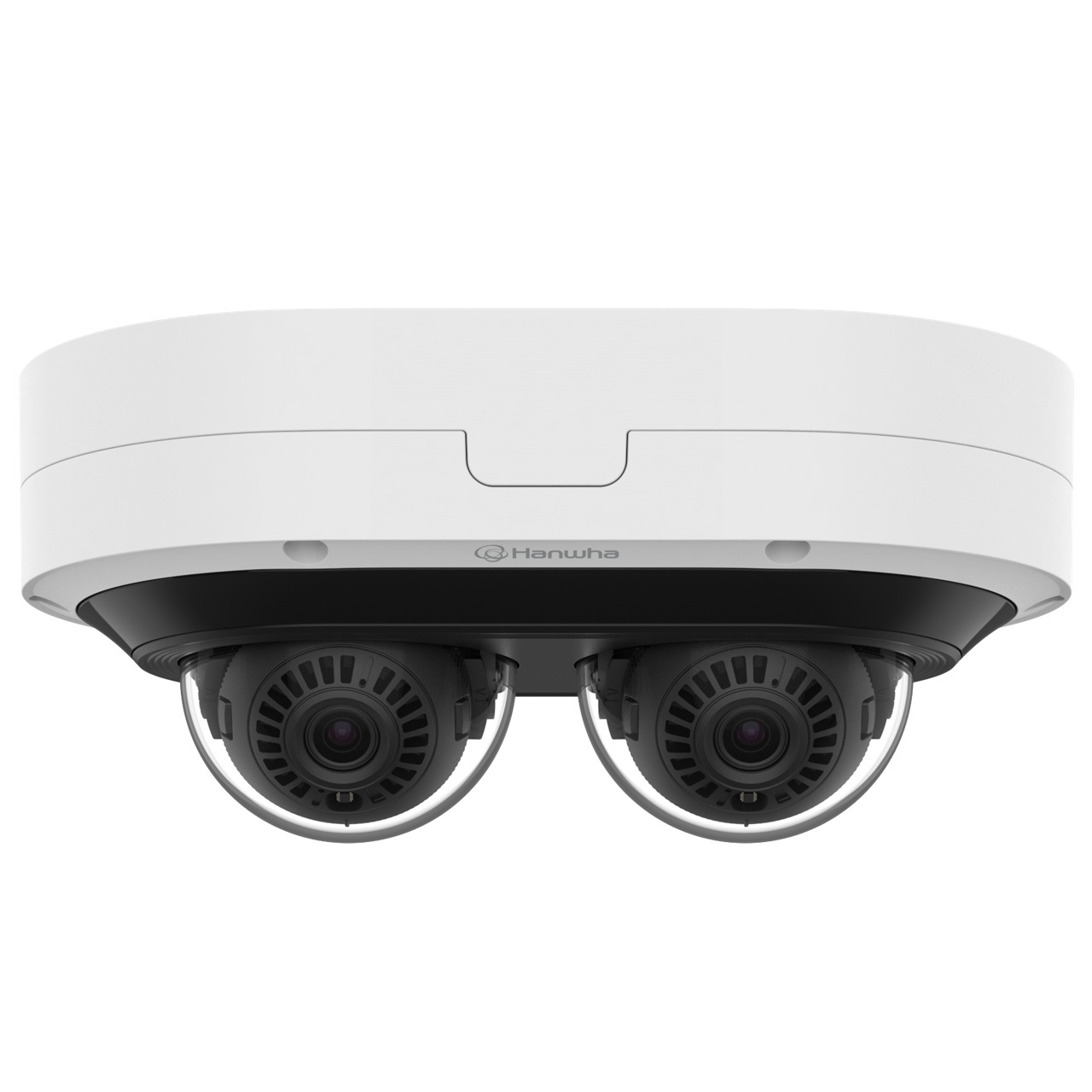

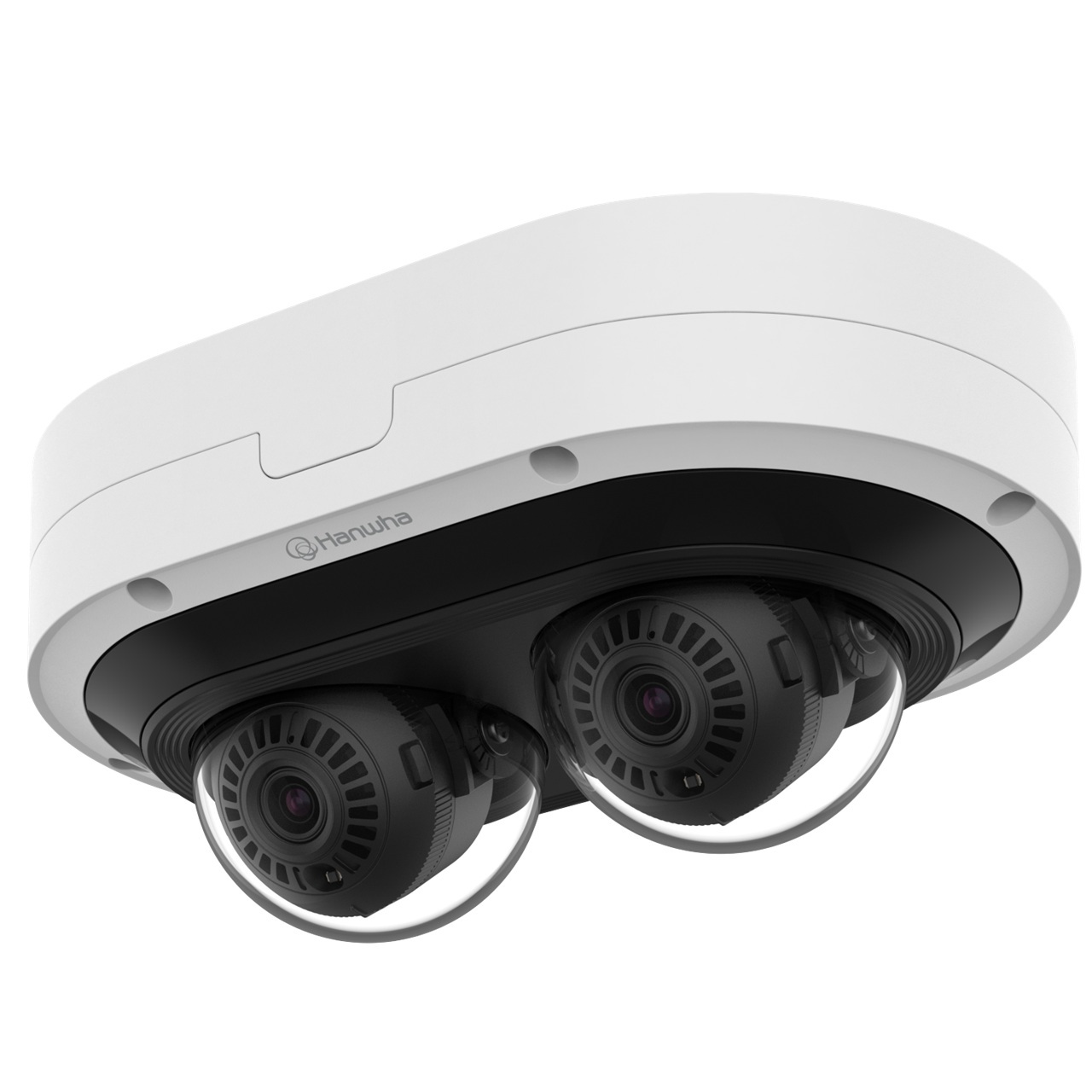

PNM-12082RVD Hanwha Vision 3.4~6.8mm Motorized 15FPS @ 12MP Outdoor IR Day/Night WDR Dome IP Security Camera PoE

Introduction

One installation. Two fields of view

Hanwha Vision 2-channel Multi-directional cameras can simultaneously monitor two areas with different field of views to help reduce the cost of installation and network runs.

Specifications

Video

• Imaging Device - 1/2.8" CMOS x 2CH
• Resolution - 3328x1872, 3072x1728, 2592x1944, 2688x1520, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
• Max. Framerate - H.265/H.264: 6MP Max.15fps MJPEG: Max.15fps
• Min. Illumination - Color: 0.16lux(F1.67, 1/30sec, 30IRE) BW: 0.016lux(F1.67, 1/30sec, 30IRE), 0lux(IR LED on)
• Video Out - USB: micro USB Type B, 1280x720 for installation

Lens

• Focal Length (Zoom Ratio) - 3.54~6.69mm(1.9x) motorized varifocal
• Max. Aperture Ratio - F1.67(Wide)~F2.64(Tele)
• Angular Field of View - H: 96˚(Wide)~47˚(Tele) V: 51˚(Wide)~26˚(Tele) D: 113˚(Wide)~54˚(Tele)
• Min. Object Distance - 1.5m(4.92ft)
• Focus Control - Simple focus
• Lens Type - Fixed Iris

Pan / Tilt / Rotate

• Pan/Tilt/Rotate Range - 0~355° / 0~78° / 0~180°

Operational

• Camera Title - Displayed up to 85 characters
• Day & Night - Auto (ICR)
• Backlight Compensation - BLC, HLC, WDR, SSDR
• Wide Dynamic Range - extremeWDR(120dB)
• Digital Noise Reduction - WiseNR, SSNRⅤ
• Defog - Support
• Motion Detection - 8ea, 8point Polygonal zones
• Privacy Masking - 32ea, 4point Quadrangle zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic
• Gain Control - Off / Max gain / Manual
• White Balance - ATW / AWC / Manual / Indoor / Outdoor
• LDC - Support
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker (2 ~1/12,000sec)
• Video Rotation - Flip, Mirror, Hallway view (90°/270°)
• Analytics - Analytics events* - Defocus detection, Motion detection, Tampering, Virtual line(Crossing/Direction), Virtual area(Loitering/Enter/Exit) * Support Audio detection, Sound classification via optional SPM-4210 I/O box
• Alarm I/O - * Support Alarm via optional SPM-4210 I/O box
• Alarm Triggers - Analytics, Network disconnect, Alarm input via optional SPM-4210 I/O box
• Alarm Events - When alarm trigger occurred - File upload(image) : e-mail/FTP - Notification : e-mail - Recording : SD/SDHC/SDXC or NAS recording at event triggers - Handover(PTZ preset, Send message by HTTP/HTTPS/TCP) - Alarm output via optional SPM-4210 I/O box
• Audio In - * Audio in via optional SPM-4210 I/O box
• Audio Out - * Audio out via optional SPM-4210 I/O box
• IR Viewable Length - 15m(49ft) 25m(82ft) based on scene

Network

• Ethernet - Metal shielded RJ-45 (10/100/1000BASE-T)
• Video Compression - H.265/H.264: Main/Baseline/High, MJPEG
• Smart Codec - Manual(5ea area), WiseStreamⅡ(Based on AI engine)
• Video Quality Adjustment - H.264/H.265: Target bitrate level control MJPEG: Target bitrate level control
• Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
• Streaming - Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
• Security - TPM 2.0 (FIPS 140-2 level 2) HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) Device Certificate(Hanwha Techwin Root CA, pre-installed) Secure by default certificate Secure OS/Boot/Storage, Verify firmware forgery
• Application Programming Interface - ONVIF Profile S/T SUNAPI(HTTP API) Open platform

General

• Webpage Language - English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Greek, Hungarian
• Edge Storage - Micro SD/SDHC/SDXC 1slot Max. 512GB
• Memory - 4GB RAM, 512MB Flash

Environmental & Electrical

• Operating Temperature / Humidity - -40°C~+55°C(-40°F ~ +131°F) / Less than 95% RH(Non-condensing) * Start up should be above at -35˚C
• Storage Temperature / Humidity - -50°C~+60°C(-58°F~+140°F) / Less than 95% RH(Non-condensing)
• Certification - IP66/IP67, NEMA4X, IK10
• Input Voltage - PoE+(IEEE802.3at, Class4)
• Power Consumption - PoE+: Max 18.3W, typical 13.5W

Mechanical

• Color / Material - White / Aluminum Hard-coated dome bubble
• RAL Code - RAL9003
• Product Dimensions / Weight - 215(W)x135(D)x93.2(H)mm(8.46"x5.31"x3.67") / 1330g
• Compatible Conduit hole / Gangbox - 1/2" (M20) single, double, 4" octagon, 4" square
• Hanging Mount (Dome) - SBP-215HMW
• Weather Cap (Dome) - SBV-215WCW

Certifications & Standards

• EMC - FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA - EN 55032 Class A, EN 50130-4 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A KS C 9832 Class A , KS C 9835
• Safety - UL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC/EN 62471
• Environment - IEC/EN 63000 IEC/EN 60529 IP66/67, IEC/EN 62262 IK10 NEMA 250 type 4X

DORI (EN62676-4 Standard)

• Detect (25PPM/ 8PPF) - Wide: 59.9m(196.62ft) / Tele: 153.1m(502.22ft)
• Observe (63PPM/ 19PPF) - Wide: 24.0m(78.65ft) / Tele: 61.2m(200.89ft)
• Recognize (125PPM/ 38PPF) - Wide: 12.0m(39.32ft) / Tele: 30.6m(100.44ft)
• Identify (250PPM/ 76PPF) - Wide: 6.0m(19.66ft) / Tele: 15.3m(50.22ft)
