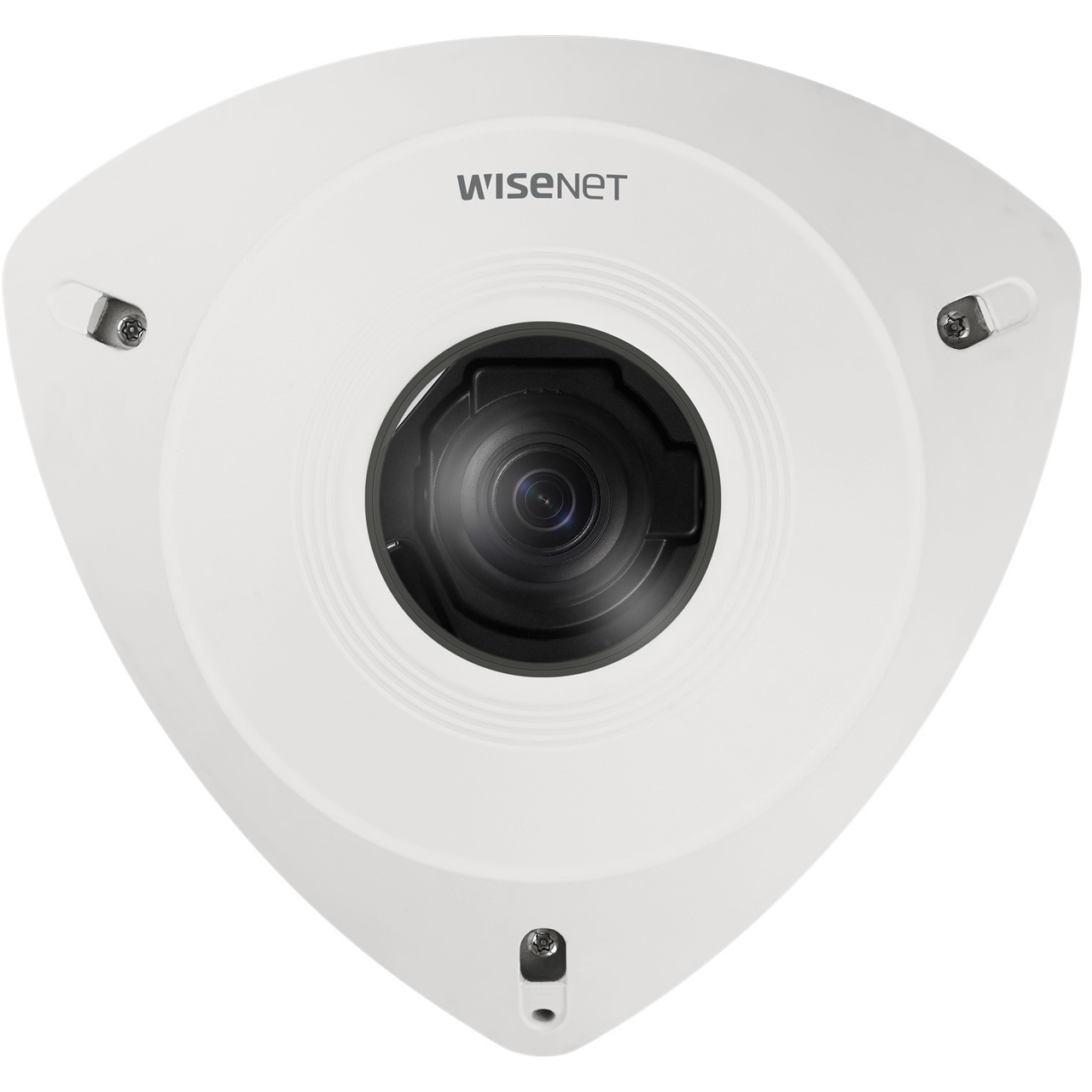

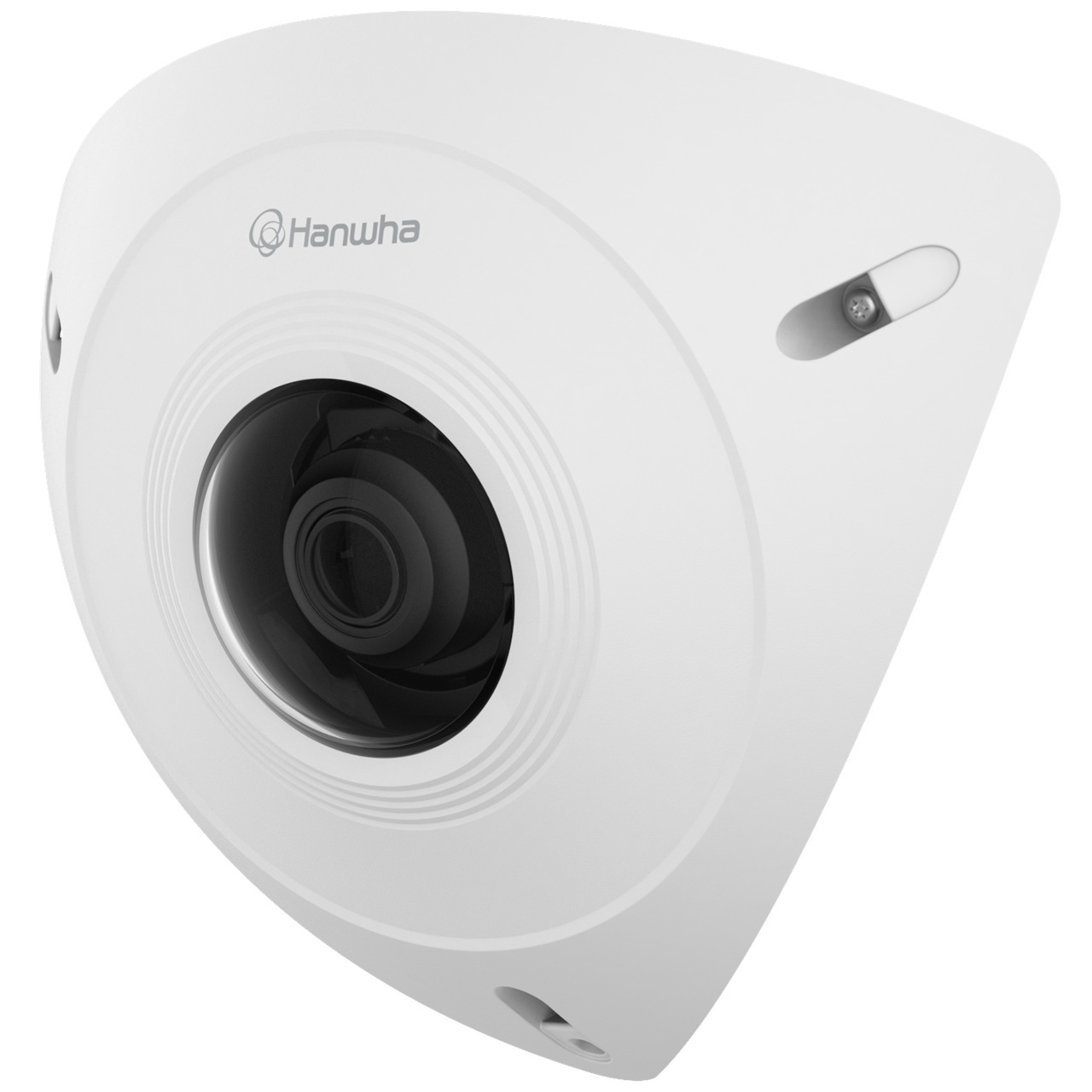

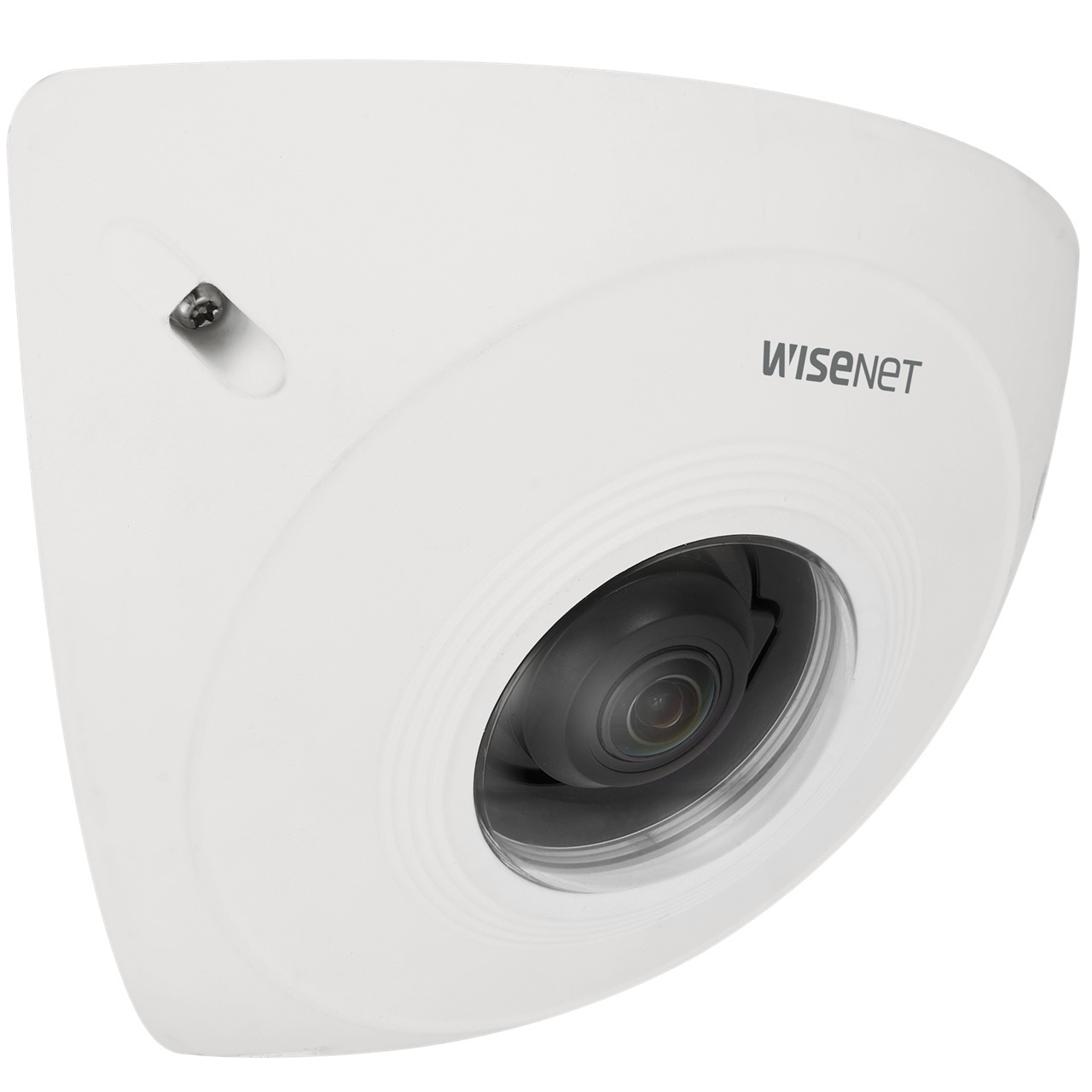

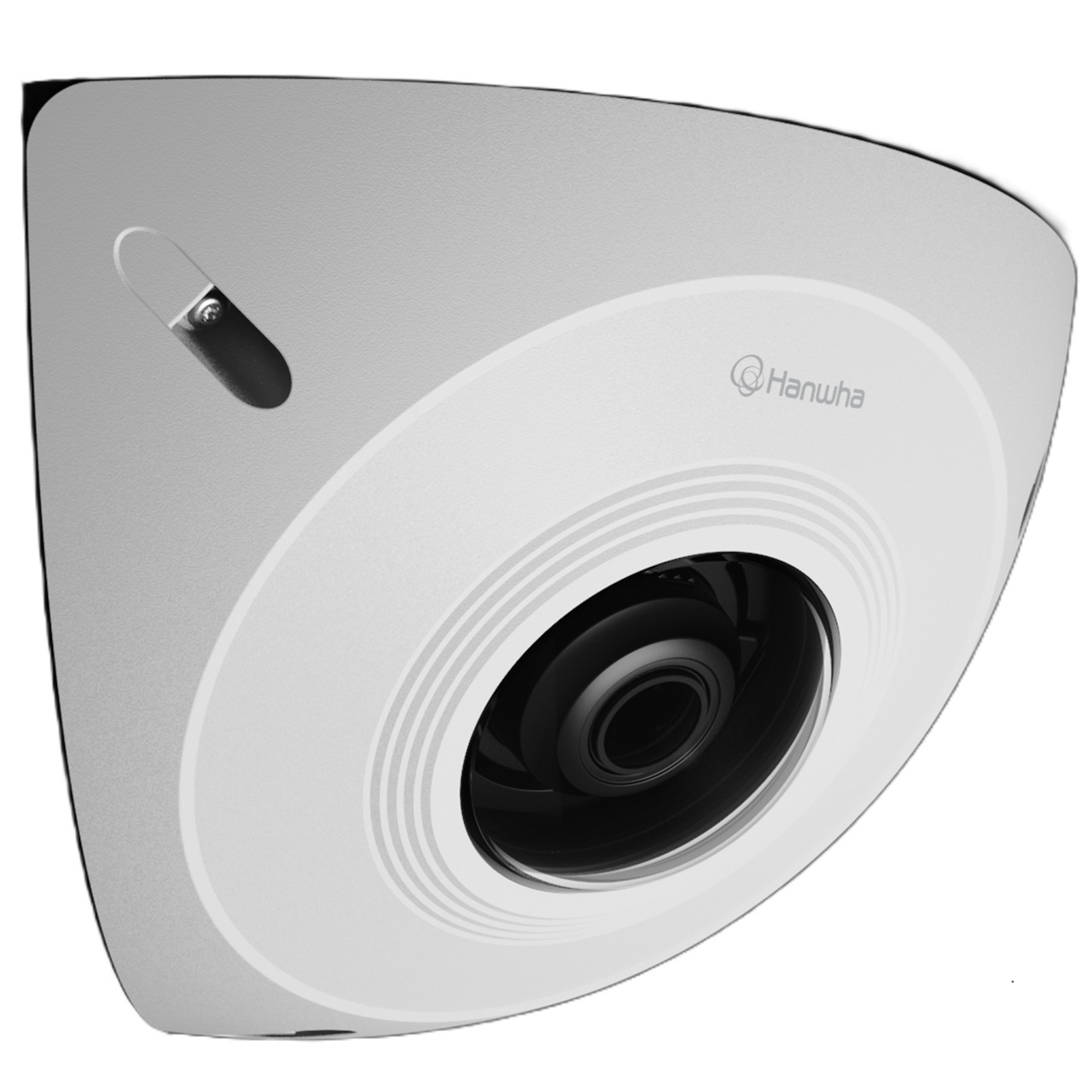

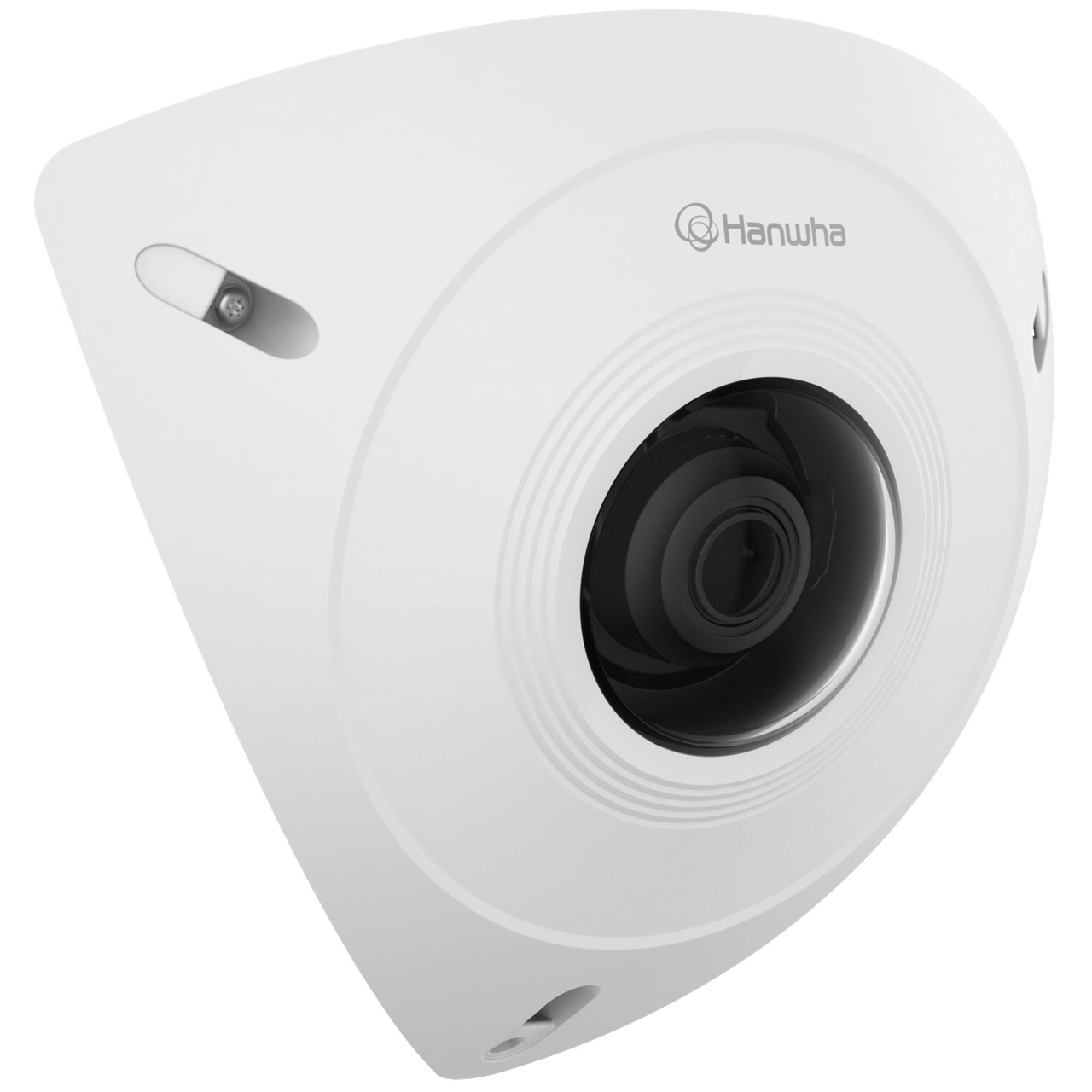

TNV-8011C Hanwha Vision T Series 2.3mm 30FPS @ 5MP Outdoor Day/Night WDR Corner IP Security Camera PoE

Specifications

Video

• Imaging Device - 1/2.8" CMOS
• Resolution - 2592x1944, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360
• Max. Framerate - H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps/12fps (60Hz/50Hz)
• Min. Illumination - Color: 0.1 lux (F2.3, 1/30sec) B/W: 0.02 lux (F2.3, 1/30sec)
• Video Out - CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB: Micro USB Type B, 1280x720 for installation

Lens

• Focal Length (Zoom Ratio) - 2.3mm fixed focal
• Max Aperture Ratio - F2.3
• Angular Field of View - H: 131° / V: 93.4° / D: 174°
• Focus Control - Fixed

Operational

• Camera Title - Displayed up to 85 characters
• Day & Night - Auto(ICR)
• Backlight Compensation - BLC, WDR, SSDR
• Wide Dynamic Range - (120dB)
• Digital Noise Reduction - SSNRV
• Digital Image Stabilization - Support
• Defog - Support
• Motion Detection - 4ea, polygonal zones
• Privacy Masking - 6ea, rectangular zones
• Gain Control - Low / Middle / High
• White Balance - ATW / AWC / Manual / Indoor / Outdoor( include Mercury & Sodium)
• LDC - Support
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker (2~1/12,000sec)
• Video Rotation - Flip, Mirror, Hallway view(90Ëš/270Ëš)
• Analytics - Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line, Audio detection
• Alarm I/O - Input 1ea / Output 1ea
• Alarm Triggers - Analytics, Network disconnect, Alarm input
• Alarm Events - File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output
• Audio In - Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
• Audio Out - Line out, Max.output level: 1Vrms

Network

• Ethernet - RJ-45(10/100BASE-T)
• Video Compression Format - H.265/H.264: Main/Baseline/High, MJPEG
• Audio Compression - G.711 u-law /G.726 selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
• Smart Codec - Manual(5ea area), WiseStreamâ…¡/li>
• Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
• - Unicast (6 users) / Multicast Multiple streaming (Up to 3 profiles)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, sRTP, ONVIF
• Security - HTTPS(SSL) login authentication Digest login authentication IP address filtering User access log 802.1X authentication(EAP-TLS, EAP-LEAP) Device certificate(Hanwha Techwin Root CA)
• Application Programming Interface - SUNAPI(HTTP API) Wisenet open platform

General

• Webpage Language - English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Edge Storage - Micro SD/SDHC/SDXC 1slot 128GB
• Memory - 512MB RAM, 256MB Flash

Environmental & Electrical

• Operating Temperature / Humidity/ Others - -10℃~+55℃(+14℉~+131℉) / Less than 95% RH
• Storage Temperature / Humidity - -50℃~+60℃(-58℉~+140℉) / Less than 95% RH
• Certification - IP66, IP6K9K, IK10
• Input Voltage - PoE(IEEE802.3af, Class2)
• Power Consumption - PoE: Max 6.49W, typical 4.6W,

Mechanical

• Color / Material - White / Aluminum
• RAL Code - RAL9003
• Product Dimensions - 170(W)x165(H)x78.8(D)mm(6.69x6.49x3.10")
• Weight - 830g(1.83lb)
• Skin Cover - SBC-170C, SBC-170CB, SBC-170CW

DORI (EN62676-4 standard)

• Detect (25PPM/ 8PPF) - 23.6m(77.51ft)
• Observe (63PPM/ 19PPF) - 9.4m(31.00ft)
• Recognize (125PPM/ 38PPF) - 4.7m(15.50ft)
• Identify (250PPM/ 76PPF) - 2.4m(7.75ft)
