QNV-7032R Hanwha Vision Q Series 6mm 30FPS @ 4MP Outdoor IR Day/Night WDR Dome IP Security Camera 12VDC/PoE

Specifications

Video

• Imaging Device - 1/3" CMOS
• Resolution - 2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
• Max. Framerate - H.265/H.264 : Max. 30fps at 4M all resolutions, MJPEG : Max. 15fps
• Min. Illumination - Color : 0.15Lux (F2.0, 1/30sec) B/W : 0Lux (IR LED On)
• Video Out - CVBS : 1.0 Vpp/75Ω composite, 720x480(N), 720x576(P) for installation

Lens

• Focal Length (Zoom Ratio) - 6mm fixed focal
• Max Aperture Ratio (F number) - F2.0
• Angular Field of View - H : 49.0Ëš, V : 27.6Ëš, D : 55.6Ëš
• Focus Control - Fixed

Pan / Tilt / Rotate

• Pan / Tilt / Rotate Range - 0°~350°/ 0°~67°/0°~355°

Operational

• Camera Title - Displayed up to 85 characters
• Day & Night - Auto(ICR)
• Backlight Compensation - BLC, WDR, SSDR
• Wide Dynamic Range - (120dB)
• Digital Noise Reduction - SSNRâ…¤
• Motion Detection - 4ea, Polygonal zones
• Privacy Masking - 6ea, rectangular zones
• Gain Control - Low / Middle / High
• White Balance - ATW / AWC / Manual / Indoor / Outdoor
• LDC - Support
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
• Video Rotation - Flip, Mirror, Hallway view(90Ëš/270Ëš)
• Analytics - Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line
• Alarm Interface In/Out - Input 1ea, Output 1ea
• Alarm Triggers - Analytics, Network disconnect Alarm input
• Alarm Events - File upload via FTP and e-mail, Notification via e-mail, SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover
• Audio In - Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
• IR Viewable Length - 30m (98.42ft)

Network

• Ethernet - RJ-45 (10/100BASE-T)
• Video Compression - H.265/H.264: Main/High, MJPEG
• Audio Compression - G.711 u-law / G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz, G.726 16Kbps, 24Kbps, 32Kbps, 40Kbps
• Smart Codec - Manual (5ea area), WiseStreamâ…¡
• Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
• Streaming - Unicast (6 users) / Multicast Multiple streaming (Up to 3 profiles)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP
• Security - HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access Log 802.1X Authentication
• Application Programming Interface - ONVIF Profile S/G/T, SUNAPI (HTTP API)

General

• Webpage Language - English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Edge Storage - Micro SD/SDHC/SDXC 1slot 128GB
• Memory - 512MB RAM, 256MB Flash

Environmental & Electrical

• Operating Temperature / Humidity/ Others - -40°C~+55°C(-40°F~+131°F)/ 0~95% RH(non-condensing) Start up should be done at above -30°C or above
• Storage Temperature / Humidity - -40°C~+60°C(-40°F~+140°F) / 0~95% RH(non-condensing)
• Certification - IP66, IK10
• Input Voltage - PoE(IEEE802.3af, Class3), 12VDC
• Power Consumption - PoE: Max 10.7W, typical 8.1W 12VDC: Max 9.1W, typical 6.5W

Mechanical

• Color / Material - White / Aluminum
• RAL Code - RAL9003
• Product Dimensions - ø120.3x91.7mm(4.74x3.61")
• Weight - 510g(1.12lb)
• Compatible Conduit hole / Gangbox - SBD-120GP : Single, Double, 4"Octagon
• Hanging Mount (Dome) - SBP-122HMW

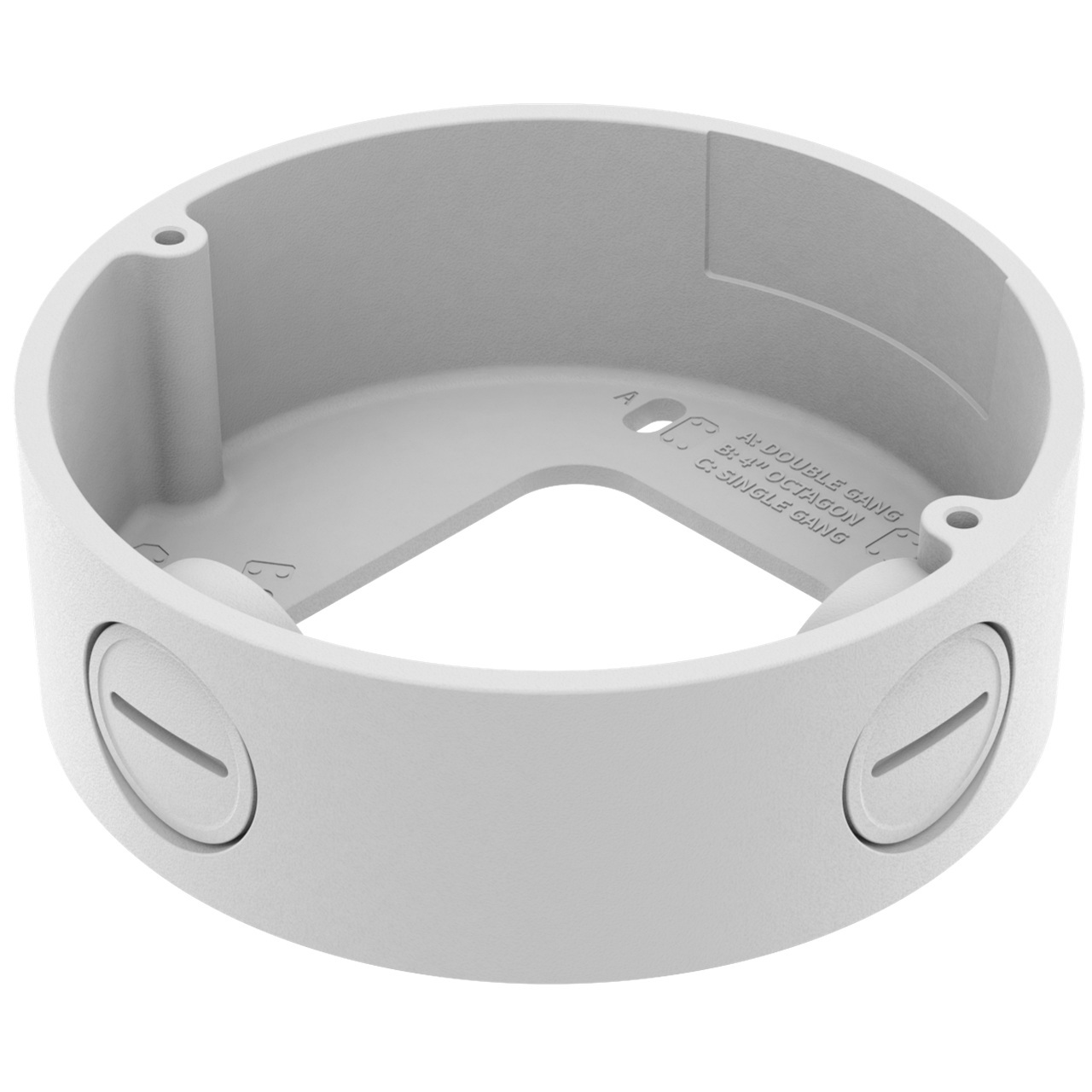

• Backbox - SBV-120GW

DORI (EN62676-4 standard)

• Detect (25PPM/ 8PPF) - 112.3m(368.60ft)
• Observe (63PPM/ 19PPF) - 44.9m(147.44ft)
• Recognize (125PPM/ 38PPF) - 22.5m(73.72ft)
• Identify (250PPM/ 76PPF) - 11.2m(36.86ft)
