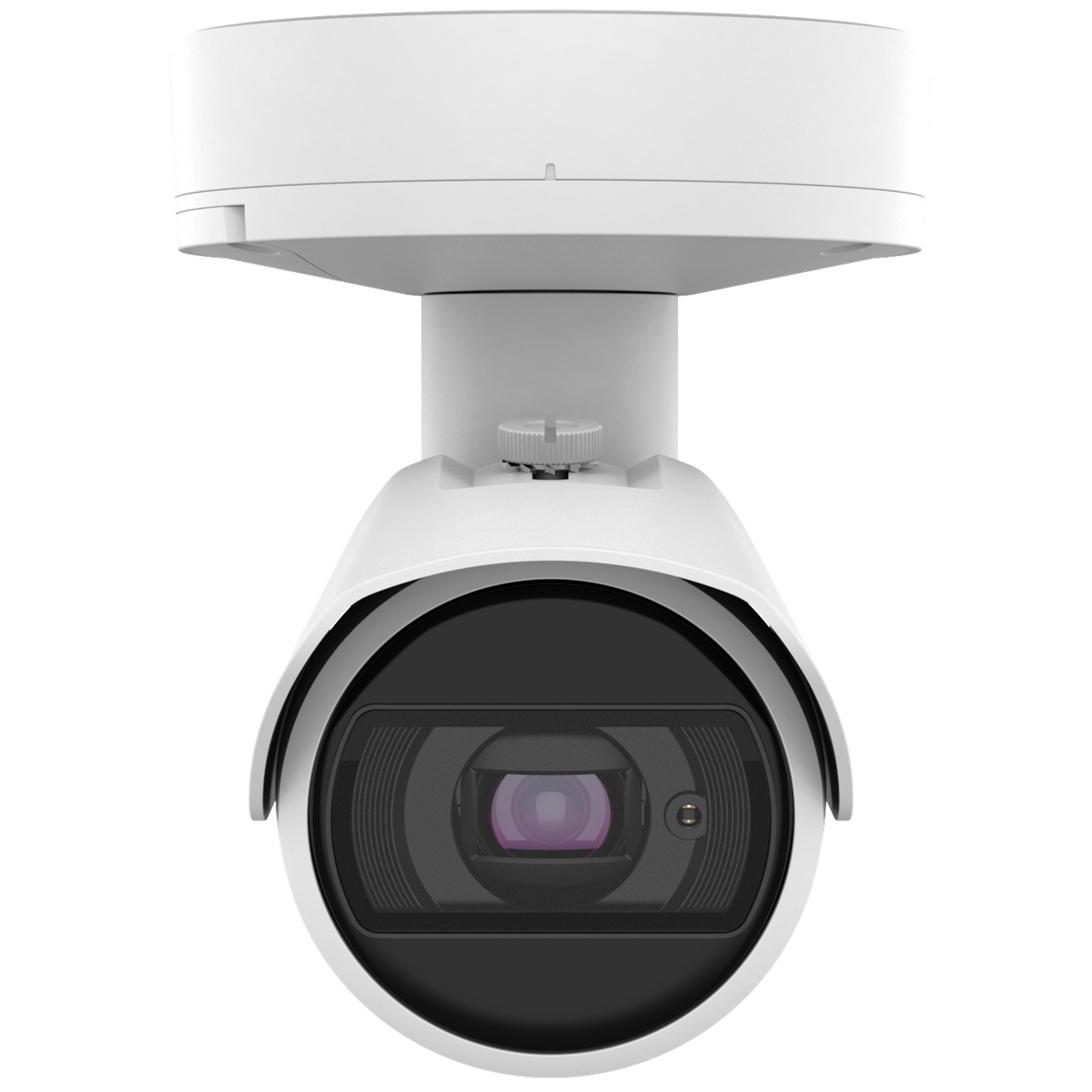

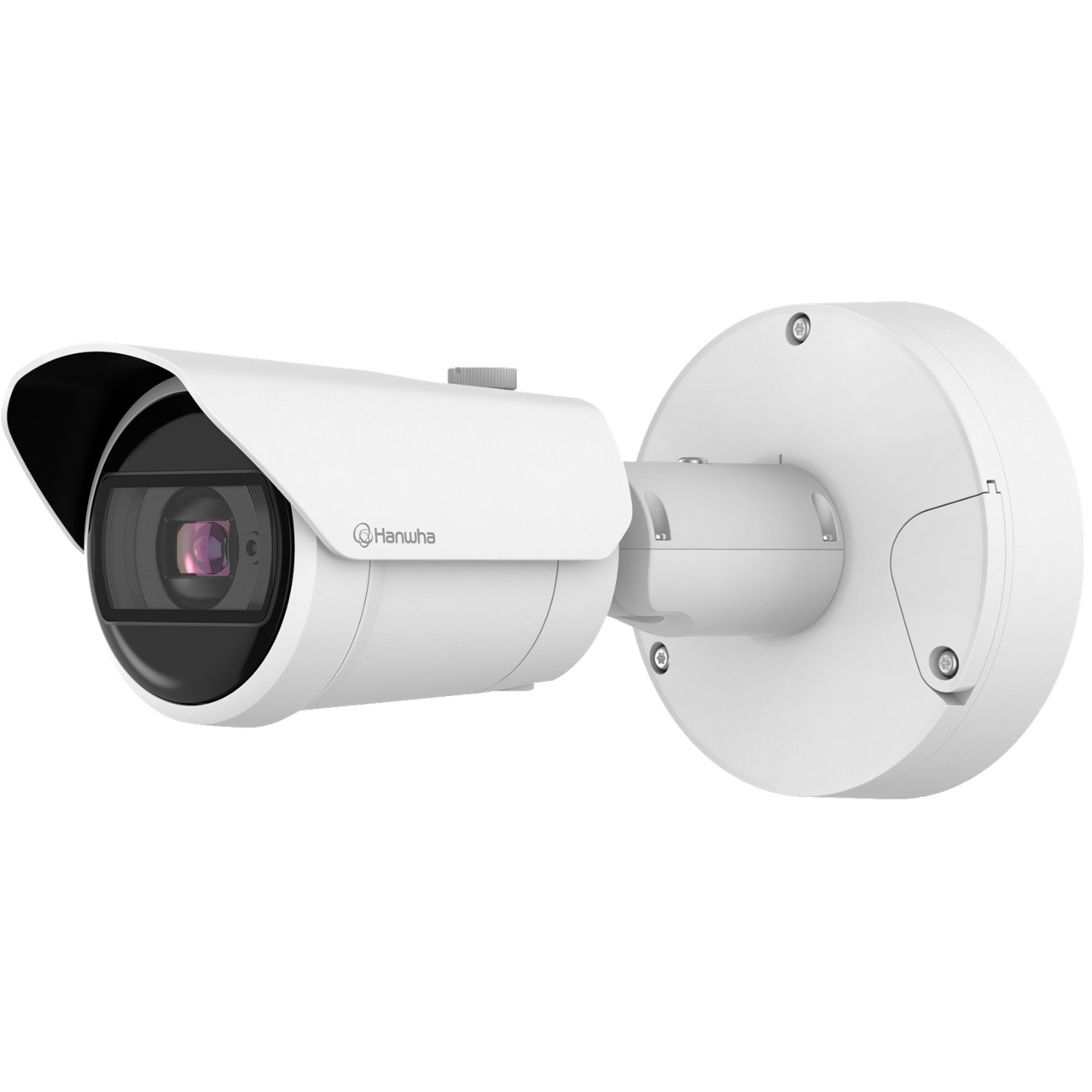

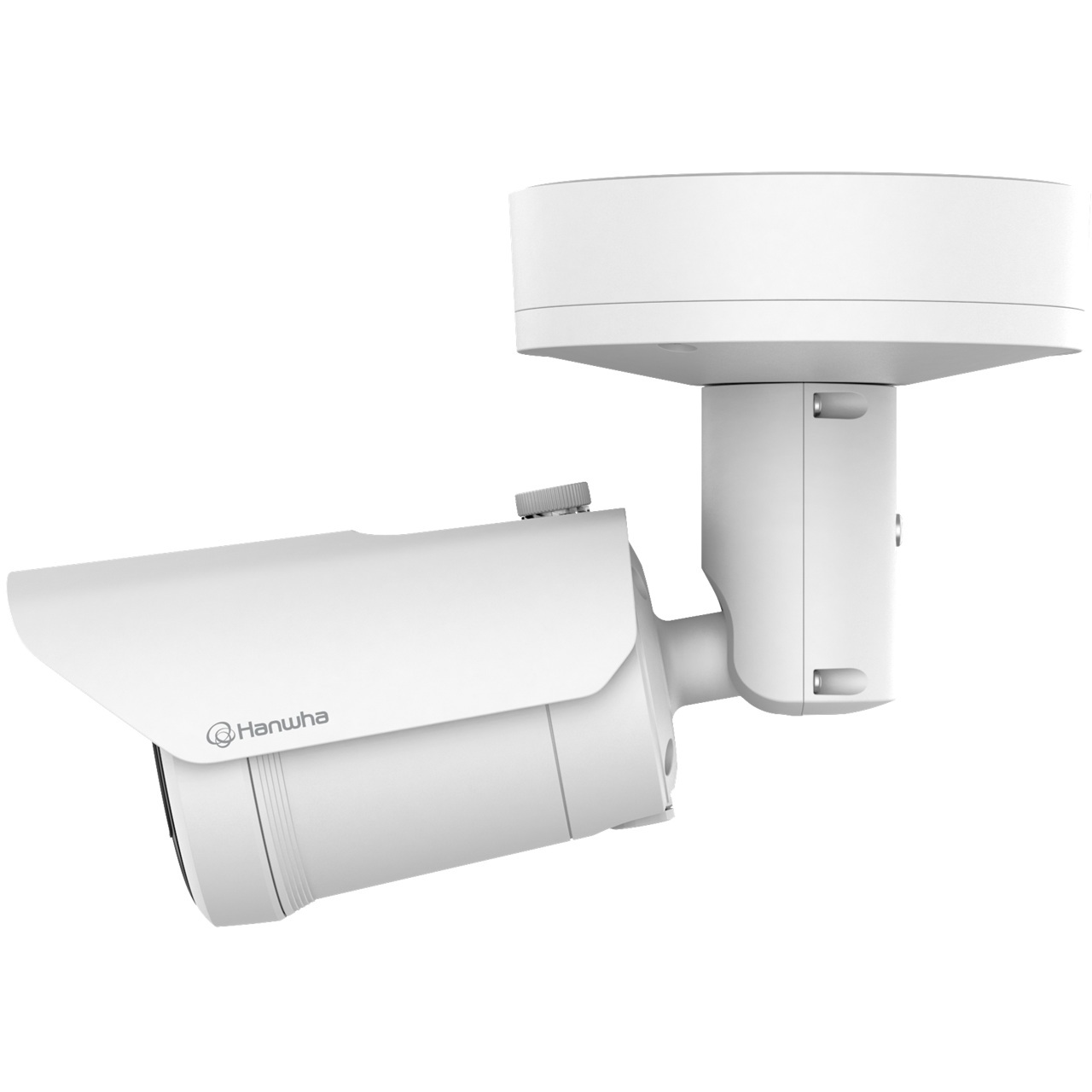

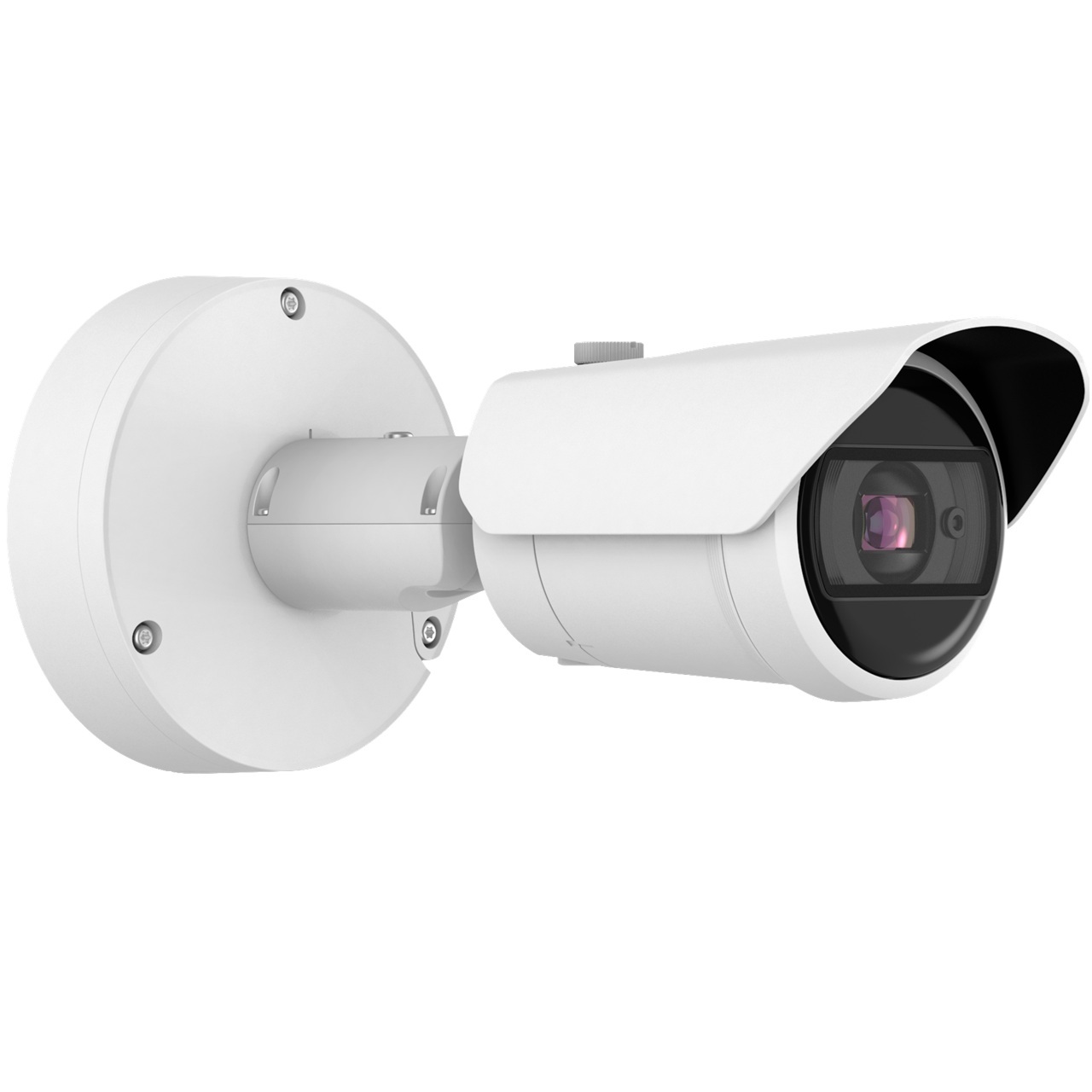

XNO-C6083R Hanwha Vision X Series 2.8-12mm Motorized 60FPS @ 2MP Outdoor IR Day/Night WDR Bullet IP Security Camera 12VDC/PoE

Specifications

Video

• Imaging Device - 1/2.8" 2MP CMOS
• Resolution - 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
• Max. Framerate - H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps
• Min. Illumination - Color: 0.01Lux(F1.4, 1/30sec, 30IRE) B/W: 0.001Lux(F1.4, 1/30sec, 30IRE), 0Lux(IR LED on), 30/25fps Color: 0.02Lux(F1.4, 1/60sec, 30IRE) BW: 0.002Lux(F1.4, 1/60sec, 30IRE), 0Lux(IR LED on), 60/50fps
• Video Out - USB: Micro USB Type B, 1280x720 for installation

Lens

• Focal Length (Zoom Ratio) - 2.8~12mm(4.3x) motorized varifocal
• Max. Aperture Ratio - F1.4(Wide)~F3.6(Tele)
• Angular Field of View - H: 120°(Wide)~27°(Tele) V: 63°(Wide)~15°(Tele) D: 143°(Wide)~32°(Tele)
• Min. Object Distance - 0.5m(1.64ft)
• Focus Control - Simple focus, Manual
• Lens Type - DC auto iris with hall sensor(IR corrected)

Pan / Tilt / Rotate

• Pan / Tilt / Rotate Range - 0°~360° / 0°~90° / 0°~360°

Operational

• Camera Title - Displayed up to 85 characters
• Day & Night - Auto (ICR)
• Backlight Compensation - BLC, HLC, WDR, SSDR
• Wide Dynamic Range - extremeWDR(150dB)
• Digital Noise Reduction - WiseNRâ…¡(Based on AI engine),SSNRâ…¤
• Digital Image Stabilization - Support (built-in gyro sensor)
• Defog - Support
• Motion Detection - 8ea, 8point Polygonal zones
• Privacy Masking - 32ea, 4point Quadrangle zones - Color: Gray/Green/Red/Blue/Black/White - Mosaic
• Gain Control - Off / Max Gain / Manual
• White Balance - ATW / NarrowATW / AWC / Manual / Indoor / Outdoor
• LDC - Support (Fill/stretch mode)
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker(2~1/12,000sec) prefer shutter control(Based on AI engine)
• Digital PTZ - Support(Preset, Group)
• Video Rotation - Flip, Mirror, Hallway view(90Ëš/270Ëš)
• Analytics - Classified object type: Person/Face/Vehicle(Type: car/bus/truck/motorcycle/bicycle)/License plate Attributes: Vehicle(Type: car/bus/truck/motorcycle/bicycle) Support DetectionShot Analytics events based on AI engine - Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection Analytics events - Defocus detection, Tampering, Fog detection, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear)
• Business Intelligence - Based on AI engine: People/Vehicle counting, Queue management, Heatmap
• Alarm I/O - 2 configurable I/O ports
• Alarm Triggers - Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription
• Alarm Events - When alarm trigger occurred - File upload(image): e-mail/FTP/SFTP - File upload(video clip): FTP/SFTP - Notification: e-mail - Recording: SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover: PTZ preset, send message by HTTP/HTTPS/TCP - Audio clip playback - MQTT: publication
• Audio In - Selectable(mic in/line in)
• IR Viewable Length - WiseIR 40m(131.23ft)

Network

• Ethernet - Metal shielded RJ-45(10/100BASE-T)
• Video Compression - H.265/H.264: Main/Baseline/High, MJPEG
• Audio Compression - G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
• Smart Codec - Manual(5ea area), WiseStreamâ…¢(Based on AI engine)
• Video Quality Adjustment - H.264/H.265: Target bitrate level control MJPEG: Target bitrate level control
• Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
• Streaming - Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles, 3 virtual channel support)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP/SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT
• Application Programming Interface - ONVIF Profile S/G/T/M SUNAPI(HTTP API) Wisenet open platform

Security

• OS / Firmware Protect - Encrypted Firmware, Secure boot, Signed Firmware
• User authentication - Digest Authenticaton, Prevent brute-force attack
• Network authentication - IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
• Secure Communication - HTTPS, WSS(WebSocket Secure), SRTP
• Access Control - IP-based access control
• Data Protect - Encryption Credentials, Encrypt compress for live recording file
• Audit - Access / System / Event Log management
• Device ID - Device certificate(Hanwha Vision Root CA)
• Secure Storage - HTPM(Hanwha trusted platform module), SDcard partition encrypt
• Security Certificate - CyberSecurity assuarance program UL CAP(UL 2900-2-3 L2)

General

• Webpage Language - English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Edge Storage - Micro SD/SDHC/SDXC 1slot Max. 512GB
• Memory - 2GB RAM, 512MB Flash

Environmental & Electrical

• Operating Temperature / Humidity - -40°C~+55°C(-40°F~+131°F) * Start up should be done at above -20°C 0~100%RH(condensing) Humidity control with AIR vent
• Storage Temperature / Humidity - -50°C~+60°C(-58°F~+140°F) / 0~90% RH
• Certification - IP66/IP67, NEMA4X, IK10
• Input Voltage - PoE(IEEE802.3af, Class3), 12VDC
• Power Consumption - PoE: Max 12.95W, typical 10.8W 12VDC: Max 12.5W, typical 10.0W

Mechanical

• Color / Material - White / Aluminum Window: Hard-coated window
• RAL Code - RAL9003
• Product Dimensions / Weight - ø93.4x276.6mm(ø3.68x10.89"), 1640g(3.62 lb)
• Compatible Conduit hole / Gangbox - single, double, 4" octagon, 4" square
• Hanging Mount (Dome) - SBP-160HMW1
• Ceiling Mount (Assy) - SBP-150CMI/300CMI, SBP-300CMW1/900CMW, SBP-300CMTW, SBP-300CMTS
• Wall Mount - SBP-300WMW/WMW1, SBP-390WMW2, SBP-160WMW1
• Pole Mount - SBD-180PMW, SBP-300PMW2
• Parapet Mount - SBP-300LMW, SBP-156LMW1
• Corner Mount - SBP-300KMW1
• Cabinet - SBP-300NBW
• Conduit Adaptor - SBP-060BA

Certifications & Standards

• EMC - FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A KS C 9832 Class A , KS C 9835
• Safety - UL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC/EN 62471
• Environment - IEC/EN 63000 IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10 NEMA 250 type 4X

DORI (EN62676-4 standard)

• Detect (25PPM/ 8PPF) - Wide: 22.2m(72.74ft) / Tele: 159.9m(524.76ft)
• Observe (63PPM/ 19PPF) - Wide: 8.9m(29.09ft) / Tele: 64.0m(209.90ft)
• Recognize (125PPM/ 38PPF) - Wide: 4.4m(14.55ft) / Tele: 32.0m(104.95ft)
• Identify (250PPM/ 76PPF) - Wide: 2.2m(7.27ft) / Tele: 16.0m(52.48ft)

Ver

• Ver - 202405
