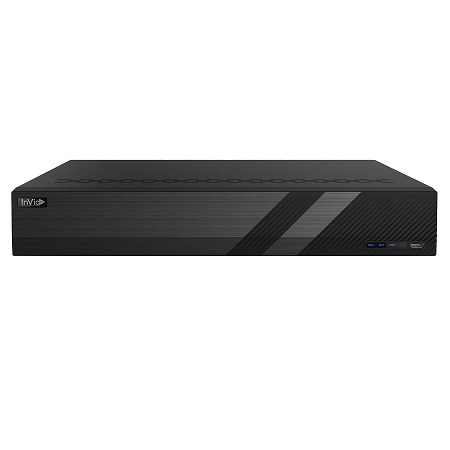

PD1B-32NH InVid Tech Paramont Series 32 Channel HD-TVI/HD-CVI/AHD/Analog + 8 Channel IP DVR 320FPS @ 5MP - No HDD

SKU: PD1B-32NH

Smart Analytic Support: 1 ch
Smart Motion Detection (SMD): 16 ch
Supports Audio over Coax (AoC)
32 Channel Universal Port DVR (TVI/AHD/CVI/Analog/IP)
Up to 8MP Lite Support - TVI/AHD/CVI: 8 MP Lite, 5 MP Lite, 4 MP Lite, 1080p, 1080p Lite, 720p, WD1
8 Bonus IP Channels - Up to 5 Megapixel
Total Max IP Input: 24 (Including Bonus IPC)
H.264/H.265/265+ Video Compression

MPN: PD1B-32NH

New to DWG? - Sign Up for immediate access to dealer pricing and benefits.

Already a DWG Customer? - Sign In to view pricing.

Product Details

Specifications

Video

Analog Video Input - BNC × 32 BNC interface (1.0Vp-p; 75Ω) TVI/AHD/CVI: 4K@15fps/5MP@20fps; 4MP/1080P/720P@25fps/30fps; Supports CVBS
IP Video Input - 8CH (up to 24CH) Up to 5MP@30fps
Total Input - 40CH
Output - HDMI × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768, VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768, BNC × 1 : CVBS ( used as the main or spot output )
Compression - H.264/H.265/H.265+
Multi-screen Display - 1/4/6/8/9/13/16/25/32/36

Audio

Record

Resolution - 8MP Lite/5MP Lite/4MP Lite / 1080P/1080P Lite/720P/WD1/D1
Frame Rate - Analog Channel: 8MP Lite: 8fps; 5MP Lite 12fps; 4MP Lite/1080P@12f- ps(PAL) / 15fps (NTSC); 1080P Lite/720P/WD1/D1@25fps (PAL) / 30fps(NTSC) IP Channel: 25fps (PAL) / 30fps (NTSC)
Bit Rate - 32Kbps ~ 5Mbps

Playback

Playback - 16CH
Search - Time slice / time / event / tag /smart search
Smart Search - Highlight colors to display the camera record in a certain period of time, different colors refer to different record events
Function - Play, pause, FF, FB, digital zoom, etc.

Alarm

AI Function

Network

Interface - RJ 45 1000Mbps × 1
Protocol - TCP / IP, IPv4, IPv6, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPS, 802.1x, FTP, RTP, RTSP, RTCP, NTP, SMTP, UDP, Websocket, SNMP, IGMP
Incoming Bandwidth - 40Mbps (max. 88Mbps)
Outgoing Bandwidth - 160Mbps
Client Connection - Max. 15 users access

Mobile Device
