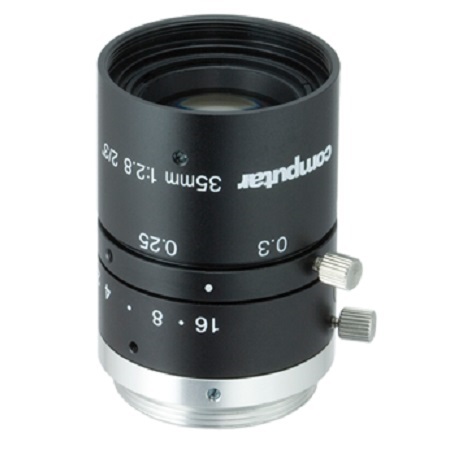

M3528-MPW3 Computar 2/3" C-Mount 35mm F2.8 8MP Fixed Iris Lens

Specifications

• Model No. - M3528-MPW3
• Focal Length - 35mm
• Max. Aperture Ratio - 1:2.8
• Max. Image Format - 8.8mm x 6.6mm(φ11mm）
• Operation Range
  • Iris - F2.8 ‐ 16.0
  • Focus - 0.25m - inf.
• Control
  • Iris - Manual
  • Focus - Manual
• Object Dimension at M.O.D.
  • 2/3 Type - 45.1 x 33.8mm
  • 1/1.8 Type - 36.6 x 27.4mm
  • 1/2.5 Type - 29.3 x 21.9mm
• Angle of View
  • 2/3 type
  • D - 17.9°
  • H - 14.3°
  • V - 10.8°
  • 1/1.8 type
    • D - 14.4°
    • H - 11.7°
    • V - 8.7°
  • 1/2.5 type φ7.1
    • D - 11.6°
    • H - 9.3°
    • V - 7.0°
• Operating Temperature - -10℃ ‐ +50℃
• Effective Lens Aperture
  • Front - φ17.8mm
  • Rear - φ11.8mm
• Distortion （∞）
  • 2/3 type(Y=5.5mm) - 0.06%
  • 1/1.8 type(Y=4.5mm) - 0.04%
  • 1/2.5 type(Y=3.55mm) - 0.03%
• Back Focal Length - 18.0mm
• Flange Back Length - 17.526mm
• Mount - C‐Mount
• Filter Size - M27 P=0.5mm
• Dimensions - φ29mm x 38.5mm
• Weight - 48g

M3528-MPW3 Specification PDF
