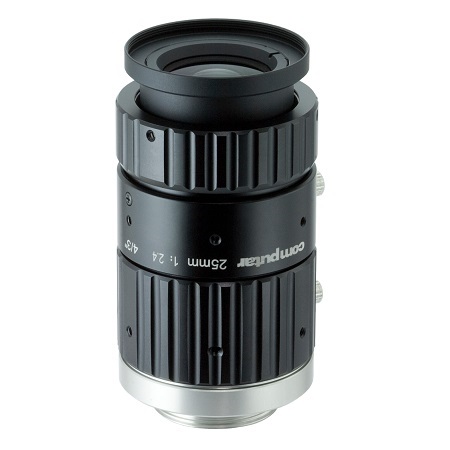

F2524-MPT Computar 1.4" C-Mount 25mm F2.4 45MP Manual Iris Lens

Specifications

• Model No. - F2524-MPT
• Focal Length - 25mm
• Max. Aperture Ratio - 1:2.4
• Image Circle Diameter - φ23.1mm
• Operation Range
  • Iris - F2.4 ‐ F16.0
  • Focus - 0.15m ‐ Inf.
• Control
  • Iris - Manual
  • Focus - Manual
• Operating Temperature - -10°C ‐ +50°C
• Angle of View
  • Sensor Size 1.4 type
  • Diagonal 19.08mmx13.03mm - 49.6°
  • Horizontal (φ23.1mm) - 41.9°
  • Vertical (φ23.1mm) - 29.3°
  • Sensor Size 1.2 Type
    • Diagonal 14.60mmx12.63mm - 42.4°
    • Horizontal (φ19.3mm) - 32.7°
    • Vertical (φ19.3mm) - 28.5°
  • Sensor Size 1.1 Type
    • Diagonal 14.19mmx10.38mm - 39.0°
    • Horizontal (φ17.6mm) - 31.8°
    • Vertical (φ17.6mm) - 23.6°
• Effective Lens Aperture
  • Front - φ20.7mm
  • Rear - φ18.7mm
• Distortion (Inf.)
  • 1.4 type - 0.06%
• Back Focal Length - 18.1mm
• Flange Back Length - 17.526mm
• Mount - C‐Mount
• Filter Size - M34 P=0.5mm
• Dimensions - φ39mmx66mm
• Weight - 152g
