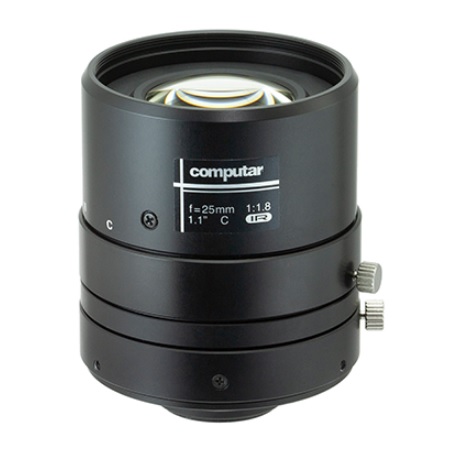

V2518FIC-MPYIR Computar 1.1" C-Mount 25mm F1.8 12MP IR Corrected Manual Iris Lens

The MPY Series supports a 1.1" sensor format at 12 Megapixel resolution in a C-mount lens. The MPY Series combines high-performance optics with a variety of common focal lengths for maximum application flexibility.

Specifications

• Focal Length - 25mm
• Max. Aperature Ratio - 1:1.8
• Max. Image Format - 14.2mm x 10.4mm(φ 17.6mm)
• Operation Range
• Iris - F1.8 ‐ F16C
• Focus - 1m - 1nf
• Control
  • Iris - Manual
  • Focus - Manual
• Angle of View - 1.1 Type
  • D - 38.8°
  • H - 31.8°
  • V - 23.6°
• Angle of View - 1 Type
  • D - 35.6°
  • H - 28.8°
  • V - 21.8°
• Angle of View - 2/3 Type
  • D - 24.9°
  • H - 20.0°
  • V - 15.1°
• Operating Temperature - -10°C ‐ +50°C
• Effective Lens Aperture
  • Front - φ23.6mm
  • Rear - φ16.6mm
• Back Focal Length - 10.6mm
• Flange Back Length - 17.526mm
• Mount - C-Mount
• Filter Size - M40.5 P=0.5
• Dimensions - φ46mm x 50.8mm
• Weight - 158.9g

V2518FIC-MPYIR Specification PDF
