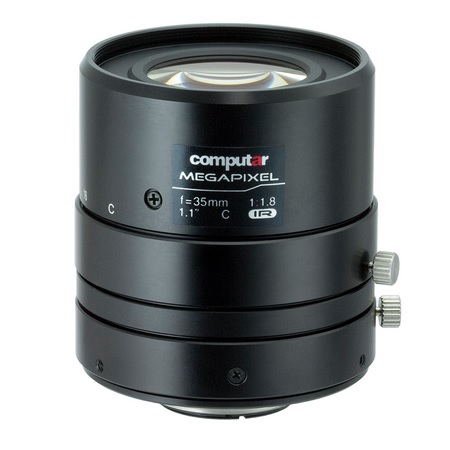

V3518FIC-MPYIR Computar 1.1" C-Mount 35mm F1.8 12MP IR Corrected Manual Iris Lens

The MPY Series supports 1.1" sensor format at 12 Megapixel resolution in a C-mount lens. The MPY Series combines high performance optics with a variety of common focal lengths for maximum application flexibility.

Specifications

• Model No - V3518FIC-MPYIR
• Focal Length - 35mm
• Max. Aperture Ratio - 1:1.8
• Max. Image Format - 14.2mm x 10.4mm(φ17.6mm）
• Operation Range
  • Iris - F1.8 ‐ F16C
  • Focus - 2m ‐ lnf.
  • Zoom - -
• Control
  • Iris - Manual
  • Focus - Manual
  • Zoom - -
• Angle of View
  • D 1.1 type - 27.4°
  • H 1.1 type - 22.3°
  • V 1.1 type - 16.5°
• 1 type
  • D - 25.1°
  • H - 20.2°
  • V - 15.2°
• 2/3 type
  • D - 17.4°
  • H - 14.0°
  • V - 10.5°
• Effective Lens Aperture
  • Front - φ23.9mm
  • Rear - φ17.8mm
• Back Focal Length - 14.2mm
• Flange Back Length - 17.526mm
• Mount - C-Mount
• Filter Size - M40.5 P=0.5
• Dimensions - φ46mm x 48.8mm
• Weight - 153g
• Operating Temperature - -10°C ‐ +50°C

V3518FIC-MPYIR Specification PDF
