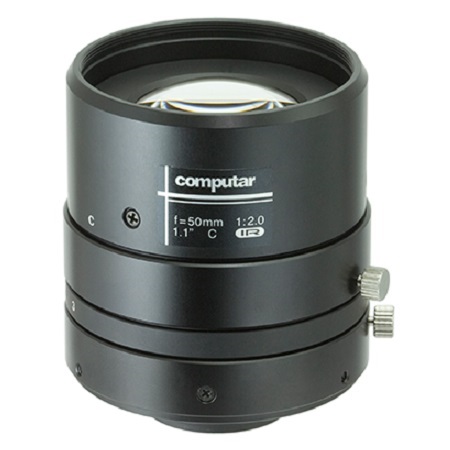

V5020FIC-MPYIR Computar 1.1" C-Mount 50mm F2.0 12MP IR Corrected Manual Iris Lens

The MPY Series supports a 1.1" sensor format at 12 Megapixel resolution in a C-mount lens. The MPY Series combines high-performance optics with a variety of common focal lengths for maximum application flexibility.

Specifications

• Focal Length - 50mm
• Max. Aperature Ratio - 1:2.0
• Max. Image Format - 14.2mm x 10.4mm(φ 17.6mm)
• Operation Range
• Iris - F2.0 ‐ F16C
• Focus - 3m - 1nf
• Control
  • Iris - Manual
  • Focus - Manual
• Angle of View - 1.1 Type
  • D - 19.4°
  • H - 15.7°
  • V - 11.6°
• Angle of View - 1 Type
  • D - 17.7°
  • H - 14.2°
  • V - 10.7°
• Angle of View - 2/3 Type
  • D - 12.2°
  • H - 9.8°
  • V - 7.4°
• Operating Temperature - -10°C ‐ +50°C
• Effective Lens Aperture
  • Front - φ24.7mm
  • Rear - φ18.4mm
• Back Focal Length - 14.2mm
• Flange Back Length - 17.526mm
• Mount - C-Mount
• Filter Size - M40.5 P=0.5
• Dimensions - φ46mm x 48.8mm
• Weight - 151.3g

V5020FIC-MPYIR Specification PDF
