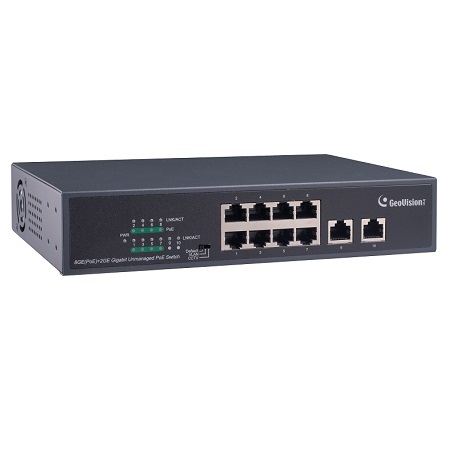

GV-APOE0810-V2 Geovision Long Distance 8-port 10/100/1000Mbps Unmanaged PoE Switch

Specifications

Ethernet

• Layer Supported - L2

Ports

• Number of Ports - 10 x Gigabit RJ-45ports: 8 x PoE+ ports, 2 x uplink ports

Performance

• MAC Address - 2 K
• Buffer Memory - 2 M bits
• Transmission Method - Store and Forward
• Transmission Media - 10/100BaseT(X) Cat. 5 UTP/STP, 1000BaseT Cat. 5e, 6 UTP/STP
• Packet Forwarding Rate - 13.4 Mpps
• Backplane Capacity - 20 Gbps

Smart Feature

• PD Alive Check - Preset PD Alive Check Time (240 sec)

Mechanical Characteristics

• LED Indicators - Per Port: Link/Act, PoE Act/Status, Power

Electrical Characteristics

• PoE Power
  • Input - 100 ~ 240 V/AC, 50 ~ 60 Hz
  • Output - IEEE 802.3at Compliant Voltage, Per Port Max. 32 watts (8 Ports at Full 15.4 W / 4 Ports at Full 30 W)
• PoE Mode - Mode A
• Max. Power Consumption - 125 W (427 BTU)
• PoE Budget - 120 W (409 BTU)

General

• Dimensions (H x W x D) - 44 x 220 x 150 mm (1.73" x 8.66" x 5.91")
• Weight - 1.24 kg (2.73 lb)
• Operating Temperature - 0°C ~ 40°C (32°F ~ 104°F)
• Storage Temperature - -40°C ~ 70°C (-40°F ~ 158°F)
• Humidity - 10 to 90% RH (non-condensing)
• Surge Protection - ±6 kV

Standards and Regulatory

• Standards
  • IEEE‐802.3at PoE+ / PSE
  • IEEE 802.3 10BaseT
  • IEEE 802.3u 100BaseTX
  • IEEE 802.ab 1000BaseT
  • IEEE 802.3x Flow Control
  • IEEE 802.3az Energy Efficient Ethernet (EEE)
• Regulatory - CE, FCC Class A, RoHS compliant

GV-APOE0810-V2 Specifications PDF
