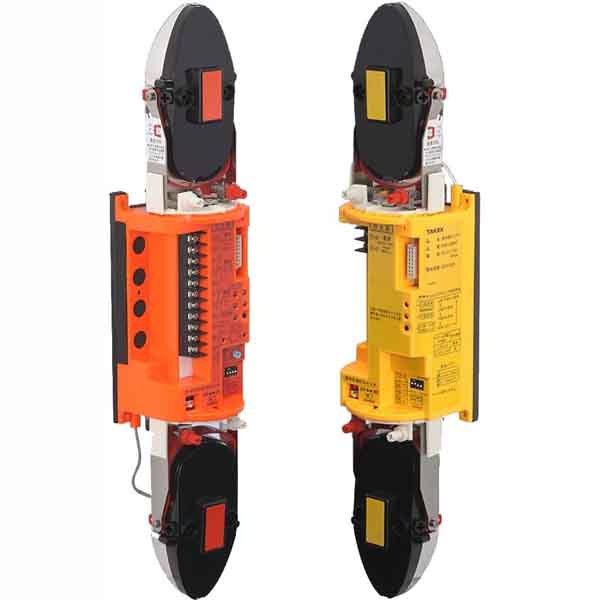

PXB-200HF-KH TAKEX 660' / 1320' Intelligent Double Modulated Quad Beam Form-C Relay Output N/O N/C 12 to 30VDC

Specifications

• Type - Quad Beam
• Detection system - Near infrared pulsed beam interruption system (TR-RE 4 beam simultaneous interruption)
• Infrared beam - Double modulation pulsed beam by LED
• Detection distance - Outdoor 660' (200m) or less
• Max. arrival distance - 6600' (2000m)
• Response time - 0.05 sec. to 0.7 sec. (Variable at pot)
• Frequency Selection - 4 Channels
• Supply voltage - 12 to 30V DC (Non-polarity)
• Current consumption - 34 mA or less
• Alarm output - Dry contact relay output form C

Contact action: Interruption time (Min.2sec.)
Contact capacity: 30V (AC/DC) 0.25A (resistive load)
Protective resistor
• Environmental output - Dry contact relay output form C
  Action: Activated when weather condition gets worse
  Contact capacity: 30V (AC/DC) 0.25A (resistive load)
  Protective resistor
• LED indicator - Red LED (Receiver)
  ON : when an alarm is initiated (Alarm LED)
  ON : when beam is attenuated (Attenuation LED)
• Functions - Modulated beam frequency selection, Tone indicator, Environmental module, Beam power selection, Transmitting power adjutment, Alarm memory indication, Programmed AGC, Auto-gain lock function, Monitor jack, Response time adjustment, Upper/Lower beam switch, Wireless checker
• Adjustment - Horizontal : ±90°, Vertical : ± 20°
• Mounting position - Inside TA Series Beam Towers
• Wiring - Terminals
• Weight - Transmitter: 12.6 oz (360g)
  Receiver: 15.8 oz (450g)
• Appearance - Optical unit: Resin
  Body: Resin
• Ambient temperature - -31°F to +151°F (-35°C to +66°C)
• IP Rating - N/A
