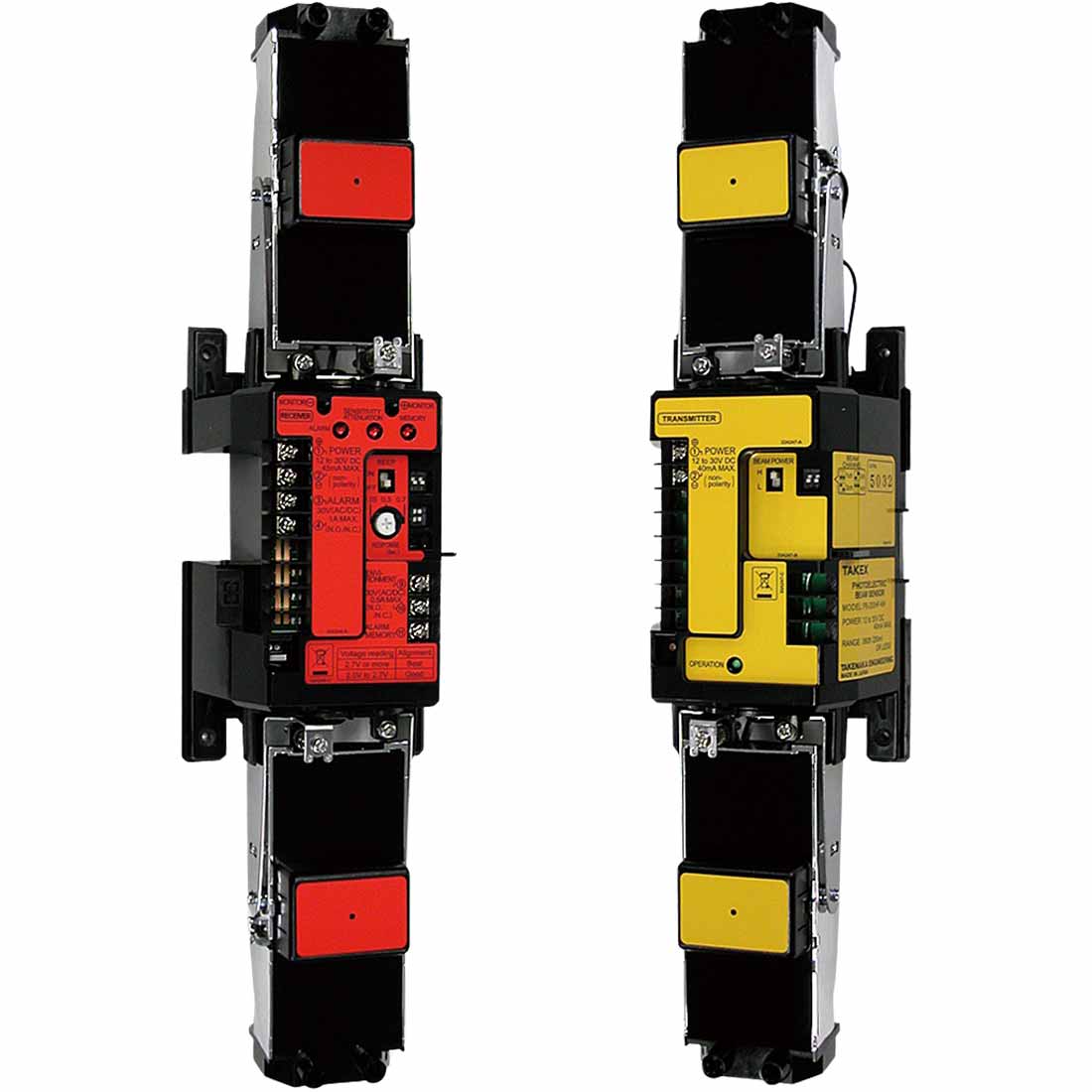

PB-200HFA-KH TAKEX 660'/1320' Intelligent Double Modulated Quad Beam, Selectable Relay Output N/O N/C Relay, 10 to 30VDC, 4 Selectable Transmission Frequencies

There are currently no active sales or promotions related to this item.

SKU: PB-200HFA-KH

Brand: Takex

PB-HFA-KH Series

Features

4 x Synchronised high power beams
Specifically designed for use in TA series Tower Enclosures
Double coated electronics for demanding environments
4 x Selectable beam channels to prevent crosstalk
Environmental monitoring circuit
Dynamic auto-gain lock (AGL)
Vivid internal body stickers aid beam alignment procedure
Double modulation for unsurpassed light immunity
Auto-gain control (AGC)
50,000 lux sunlight immunity

PB-HF-KH Intelligent Quad Beams are designed specifically for use in our TA Series Beam Towers.

Unique Quad beams are synchronised to maintain range and stability in severe weather, while rejecting ‘nuisance-alarms’ caused by birds, animals, or blown-litter.

Requires TAKH ‘Quick-fix’ mounting brackets for fast, trouble-free installation; the beam units locate in vertical slide-channels in the TA tower spine, allowing easy and precise height adjustment.

More details...

There are currently no active sales or promotions related to this item.

MPN: PB-200HFA-KH

MSRP Price: $610.00

Web Price: $610.00

Quantity:

Add to List

Already a DWG Dealer? - Sign In to view pricing.

Product Details

Specifications

Type - Quad Beam
Detection distance - 660ft. (200m) or less
Max. arrival distance - 6600ft. (2000m) (tenfold margin distance)
Infrared beam - LED (pulsed beam by LED) Double modulation
Frequency Selection - 4 Channels
Detection system - Photoelectric beam
Response time - 0.05sec. to 0.7sec. (Variable at pot)
Alarm output - Dry contact relay output N.O. / N.C.
Contact action : Interruption time + delay time (approx. 2sec.)
Contact capacity : 30V (AC/DC) 1A
Environmental output - Dry contact relay output N.O. / N.C.
Contact capacity : 30V (AC/DC) 0.5A
Supply voltage - 12 to 30V DC
Current consumption - When alarmed 85mA or less
・Transmitter : 40mA or less
・Receiver : 45mA or less
When adjusted 120mA or less
Functions - Alignment tone switch, Attenuation LED, Monitor jack, Alarm memory function Four channel frequency selection. Environmental check, Automatic gain control (AGC) circuit
Mounting position - Inside TA series Beam Towers
Weight - Transmitter 10.6oz (300g) Receiver 14.1oz (400g)
IP Rating - N/A
