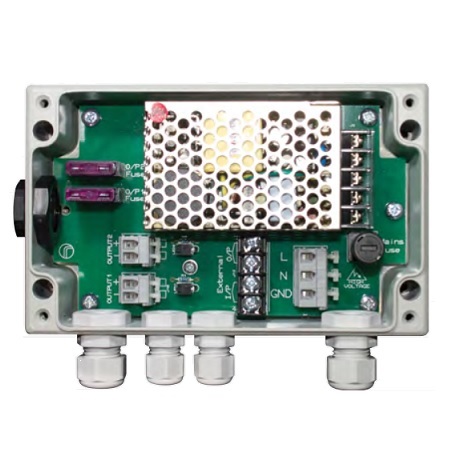

PSU-VAR-20W-1 Raytec Vario PSU - 24VDC, 20W, 1 Output

Specifications

PSU-VAR-20W-1

• Illuminators (standard) - 1x VARIO 2 series plus aux output (max 8W)
• Input - 100-230V AC
• Input Fuse Type - 20mm, slowblow, user replaceable without disconnecting mains input
• Input Fuse Rating - 1A
• Max Output - 20W
• Output for VARIO Illuminators - 1 for VARIO 2 series
• Output Fuse Type - automotive, blade, user replaceable
• Output Fuse Rating - 3A
• FastConnect wiring - Quick and easy wiring for VARIO input and output connections - 4 way robust terminal for telemetry input and photocell following output
• White Light status LEDs - White-Light LED status indicators on all fused outputs to indicate correct voltage and to provide support illumination during installation and maintenance
• Cat5 Connector - N/A
• Glands - 2x M16, 2x M12, IP68
• Enclosure construction - High quality, power coated, IP66 aluminium
• Dimensions - 160 x 129 x 61 mm
• Weight - 0.9kg
• IP Rating - IP66
• Temp Range - -50 to +50°C (-58 to 122°F)
• Certification - CE compliant
• Accessories available - External mounting feet

PSU-VAR-20W-1 Specifications PDF
