TS-1655-8G-US QNAP 16-Bay Desktop NAS 2.8GHz Intel Atom C5125 8-core 8GB - No HDD

SKU: TS-1655-8G-US
Brand: QNAP
  • High-speed 2.5GbE accelerates intensive file access, large backup/restoration tasks, virtualization, and multimedia transfer
  • Three PCIe slots allow for installing 5/10/25GbE adapters, Fibre Channel cards, or QM2 cards to increase application performance
  • Realize hybrid cloud applications by working with the cache space reserved on NAS to ensure low-latency cloud data access
  • Two M.2 NVMe PCIe Gen 3 slots allow implementing SSD cache acceleration, SSD storage pool, or a Coral M.2 accelerator for faster image recognition
  • Host virtual machines and containerized apps on one device to optimize resource utilization and IT budgeting. Supports SR-IOV
  • Satisfy ever-growing storage needs by connecting flexible and economical QNAP expansion enclosures
More details...
MPN: TS-1655-8G-US
UPC: 885022025527
MSRP Price: $1,849.00
Web Price$1,849.00
Add to List
DWG Dealer Program Become a DWG Dealer to see your pricing. Dealer pricing, quoting, volume discounts, and sales support on thousands of products.
Become a DWG Dealer → DWG Dealer Sign In



Product Details

Balance performance and cost with hybrid storage. Designed for diversified business IT environments, the high-capacity TS-1655 has twelve 3.5-inch SATA drive bays (for HDDs) and four 2.5-inch SATA drive bays (for SSDs) with 2.5GbE high-speed connectivity. Fueled by an immense 8-core Intel Processor, the TS-1655 presents a secure, scalable, and complete business-ready storage solution for cross-team file sharing, collaboration, backup & disaster recovery, virtualization, and intensive data transmission. The TS-1655 will be available and supported by QNAP for an extended period (up to 2027), ideal for businesses requiring matching NAS models deployed in multiple locations.


Specifications

  • CPU - Intel Atom C5125 8-core processor, 2.8GHz
  • CPU Architecture - 64-bit x86
  • Floating Point Unit - Yes
  • Encryption Engine - Yes (AES-NI)
  • System Memory - 8 GB UDIMM DDR4 (1 x 8 GB)
  • Maximum Memory - 128 GB (4 x 32 GB)
  • Memory Slot - 4 x U-DIMM DDR4 Support ECC memory
  • Flash Memory - 5GB (Dual boot OS protection)
  • Drive Bay - 12 x 3.5-inch + 4 x 2.5-inch SATA 6Gb/s, 3Gb/s
  • Drive Compatibility
    • 3.5-inch bays - 3.5-inch SATA hard disk drives ,2.5-inch SATA solid state drives
    • 2.5-inch bays - 2.5-inch SATA solid state drives
  • Hot-swappable - Yes
  • M.2 Slot - 2 x M.2 2280 PCIe Gen3 x2 slots
  • SSD Cache Acceleration Support - Yes
  • SR-IOV - Yes
  • 2.5 Gigabit Ethernet Port (2.5G/1G/100M) - 2 (2.5G/1G/100M/10M)
  • 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) - Optional via PCIe expansion card
  • 10 Gigabit Ethernet Port - Optional via PCIe expansion card
  • 25 Gigabit Ethernet Port - Optional via PCIe expansion card
  • Wake on LAN (WOL) - Yes
  • Jumbo Frame - Yes
  • PCIe Slot
    • 3
    • Slot 1: PCIe Gen 3 x4
    • Slot 2: PCIe Gen 3 x4
    • Slot 3: PCIe Gen 3 x4
  • USB 3.2 Gen 1 port - 4
  • Form Factor - Tower
  • LED Indicators - Power/Status, LAN, USB, HDD1-12, SSD 1-4, M.2 SSD 1-2
  • Buttons - Power, Reset, USB Auto Copy
  • Dimensions (HxWxD) - 11.59 x 14.56 x 12.59 inch
  • Weight (Net) - 29.01 lbs
  • Weight (Gross) - 36.77 lbs
  • Operating Temperature - 0 - 40 °C (32°F - 104°F)
  • Storage Temperature - -20 - 70°C (-4°F - 158°F)
  • Relative Humidity - 5-95% RH non-condensing, wet bulb: 27 ̊C (80.6 ̊F)
  • Power Supply Unit - 550W, 100-240V
  • Power Consumption: HDD Sleep Mode - 68.004 W
  • Power Consumption: Operating Mode, Typical - 104.65 W
  • Fan
    • System fan - 3 x 92mm, 12VDC
    • CPU fan - 2 x 97mm, 12VDC
  • Other Interfaces - Kensington security slot
  • System Warning - Buzzer
  • Kensington Security Slot - Yes
  • Standard Warranty - 3
  • Max. Number of Concurrent Connections (CIFS) - with Max. Memory - 700

TS-1655-8G-US Specifications PDF

Check out some additional items that you may need to purchase with this product:
Check the check boxes next to the additional products that you would like to add to the shopping cart, then click on the "Add to Cart" button above. A check box is not shown if a product requires that you select an option or fill out a field. () indicates a required accessory.
QM2-2P-244A Dual M.2 22110/2280 PCIe SSD expansion card (PCIe Gen2 x4), Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled

QM2-2P-244A Dual M.2 22110/2280 PCIe SSD expansion card (PCIe Gen2 x4), Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled

MSRP Price: $145.00
Web Price $145.00
QM2-2P-344A Qnap Dual M.2 PCIe SSD Expansion Card - Supports Up to 2 x M.2 2280/22110 Formfactor M.2 PCIe (Gen3 x 4) SSDs, PCIe (Gen3 x 4) Host Interface

QM2-2P-344A Qnap Dual M.2 PCIe SSD Expansion Card - Supports Up to 2 x M.2 2280/22110 Formfactor M.2 PCIe (Gen3 x 4) SSDs, PCIe (Gen3 x 4) Host Interface

MSRP Price: $175.00
Web Price $175.00
QXG-10G2SF-X710 QNAP Dual-Port, 10 GbE Network Expansion Card

QXG-10G2SF-X710 QNAP Dual-Port, 10 GbE Network Expansion Card

MSRP Price: $249.00
Web Price $249.00
QXG-25G2SF-E810 QNAP Upgrade to Enterprise-level Networks with 25GbE

QXG-25G2SF-E810 QNAP Upgrade to Enterprise-level Networks with 25GbE

MSRP Price: $399.00
Web Price $399.00
QM2-2P10G1TB QNAP 2 x PCIe Gen3 NVMe SSD & 1 x 10GbE Port Expansion Card to Enhance Performance

QM2-2P10G1TB QNAP 2 x PCIe Gen3 NVMe SSD & 1 x 10GbE Port Expansion Card to Enhance Performance

MSRP Price: $219.00
Web Price $219.00
QM2-2P2G2T QNAP QM2 series, 2 x PCIe 2280 M.2 SSD slots, PCIe Gen3 x 4 , 2 x Intel I225LM 2.5GbE NBASE-T Port

QM2-2P2G2T QNAP QM2 series, 2 x PCIe 2280 M.2 SSD slots, PCIe Gen3 x 4 , 2 x Intel I225LM 2.5GbE NBASE-T Port

MSRP Price: $175.00
Web Price $175.00
QM2-2P410G1T QNAP 2 x M.2 PCIe Gen4 NVMe SSD & 1 x 10GbE Port Expansion Card

QM2-2P410G1T QNAP 2 x M.2 PCIe Gen4 NVMe SSD & 1 x 10GbE Port Expansion Card

MSRP Price: $589.00
Web Price $589.00
QM2-2P410G2T QNAP 2 x M.2 PCIe Gen4 NVMe SSD & 2 x 10GbE Ports Expansion Cards

QM2-2P410G2T QNAP 2 x M.2 PCIe Gen4 NVMe SSD & 2 x 10GbE Ports Expansion Cards

MSRP Price: $649.00
Web Price $649.00
PWR-PSU-550W-FS02 QNAP 550W Power Supply Unit, FSP

PWR-PSU-550W-FS02 QNAP 550W Power Supply Unit, FSP

MSRP Price: $249.00
Web Price $249.00
SP-FAN-BLOWER-A01 Qnap TVS-x82/TVS-x82T CPU FAN accessory 2900rpm blower fan

SP-FAN-BLOWER-A01 Qnap TVS-x82/TVS-x82T CPU FAN accessory 2900rpm blower fan

MSRP Price: $35.00
Web Price $35.00
TRAY-25-BLK01 QNAP 2.5" HDD Tray with Key Lock and Two Keys - Black

TRAY-25-BLK01 QNAP 2.5" HDD Tray with Key Lock and Two Keys - Black

MSRP Price: $15.00
Web Price $15.00
TRAY-35-BLK02 QNAP 3.5" HDD Tray with Key Lock and Two Keys - Black

TRAY-35-BLK02 QNAP 3.5" HDD Tray with Key Lock and Two Keys - Black

MSRP Price: $15.00
Web Price $15.00
QXG-10G2T-X710 QNAP Dual-Port 10GbE Network Expansion Card

QXG-10G2T-X710 QNAP Dual-Port 10GbE Network Expansion Card

MSRP Price: $359.00
Web Price $359.00
QXG-25G2SF-CX6 QNAP Dual-Port SFP28 25GbE Network Expansion Card

QXG-25G2SF-CX6 QNAP Dual-Port SFP28 25GbE Network Expansion Card

MSRP Price: $449.00
Web Price $449.00
QXG-2G1T-I225 QNAP Single Port 2.5GbE 4-Speed Network Card

QXG-2G1T-I225 QNAP Single Port 2.5GbE 4-Speed Network Card

MSRP Price: $69.00
Web Price $69.00
QXG-2G2T-I225 QNAP Dual Port 2.5GbE 4-Speed Network Card

QXG-2G2T-I225 QNAP Dual Port 2.5GbE 4-Speed Network Card

MSRP Price: $79.00
Web Price $79.00
QXG-2G4T-I225 QNAP Quad Port 2.5GbE 4-Speed Network Card

QXG-2G4T-I225 QNAP Quad Port 2.5GbE 4-Speed Network Card

MSRP Price: $135.00
Web Price $135.00
QXG-5G1T-111C QNAP 5GbE Multi-Gig Expansion Card

QXG-5G1T-111C QNAP 5GbE Multi-Gig Expansion Card

MSRP Price: $99.00
Web Price $99.00
QXG-5G2T-111C QNAP Dual Port 5GbE Multi-Gig Expansion Card

QXG-5G2T-111C QNAP Dual Port 5GbE Multi-Gig Expansion Card

MSRP Price: $155.00
Web Price $155.00
QXG-5G4T-111C QNAP Quad-port 5GbE Multi-Gig Expansion Card

QXG-5G4T-111C QNAP Quad-port 5GbE Multi-Gig Expansion Card

MSRP Price: $239.00
Web Price $239.00
QXP-3X4PES QNAP 2 Ports (SFF-8644) Expansion Card

QXP-3X4PES QNAP 2 Ports (SFF-8644) Expansion Card

MSRP Price: $149.00
Web Price $149.00
QXP-16G2FC QNAP 16Gb/s Fibre Channel Host Bus Adapter - Includes 2 Transceivers

QXP-16G2FC QNAP 16Gb/s Fibre Channel Host Bus Adapter - Includes 2 Transceivers

MSRP Price: $999.00
Web Price $999.00
QXP-32G2FC QNAP 32Gb/s Fibre Channel Host Bus Adapter - Includes 2 Transceivers

QXP-32G2FC QNAP 32Gb/s Fibre Channel Host Bus Adapter - Includes 2 Transceivers

MSRP Price: $1,499.00
Web Price $1,499.00
QXP-820S-B3408 QNAP 2-Port MiniSAS HD Host Bus Adapter

QXP-820S-B3408 QNAP 2-Port MiniSAS HD Host Bus Adapter

MSRP Price: $399.00
Web Price $399.00
RAM-16GDR4ECK1-UD-3200 QNAP 16GB DDR4 ECC RAM, 3200 MHz, UDIMM, K1 Version

RAM-16GDR4ECK1-UD-3200 QNAP 16GB DDR4 ECC RAM, 3200 MHz, UDIMM, K1 Version

MSRP Price: $260.00
Web Price $260.00
RAM-32GDR4ECT0-UD-3200 QNAP 32GB DDR4-3200 ECC U-DIMM RAM 288 Pin T0 Version

RAM-32GDR4ECT0-UD-3200 QNAP 32GB DDR4-3200 ECC U-DIMM RAM 288 Pin T0 Version

MSRP Price: $449.00
Web Price $449.00

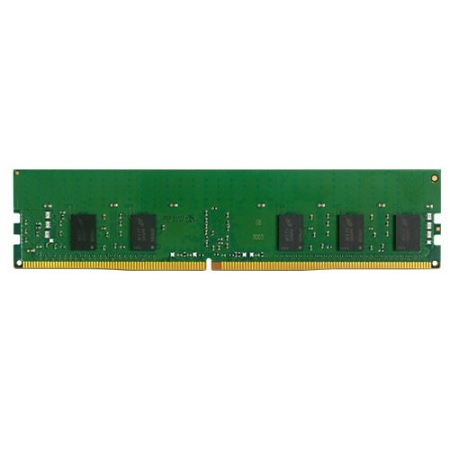

RAM-32GDR4T0-UD-3200 QNAP 32GB DDR4 RAM, 3200MHz, UDIMM, T0 Version

RAM-32GDR4T0-UD-3200 QNAP 32GB DDR4 RAM, 3200MHz, UDIMM, T0 Version

MSRP Price: $329.00
Web Price $329.00

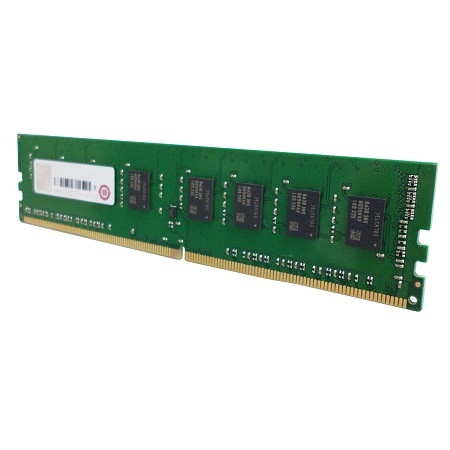

RAM-8GDR4T0-UD-3200 QNAP 8GB DDR4 RAM 3200 MHz UDIMM T0 Version

RAM-8GDR4T0-UD-3200 QNAP 8GB DDR4 RAM 3200 MHz UDIMM T0 Version

MSRP Price: $180.00
Web Price $180.00

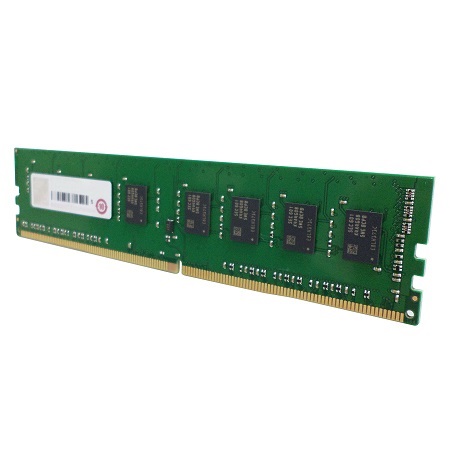

RAM-16GDR4T0-UD-3200 QNAP 16GB DDR4 RAM 3200 MHz UDIMM T0 Version

RAM-16GDR4T0-UD-3200 QNAP 16GB DDR4 RAM 3200 MHz UDIMM T0 Version

MSRP Price: $260.00
Web Price $260.00

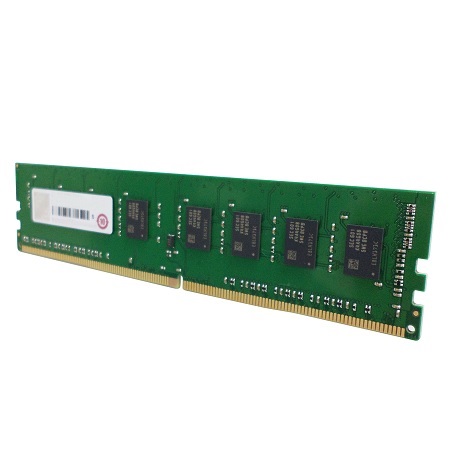

RAM-8GDR4ECT0-UD-3200 QNAP 8GB ECC DDR4 RAM 3200 MHz UDIMM T0 Version
