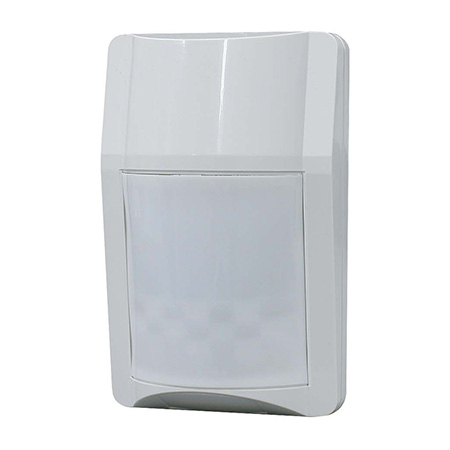

PA-450PIA TAKEX 36' Wide Angle PIR Sensor w/ Pet Immunity

PA-450PIA (Wide angle pet immunity)

High reliable detection performance with a simple and compact design

AREA ADJUSTMENT

The coverage pattern can be adjusted by moving the inner PCB (PA-450EA, PA-460EA) to allow different mounting heights.

PULSE COUNT SELECTABLE

Pulse count can be adjusted to 1, 2, 3, or 4 times Do not use count 3,4 for PA-460EA

CREEP ZONE

Zone focused directly below sensor eliminates typical "dead" area just under the unit.

AUTO ALARM MEMORY

The alarm LED blinks for 3 min and remains lit for 47min, and then resets automatically.

SENSITIVITY SELECTABLE

According to the environment at the site, sensitivity can be adjusted by 4 steps : 60%, 80%, 100% or 120%.

WALK TEST MODE

The alarm LED lights when the sensor detects for 5 min after warming up.

Specifications

• Detection system - Passive infrared
• Coverage - Wide angle 40' (12m) Max
• Sensitive zone - 29 Pairs
• Supply voltage - 11 to 18V DC (non-polarity)
• Current consumption - 25mA Max.
• Alarm output - Dry contact (semi-conductor) (N.C./N.O. selectable) Reset: Approx. 2 secs., 24V, 0.25A Max (protective resistance 3.3Ω)
• Alarm memory - Autoreset: 3 minutes blinking, 47minutes lighting and automatically reset
• Tamper output - 0.1A 30V N.C.
• LED indicator - ï½¥ Blinking at warming up Lighting at alarm (LED disabled)
  ï½¥ Blinking at memory activated Lighting at memory indication
• Adjustment - Vertically 3 steps
• Pulse count - 2/4 selectable
• Mounting position - Indoor wall mount (ceiling mount with optional attachment BCW-401)
• Weight - 120g (4.2oz)
• Appearance - Body: ABS resin Lens: PE resin
• Ambient temperature - -15°C to +55°C (+5°F to +131°F) without condensation
