500452 Muxlab HDMI/USB-C KVM Extender Kit HDBT 4K/60

There are currently no active sales or promotions related to this item.

SKU: 500452

Brand: MuxLab

HDMI/USB-C KVM Extender Kit, HDBT, 4K/60

Features

Compliant with HDMI 2.0b, HDCP 2.2 and DisplayPort 1.2a
Supports 18Gbps video bandwidth
4K @ 60Hz (4:4:4) to distances of up to 131ft (40m) over single Cat6/6a/7 cable
1080p @ 60Hz to distances of up to 230ft (70m) over single Cat6/6a/7 cable
Supports all digital audio modes
Supports HDMI and USB-C input
USB2.0 extension with Receiver
Input signal selection supports automatic or manual mode
USB-C charging port

The MuxLab HDMI/USB-C KVM Extender Kit HDBT, 4K/60 (500452) allows one HDMI channel and one USB2.0 channel to be transmitted over distances of up to 131ft (40m) at 4K@60Hz (4:4:4) resolution, or 230ft (70m) at resolutions up to 1080p via one (1) Cat 6/6a/7 unshielded twisted pair cable in a point-to-point configuration.

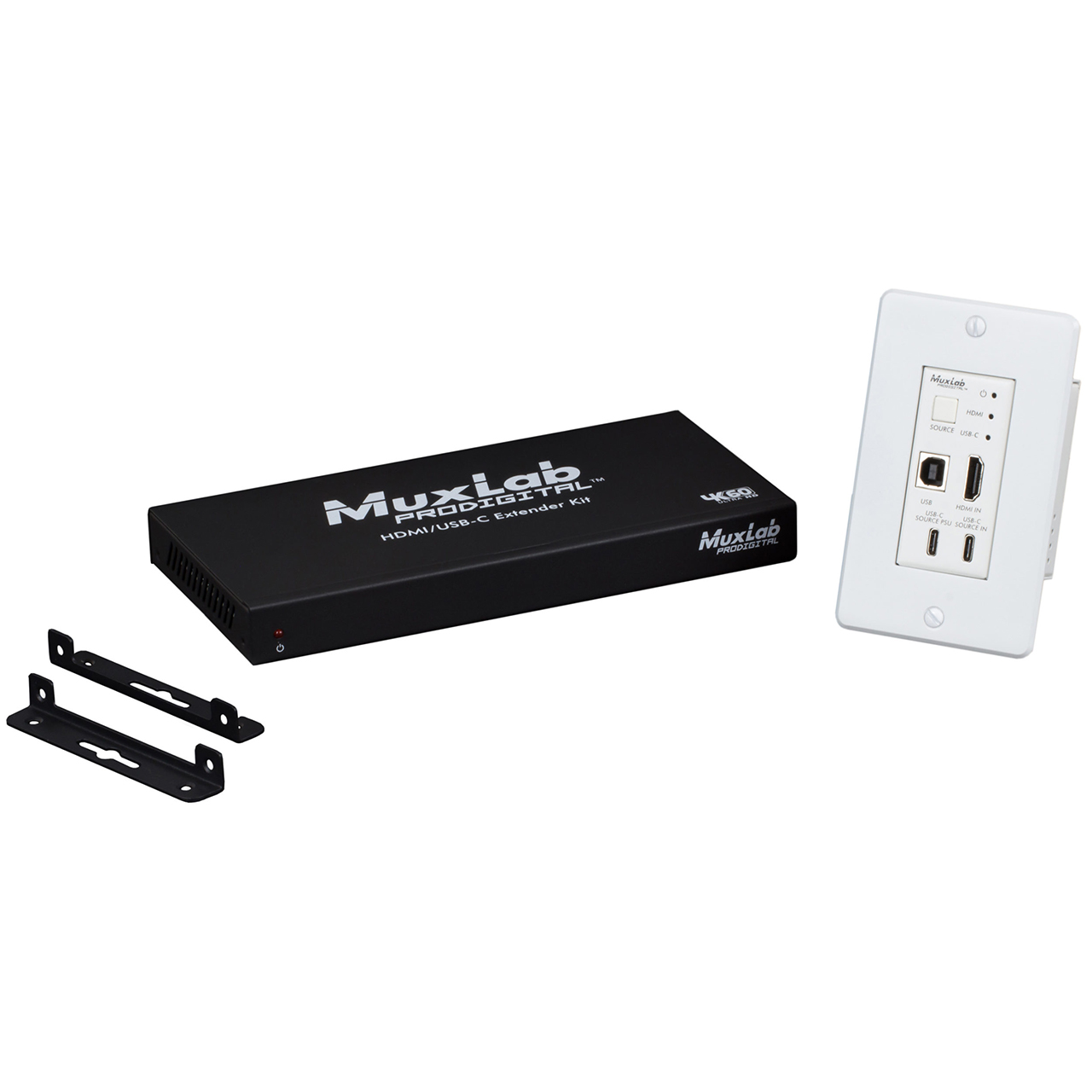

The MuxLab HDMI/USB-C KVM Extender Kit HDBT, 4K/60 includes one (1) transmitter and one (1) receiver. The transmitter is a wall plate HDBT 2x1 switcher with HDMI and USB-C input. It features a US one-gang enclosure for Decora-style wall plate openings. The USB-C input provides an ideal AV interface for connecting with new Apple notebooks and WindowsÂ® PCs as well as smartphones and tablets. The Transmitter is remotely powered by the Receiver via PoC. The Receiver features a 1x2 USB2.0 hub for transferring USB2.0 data transmissions and has analog audio output.

More details...

There are currently no active sales or promotions related to this item.

MPN: 500452
UPC: 627699004524

MSRP Price: $1,021.00

Web Price: $1,021.00

Quantity:

Add to List

Already a DWG Dealer? - Sign In to view pricing.

Product Details

Specifications

HDMI Compliance - HDMI 2.0b, DisplayPort 1.2a
HDCP Compliance - HDCP 2.2
Video Bandwidth - 18 Gbps
Video Resolution - 4096x2160@24/25/30/50/60Hz, 3840x2160@24/25/30/50/60Hz, 2048x1080p@23.98/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@50/59.94/60Hz, 576p, 576i, 480p, 480i
Color Space - RGB, YCbCr 4:4:4, YCbCr 4:2:2, YUV 4:2:0
Color Depth - 8/10/12-bit
HDR - HDR10, HDR10+
HDMI Audio Formats - Dolby Atmos, TrueHD, Digital+, Digital; DTS X, HD Master Audio, HD High Resolution Audio, 5.1; PCM 2- 8Ch
Transmission Distance - Max distance (1080p): 230ft / 70m over CAT6/6a/7 Max distance (4K): 131ft / 40m over CAT6/6a/7
ESD Protection - Human body model - Â±8kV (Air-gap discharge) & Â±4kV (Contact discharge)
Connectors (Transmitter) - Inputs: 1x HDMI Type A [19-pin female] 1x USB-C Outputs: 1x HDBaseT Out [RJ45, 8-pin female] 1x USB-C (only for charging) Control: 1x USB-B [Micro USB, Update port]
Connectors (Receiver) - Inputs: 1x HDMI IN [Type A, 19-pin female] 1x HDBaseT IN [RJ45, 8-pin female] Outputs: 1x HDMI OUT [Type A, 19-pin female] 1x AUDIO OUT [Phoenix jack] Control: 2x USB [USB A TYPE] 1x FW [Micro USB, Update port]
Power Supply - Receiver: One (1) 110-240V/24VDC Power supply with interchangeable blades Transmitter: Powered by the Receiver via PoC (Note: only one power supply is required if USB devices are being powered)
Housing - Receiver: One (1) 110-240V/24VDC Power supply with interchangeable blades Transmitter: Powered by the Receiver via PoC (Note: only one power supply is required if USB devices are being powered)
Housing - Metal Enclosure
Dimensions (WxDxH) - Wall plate: 1.31" x 2.58" x 2.70" (33.3mm x 65.7mm x 68.7mm) Faceplate: 2.75" x 0.11" x 4.5" (69.9mm x 3mm x 114.3mm) Receiver: 7.87" x 3.85" x 0.90" (200mm x 98mm x 23mm)
Weight - Wall plate: 0.43 lbs (0.196 kg) Receiver: 1.12 lbs (0.511 kg)
Shipping Weight - 2.67 lbs (1.21 kg)
Warranty - 2 years
Order Information - 500452 HDMI/USB-C KVM Extender Kit HDBT, 4K/60 (UPC: 627699004524)

500452 Specifications PDF

KVM /AV Systems, Classroom training systems, Digital signage, Boardroom systems, Collaborative PC systems, Medical information systems
