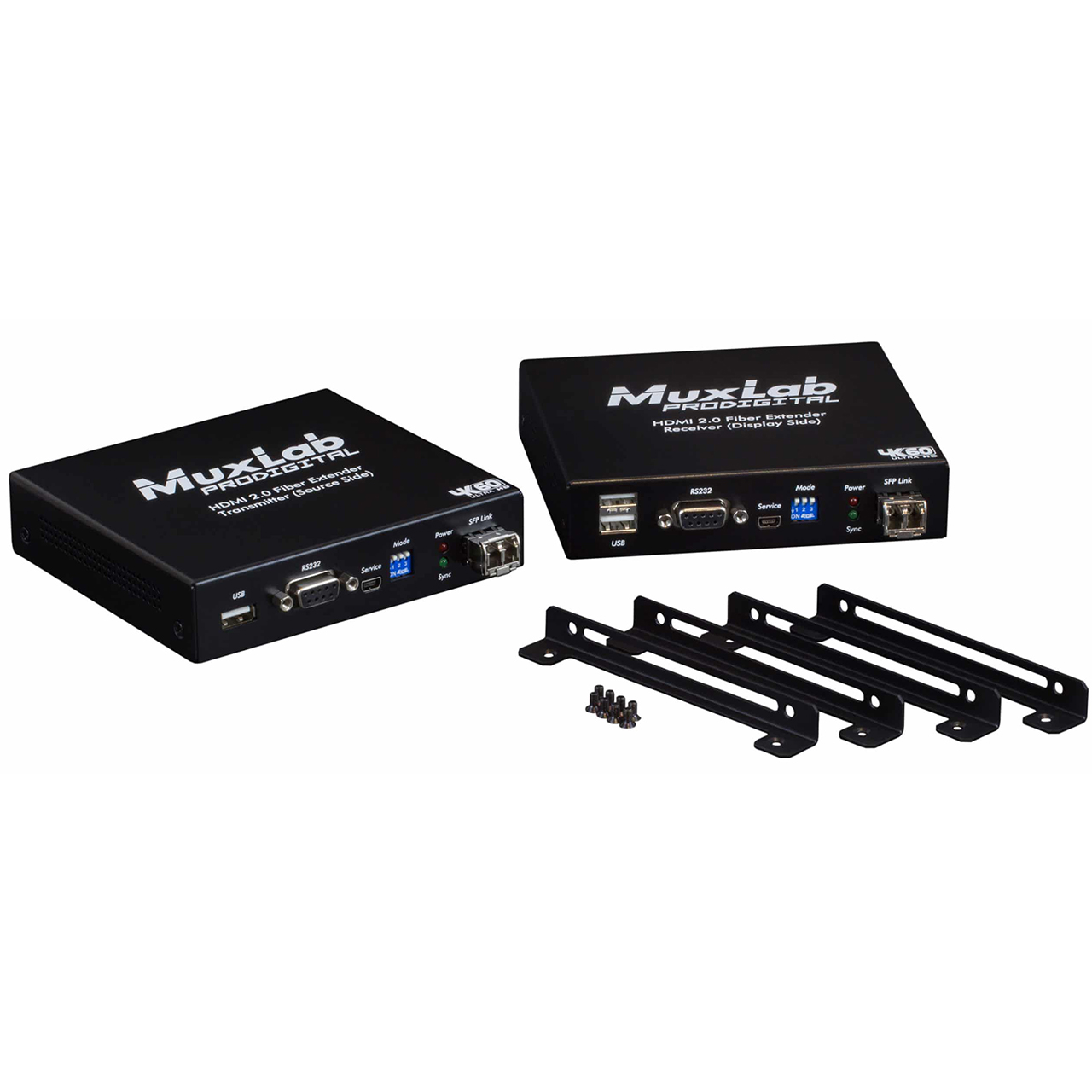

500485 Muxlab HDMI 2.0 Fiber Extender Kit Single Mode

Specifications

Technical

• HDMI compliance - HDMI 2.0a
• HDCP compliance - HDCP 2.2
• Video bandwidth - Single-link 594MHz [18Gbps]
• Video support - HDR 4K@60 (4:2:0 10bits) / 4K@60 (4:4:4 8bits)
• Audio support - Surround sound [up to 7.1ch) or stereo digital audio
• Input TMDS signal - 1.2 Volts [peak-to-peak]
• Input DDC signal - 5 Volts [peak-to-peak, TTL]
• ESD protection - Human body model - ±15kV [air-gap discharge] & ±8kV [contact discharge]
• PCB stack-up - 4-layer board [impedance control - differential 100Ω; single 50Ω]
• IR pass-thru - Bi-directional
• RS-232 support - Yes
• Input ports - Transmitter [TX] 1x HDMI, 1x 3.5mm Receiver [RX] 1x Duplex LC SMF, 1x 3.5mm
• Output ports - Transmitter [TX] 1x Duplex LC SMF, 1x 3.5mm Receiver [RX] 1x HDMI, 1x 3.5mm
• In / Out ports - Transmitter [TX] 1x RS-232, 1x USB Receiver [RX] 1x RS-232, 2xUSB
• HDMI source control - Controllable via IR pass-through from RX to TX with IR extenders
• HDMI connector - Type A [19-pin female]
• USB connector - Type A
• 3.5mm connector - Transmitter [TX] IR receiver / IR blaster Receiver [RX] IR receiver / IR blaster

Mechanical

• Housing - Metal enclosure
• Unit Dimensions (DxWxH) - Transmitter [TX] 4.9" x 4.4" x 1.1" (125mm x 112mm x 28mm) Receiver [RX] 4.9" x 4.4" x 1.1" (125mm x 112mm x 28mm)
• Unit Weight - Transmitter [TX] 1.02 lbs (0.46Kg) Receiver [RX] 1.00 lbs (0.45Kg)
• Wall Mounting Hardware - Wall-mount bracket kit, with screws
• Power supply - 12V2A
• Power consumption - Max 10W
• Operation temperature - 0~40°C [32~104°F]
• Storage temperature - -20~60°C [-4~140°F]
• Relative humidity - 20~90% RH [no condensation]
• Warranty - 2 years
• Order Information - 500485 HDMI 2.0 Fiber Extender Kit, Single Mode (UPC: 627699004852)

500485 Specifications PDF
