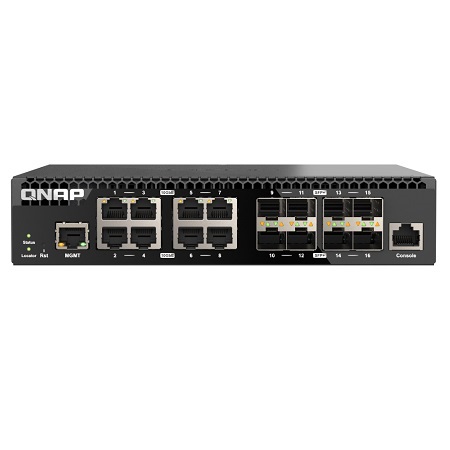

QSW-M3216R-8S8T-US QNAP Half-Width Rackmount 16-Port 10GbE Layer 2 Web Managed Switch

More 10GbE ports and more space-saving at an affordable price. The QNAP QSW-M3216R-8S8T is a half-width rackmount L2 Managed Switch with eight 10GbE SFP+ fiber ports and eight 10GbE RJ45 ports. Supporting Layer 2 switching and network management via a user-friendly web user interface, the QSW-M3216R-8S8T offers flexible deployment in high-speed network environments and provides an entry-level network management solution. With a half-width design, the QSW-M3216R-8S8T can be conveniently placed within working environments without taking up too much space, and two can be installed in a single 1U rack space. The QSW-M3216R-8S8T is made in Taiwan (MIT), providing a high-quality and reliable networking solution.

Specifications

• Management Type - Unmanaged
• Number of Ports - 16
• 10GbE SFP+ - 8
• 10GbE BASE-T (RJ45) - 8
• Management Port - 1 x 1GbE RJ45
• Power Supply Description - Internal Power supply Unit
• Max. Power Consumption - 80W
• Input Power Type - AC
• Input Voltage Range - 100-240VAC, 50/60Hz
• MAC Address Table - 16K
• Total Non-Blocking Throughput - 160Gbps
• Switching Capacity - 320Gbps
• Management Interface - Web
• Console - RJ45
• Fan - PWM VAPO Bearing fan x 2
• Supported Standards
  • IEEE 802.3 Ethernet
  • IEEE 802.3u 100BASE-T
  • IEEE 802.3ab 1000BASE-T
  • IEEE 802.3z 1000BASE-SX/LX
  • IEEE 802.3ae 10G Fiber
  • IEEE 802.3x Full-Duplex Flow Control
  • IEEE 802.1Q VLAN Tagging
  • IEEE 802.1w RSTP
  • IEEE 802.3ad LACP
  • IEEE 802.1AB LLDP
  • IEEE 802.1p Class of Service
• Form Factor - Half-width rackmount
• LED Indicators - Per Port: Speed/Link/Activity, Per System: Power/Status
• Buttons - Reset button
• Dimensions (HxWxD) - 43.3 x 207 x 199.5 mm
• Weight (Net) - 3.35 lbs
• Weight (Gross) - 4.92 lbs
• Operating Temperature - 0˚C to 40°C (32°F to 104°F)
• Relative Humidity - 5~95% Non-condensing
• Certifications - CE, FCC, VCCI, BSMI
• Electromagnetic Compliance - CLASS A
• Jumbo Frames - 9K
• Warranty - 2 Years

QSW-M3216R-8S8T-US Specifications PDF
