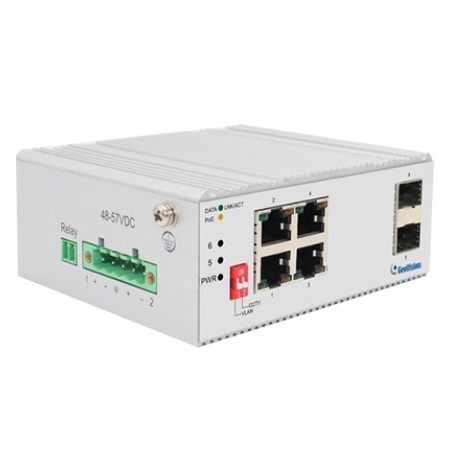

GV-APOE0410-E Geovision Industrial-Grade Unmanaged PoE Switch with 4 PoE+ 10/100/1000 BaseT(X) Ports and 2 Gigabit SFP Ports

GV-APOE0410-E is an industrial-grade, unmanaged PoE switch with 4 PoE+ 10/100/1000 BaseT(X) ports and 2 Gigabit SFP ports. The switch supports IEEE 802.3at Power over Ethernet standard with up to 30 W per port and a maximum power consumption of 125 W. It not only eliminates the need for power cables to connect your powered devices (PD), such as IP cameras, but it also allows power supply over cables up to 250 m (820 ft) in length, at 10 Mbps.

Specifications

Ethernet

• Layer Supported - L2

Ports

• Number of Ports
  • 6 ports, including
  • 4 PoE 10/100/1000 BaseT(X) RJ-45 PoE+ ports

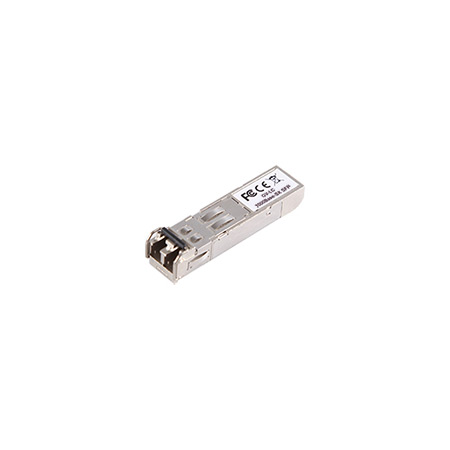

  • 2 Gigabit SFP ports

Performance

• MAC Address - 4K
• Buffer MemoryM - 1.5 Mb
• Jumbo Frames - 9 KB
• Transmission Method - Store and Forward
• Transmission Media
  • 10 BaseT Cat. 3, 4, 5 UTP
  • 100 BaseTX Cat. 5, 5e UTP
  • 1000 BaseT Cat. 5e, 5 UTP
  • 1000 BaseX Cat. MMF, SMF
• Forwarding Rate - 8.93 Mpps
• Backplane Capacity - 12 Gbps
• PD Alive Check - Yes
• CCTV - Yes, *When the CCTV function is enabled, PoE connection network cables can be extended up to 250 m (820 ft) at 10 Mbps transmission rate
• VLAN - Yes

Mechanical Characteristics

• LED Indicators - PoE per Port, SFP per Port, Power, DATA

Electrical Characteristics

• PoE Power
  • Input Voltage - 48 ~ 57 VDC, 50 ~ 60 Hz
  • Input Current - 2.5A@48VDC
  • Output - IEEE 802.3at Compliant Voltage, Per Port Max. 30 watts (4 Ports at Full 15.4 W / 4 Ports at Full 30 W)
• PoE Mode - Mode A Ports (1, 2- / 3, 6 +)
• Max. Power Consumption - 125 W (427 BTU)
• PoE Budget - 120 W (409 BTU)
• Alarm Output - 1 relay output, 1A, 24 V/DC
• Redundant DC Power - Yes

General

• Dimensions (H x W x D) - 110 x 90 x 46 mm (4.3" x 3.5" x 1.8")
• Weight - 0.62 kg (1.37 lb)
• Operating Temperature - -40 °C ~ 75 °C (-40 °F ~ 167 °F)
• Storage Temperature - -40 °C ~ 80 °C (-40 °F ~ 176 °F)
• Humidity - 5 ~ 95% RH (non-condensing)
• Surge Protection - Differential mode ±2KV, Common mode ±4KV

Standards and Regulatory

• Standards
  • IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
  • IEEE802.3x flow control, back pressure flow control
  • IEEE 802.3af/at
  • IEEE 802.3az Energy Efficient Ethernet (EEE)
• Certifications - CE, FCC Class A, UKCA, RoHS compliant IEC61000-4-5 (Surge) Lv.4:Line to Line 2kV, Line to Ground 2kV at DC-in and Line to Ground 4kV at RJ-45 ports

GV-APOE0410-E Specifications PDF
