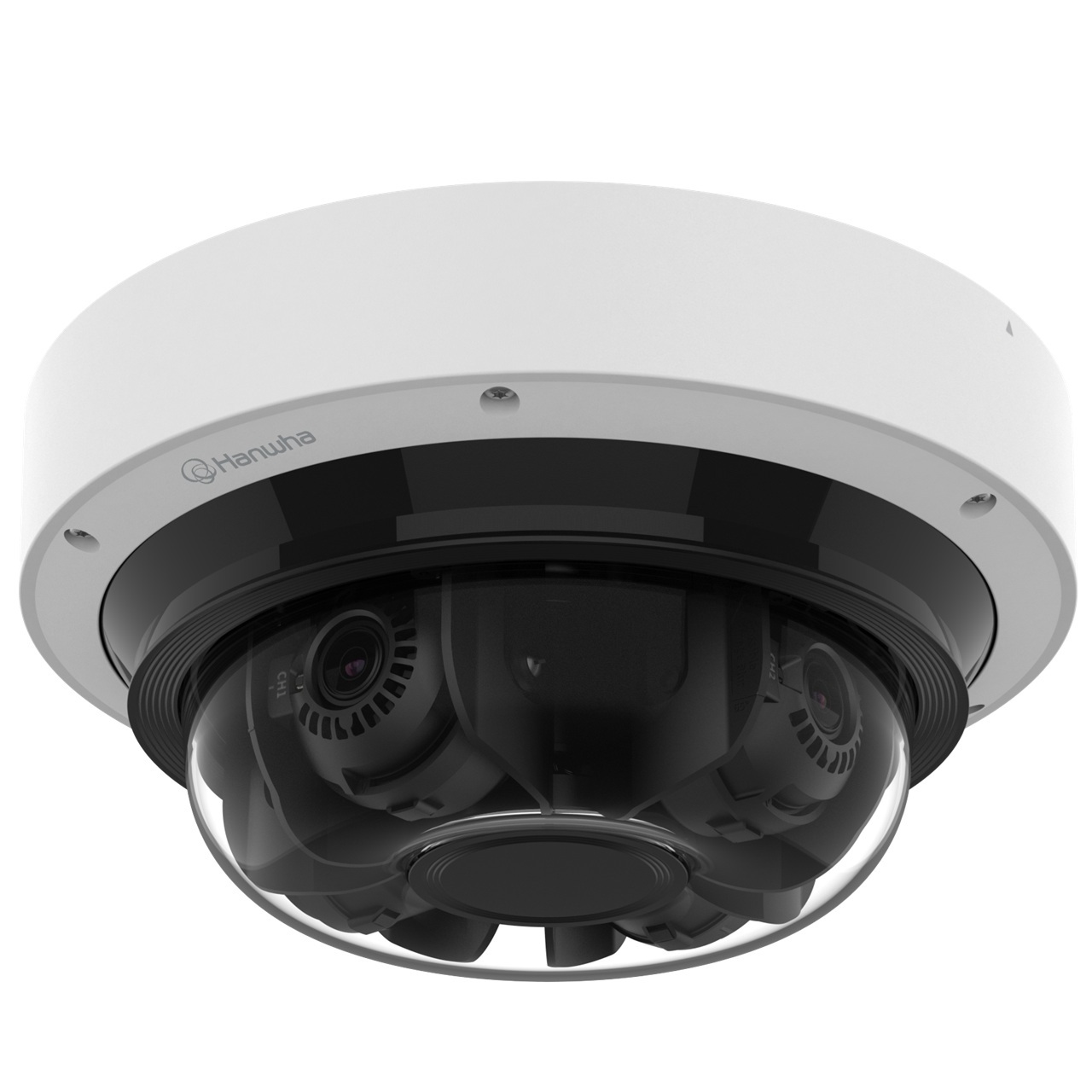

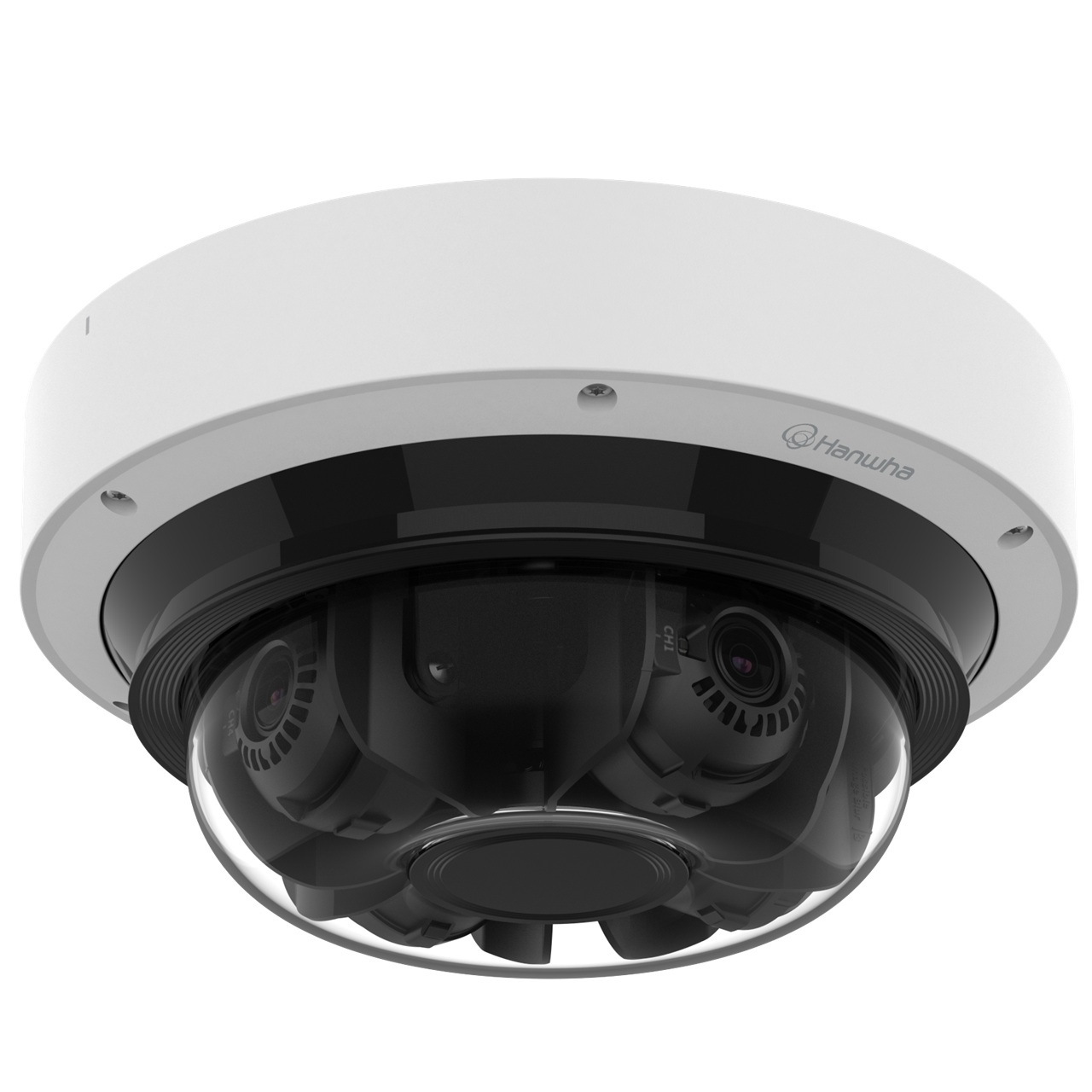

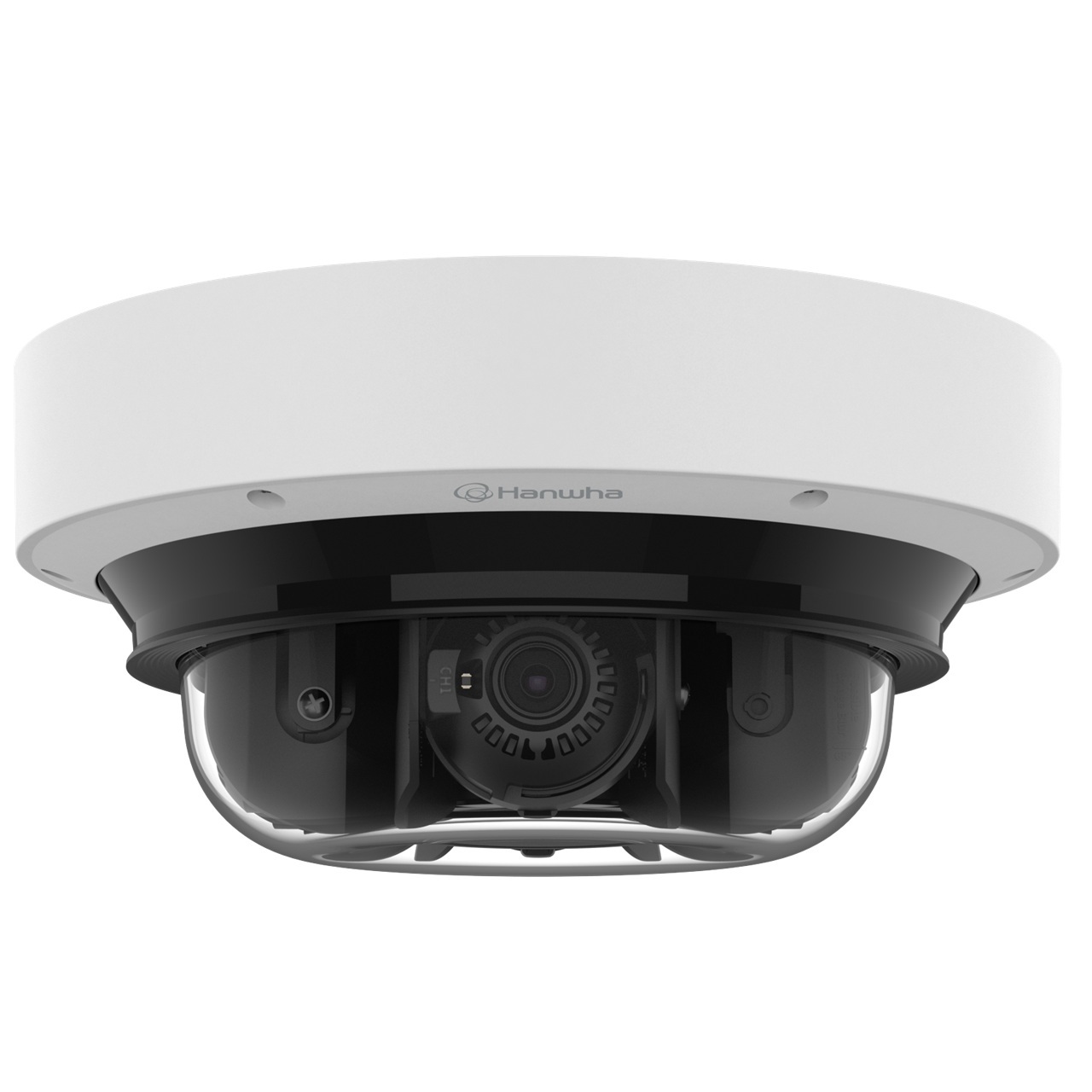

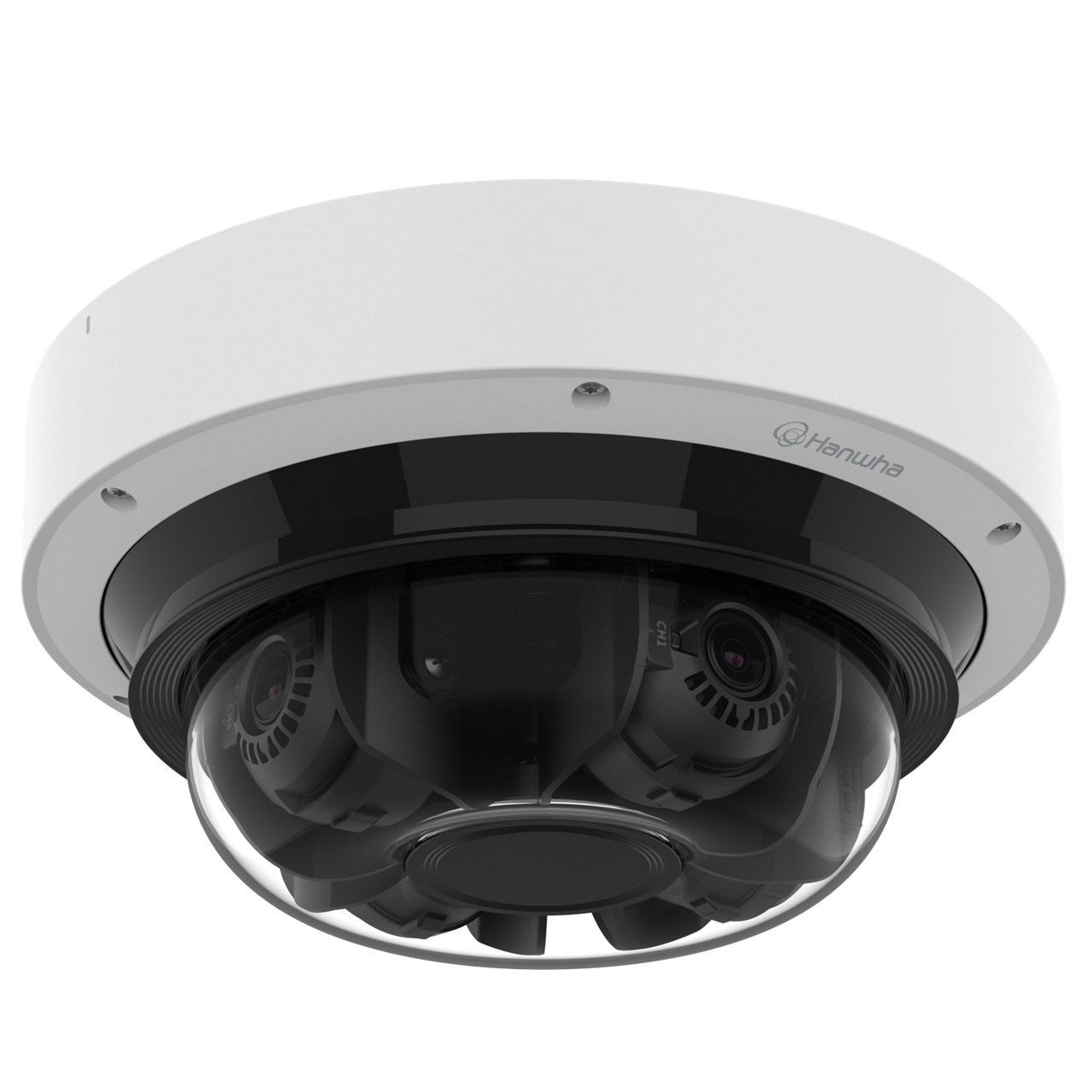

PNM-C32083RVQ Hanwha Vision P Series 4 x 3.3-5.7mm @ 8MP Outdoor IR Day/Night WDR Multi-directional IP Security Camera PoE

Specifications

Video

• Imaging Device - 1/2.8" CMOS x 4CH
• Resolution - 3840x2160, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
• Max. Framerate - [AI On] H.265/H.264: Max. 15fps/15fps(60Hz/50Hz) MJPEG: Max. 15fps/15fps(@8MP Max. 5fps) [AI Off] H.265/H.264: Max. 20fps/20fps(60Hz/50Hz) MJPEG: Max. 20fps/20fps(@8MP Max. 5fps)
• Min. Illumination - Color: 0.1Lux(F1.5, 1/30sec, 30IRE) BW: 0.01Lux(F1.5, 1/30sec, 30IRE), 0Lux(IR LED on)
• Video Out - USB: Micro USB Type B, 1280x720 for installation

Lens

• Focal Length (Zoom Ratio) - 3.3~5.7mm(1.7x) motorized varifocal
• Max. Aperture Ratio - F1.5(Wide)~F1.9(Tele)
• Angular Field of View - H: 109°(Wide)~56°(Tele) V: 55°(Wide)~31°(Tele) D: 136°(Wide)~65°(Tele)
• Min. Object Distance - 1.3m(4.27ft)
• Focus Control - Simple focus
• Lens Type - Fixed iris

Pan / Tilt / Rotate

• Pan / Tilt / Rotate Range - 0°~360° / 0°~65° / 0°~90°

Operational

• Camera Title - Displayed up to 85 characters
• Day & Night - Auto(ICR)
• Backlight Compensation - BLC, WDR, SSDR
• Wide Dynamic Range - 120dB
• Digital Noise Reduction - SSNRâ…¤, WiseNRâ…¡(Based on AI engine)
• Motion Detection - 8ea, 8point Polygonal zones
• Privacy Masking - 6ea, rectangular zones - Color: Grey/Black/White
• Gain Control - Low / Middle / High
• White Balance - ATW / AWC / Manual / Indoor / Outdoor
• LDC - Support
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker(2~1/12,000sec) Prefer shutter control(Based on AI engine)
• Video Rotation - Flip, Mirror, Hallway view(90°/270°) - Each channel separately
• Analytics - Classified object type: Person/Face/Vehicle/License plate Attributes: Vehicle(Type: car/bus/truck/motorcycle/bicycle) Support BestShot Analytics events based on AI engine - Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit) Analytics events - Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Virtual area(Appear/Disappear)
• Alarm I/O - 2 configurable I/O ports * Support extra alarm I/O via optional SPM-4210 I/O box
• Alarm Triggers - Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription
• Alarm Events - When alarm trigger occurred - File upload(image): e-mail/FTP - Notification: e-mail - Recording: SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover: PTZ preset, send message by HTTP/HTTPS/TCP - Audio clip playback - MQTT: publication
• Audio In - Selectable(mic in/line in)
• Audio Out - Line out
• IR Wavelength - WiseIR 15m(49.21ft)

Network

• Ethernet - Metal shielded RJ-45(10/100/1000BASE-T)
• Video Compression - H.265/H.264: Main/High, MJPEG
• Audio Compression - G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
• Smart Codec - Manual(5ea area), WiseStreamâ…¡, WiseStreamâ…¢(Based on AI engine)
• Video Quality Adjustment - H.264/H.265: Target bitrate level control MJPEG: Target bitrate level control
• Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
• Streaming - Unicast(10 users) / Multicast Multiple streaming(Up to 3 profiles per channel)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast), MQTT
• Application Programming Interface - ONVIF Profile S/T SUNAPI(HTTP API) Wisenet open platform

Security

• OS / Firmware Protect - Secure boot, Signed firmware, Firmware encryption
• User authentication - Digest Authenticaton
• Network authentication - 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
• Secure Communication - HTTPS, SRTP
• Access Control - IP address filtering
• Data Protect - Authentication information encryption, ZIP compression encryption
• Audit - User Access/System/Event log
• Device ID - Device Certificate(Hanwha Private Root CA)
• Secure Storage - TPM(Trusted platform module)
• Security Certificate - TPM with FIPS 140-2 level 2

General

• Webpage Language - English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Edge Storage - Micro SD/SDHC/SDXC 2slot Max. 1TB(512GBx2)
• Memory - 8GB RAM, 1GB Flash

Environmental & Electrical

• Operating Temperature / Humidity - -40°C~+55°C(-40°F~+131°F) * Start up should be done at above -35°C 0~95% RH(non-condensing) Humidity control /w Air vent
• Storage Temperature / Humidity - -50°C~+60°C(-58°F~+140°F) / 0~95% RH
• Certification - IP66, NEMA4X, IK10
• Input Voltage - PoE++(IEEE802.3bt type2, Class4)
• Power Consumption - PoE+: Max 25.5W, typical 22.0W

Mechanical

• Color / Material - Body: White / Aluminum Bubble: Hard-coated dome
• RAL Code - RAL Code
• Product Dimensions / Weight - ø250x114.2mm(ø9.84x4.50"), 2820g(6.22 lb)
• Compatible Conduit hole / Gangbox - Conduit hole: 19.1mm(3/4")(M25) Gangbox: Single, Double, 4" Octagon, Square
• Hanging Mount (Dome) - SBP-250HMW, SBP-276HMW

Certifications & Standards

• EMC - FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A KS C 9832 Class A , KS C 9835
• Safety - UL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC/EN 62471
• Environment - IEC/EN 63000 IEC/EN 60529 IP66, IEC/EN 62262 IK10 NEMA 250 type 4X

DORI (EN62676-4 standard)

• Detect (25PPM/ 8PPF) - Wide: 54.8m(179.73ft) / Tele: 144.4m(473.88ft)
• Observe (63PPM/ 19PPF) - Wide: 21.9m(71.89ft) / Tele: 57.8m(189.55ft)
• Recognize (125PPM/ 38PPF) - Wide: 11.0m(35.95ft) / Tele: 28.9m(94.78ft)
• Identify (250PPM/ 76PPF) - Wide: 5.5m(17.97ft) / Tele: 14.4m(47.39ft)
