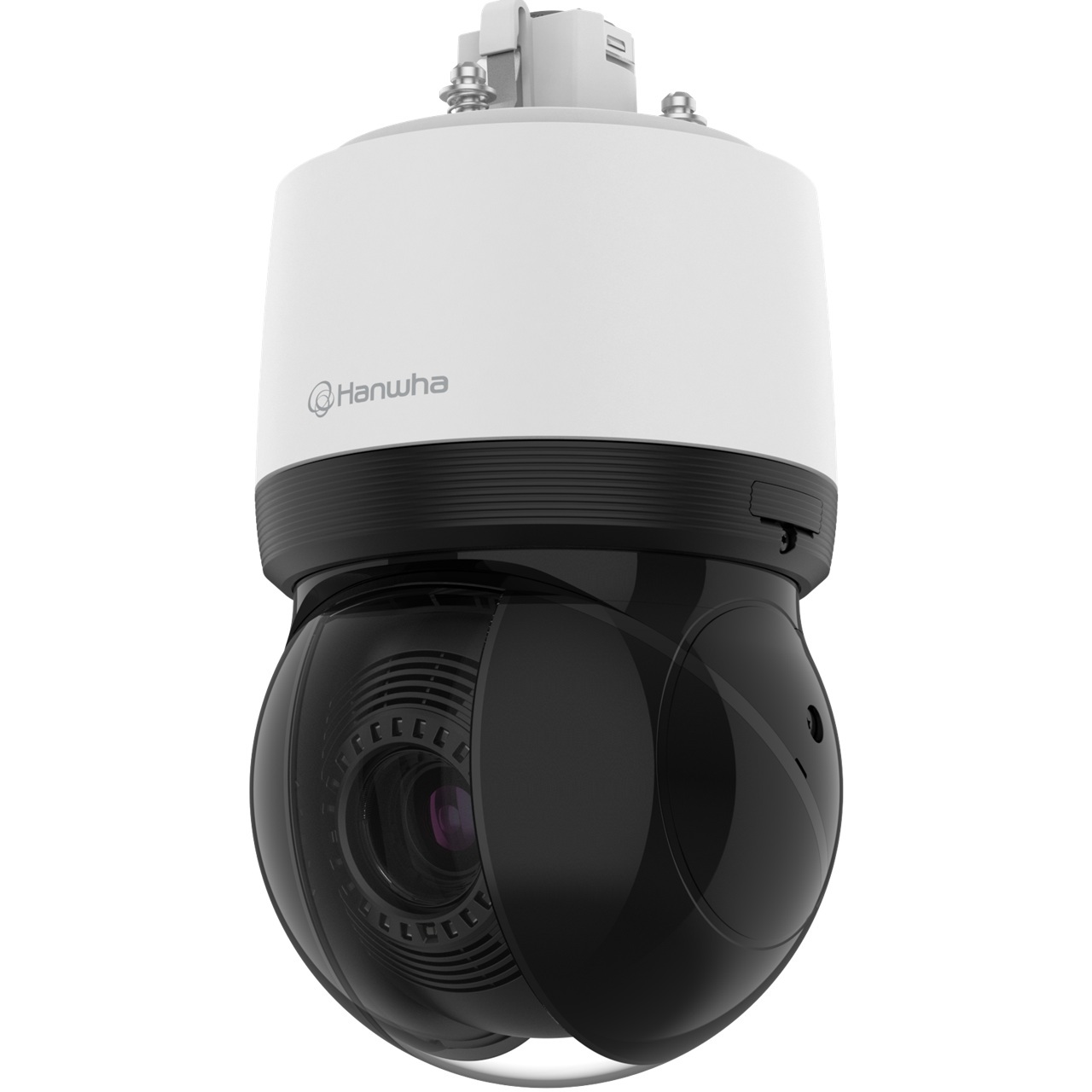

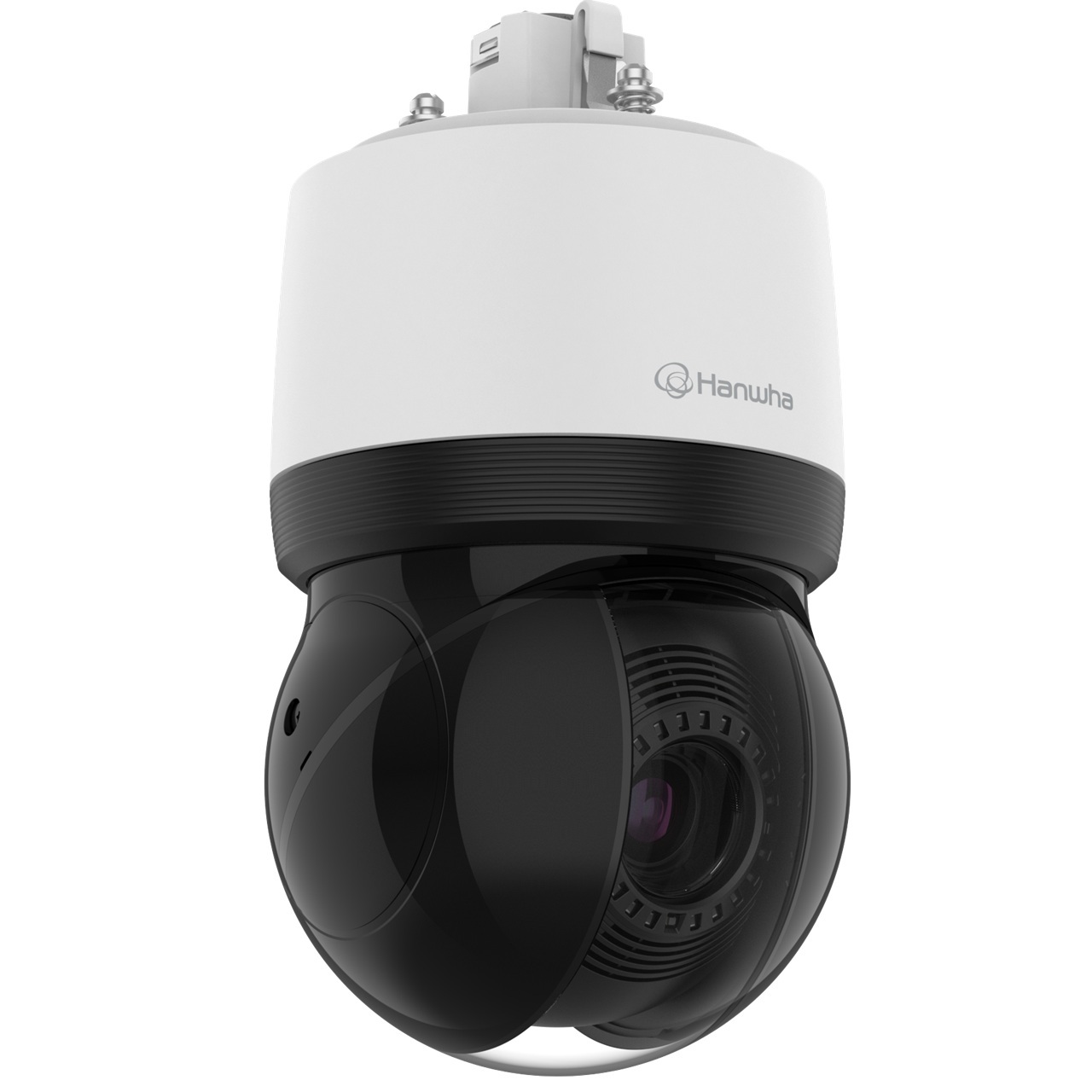

XNP-C9253R Hanwha Vision X Series 5~125mm 25x Optical Zoom 30FPS @ 4K Indoor/Outdoor IR Day/Night WDR PTZ IP Security Camera POE

Specifications

Video

• Imaging Device - 1/2.8" CMOS
• Resolution - 3840x2160, 2592x1944, 2592x1464, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
• Max. Framerate - H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) (@8MP Max. 5fps)
• Min. Illumination - Color: 0.1Lux(F1.6, 1/30sec) BW: 0Lux(IR LED On)

Lens

• Focal Length (Zoom Ratio) - 5~125mm(25x) zoom (digital 32x, total 800x zoom)
• Optical Zoom - 25x
• Max. Aperture Ratio - F1.6(Wide)~F3.73(Tele)
• Angular Field of View - H: 57.42°(Wide)~2.71°(Tele) / V: 33.54°(Wide)~1.55°(Tele)
• Min. Object Distance - 5m(16.4ft)
• Focus Control - Oneshot AF, Focus save
• Lens Type - DC auto iris

Pan / Tilt / Rotate

• Pan Range - 360° Endless
• Pan Speed - Max. 700°/sec, Manual: 0.024°/sec~250°/sec
• Tilt Range - 110°(90°~-20°)
• Tilt Speed - Max. 500°/sec, Manual: 0.024°/sec~250°/sec
• Sequence - Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
• Preset Accuracy - Up to ±0.1°, Pan/Tilt correction

Operational

• Camera Title - Displayed up to 85 characters
• Direction Indicator - Support
• Day & Night - Auto(ICR)
• Backlight Compensation - BLC, HCL, WDR, SSDR
• Wide Dynamic Range - Extreme WDR(120dB)
• Digital Noise Reduction - WiseNRâ…¡(Based on AI engine), SSNRâ…¤
• Digital Image Stabilization - Support(built-in gyro sensor)
• Defog - Support
• Motion Detection - 8ea, 8 Point Polygonal zones
• Privacy Masking - 32ea, 4point Quadrangle zones - Color: Gray/Green/Red/Blue/Black/White - Mosaic
• Gain Control - Off / Max gain / Manual
• White Balance - ATW / NarrowATW / AWC / Manual / Indoor / Outdoor / Mercury / Sodium
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker (2~1/12,000sec) Prefer shutter control(Based on AI engine)
• Video Rotation - Flip&Mirror
• Analytics - Classified object type : Person/Face/Vehicle/License plate Attributes : Vehicle(Type:car/bus/truck/motorcycle/bicycle) Support DetectionShot Analytics events based on AI engine - Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection Analytics events - Tampering, Fog detection, Shock detection, Virtual area(Appear/Disappear) * Audio detection, Sound classification(Via optional I/O box SPM-4210)
• Alarm Triggers - Analytics, Network disconnect, Alarm input((Via optional I/O box SPM-4210), Time schedule, MQTT subscription
• Alarm Events - When alarm trigger occurred - File upload(image) : e-mail/FTP/SFTP - FIle upload(video clip): FTP/SFTP - Notification : e-mail - Recording : SD/SDHC/SDXC or NAS recording at event triggers - Handover: PTZ preset, send message by HTTP/HTTPS/TCP - Audio clip playback - MQTT: publication * Alarm output / Audio clip playback(Via optional I/O box SPM-4210)
• Light Type - IR LED(850nm)
• IR Viewable Length - Wise IR 200m(656.17ft)
• Water Removal - Support(Spin dry, Lens heater)
• Auto Tracking - Support Object auto tracking(Person/Vehicle) Target lock tracking

Network

• Ethernet - Metal shielded RJ-45(10/100BASE-T)
• Video Compression - H.265/H.264: Main/Baseline/High, MJPEG
• Smart Codec - Manual(5ea area), WiseStreamâ…¡, WiseStreamâ…¢(Based on AI Engine)
• Video Quality Adjustment - H.264/H.265: Target bitrate level control MJPEG: Target bitrate level control
• Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
• Streaming - Unicast(20 users) / Multicast (128 user) Multiple streaming(Up to 10 profiles)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP/SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), NTCIP1205, MQTT
• Application Programming Interface - ONVIF Profile S/G/T/M SUNAPI(HTTP API) Hanwha Vision open platform

Security

• OS / Firmware Protect - Encrypted Firmware, Secure boot, Signed Firmware
• User authentication - Digest Authenticaton, Prevent brute-force attack
• Network authentication - IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
• Secure Communication - HTTPS, WSS(WebSocket Secure), SRTP
• Access Control - IP-based access control
• Data Protect - Encryption Credentials, Encrypt compress for live recording file export
• Audit - Access / System / Event Log management
• Device ID - Device certificate(Hanwha Vision Root CA)
• Secure Storage - TPM(Trusted platform module), HTPM(Hanwha trusted platform module), SDcard partition encrypt
• Security Certificate - TPM with FIPS 140-2 level 2

General

• Webpage Language - English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Edge Storage - Micro SD/SDHC/SDXC 2slot 1TB (512GBx2)
• Memory - 4GB RAM, 512MB Flash

Environmental & Electrical

• Operating Temperature / Humidity - -40°C~+55°C(-40°F ~ +131°F) / +74°C(+165°F) (MAX) based on NEMA-TS 2(2.2.7) * Start up should be done at above -30°C 0~100%RH(Condensing) Humidity control with AIR vent
• Storage Temperature / Humidity - -50°C ~ +60°C(-58°F ~ +140°F) / 0~90% RH
• Wind Load - 241km/h(150mph) EPA(Effective Projected Area) : 0.035㎡
• Certification - IP66, IK10, NEMA4X, NEMA-TS 2(2.2.7, 2.2.8, 2.2.9)
• Input Voltage - PoE++(IEEE802.3bt, Class6, Type3, Injector included)
• Power Consumption - Typical 24W, Max 40W

Mechanical

• Color / Material - Body : White / Aluminum Head : Black / Polycarbontate Hard-coated dome
• RAL Code - White: RAL9003 / Black: RAL9005
• Product Dimensions / Weight - ø158x293.3mm(6.22x11.55") / 3200g(7.05lb)
• Hanging Mount (Dome) - SBP-156HMW
• Ceiling Mount (Assy) - SBP-156CMW, SBP-300CMTS, SBP-300CMW1/900CMW, SBP-150CMI/300CMI
• Wall Mount - SBP-156WMW, SBP-390WMW2

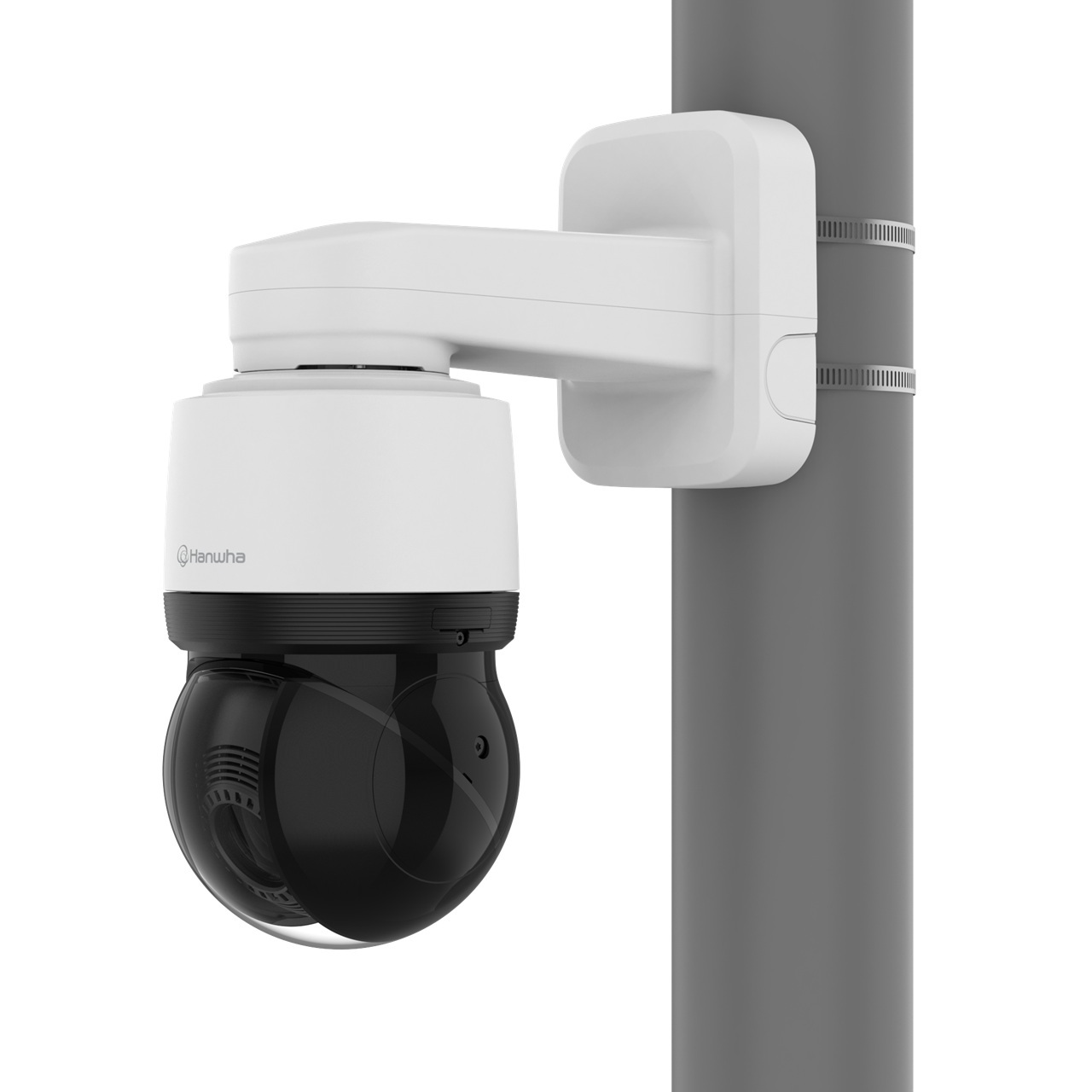

• Pole Mount - SBP-300PMW2
• In-ceiling Mount - SHP-1563FPW, SHP-1563FW
• Parapet Mount - SBP-156LMW, SBP-156LMW1, SBP-300LMW
• Corner Mount - SBP-156KMW, SBP-300KMW1
• Cabinet - SBP-300NBW
• Other Compatible Models - SPB-PTZ85W

Certifications & Standards

• EMC - FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA - EN 55032 Class A, EN 50130-4 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A KS C 9832 Class A , KS C 9835
• Safety - UL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC 62471
• Environment - EN IEC 63000 IEC 60529 IP66, IEC 62262 IK10 NEMA TS 2-2013 (2.2.7, 2.2.8, 2.2.9) NEMA 250 type 4X

DORI (EN62676-4 standard)

• Detect (25PPM/ 8PPF) -Wide: 140.2m(460.0ft) / Tele: 3246.9m(10652.4ft)
• Observe (63PPM/ 19PPF) - Wide: 56.1m(184.0ft) / Tele: 1298.7m(4261.0ft)
• Recognize (125PPM/ 38PPF) - Wide: 28.0m(92.0ft) / Tele: 649.4m(2130.5ft)
• Identify (250PPM/ 76PPF) - Wide: 14.0m(46.0ft) / Tele: 324.7m(1065.2ft)

Ver

• Ver - 202406
