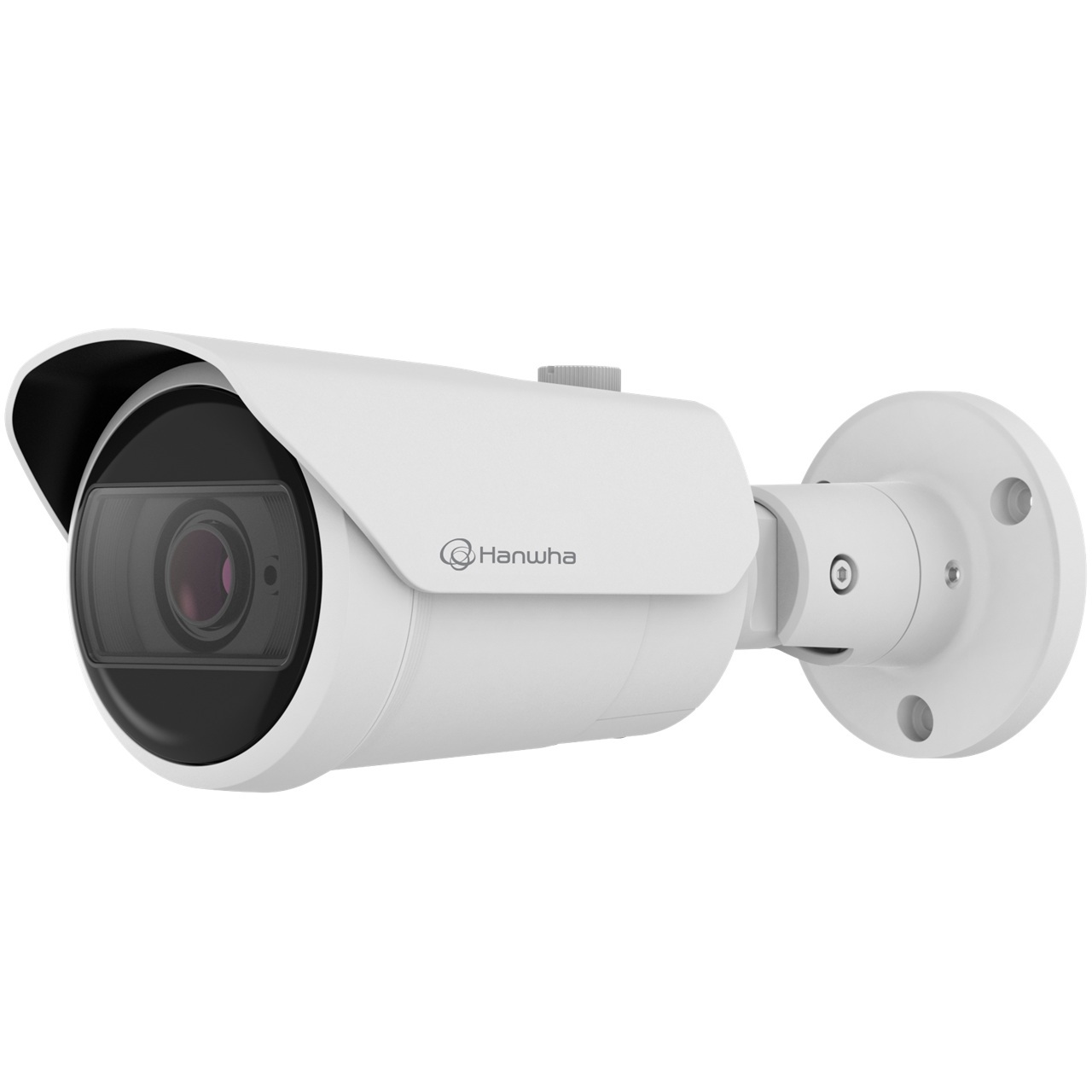

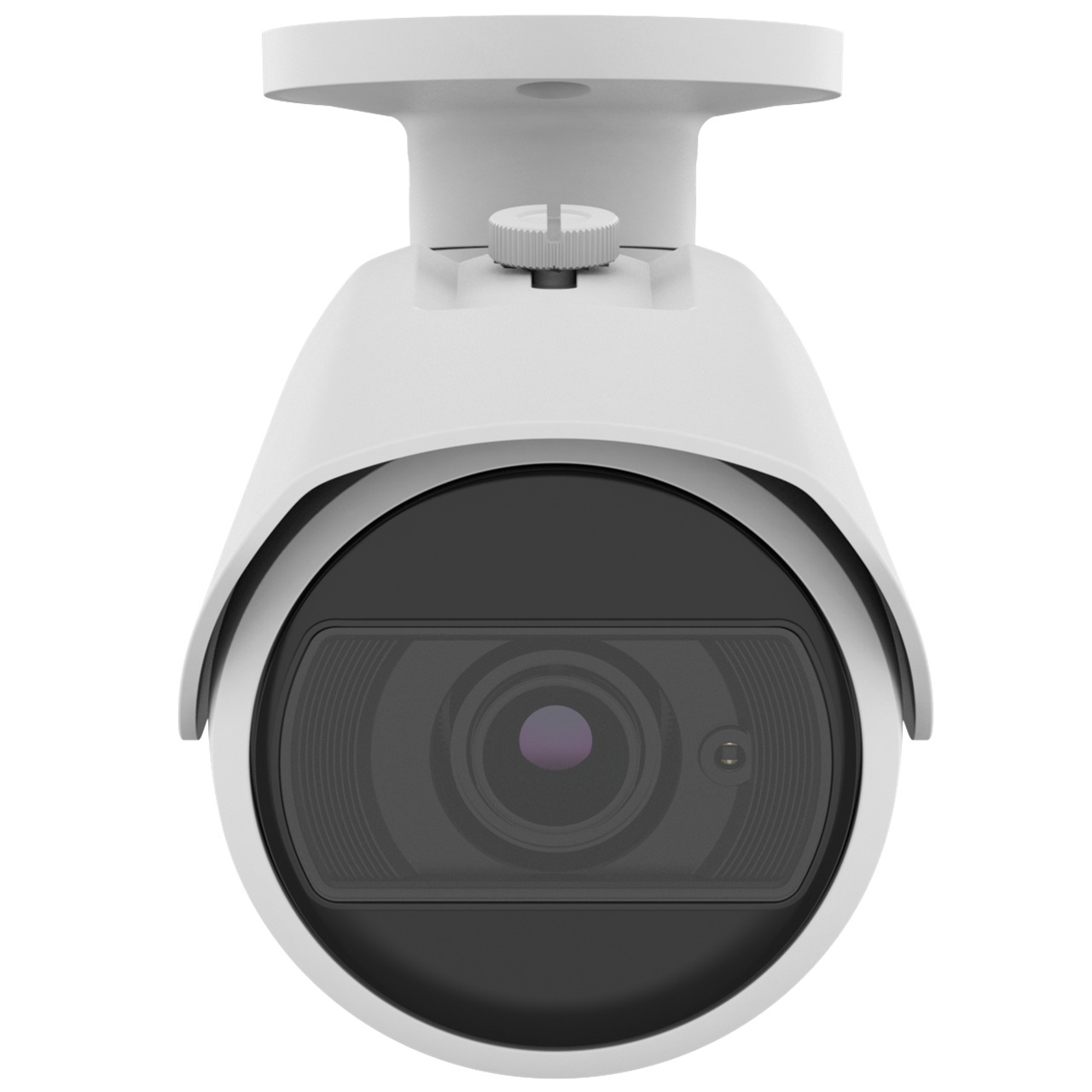

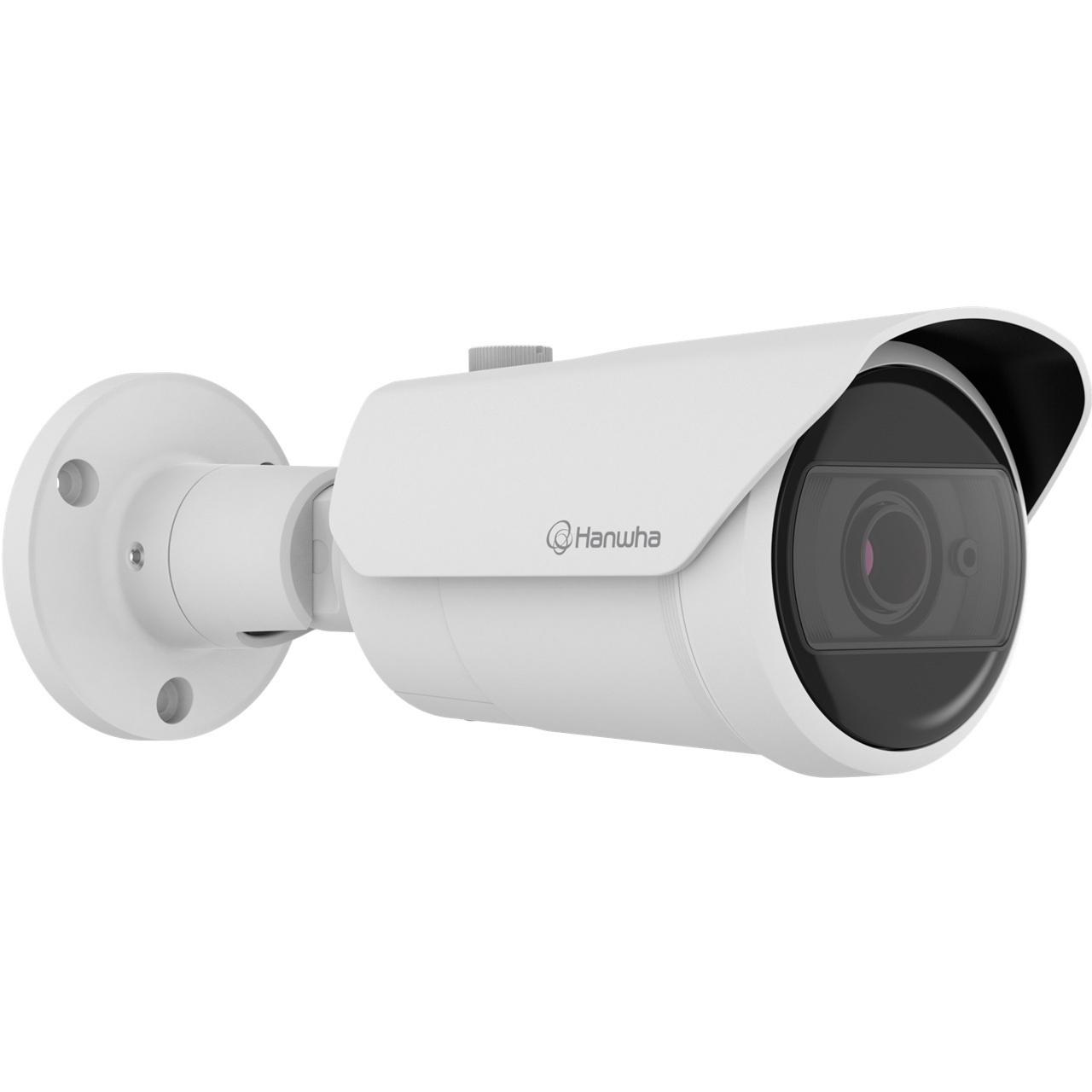

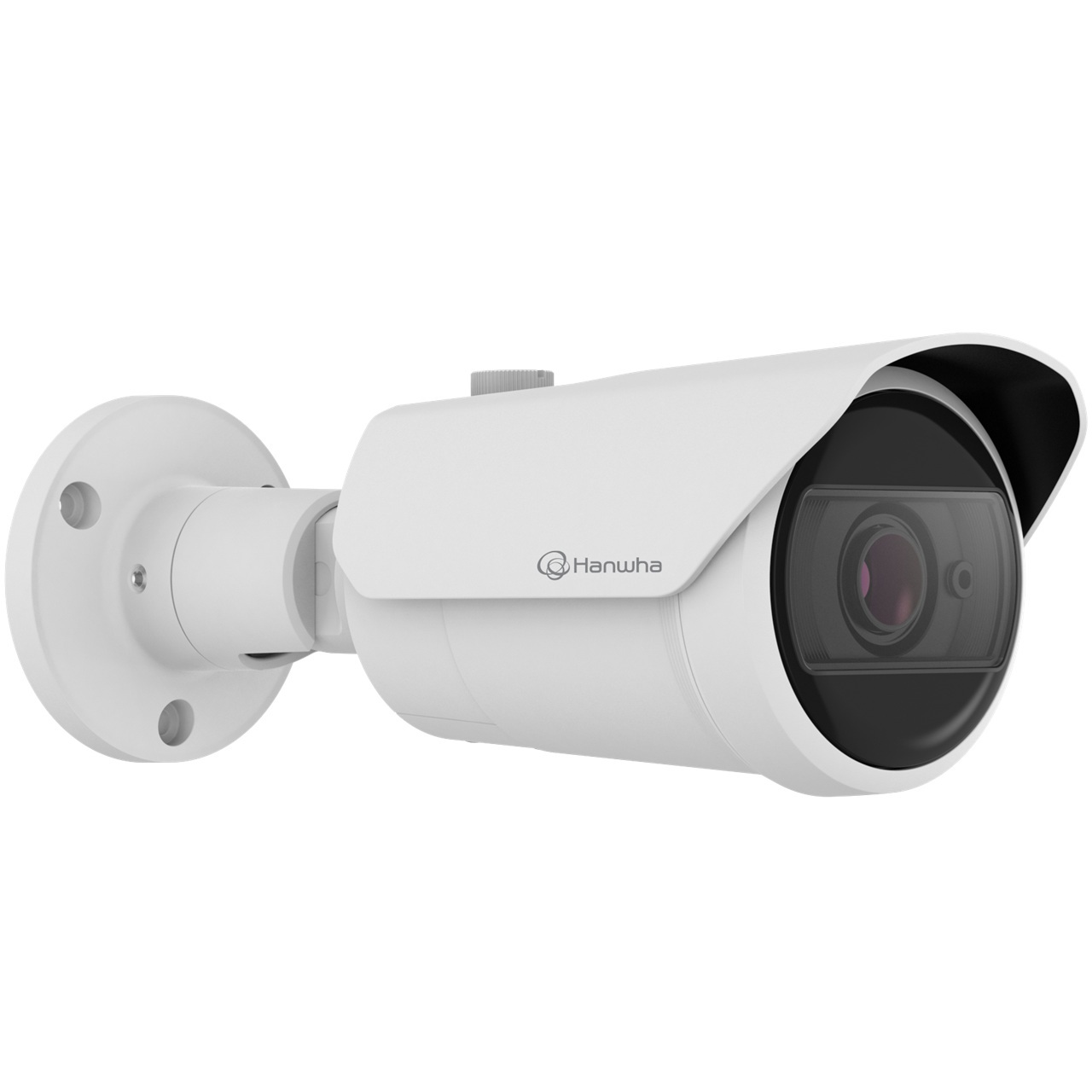

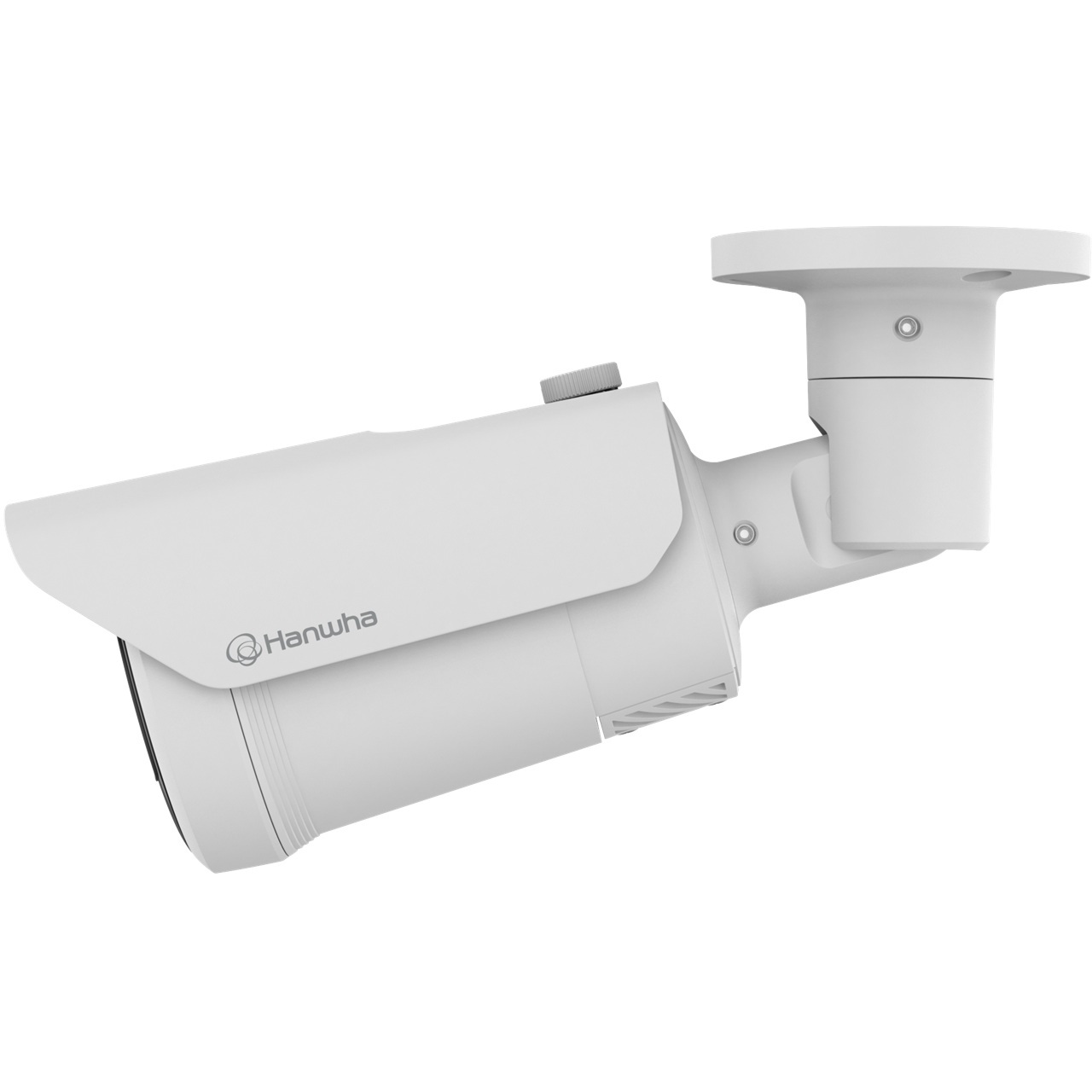

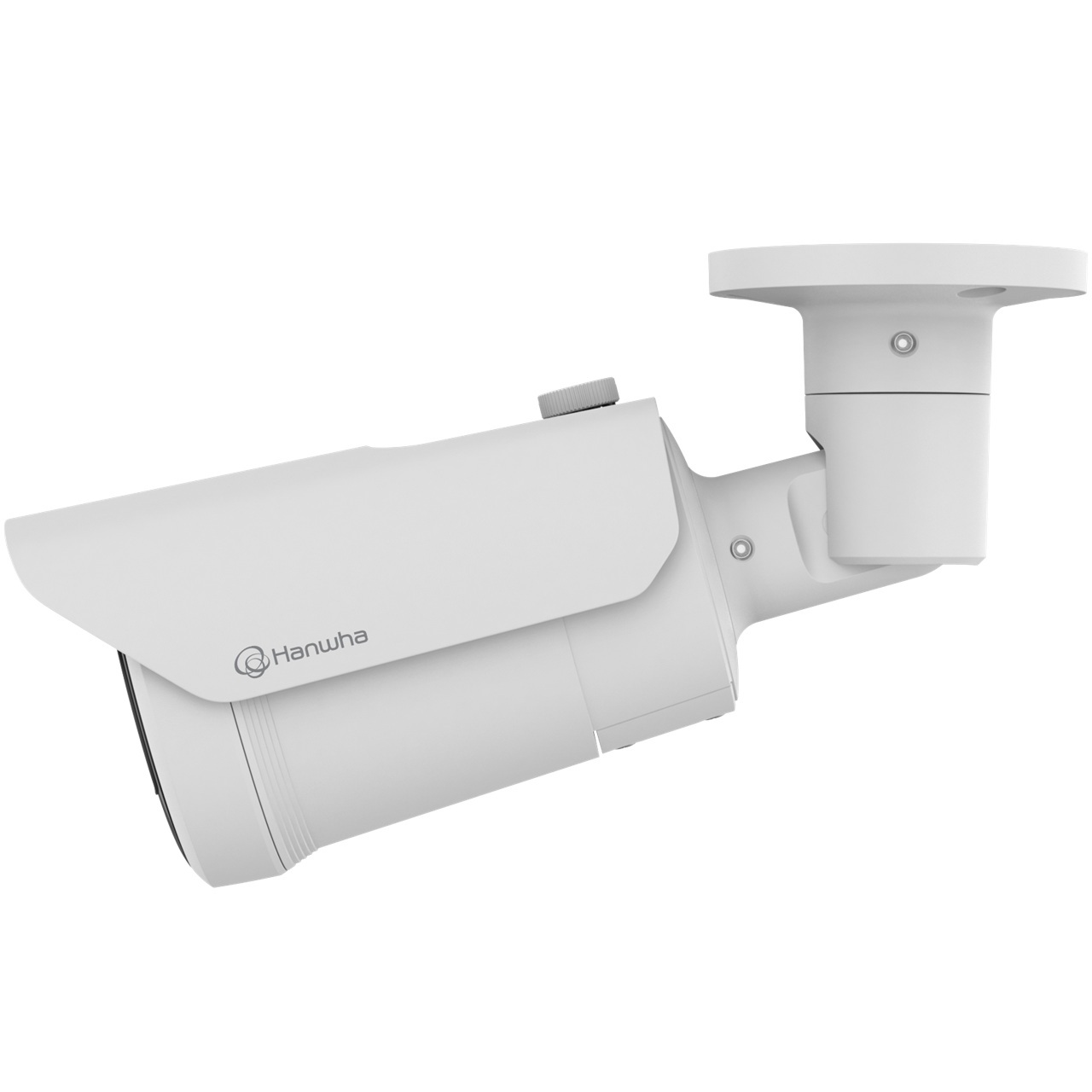

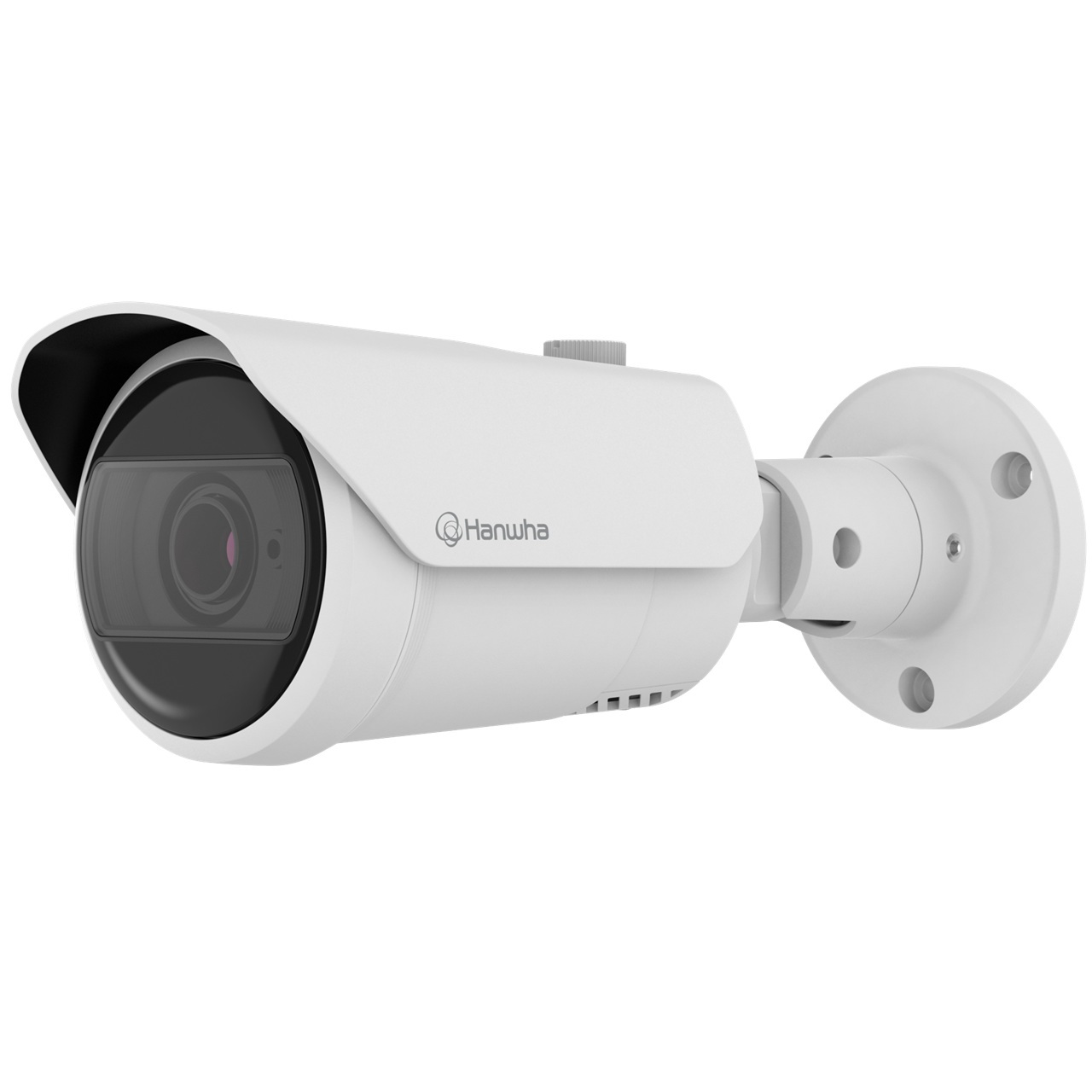

QNO-C8083R Hanwha Vision Q Series 3.2-10.2mm 30FPS @ 5MP Outdoor IR Day/Night WDR Bullet IP Security Camera 12VDC/PoE

Specifications

Video

• Imaging Device - 1/2.8" CMOS
• Resolution - 2592x1944, 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
• Max. Framerate - H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps(@5MP Max. 5fps)
• Min. Illumination - Color: 0.15Lux(F1.6, 1/30sec) BW: 0.015Lux(F1.6, 1/30sec, 30IRE), 0Lux(IR LED on)
• Video Out - USB: Micro USB Type B, 1280x720 for installation

Lens

• Focal Length (Zoom Ratio) - 3.2~10.2mm(3.2x) motorized varifocal
• Max Aperture Ratio - F1.6(Wide)~F3.1(Tele)
• Angular Field of View - H: 95°(Wide)~29°(Tele) V: 69°(Wide)~21°(Tele) D: 126°(Wide)~36°(Tele)
• Min. Object Distance - 1.2m (3.93ft)
• Focus Control - Simple focus
• Lens Type - DC auto iris(IR corrected)

Operational

• Camera Title - Displayed up to 85 characters
• Day & Night - Auto(ICR)
• Backlight Compensation - BLC, WDR, SSDR
• Wide Dynamic Range - (120dB)
• Digital Noise Reduction - SSNRâ…¤, WiseNRâ…¡(Based on AI engine)
• Motion Detection - 8ea, 8point polygonal zones
• Privacy Masking - 32ea, rectangular zones
• Gain Control - Low / Middle / High
• White Balance - ATW / AWC / Manual / Indoor / Outdoor
• LDC - Support
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker 1/5~1/12,000sec
• Digital PTZ - Support
• Video Rotation - Flip, Mirror, Hallway view(90Ëš/270Ëš)
• Analytics - Classified object type: Person/Vehicle Attributes: Vehicle(Type:car/bus/truck/motorcycle/bicycle) Support DetectionShot Analytics events based on AI engine - Motion detection*, Object detection, Virtual line*(Crossing/Direction), Virtual area*(Loitering/Intrusion/Enter/Exit) Analytics events - Defocus detection, Tampering, Virtual area(Appear/Disappear) * Some of the video analytics only works with people and vehicle detection
• Alarm I/O - Input 1ea / Output 1ea
• Alarm Triggers - Analytics, Network disconnect, Alarm input
• Alarm Events - When alarm trigger occurred - File upload(image) : e-mail/FTP - Notification : e-mail - Recording : SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover(PTZ preset, Send message by HTTP/HTTPS/TCP) - Audio clip playback
• Audio In - Selectable(mic in/line in)
• Audio Out - Line out, Max.output level: 0.5Vrms

Network

• Ethernet - RJ-45(10/100BASE-T)
• Video Compression - H.265/H.264: Main/High, MJPEG
• Audio Compression - G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
• Smart Codec - Manual(5ea area), WiseStreamâ…¡
• Video Quality Adjustment - H.264/H.265: Target bitrate level control MJPEG: Quality Level control
• Bitrate Control Method - H.264/H.265: CBR or VBR MJPEG: VBR
• Streaming - Unicast(6 users) / Multicast Multiple streaming(Up to 5 profiles)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
• Security - OS / Firmware Protect : Secure boot, Signed firmware, Firmware encryption User authentication : Digest Authentication Network authentication : 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) Secure Communication : HTTPS, WSS(Websocket secure) Access Control : IP address filtering Data Protect : Authentication information encryption, ZIP compression encryption Audit : User Access/System/Event log Device ID : Device Certificate(Hanwha Techwin Root CA, pre-installed) Secure Storage : Secure by default, CyberSecurity assuarance program UL CAP (UL 2900-1)
• Application Programming Interface - ONVIF Profile S/G/T/M SUNAPI(HTTP API)

General

• Webpage Language - English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Edge Storage - Micro SD/SDHC/SDXC 1slot 256GB
• Memory - 2GB RAM, 1GB Flash

Environmental & Electrical

• Operating Temperature / Humidity/ Others - -30°C~+55°C(-22°F ~ +131°F) / 0~95% RH * Start up should be done at above -30°C
• Storage Temperature / Humidity - -50°C ~ +60°C(-58°F ~ +140°F) / Less than 95% RH
• Certification - IP66, IK10
• Input Voltage - PoE(IEEE802.3af, Class3)
• Power Consumption - PoE: Max 12W, typical 5.3W

Mechanical

• Color / Material - White / Aluminum
• RAL Code - RAL9003
• Product Dimensions - ø93.4x245.8mm(ø3.68x9.68")
• Weight - 930g(2.05 Ib)
• Compatible Conduit hole / Gangbox - Conduit hole : None Gangbox (SBO-090GP) : Single, Double, 4" Octagon (sold separately)
• Backbox - SBO-140BW

Certifications & Standards

• EMC - FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A
• Safety - UL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC/EN 62471
• Environment - IEC/EN 63000 IEC/EN 60529 IP66, IEC/EN 62262 IK10

DORI (EN62676-4 standard)

• Detect (25PPM/ 8PPF) - Wide: 42.7m(140.20ft) / Tele: 186.9m(613.28ft)
• Observe (63PPM/ 19PPF) - Wide: 17.2m(56.08ft) / Tele: 75.4m(245.31ft)
• Recognize (125PPM/ 38PPF) - Wide: 8.5m(28.04ft) / Tele: 37.4m(122.66ft)
• Identify (250PPM/ 76PPF) - Wide: 4.3m(14.02ft) / Tele: 18.7m(61.33ft)
