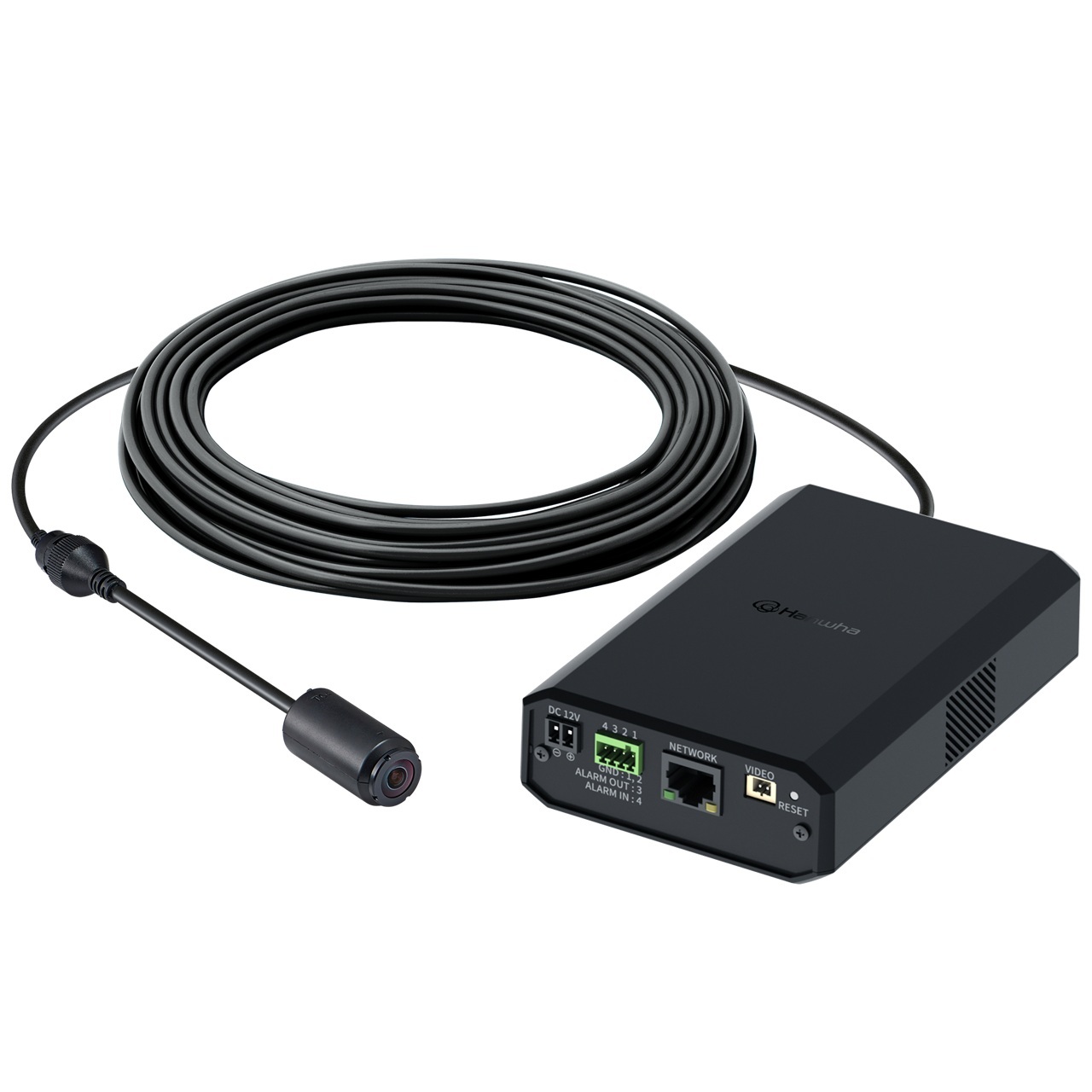

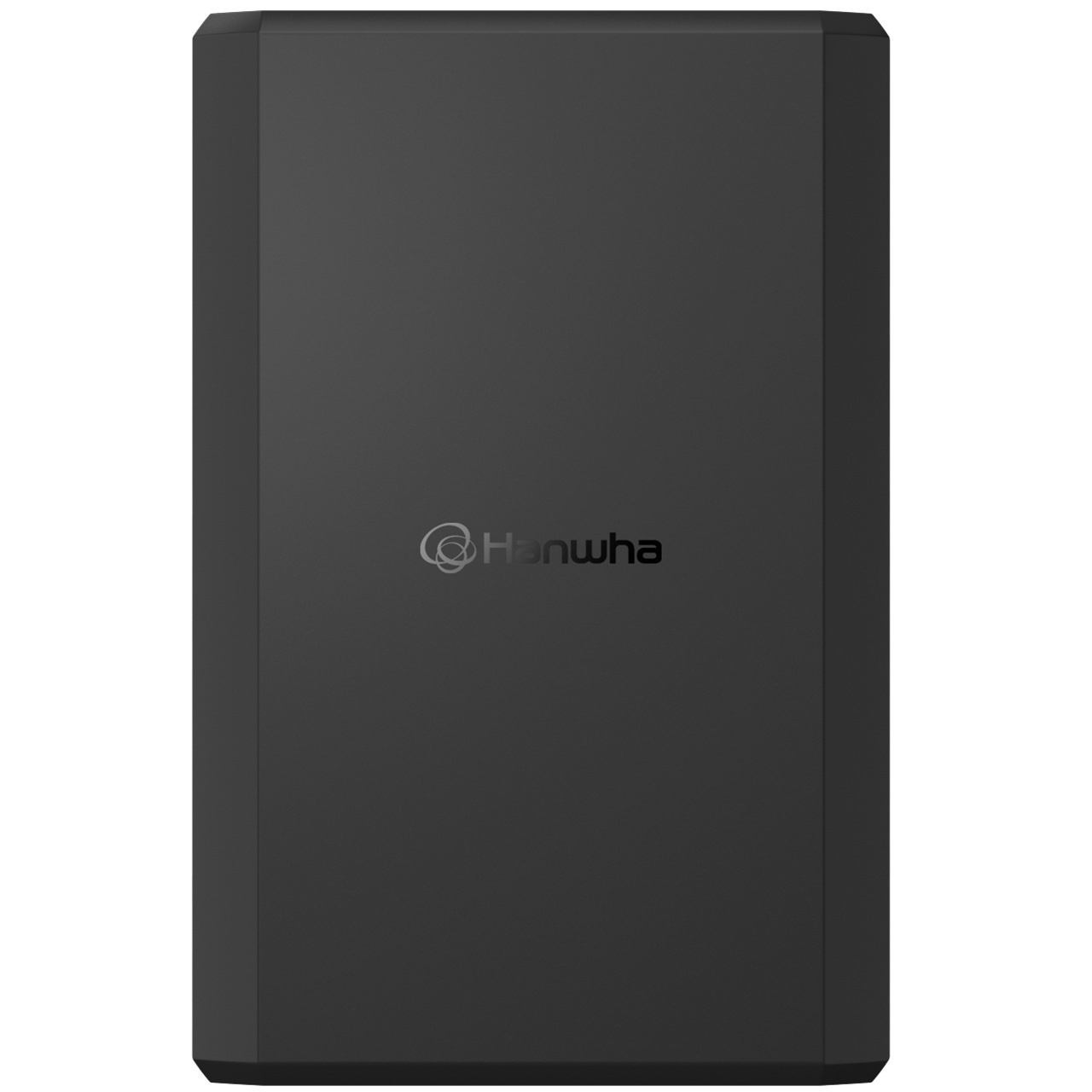

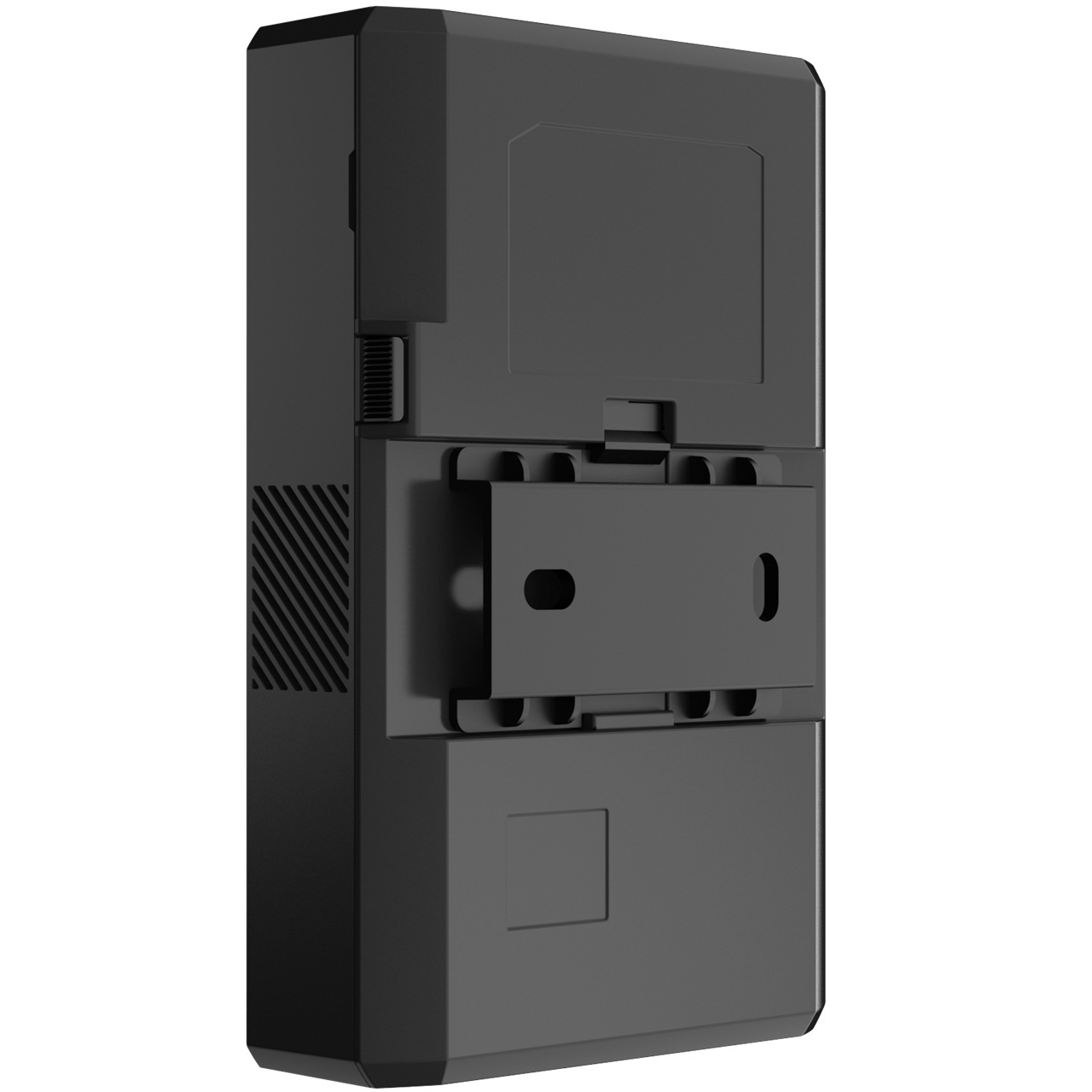

XNB-H6244A Hanwha Vision X Series 2.4mm 60FPS @ 2MP Indoor/Door Day/Night WDR Network ATM IP Security Camera 12VDC/PoE

Specifications

Video

• Resolution - 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
• Max. Framerate - H.265/H.264: 2MP Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
• Video Out - CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation, USB: Micro USB Type B, 1280x720 for installation

Lens

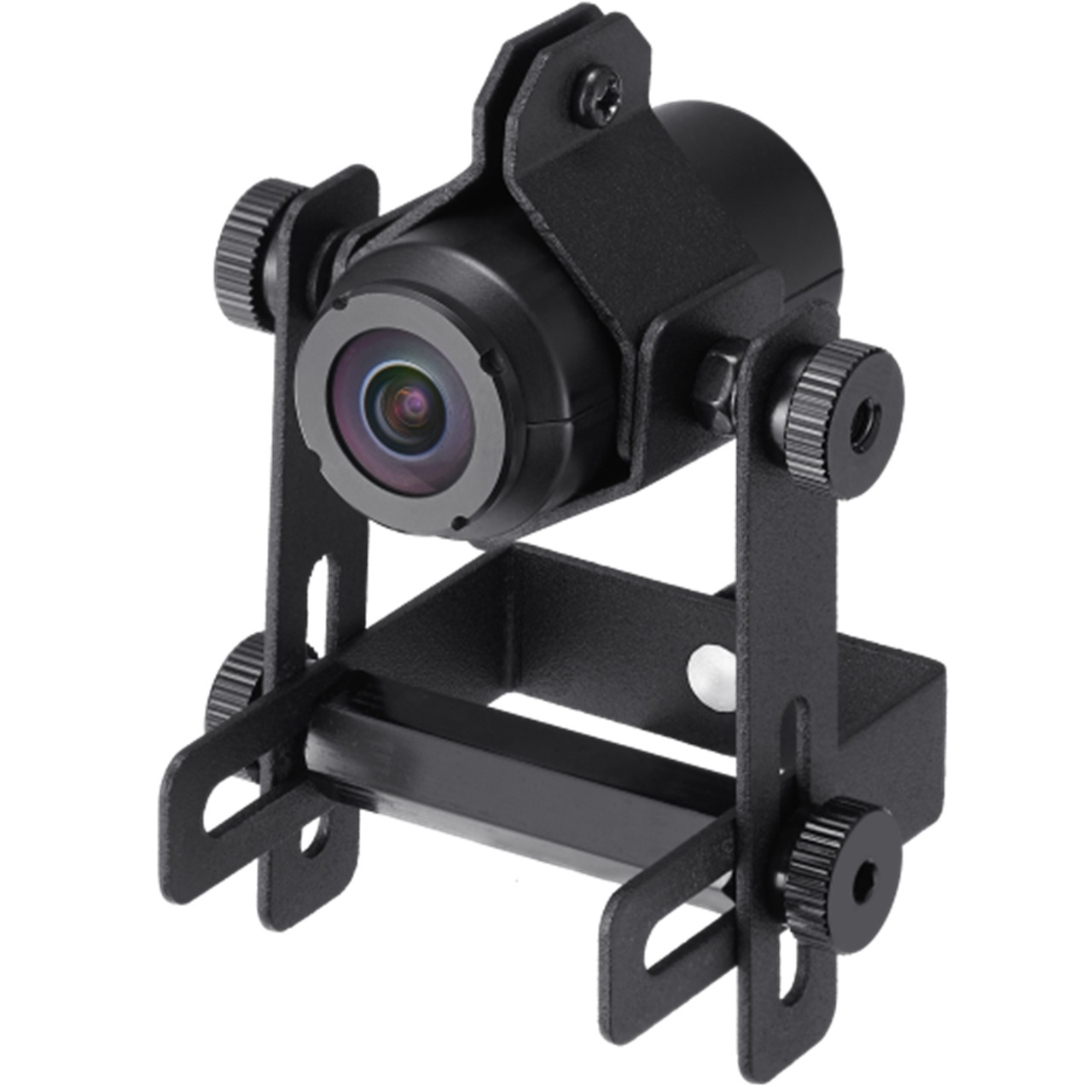

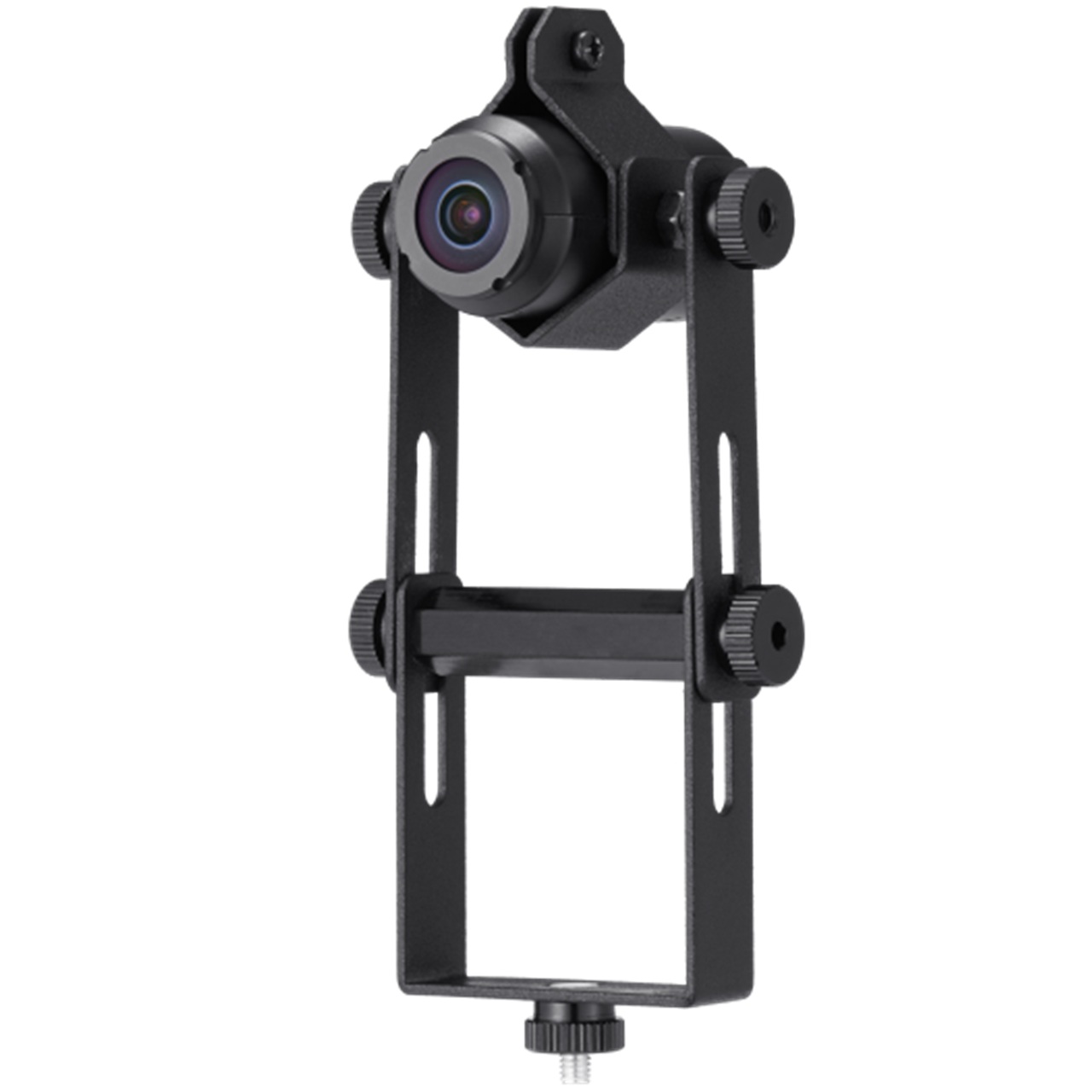

• Included Lens - SLA-T2415A, 2.4mm fixed focal, F2.0, H: 138°, V: 73°, D: 165°, 1/2.8" 2MP CMOS, Shielded RJ12 connector

Operational

• Camera Title - (Displayed up to 85 characters)
• Day & Night - Auto (Electrical)
• Backlight Compensation - BLC, HLC, WDR, SSDR
• Wide Dynamic Range - extremeWDR(120dB)
• Digital Noise Reduction - SSNRâ…¤, WiseNR
• Digital Image Stabilization - Support
• Defog - Support
• Motion Detection - 8ea, 8point Polygonal zones
• Privacy Masking - 32ea, 4point Quadrangle zones - Color: Gray, Green, Red, Blue, Black, White - Mosaic
• Gain Control - Off / Max Gain / Manual
• White Balance - ATW / Narrow ATW / AWC / Manual / Indoor / Outdoor
• LDC - Support(Not support for fisheye lens)
• Electronic Shutter Speed - Minimum / Maximum / Prefer shutter / Anti flicker(2~1/12,000sec)
• Video Rotation - Flip, Mirror, Hallway view(90°/270°)
• Analytics - Analytic events - Defocus detection, Motion detection, Tampering, Fog detection, Audio detection, Sound classification, Face detection, Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear), Virtual line(Crossing/Direction)
• Business Intelligence -People counting, Queue management, Heatmap

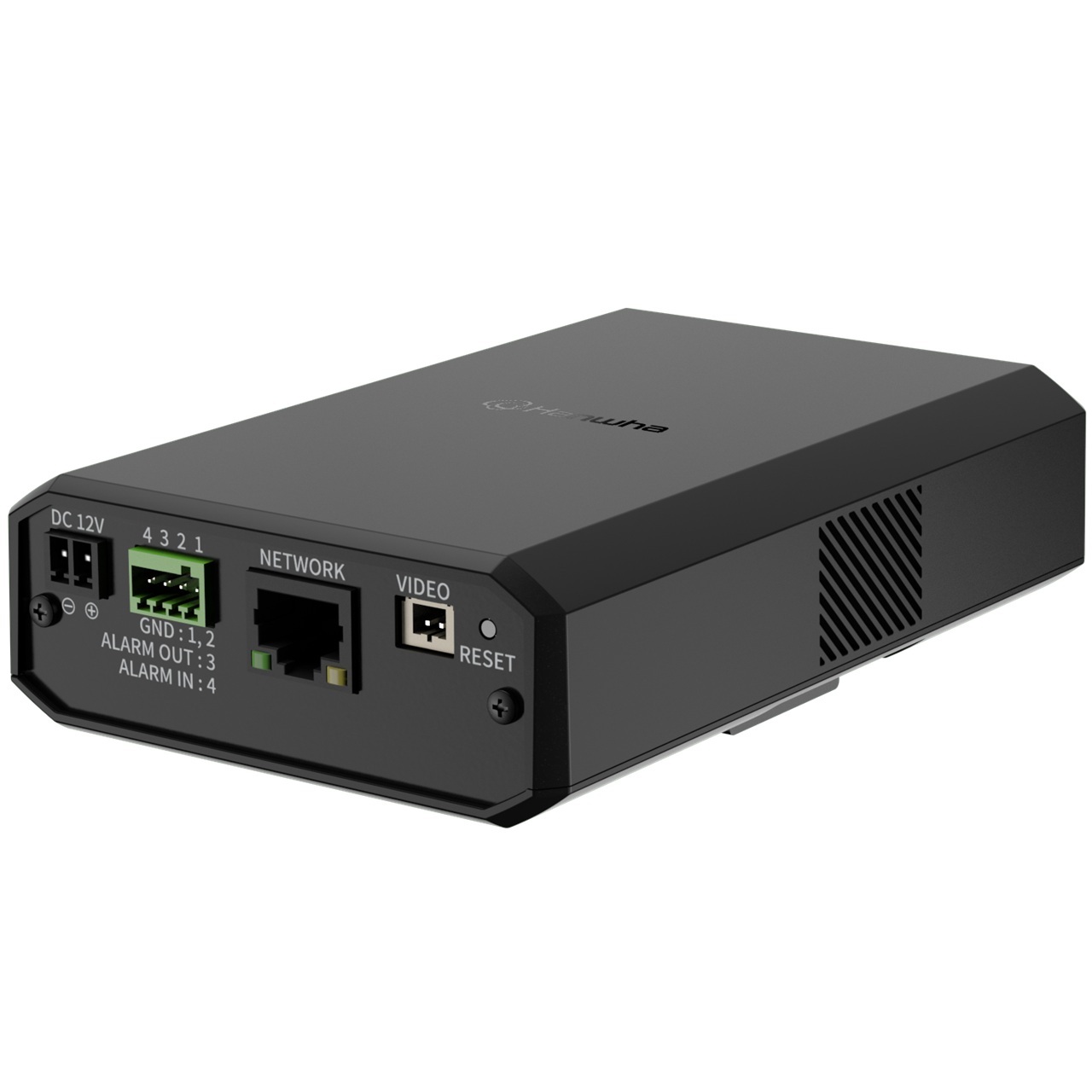

• Alarm I/O - Input 1ea / Output 1ea
• Alarm Triggers - Analytics, Network disconnect, Alarm input, App event, Time schedule
• Alarm Events - When alarm trigger occurred - File upload(image): e-mail/FTP - Notification: e-mail - Recording: SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover: PTZ preset, send message by HTTP/HTTPS/TCP - Audio clip playback

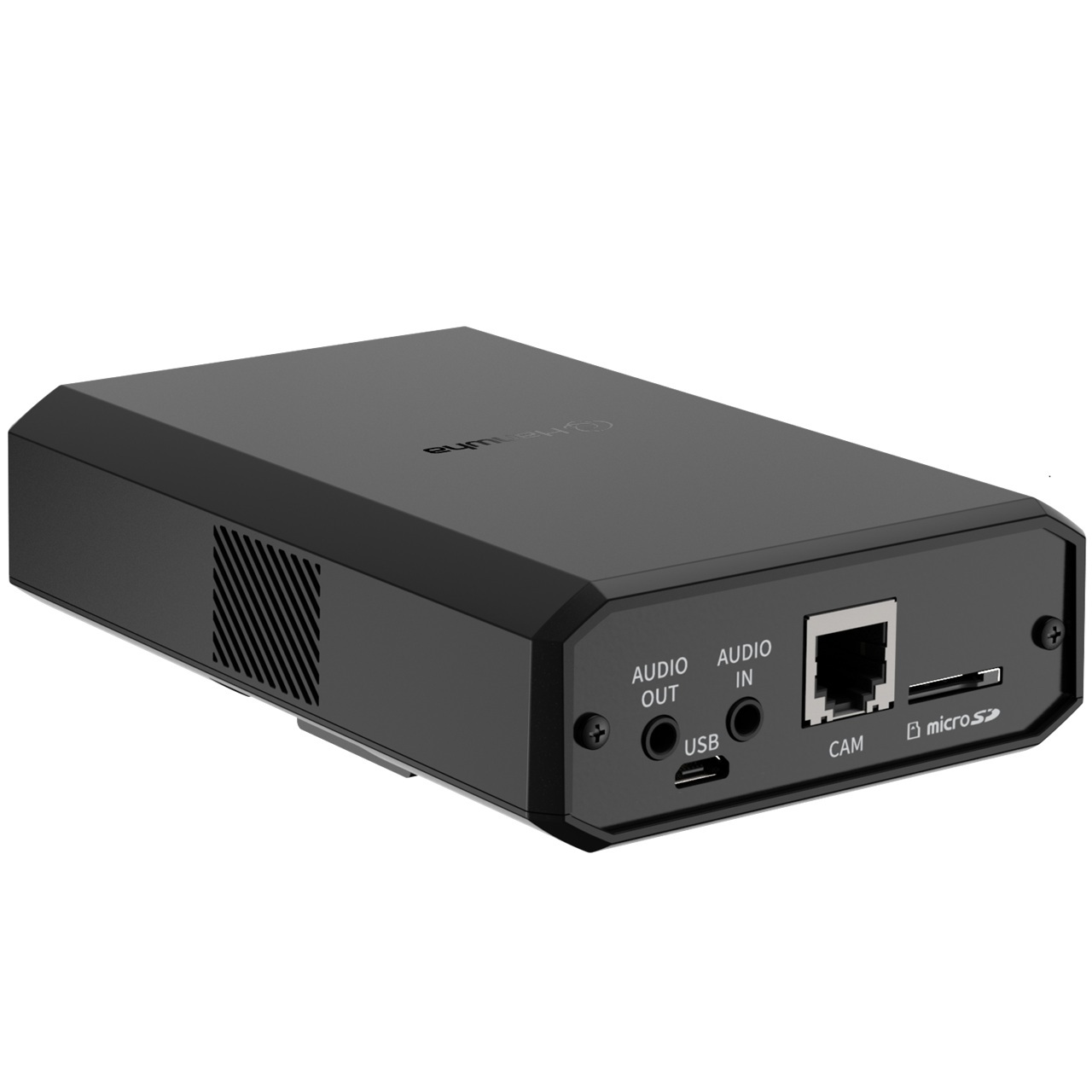

• Audio In - Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
• Audio Out - Line out, Max.output level: 1Vrms

Network

• Ethernet - RJ-45 (10/100 BASE-T)
• Video Compression Format - H.265/H.264: Main/Baseline/High, MJPEG
• Audio Compression - G.711 u-law / G.726 Selectable, G.726(ADPCM) 8KHz, G.711 8KHz, G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps, AAC-LC: 48Kbps at 16KHz
• Smart Codec - Manual(5ea area), WiseStreamâ…¡/li>
• Bitrate Control Method - H.265 / H.264 : CBR or VBR, MJPEG : VBR
• Streaming Capability - Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast)
• Security - HTTPS(SSL) Login Authentication, Digest Login Authentication, IP Address Filtering, User access log, 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2), Device Certificate(Hanwha Techwin Root CA, pre-installed), Secure by default certificate, Secure OS/Boot/Storage, Verify firmware forgery, TPM 2.0 with FIPS 140-2 level2
• Application Programming Interface - ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform

General

• Webpage Language - English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Greek, Hungarian
• Edge Storage - Micro SD/SDHC/SDXC 1slot Max. 1TB
• Memory - 2GB RAM, 512MB Flash

Environmental & Electrical

• Operating Temperature / Humidity - -10°C~+55°C(+14°F~+131°F) / 0~90% RH(non-condensing)
• Storage Temperature / Humidity - -30°C~+60°C(-22°F~+140°F) / 0~90% RH
• Input Voltage - PoE(IEEE802.3af, Class3), 12VDC
• Power Consumption - PoE: Max 10.5W, typical 6.9W 12VDC: Max 8.6W, typical 5.5W Power redundancy failover

Mechanical

• Color / Material - Black / Plastic, Metal
• RAL Code - RAL9005
• Product Dimensions/ weight - Refer to drawing/CAD / Main Unit 420g(0.93lb)

Certifications & Standards

• EMC - FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A KS C 9832 Class A , KS C 9835
• Safety - UL 62368-1, CAN/CSA C22.2 NO. 62368-1
• Environment - IEC/EN 63000
