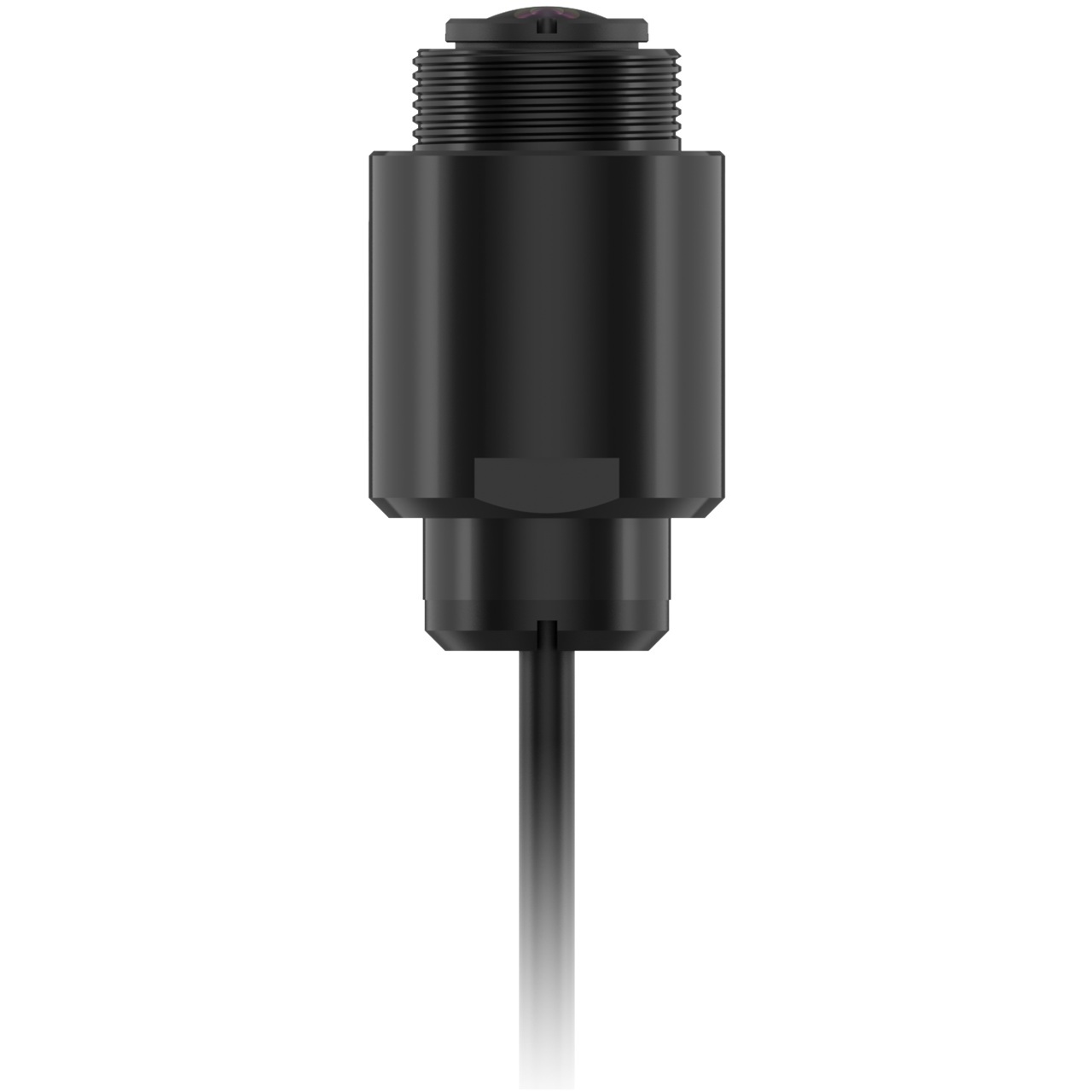

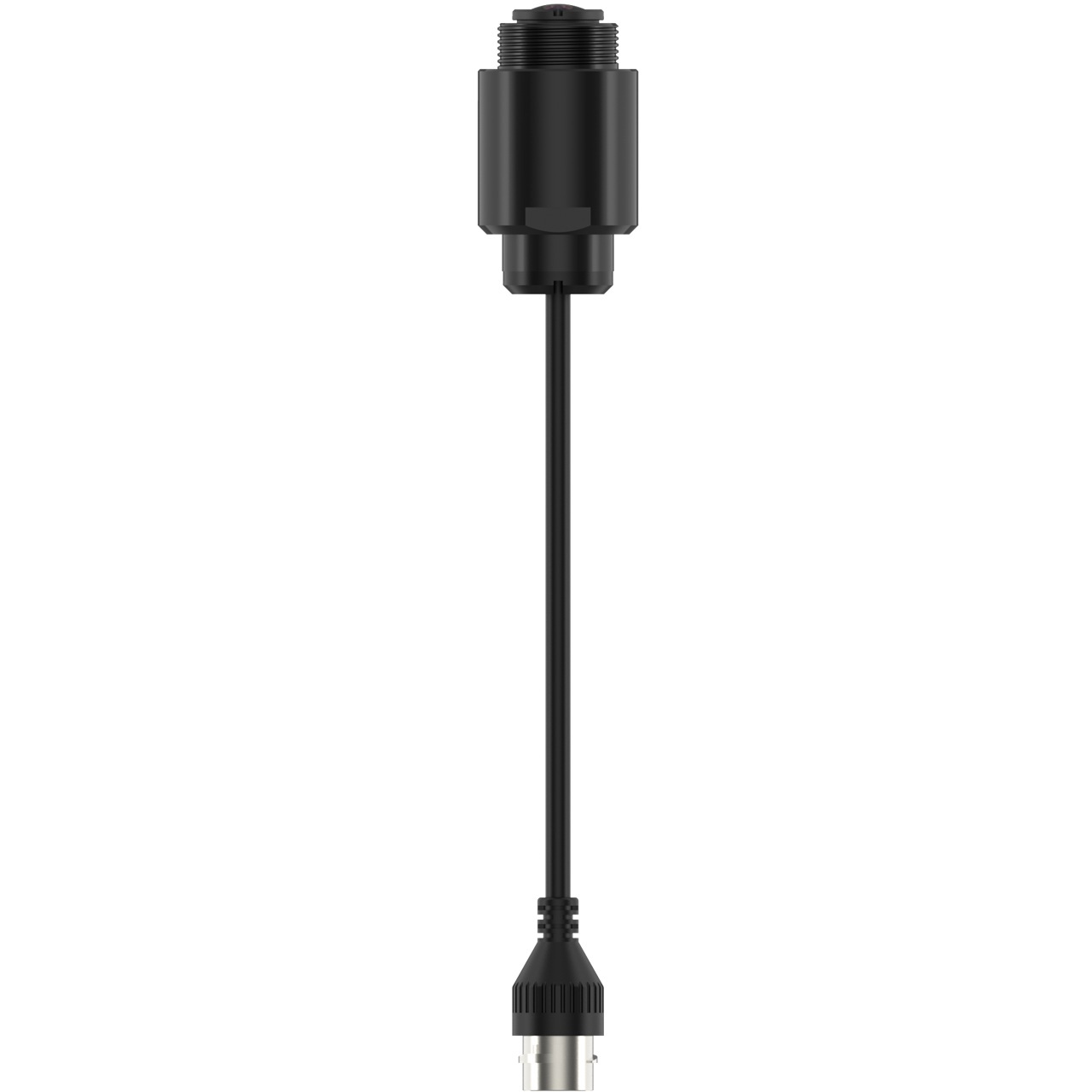

SLA-T2480WA Hanwha Vision Outdoor 2.4mm Straight Body Lens

SLA-T2480WA Hanwha Vision Outdoor 2.4mm Straight Body Lens	SLA-T2480WA Hanwha Vision Outdoor 2.4mm Straight Body Lens
(Click to see larger image and other views)

SLA-T2480WA Hanwha Vision Outdoor 2.4mm Straight Body Lens	SLA-T2480WA Hanwha Vision Outdoor 2.4mm Straight Body Lens
(Click to see larger image and other views)

There are currently no active sales or promotions related to this item.

SKU: SLA-T2480WA

Brand: Hanwha Vision

Outdoor 2.4mm straight body lens

Features:

Outdoor rated 2.4mm fixed lens module
Straight body style
Compatible with PNM-9000QB and XNB-6002
2MP @ 30fps
0.45 Lux, 138º horizontal field of view
8 meters/ 26 feet cable
IP66
NEMA 4X
IK10
Operating temperature -30°C~+55°C(-22°F ~+131°F)

More details...

There are currently no active sales or promotions related to this item.

MPN: SLA-T2480WA
EAN: 8801089226631

MSRP Price: $275.00

Web Price: $275.00

Quantity:

Add to List

Already a DWG Dealer? - Sign In to view pricing.

Product Details

Specifications

Video

Imaging Device - 1/2.8" CMOS
Min. Illumination - Color: 0.045Lux(F2.0, 1/30sec, 30IRE) BW: 0.045Lux(F2.0, 1/30sec, 30IRE) * with PNM-9000QB, XNB-6002

Lens

Focal Length (Zoom Ratio) - 2.4mm fixed focal
Max. Aperture Ratio - F2.0
Angular Field of View - H: 138° / V: 73° / D: 165°
Mount Type - RJ12 connected with main unit
Focus Control - Fixed

Environmental & Electrical

Operating Temperature / Humidity - -30°C~+55°C(-22°F~+131°F) / 0~95% RH * Start up should be done at above -30°C
Storage Temperature / Humidity - -50°C~+60°C(-58°F~+140°F) / 0~95% RH
Certification - IP66, NEMA 4X

Mechanical

Color - Black
Material - Plastic
Product Dimensions - ø24x49.8mm(ø0.94x1.96"), Cable: 8m(26.2ft)
Product Weight - 101g(0.22lb)

Certifications & Standards

EMC - FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A KS C 9832 Class A , KS C 9835
Safety - UL 62368-1, CAN/CSA C22.2 NO. 62368-1
Environment - EN IEC 63000 IEC 60529 IP66 NEMA 250 type 4X

SLA-T2480WA Specifications PDF
