SKU: SHB-V-3200HPR

Brand: Hanwha Vision

Side-Opening Aluminum Camera Housing

Features:

Robust aluminum housing designed to simplify the installation and service, and guarantee total protection against all environmental conditions.
Its size makes it ideal for housing various combinations of standard box cameras with fixed or compact zoom lenses.

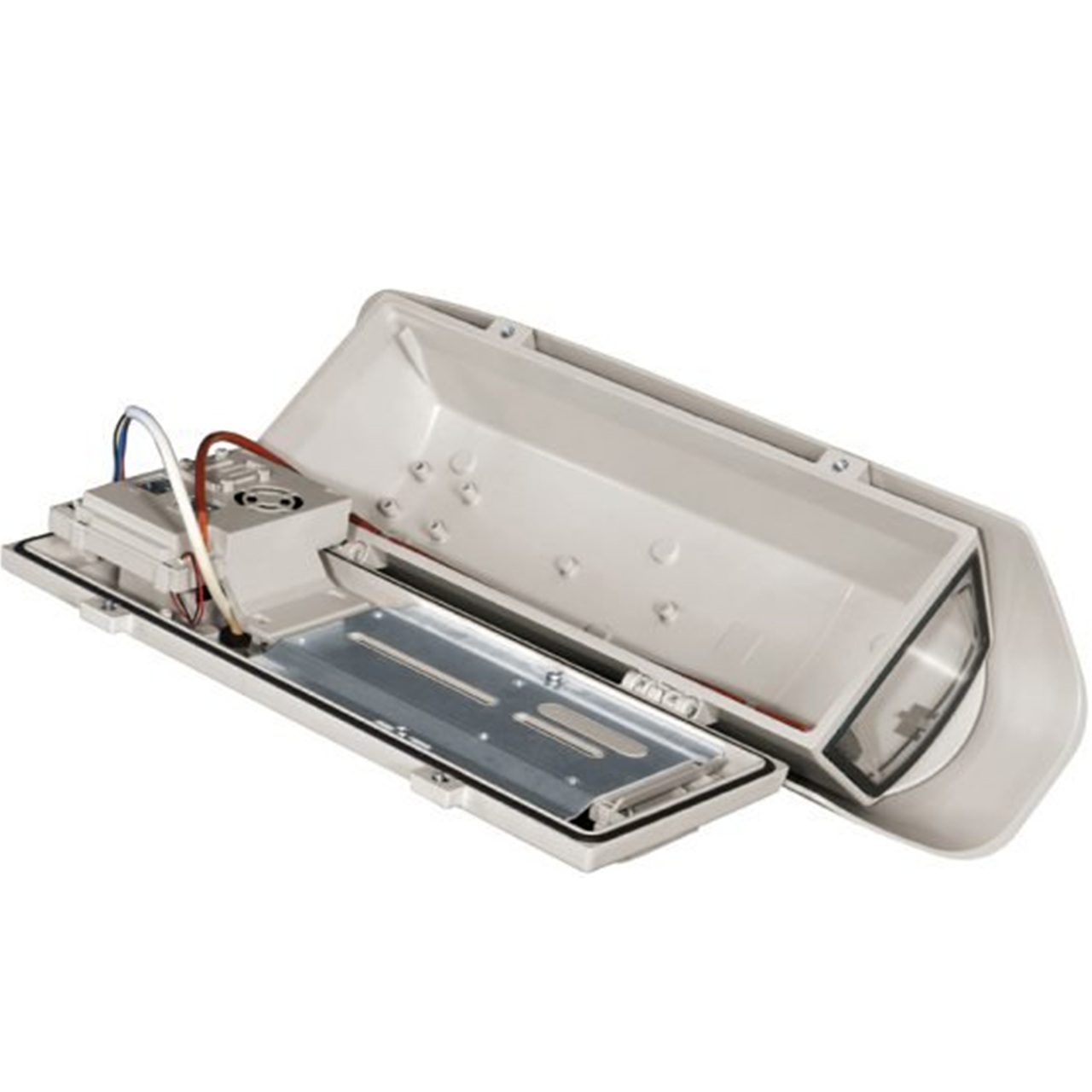

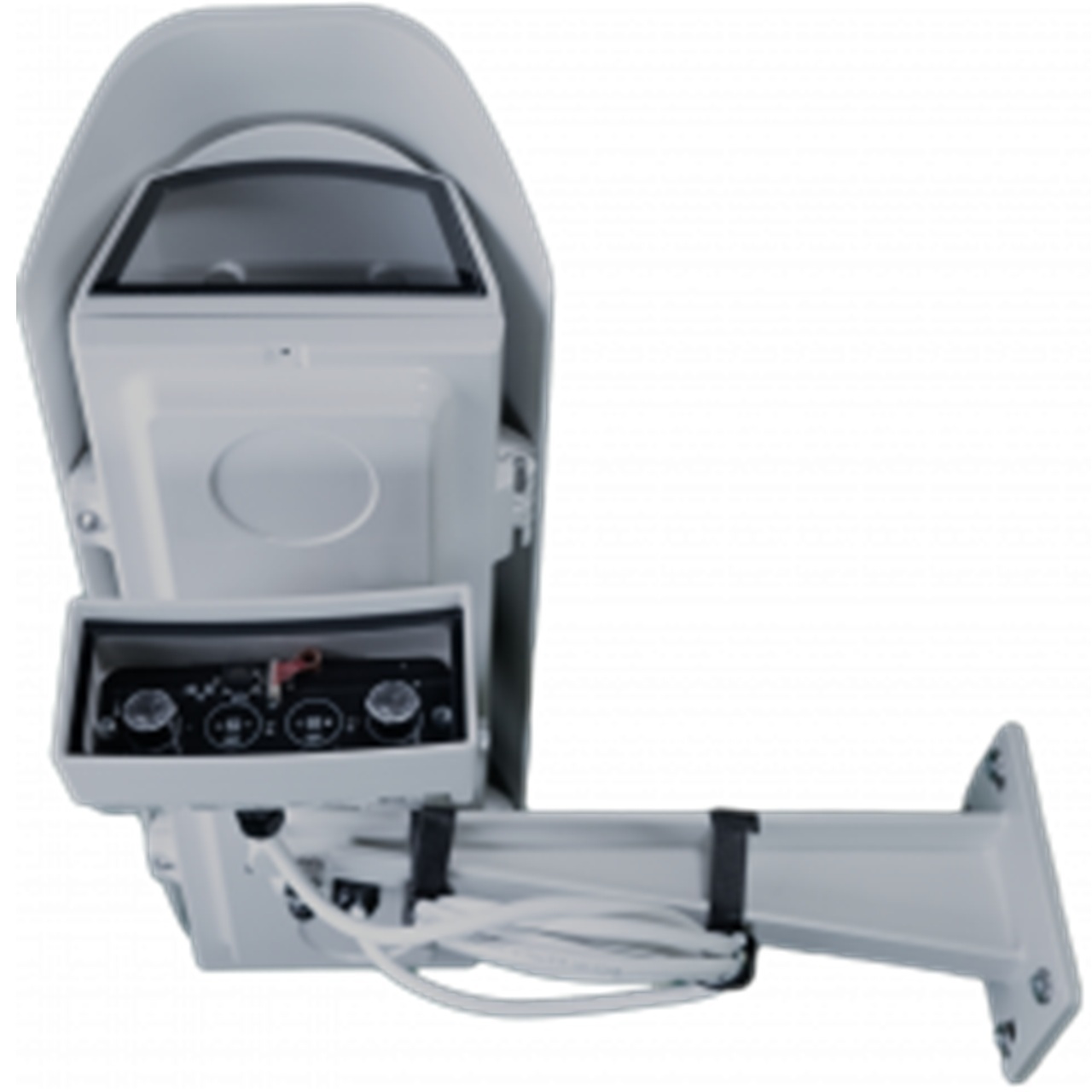

Easy to install thanks to the side-opening system that allows full access to the camera, lenses and all internal connections.

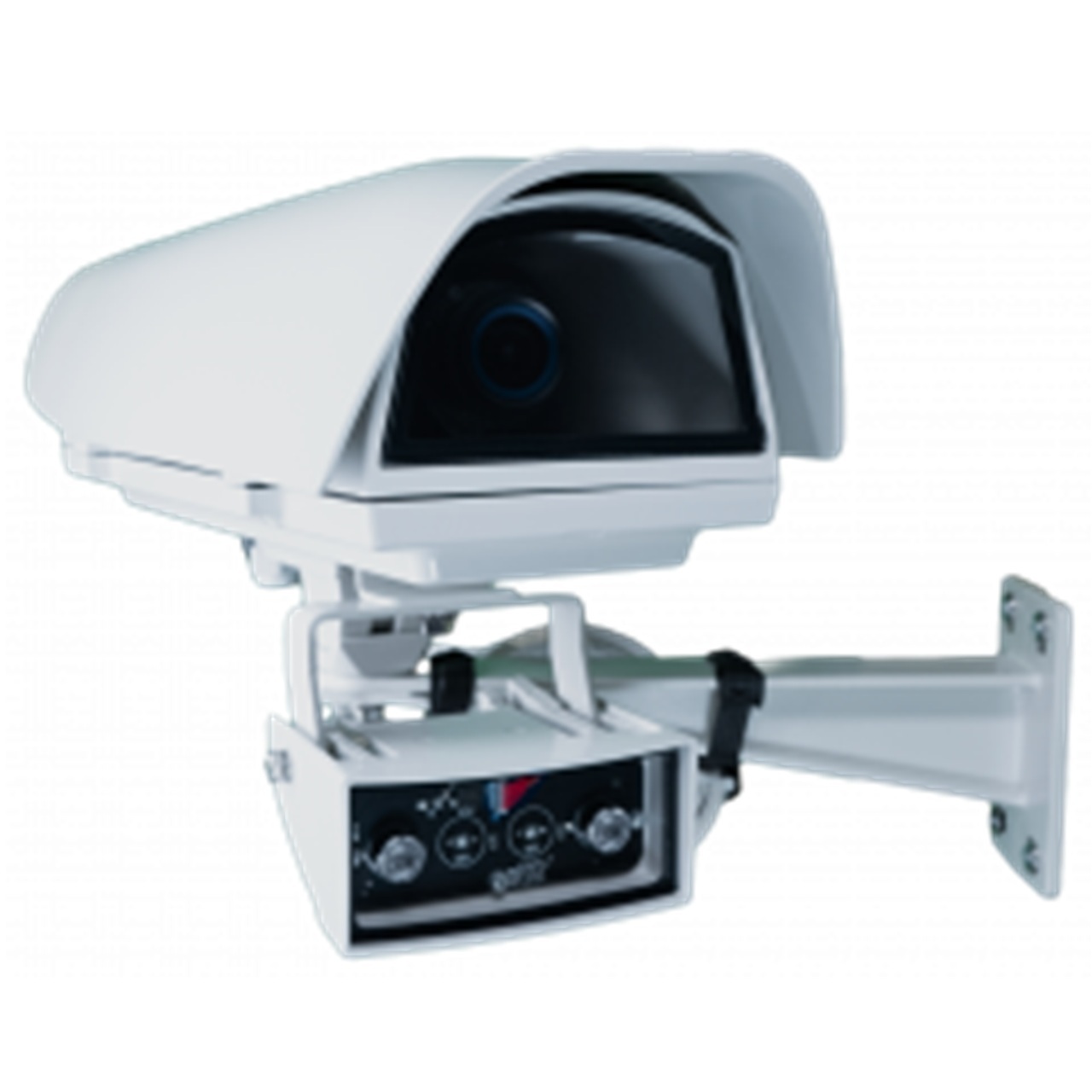

Include housing, PoE/PoE+ Camera board, Wall Bracket with ball joint, & IR Illuminator.
IP66, excluding front glass

More details...

There are currently no active sales or promotions related to this item.

MPN: SHB-V-3200HPR
EAN: 849688020562

MSRP Price: $1,100.00

Web Price: $1,100.00

Quantity:

Add to List

Already a DWG Dealer? - Sign In to view pricing.

Product Details

Specifications

Mechanical

Constructed from aluminium
Sunshield in ABS
Epoxypolyester powder painting, RAL9002 color
Stainless steel external screws
Internal usable area (WxH): 100x70mm (3.9x2.7in)
Internal usable length (with or without accessories): 250mm (9.8in)
Cable glands: 3xM16
Extra clear glass window
Dimensions (WxH): - 118x75mm (4.6x2.95in)
Unit weight: - 3kg (6.6lb)

Electrical

IPM technology (Intelligent Power Management) which offers the following power options, selectable from dip switch - Input: PoE @ 12.95W PoE class 3, Input: PoE+ @ 25.5W PoE class 4, Note: PoE/PoE+ injector not included
Available power for camera (PoE IN class 3): - PoE Class 2 (7W)
Available power for camera (PoE+ IN class 4): - PoE class 3 (13W)
IR Illuminator: - 6W
Demisting with forced hot air: - 5W
Compatible with IEEE 802.3af, IEEE 802.3at/PoE Plus

Environmental

For indoors and outdoors installation
Operating temperature (with fan) - from -10°C (14°F) up to +60°C (140°F)
Relative humidity: - from 5% up to 95%

Certifications

Electrical safety (CE): EN60950-1, IEC60950-1, EN62368-1, IEC62368-1
Electromagnetic compatibility (CE): EN50130-4, EN61000-6-3, EN55032 Class B, FCC Part. 15 Class B, ICES-003 Class B
Outdoor installation (CE): - EN60950-22, IEC 60950-22
IP protection degree (EN60529): - IP66 (with cable glands)
IK protection degree (EN62262): - IK10 (except for the front glass)
Salty fog resistance - to 1000 hours (ISO9227)
UL certification cULus Listed, TYPE 4X
EAC certification

SHB-V-3200HPR Specifications PDF
