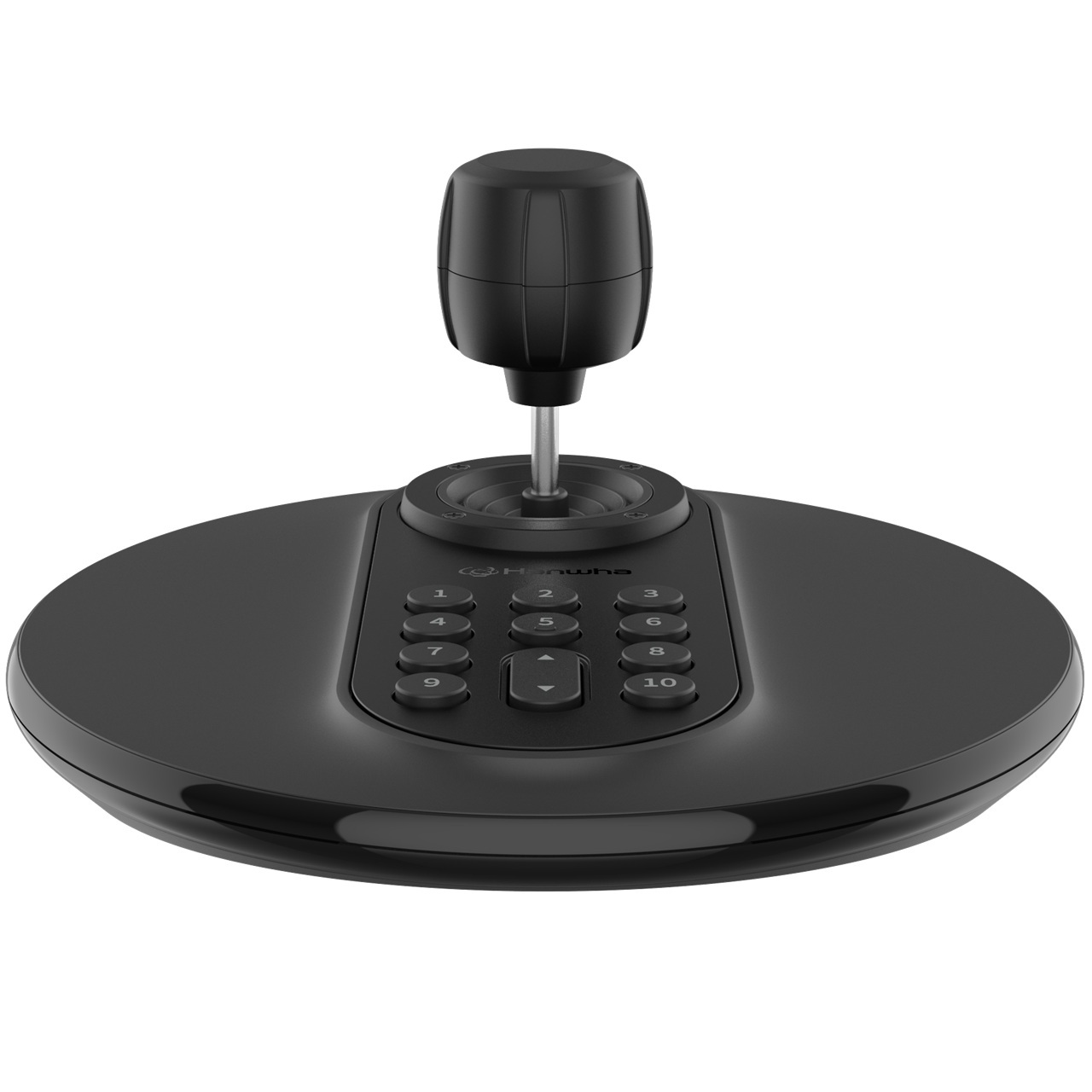

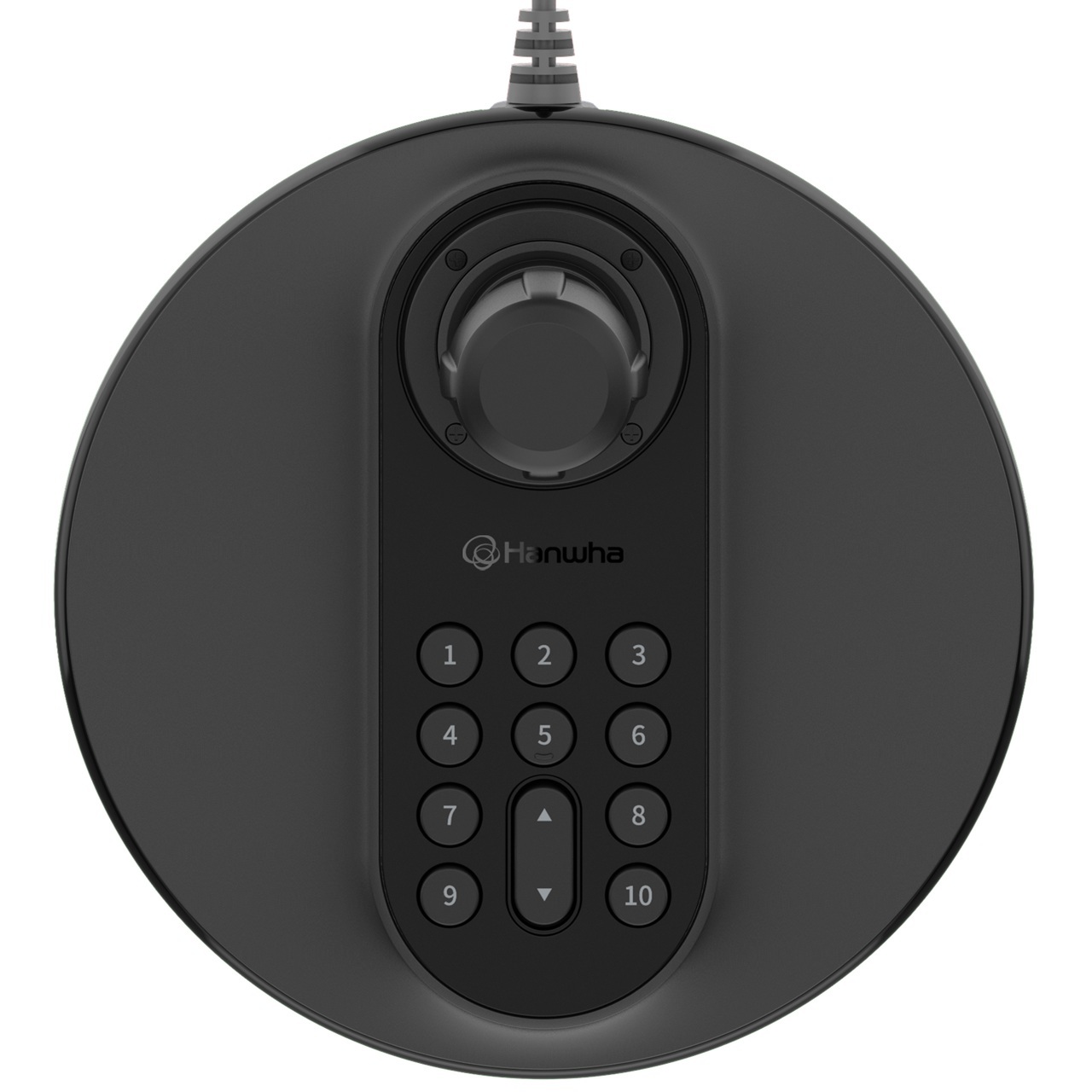

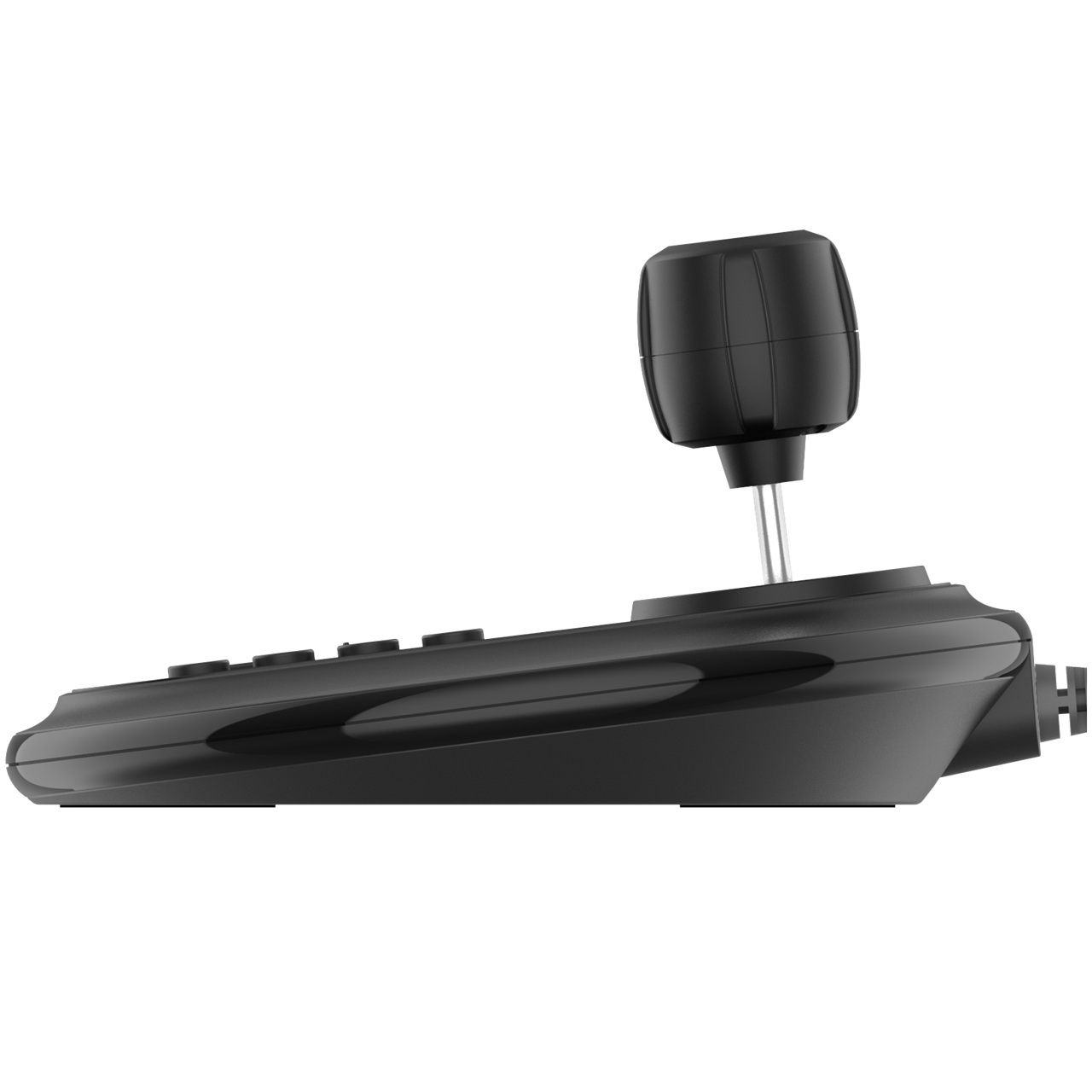

SPC-2001 Hanwha Vision USB Joystick Controller

SPC-2001 Hanwha Vision USB Joystick Controller

SPC-2001 Hanwha Vision USB Joystick Controller

SPC-2001 Hanwha Vision USB Joystick Controller	SPC-2001 Hanwha Vision USB Joystick Controller	SPC-2001 Hanwha Vision USB Joystick Controller
SPC-2001 Hanwha Vision USB Joystick Controller
(Click to see larger image and other views)

SPC-2001 Hanwha Vision USB Joystick Controller

SPC-2001 Hanwha Vision USB Joystick Controller

SPC-2001 Hanwha Vision USB Joystick Controller	SPC-2001 Hanwha Vision USB Joystick Controller	SPC-2001 Hanwha Vision USB Joystick Controller
SPC-2001 Hanwha Vision USB Joystick Controller
(Click to see larger image and other views)

There are currently no active sales or promotions related to this item.

SKU: SPC-2001

Brand: Hanwha Vision

3D Joystick Controller

Features:

Superior system control of PTZ cameras with Wisenet WAVE VMS, Wisenet Viewer CMS, or NVR/DVR
3D joystick control
Quick and easy installation with USB connection

More details...

There are currently no active sales or promotions related to this item.

MPN: SPC-2001
EAN: 8801089219862

Add to List

Already a DWG Dealer? - Sign In to view pricing.

Product Details

Specifications

Communication

Interface - 4-pin USB Type A Port

Operational

Joystick - Hall-effect 3 Axis
Button - 12ea

Performance

Range of Movement X/Y-Axis - -28° ~ +28°
Range of Movement Z Axis - -23.5° ~ +23.5°
Center - Two Spring, Two Directions
Minimum Power - 0.109 [N·m]
Operating Power - 0.151 [N·m]
Maximum Power - 0.169 [N·m]

Environmental

Operating Temperature - 0℃ to +40℃ (20% ~ 85% RH)

Electrical

Operating Voltage - (DC 5 [V]), Vdd = 5 [V] (±0.5 [V]) via USB
Operating Current - 50 [mA]

Mechanical

Dimensions (WxhxD) - 182x182x106mm
Weight - 405g

Materials

Housing - ABS
Handle - Poly Carbonate
Cover - Rubber (Button)
Shaft - SUM24L + Ni plating
Cable Length - 2 [m]
Color - Black

Software

Drivers - Standard DirectX Drivers (DirectInput)

SPC-2001 Specifications PDF
