TNV-C8011RW Hanwha Techwin 1.6mm 30FPS @ 5MP Outdoor IR WDR Wall Mount Panoramic IP Security Camera POE

Specifications

Video

• Imaging Device - 1/2.8" progressive 5 MP CMOS
• Resolution - 2592x1944, 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
• Max. Framerate - H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps (@5MP Max. 5fps)
• Min. Illumination - Color: 0.038Lux(F1.6, 1/30sec, 30IRE), BW: 0.0038Lux(F1.6, 1/30sec, 30IRE), 0Lux(IR LED on)
• Video Out - USB: Micro USB Type B, 1280x720 for installation

Lens

• Focal Length (Zoom Ratio) - 1.6mm fixed focal
• Max. Aperture Ratio - F1.6
• Angular Field of View - H: 175 / V: 125 / D: 175
• Min. Object Distance - 0.3M
• Focus Control - Fixed

Pan / Tilt / Rotate

• Pan / Tilt / Rotate Range - - / -25°~+25° / -

Operational

• Camera Title - Displayed up to 85 characters
• Day & Night - Auto(ICR)
• Backlight Compensation - BLC, WDR, SSDR
• Wide Dynamic Range - 120dB
• Digital Noise Reduction - WiseNRⅡ(Based on AI engine), SSNRⅤ
• Motion Detection - 8ea, 8point polygonal zones
• Privacy Masking - 32ea, 4point Quadrangle zones
• Gain Control - Low / Middle / High
• White Balance - ATW /AWC /Manual /Indoor /Outdoor
• LDC - Support
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
• Digital PTZ - Support
• Video Rotation - Flip, Mirror, Hallway view(90°/270°)
• Analytics
  • Classified object type - Person/Face/ Vehicle
  • Attributes - Vehicle (Type:car/bus/truck/motorcycle/bicycle)
  • Support DetectionShot - Analytics events based on AI engine
  • Motion detection*, Object detection, Virtual line*(Crossing/Direction), Virtual area* (Loitering/Intrusion/Enter/Exit)
  • Analytics events - Defocus detection, Tampering, Shock detection, Virtual area(Appear/Disappear)
  • * Some of the video analytics only works with people and vehicle detection
• Business Intelligence - Based on AI engine: People counting, Vehicle counting, Queue management, Heatmap
• Alarm Triggers - Analytics, Network disconnect
• Alarm Events
  • When alarm trigger occurred
  • File upload(image) : e-mail/FTP
  • Notification : e-mail
  • Recording : SD/SDHC/SDXC or NAS recording at event triggers
  • Handover(PTZ preset, Send message by HTTP/HTTPS/TCP)
• Audio In - Built-in mic only
• IR Viewable Length - 15m(49.21ft)
• IR Wavelength - long-life 850 nm IR LED

Network

• Ethernet - RJ-45(10/100BASE-T)
• Video Compression - H.265/H.264: Main/High, MJPEG
• Audio Compression
  • G.711 u-law /G.726 Selectable
  • G.726(ADPCM) 8KHz, G.711 8KHz
  • G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
  • AAC-LC: 48Kbps at 16KHz
• Smart Codec - Manual(5ea area), WiseStreamⅢ(Based on AI engine)
• Video Quality Adjustment - H.264/H.265: Target bitrate level control, MJPEG: Quality Level control
• Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
• Streaming - Unicast(20 users) / Multicast Multiple streaming(Up to 5 profiles)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP (TCP, UDP Unicast), MQTT
• Application Programming Interface - ONVIF Profile S/G/T/M SUNAPI(HTTP API)

Security

• OS / Firmware Protect - Secure boot, Signed firmware, Firmware encryption
• User authentication - Digest Authentication, Prevent brute-force attack
• Network authentication - 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
• Secure Communication - HTTPS, SRTP, WSS(Websocket secure)
• Access Control - Access control based on IP address
• Data Protect - Authentication information encryption, ZIP compression encryption
• Audit - User Access/System/Event log management
• Device ID - Device Certificate(Hanwha Private Root CA)
• Secure Storage - SDcard partition encrypt

General

• Webpage Language - English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Edge Storage - Micro SD/SDHC/SDXC 1slot 256GB
• Memory - 2GB RAM, 1GB Flash
• Operating Temperature / Humidity - -30°C ~ +55°C(-22°F ~ +131°F) / Less than 95% RH
• Storage Temperature / Humidity - -30°C ~ +60°C(-22°F ~ +140°F) / Less than 95% RH
• Certification - IP66, IK10
• Input Voltage - PoE(IEEE802.3af, Class3)
• Power Consumption - Max 11.5W / Typ 4.8W

Mechanical

• Color / Material - White / Aluminum Hard-coated dome bubble
• RAL Code - RAL9003
• Product Dimensions / Weight - 80(W)x167(H)x57(D)mm(31.5x65.6x22.4"), 600g(1.32 lb)
• Compatible Conduit hole / Gangbox - Conduit hole : None, Gangbox : Single

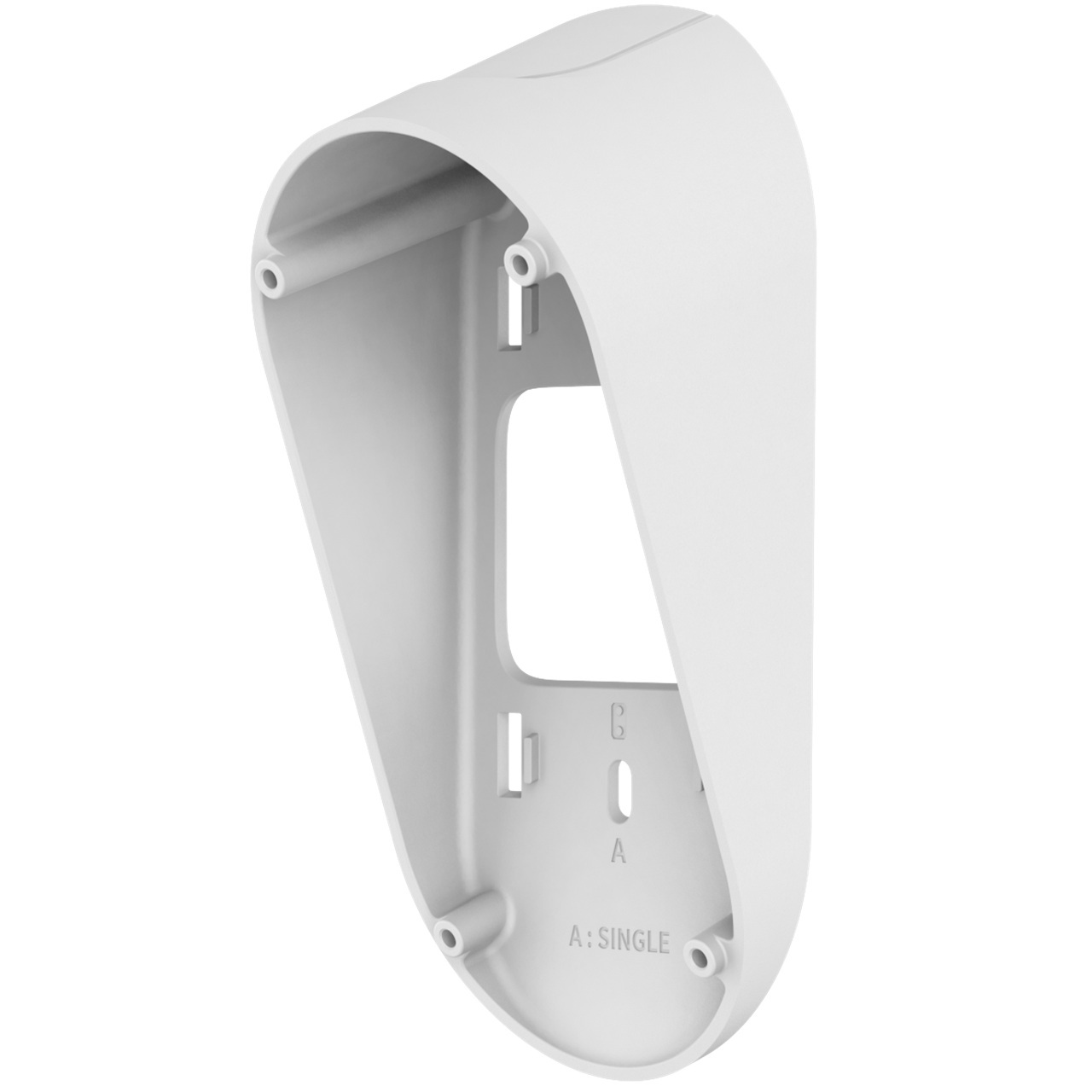

• Tilt Mount - SBV-140TBW

Certifications & Standards

• EMC
  • EN 55032:2015/A11:2020
  • EN 50130-4:2011/A1:2014
  • FCC 47 CFR Part 15, Subpart B Class A
  • IC Regulation ICES-003 Issue 7 Class A
  • KS C 9832:2023
  • KS C 9835:2019
  • AS/NZS CISPR 32 Class A
  • VCCI CISPR 32 Class A
• Safety - UL 62368-1, CSA C22.2 NO. 62368-1, KC 62368-1
• Environment - IEC EN 60529: 1989+A1:1999+A2:2013, IEC EN 62262:2005, IEC EN 63000:2018

DORI (EN62676-4 standard)

• Detect (25PPM/ 8PPF) - 30.05m (98.59ft)
• Observe (63PPM/ 19PPF) - 12.02m (39.44ft)
• Recognize (125PPM/ 38PPF) - 6.01m (19.72ft)
• Identify (250PPM/ 76PPF) - 3.00m (9.84ft)
