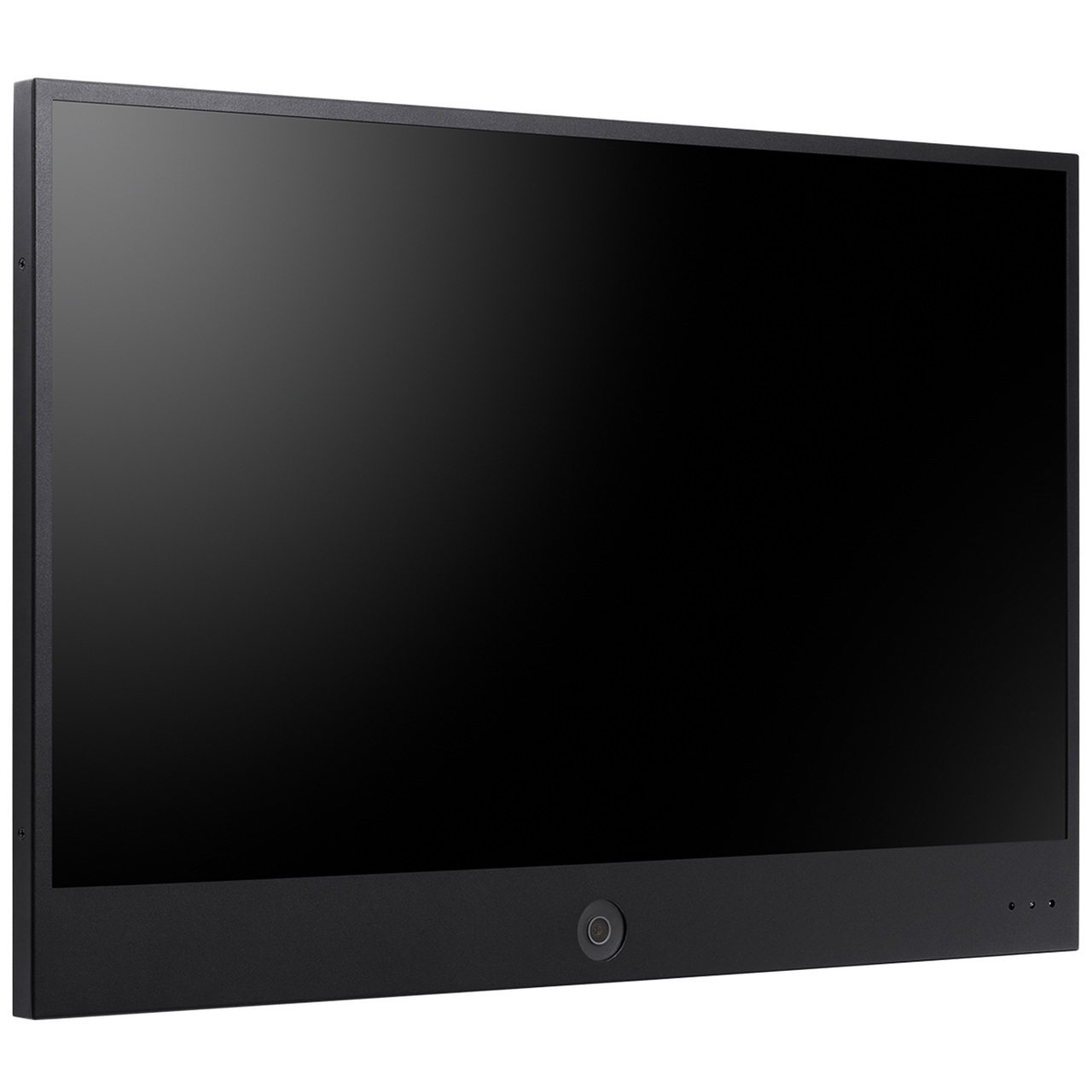

SMT-2721PV Hanwha Techwin 27" AI Public View Monitor

Specifications

Display

• Type - LED Monitor
• Screen Size - 27"
• Max. Resolution - 1920x1080 60Hz (FHD)
• Brightness - 300 cd/m²
• Contrast Ratio - 1000:1
• Aspect Ratio - 16:9
• Viewing Angle (H/V) - 178°/178°
• Display Color - 16.7M Colors
• Response Time - 14ms
• Panel Life - 30,000 hours

Interface

Video

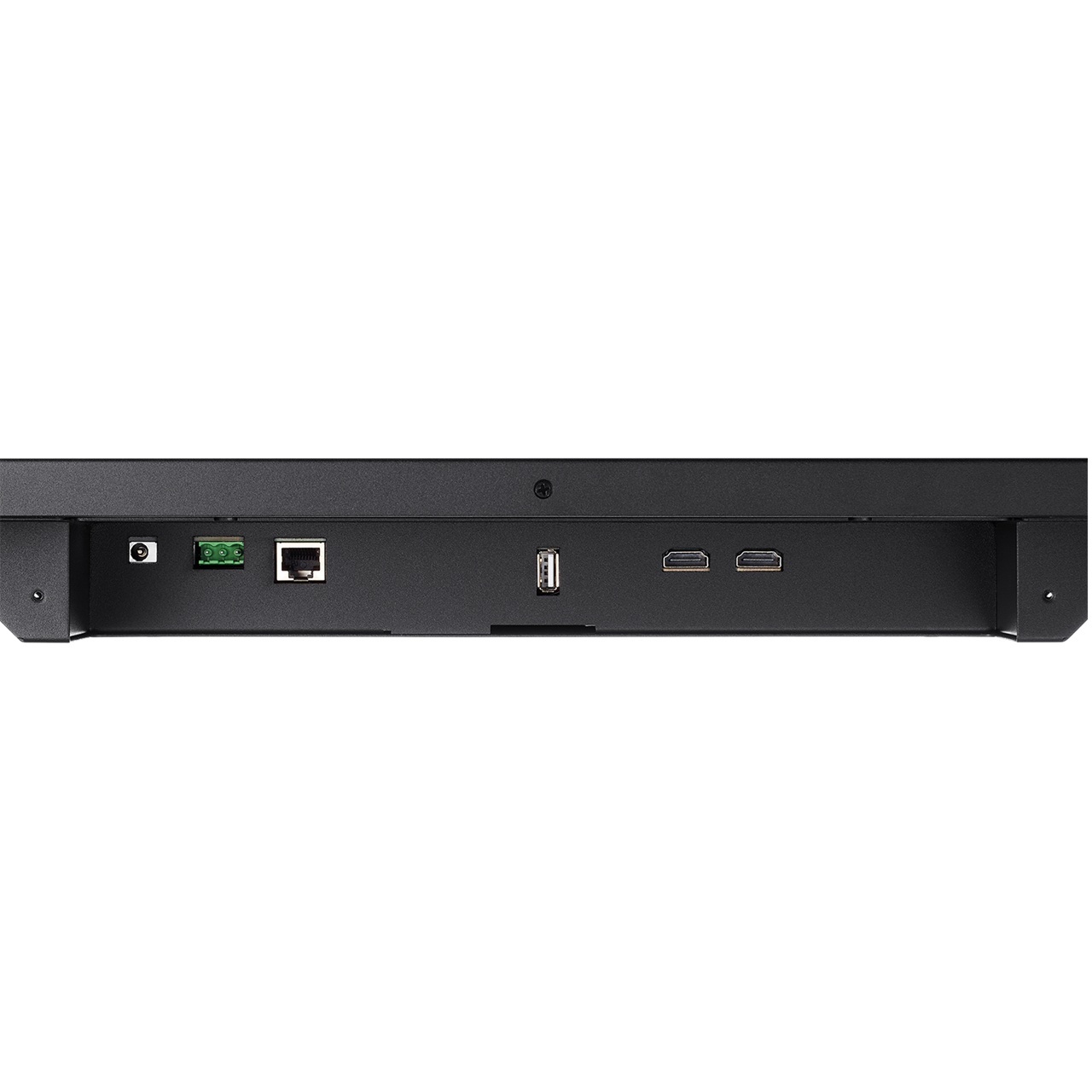

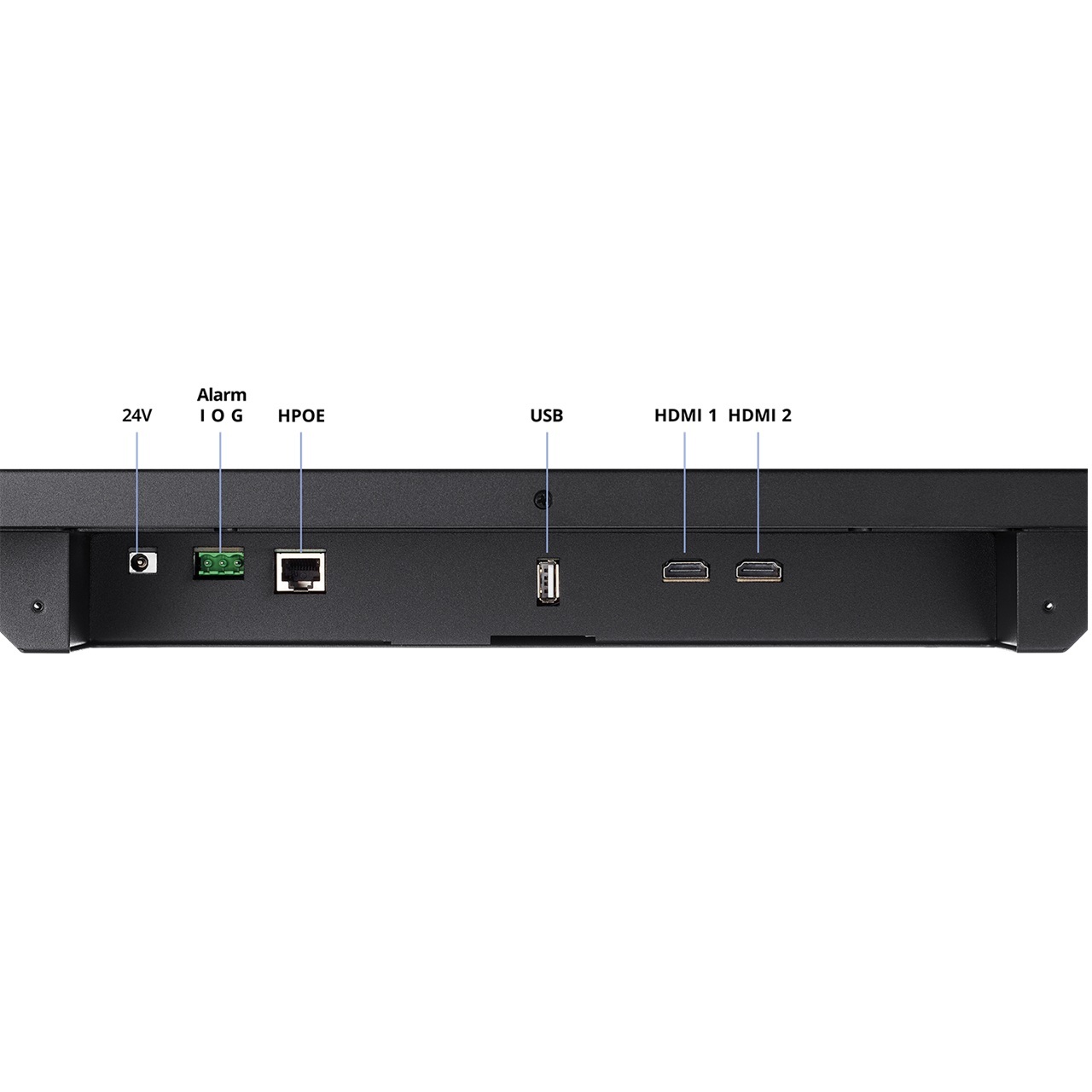

• Connectors - Camera(Internal), HDMI#1, HDMI#2

HDMI

• Connector - HDMI 1.4 x 2
• Available Format
  • 640x480@60Hz/72Hz/75Hz
  • 800x600@60Hz/72Hz/75Hz
  • 1024x768@60Hz/75Hz
  • 1280x720p@50Hz/60Hz
  • 1280x1024@60Hz/75Hz
  • 1440x9000@60Hz
  • 1680x1050@60Hz
  • 1920x1080@60Hz

Audio

• Output Signal - Speakers : 8Ω 2Wx 2

Alarm

• Alarm I/O - Input 1ea / Output 1ea

Network

• Ethernet - 1 RJ-45 10/100BASE-T

General

• Edge Storage - Micro SD/SDHC/SDXC 1slot 256GB

On Screen Display

• Functions - VESA DPM Compatible
• Language - English, Spanish, French

General

Electrical

• Input Voltage - DC24V, HPOE 802.3bt
• Power Consumption - 31W

Environmental

• Operating Temperature - 0 ~ +40°C (+32°F ~ +104°F)
• Operating Humidity - 10% ~ 80% (non-condensing)

Mechanical

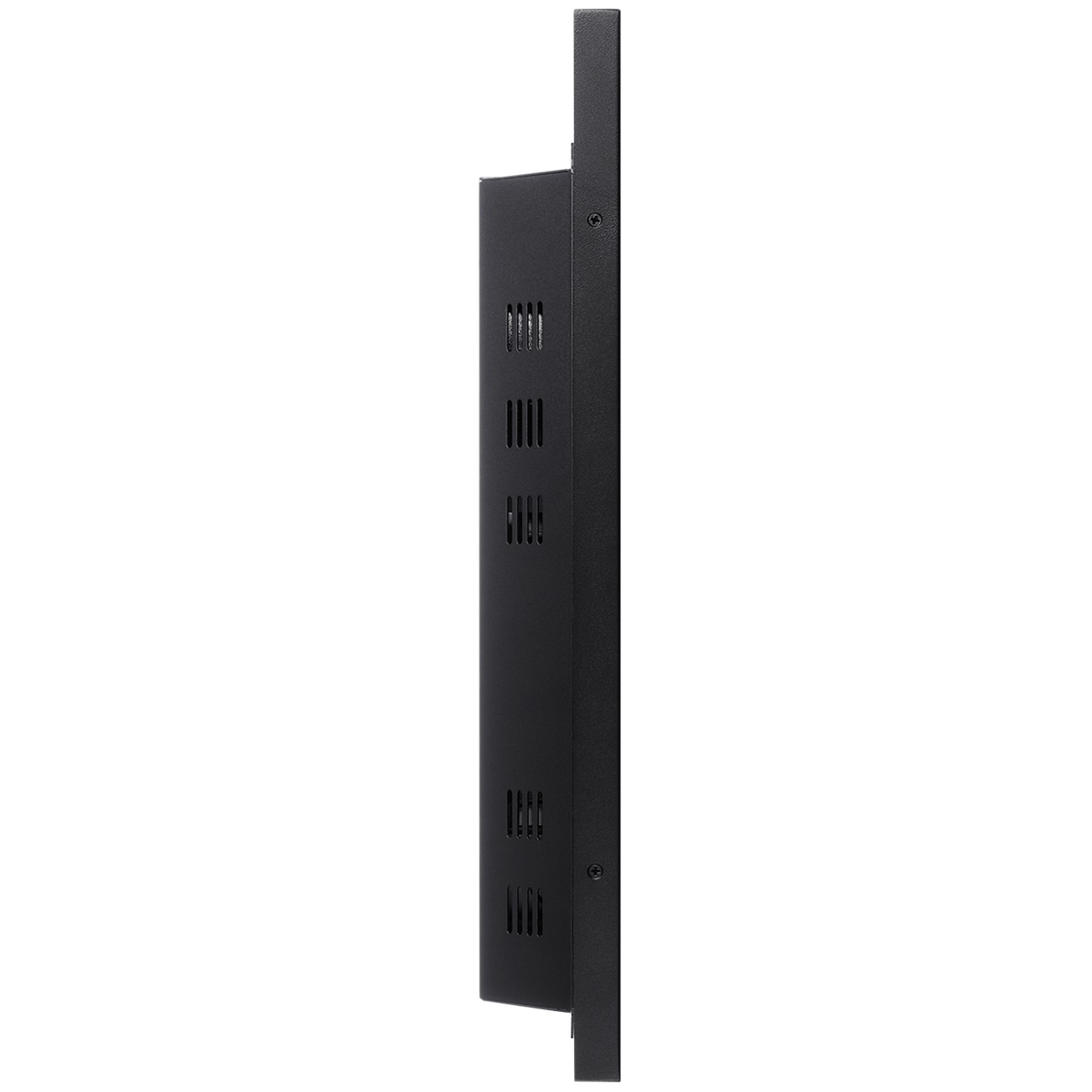

• Dimensions without Stand (WxHxD) - 619mm(W) x 405mm(H) x 58mm(D)
• Weight - 8.5kg
• Cabinet Color - Black

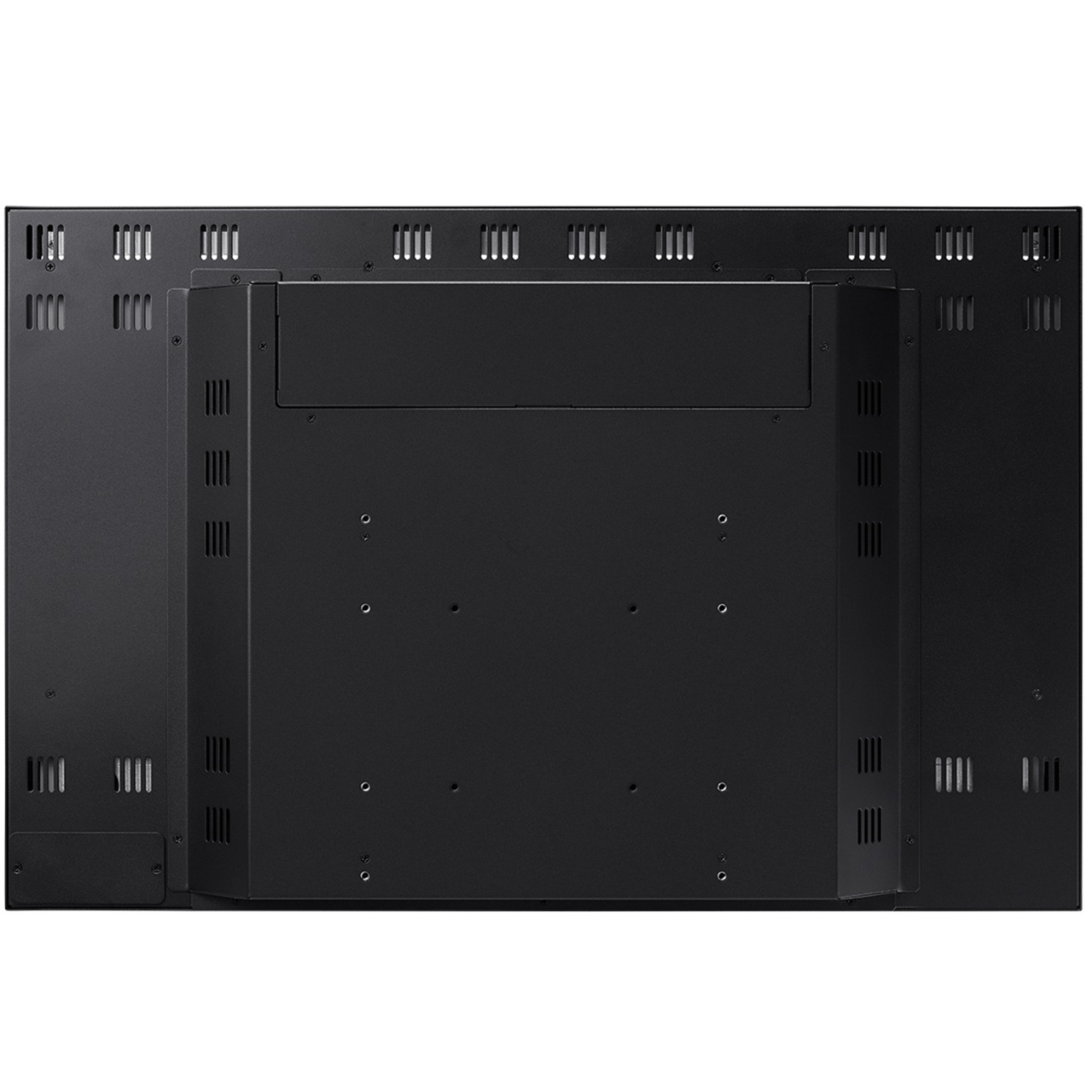

• VESA Mounts Interface - VESA 100 x 100mm, 200 x 100mm, 200 x 200mm

Camera

Video

• Imaging Device - 1/2.8" 2MP CMOS
• Max. Framerate - H.265/H.264: Max. 30fps/25fps(60Hz/50Hz), MJPEG: Max. 15fps/12fps(60Hz/50Hz)
• Min. Illumination - Color: 0.03Lux (F1.6, 1/30sec)

Lens

• Focal Length (Zoom Ratio) - 3.06mm fixed focal
• Max. Aperture Ratio - F1.6
• Angular Field of View - H: 107.7° / V: 59.0° / D: 126.7°

Operational

• Backlight Compensation - BLC, WDR, SSDR
• Wide Dynamic Range - 120dB
• Digital Noise Reduction - SSNRⅤ, WiseNRⅡ(Based on AI engine)
• Motion Detection - 8ea, 8point Polygonal zones
• Privacy Masking - 32ea, 4point Quadrangle zones
• Gain Control - Low / Middle / High
• White Balance - ATW / AWC / Manual / Indoor / Outdoor
• LDC - Support
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
• Digital PTZ - Support
• Video Rotation - Flip, Mirror, Hallway view (90/270)
• Analytics
  • Classified object type - Person/Face
  • Attributes - Not support
  • Support DetectionShot - Analytics events based on AI engine
  • Motion detection, Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit)
  • Analytics events - Defocus detection, Tampering, Virtual area(Appear/Disappear)
• Business Intelligence - People counting, Queue management, Heatmap based on AI engine
• Alarm Triggers - Analytics, Network disconnect, Alarm input
• Alarm Events
  • When alarm trigger occurred
  • File upload(image) - e-mail/FTP
  • Notification - e-mail
  • Recording - SD/SDHC/SDXC or NAS recording at event triggers
  • Alarm output
  • Handover(PTZ preset, Send message by HTTP/HTTPS/TCP)

Network

• Smart Codec - WiseStreamⅢ
• Application Programming Interface - ONVIF Profile S/G/T/M, SUNAPI(HTTP API)

General

• Memory - 2GB RAM, 1GB Flash

Security

• OS / Firmware Protect - Secure boot, Signed firmware, Firmware encryption
• User authentication - Digest Authentication, Prevent brute-force attack
• Network authentication - 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
• Secure Communication - HTTPS, SRTP, WSS(Websocket secure)
• Access Control - Access control based on IP address
• Data Protect - Authentication information encryption, ZIP compression encryption
• Audit - User Access/System/Event log management
• Device ID - Device Certificate(Hanwha Private Root CA)
• Secure Storage - SDcard partition encrypt
