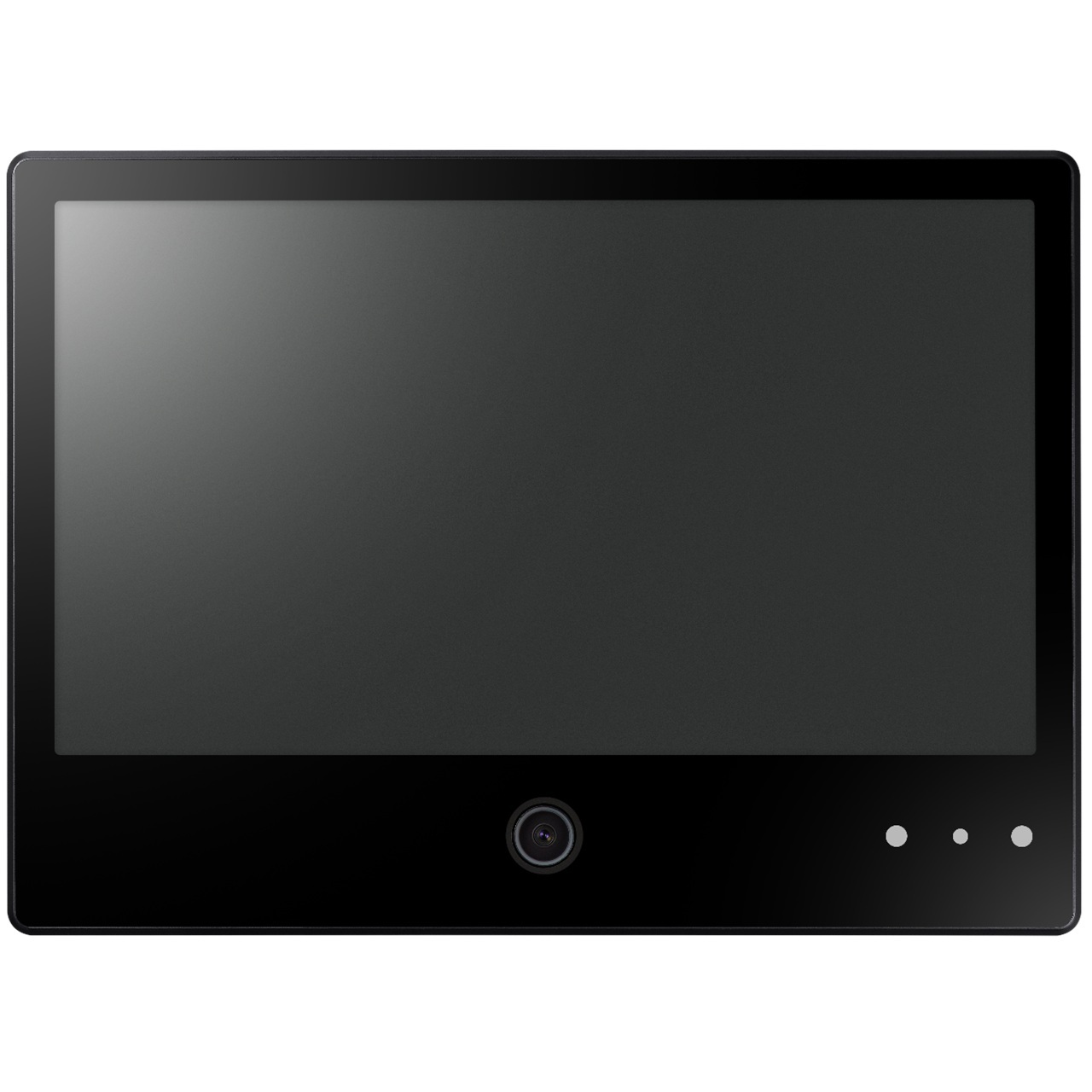

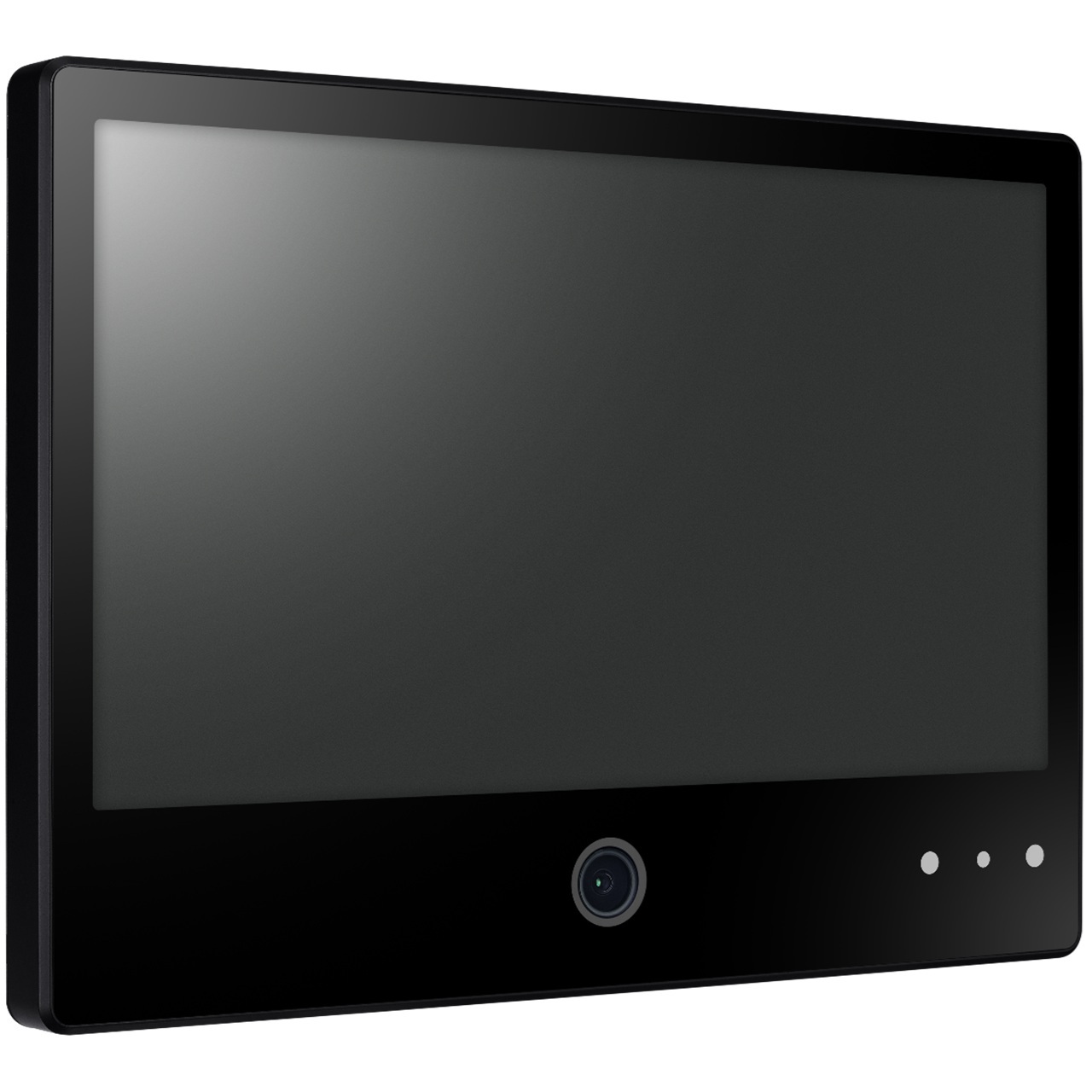

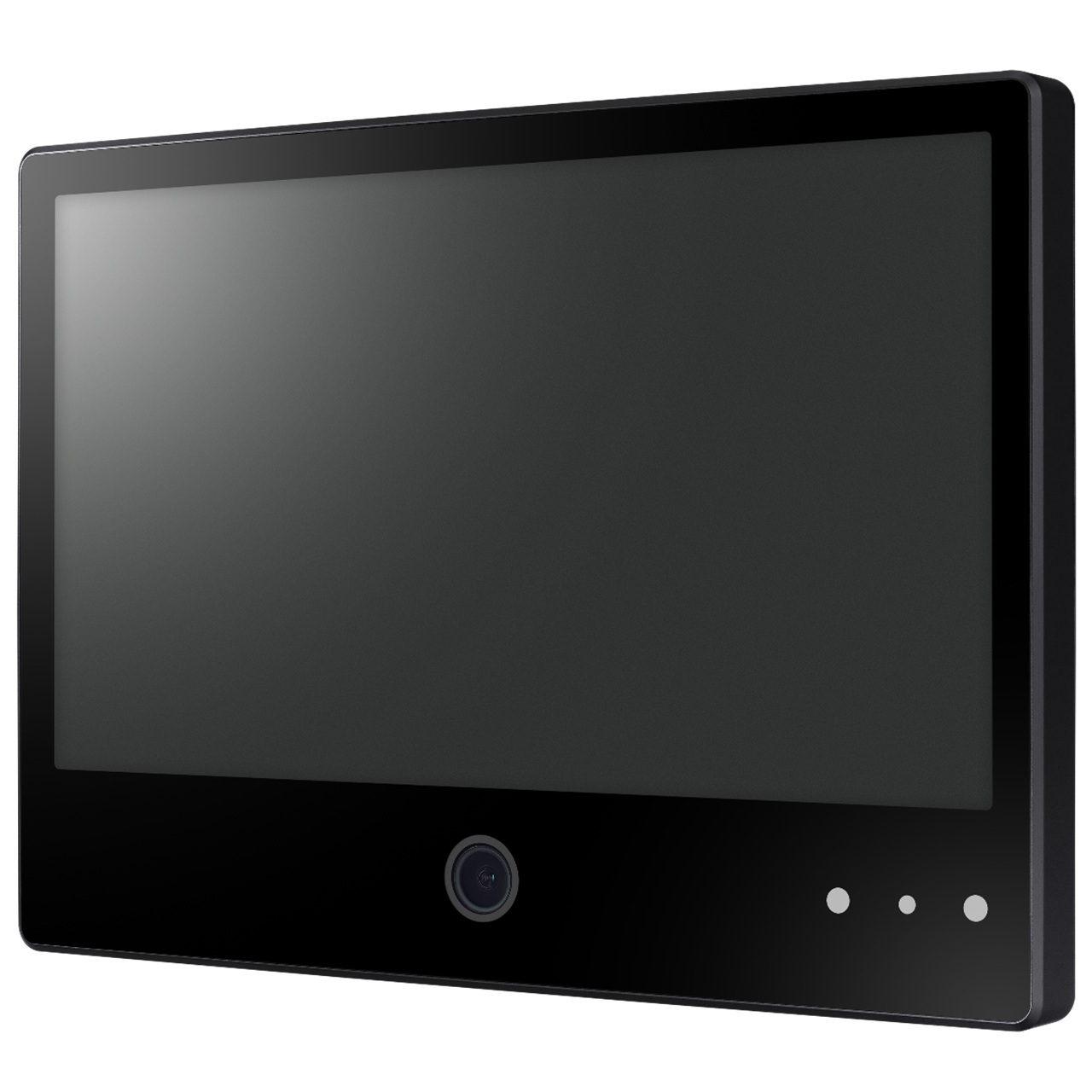

SMT-1031PV Hanwha Vision 10" AI Public View Monitor

Introduction

Assess and Address

Public view monitors with AI object detection enhance loss prevention efforts with automated event triggers while providing valuable business insights and displaying advertising and announcements for your retail location.

Specifications

Display

• Type - LED Monitor
• Screen Size - 10inch
• Max. Resolution - 1024x600
• Contrast Ratio - 500:1
• Brightness - 500 cd/m²
• Aspect Ratio - 16:9
• Viewing Angle (H/V) - 140°/120°
• Display Color - 16.7M
• Response Time - 20ms
• Panel Life - 50,000 hours

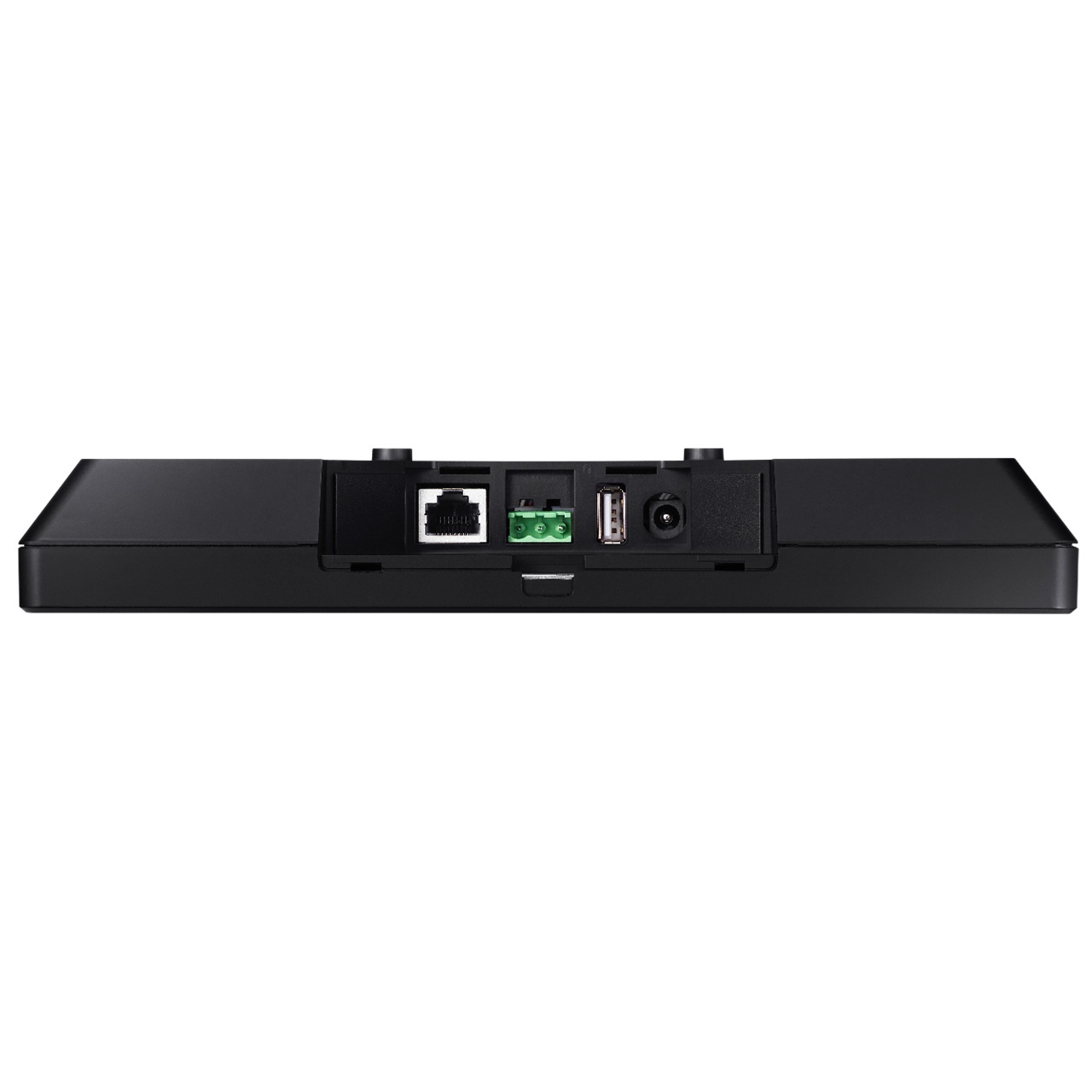

Interface

• Video Connectors - Camera(Internal)
• HDMI Available Format - 1280 X 1024@60Hz
• Audio Output Signal - Speakers : 8Ω 1W x 2
• Alarm Alarm I/O - Input 1ea / Output 1ea
• Network Ethernet - 1 RJ-45 10/100BASE-T
• General Edge Storage - Micro SD/SDHC/SDXC 1slot 256GB

On Screen Display

• Functions - VESA DPMS Compatible
• Language - English, Spanish, French

General

Electrical

• Input Voltage - DC24V, PoE+ 802.3at
• Power Consumption - 14W

Environmental

• Operating Temperature - 0 ~ +40°C (+32°F ~ +104°F)
• Operating Humidity - 10% ~ 80% (non-condensing)

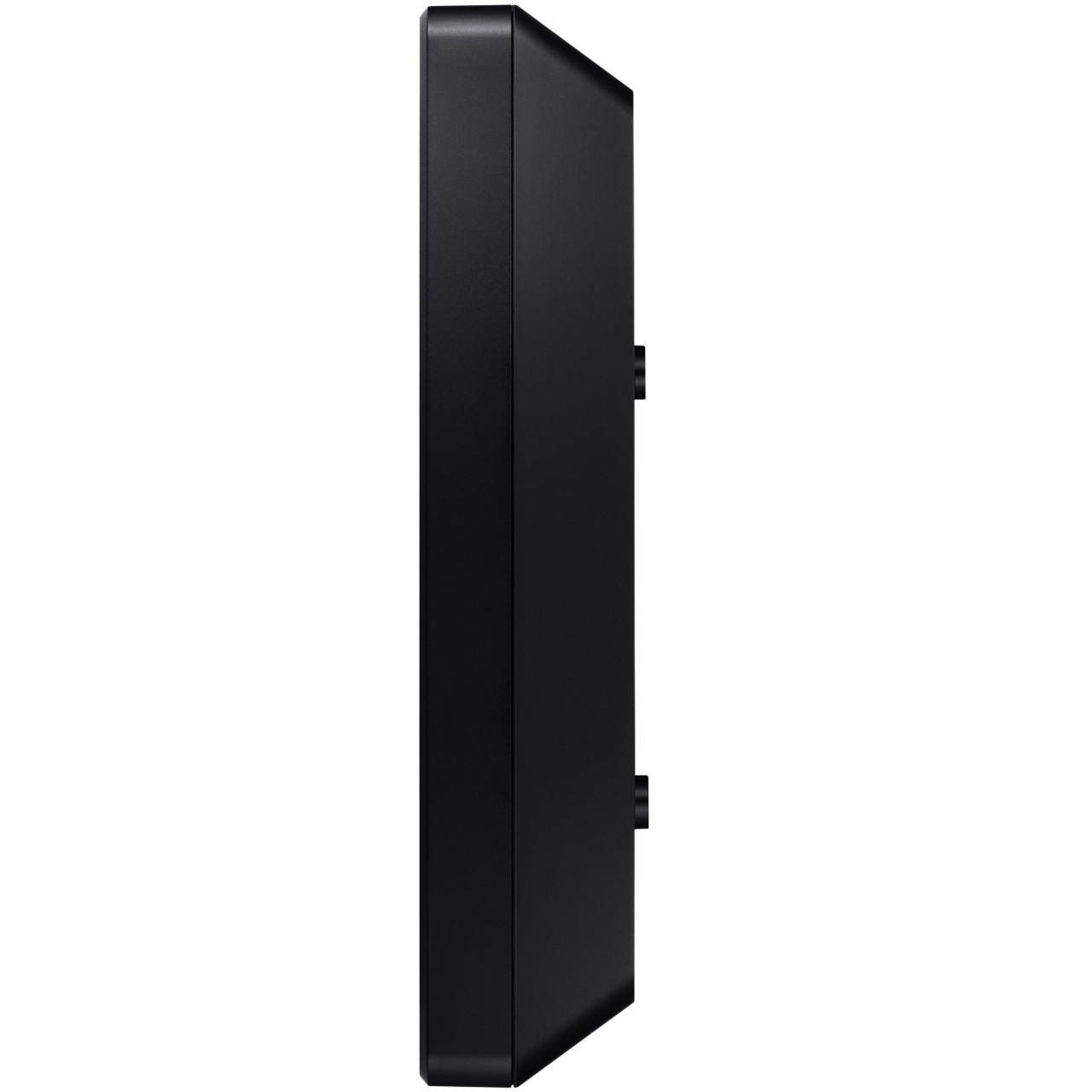

Mechanical

• Dimensions without Stand (WxHxD) - 245.5x178.2x35.5mm
• Weight - 900g
• Cabinet Color - Black

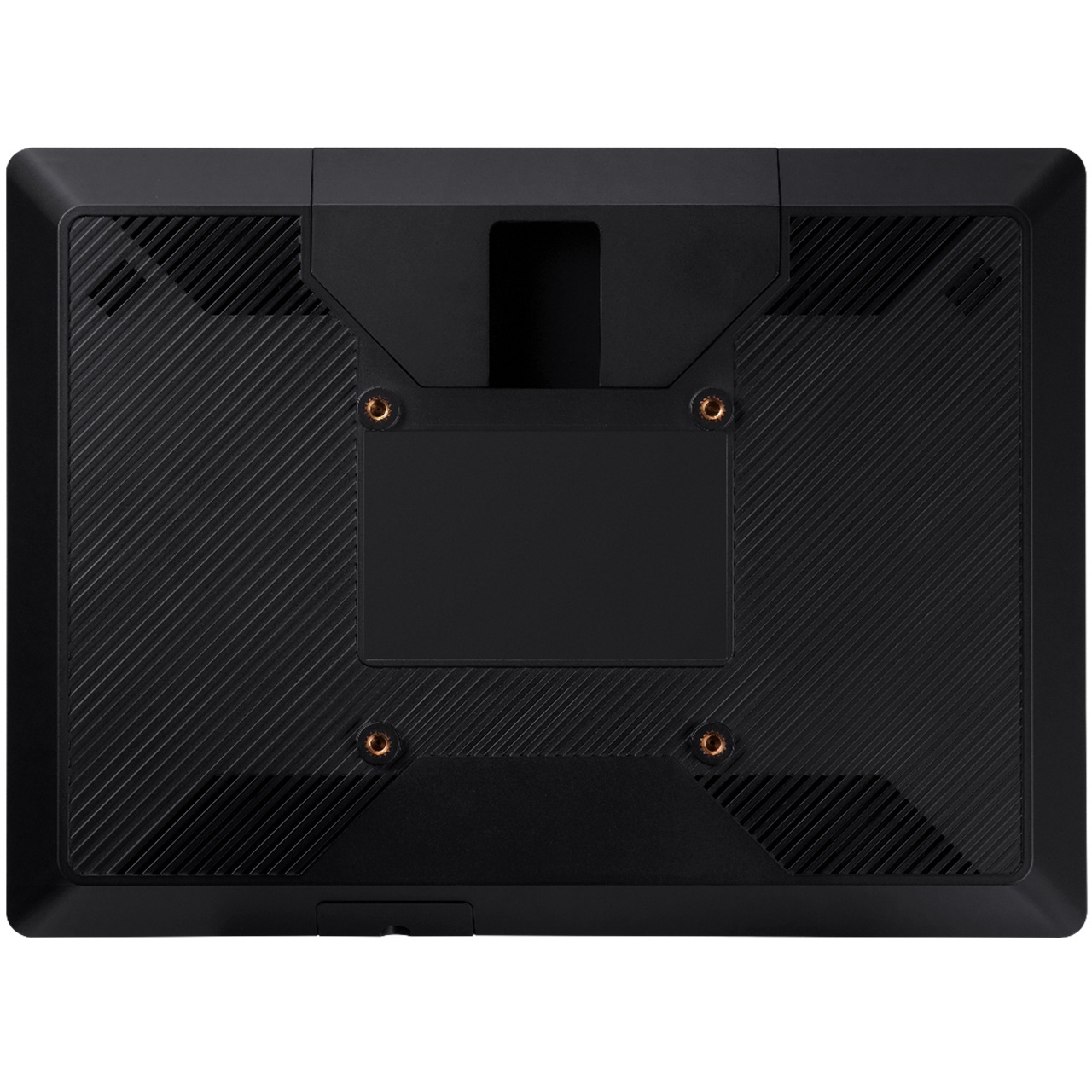

• VESA Mounts Interface - 75x75mm

Camera

Video

• Imaging Device - 1/2.8" 2MP CMOS
• Max. Framerate - H.265/H.264: Max. 30fps/25fps(60Hz/50Hz), MJPEG: Max. 15fps/12fps(60Hz/50Hz)
• Min. Illumination - Color: 0.03Lux (F1.6, 1/30sec)

Lens

• Focal Length (Zoom Ratio) - 3.06mm fixed focal
• Max. Aperture Ratio - F1.6
• Angular Field of View - H: 107.7° / V: 59.0° / D: 126.7°

Operational

• Backlight Compensation - BLC, WDR, SSDR
• Wide Dynamic Range - 120dB
• Digital Noise Reduction - SSNRâ…¤, WiseNRâ…¡(Based on AI engine)
• Motion Detection - 8ea, 8point Polygonal zones
• Privacy Masking - 32ea, 4point Quadrangle zones
• Gain Control - Low / Middle / High
• White Balance - ATW / AWC / Manual / Indoor / Outdoor
• LDC - Support
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
• Digital PTZ - Support
• Video Rotation - Flip, Mirror, Hallway view(90Ëš/270Ëš)
• Analytics - Classified object type: Person/Face, Attributes: Not support,Support DetectionShot,Analytics events based on AI engine,- Motion detection,Object detection,Virtual line(Crossing/Direction),Virtual area(Loitering/Intrusion/Enter/Exit),Analytics events - Defocus detection,Tampering,Virtual area(Appear/Disappear)
• Business Intelligence - People counting, Queue management, Heatmap based on AI engine
• Alarm Triggers - Analytics, Network disconnect, Alarm input
• Alarm Events - When alarm trigger occurred, - File upload(image) : e-mail/FTP, - Notification : e-mail, - Recording : SD/SDHC/SDXC or NAS recording at event triggers,- Alarm output,- Handover(PTZ preset,Send message by HTTP/HTTPS/TCP)

Camera

Network

• Smart Codec - WiseStreamâ…¢

General

• Memory - 2GB RAM, 1GB Flash

Security

• OS / Firmware Protect - Secure boot, Signed firmware, Firmware encryption
• User authentication - Digest Authentication, Prevent brute-force attack
• Network authentication - 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
• Secure Communication - HTTPS, SRTP, WSS(Websocket secure)
• Access Control - Access control based on IP address
• Data Protect - Authentication information encryption, ZIP compression encryption
• Audit - User Access/System/Event log management
• Device ID - Device Certificate(Hanwha Private Root CA)
• Secure Storage - SDcard partition encrypt
