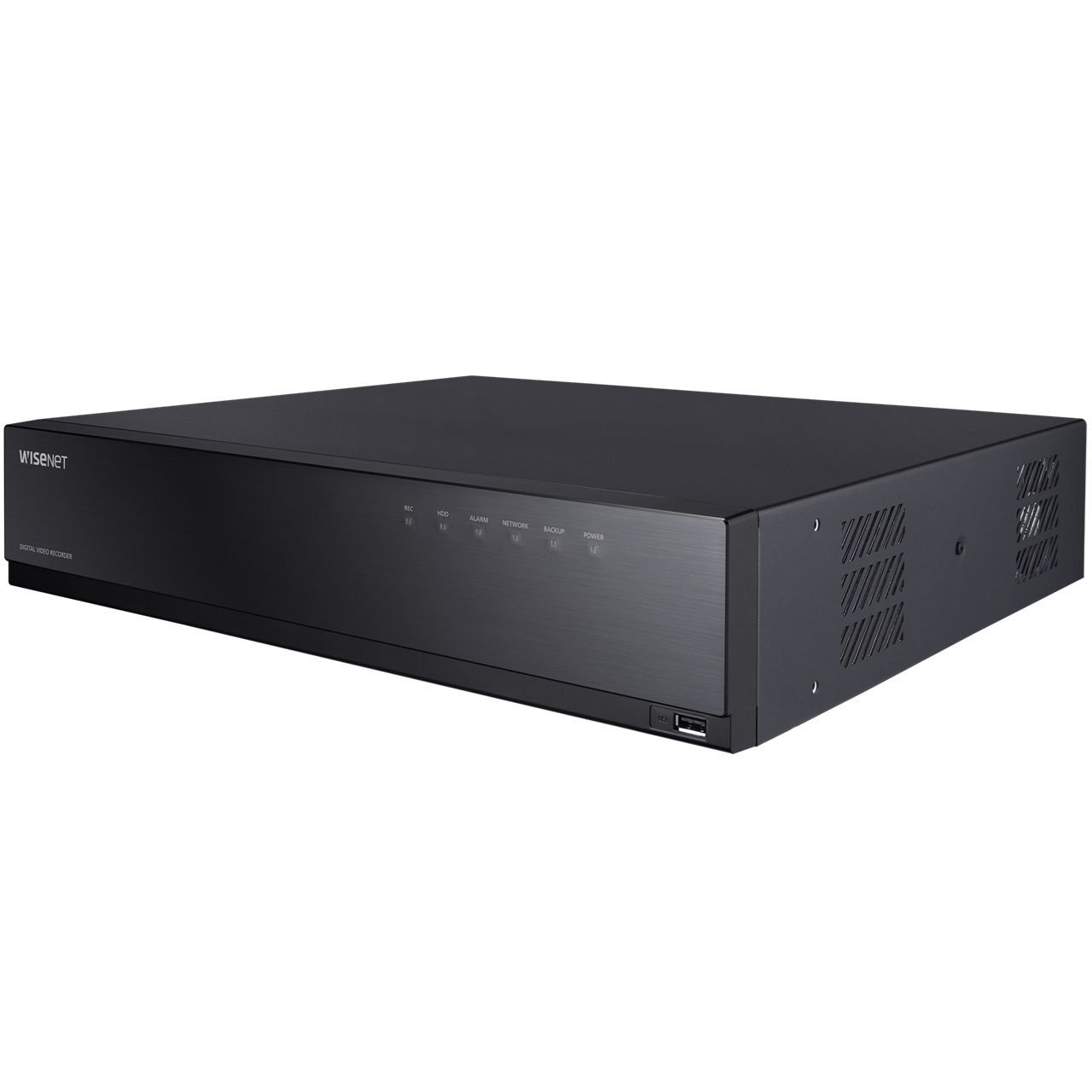

HRX-835A-4TB Hanwha Vision 8 Channel HD-TVI/HD-CVI/AHD/Analog + 1 Channel IP DVR Up to 64FPS @ 8MP - 4TB

Specifications

Display

Analog camera

• Inputs - 8CH(1Vp-p 75ohm, BNC)
• Signal Type - AHD(8MP, 5MP, 4MP, 1080p, 720p) HDTVI(8MP, 5MP, 4MP, 1080p, 720p) HDCVI(8MP, 5MP, 4MP, 1080p, 720p) CVBS(NTSC/PAL)

Network camera

• Inputs - 2CH (Up to 10CH)
• Resolution - 8MP ~ CIF
• Protocols - SUNAPI(Wisenet), ONVIF

Live

• Local Display - 1x HDMI, 1x VGA (Dual monitor) HDMI: 3840 x 2160, 2560x1440, 1920x1080, 1280x1024, 1280x720 VGA: 1920x1080, 1280x1024, 1280x720, 1024x768
• Multi Screen Display - [Local monitor] Dynamic layout/Sequence, [Web] 1/2V/2H /3V/4/6/1+5/1+7/9/sequence
• Resolution - [Analog Camera(NTSC/PAL)] - 8MP(15/12fps), 5MP(20/12fps), 4MP(30/25fps), 2MP(30/25fps),1MP(30/25fps), 960H(or 720H)(30/25fps) * per CH [Network Camera] - 2MP(up to 30fps/CH)

Performance

Record

• Embedded - Linux
• Compression - H.265, H.264, MJPEG
• Record Rate(Analog) - (Main Stream, NTSC/PAL) 8M 8/8fps, 5M 12/12fps, 4M 15/12fps, 2M 30/25fps, 720p 30/25fps, Under 960H 30/25fps/CH (Sub Stream) 720p/CH or Higher : 640x368 Full fps, SD : up to SD Full fps * The maximum recording frame rate depends on the frame rate of the input camera.
• Recording Bandwidth - Max. 80Mbps
• Resolution - 8MP ~ CIF
• Mode - Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark
• Event Trigger - Alarm Input, Video Loss Analog Camera : Video Loss, Motion Detection,Tampering Network Camera : Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event
• Event Action - e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shutdown

Search & Play

• Playback Bandwidth - Max. 32Mbps (10CH simultaneously)
• User - Max. 4 users (Local 1, Remote 3)
• Simultaneous playback - 10CH(Local Monitor), 10Ch (CMS), 4Ch (Wisenet Mobile), 1Ch(Web)
• Fisheye Dewarping - CMS (only N/W Camera)
• Mode - Date & Time (Calendar) / Event log list / Text search (POS), Export, Smart search (Virtual Line w/ direction, Enter / Exit), ARB search, Bookmark search
• Resolution - 8MP ~ CIF
• Playback Control - Fast Forward/Backward (x2,x4,x8,x16,x32,x64, x128, x256) Slow Forward/Backward (x1/2,x1/4,x1/8) ※Move one step up/down

Storage

• Supported HDD - Up to 6TB
• HDD Slot - SATA 4ea(Max 24TB)

Backup

• File backup - Set : Recorder, SEC, AVI Webviewer : AVI
• Function - Max. 10 CH play, Date-time/title display

Network

• Protocol - TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
• DDNS - Wisenet DDNS
• Transmission speed - Analog Camera (Main Stream) 8MP 8/8fps CH, 5M 12/12fps, 4M 15/12fps, 2M 30/25fps, 720p 30/25fps, 960H/640H 30/25fps(NTSC/PAL per CH) (Sub Stream) 720p or higher : 640x368 full fps/CH, SD signal : up to CIF full fps/CH * The maximum recording frame rate depends on the frame rate of the input camera.
• Transmission Bandwidth - Max. 64Mbps

Audio

• Input/Output - 8 Lline in (RCA 4 Line, Option : Audio Extension Cable) / 1Line line out
• Compression - G.711 (N/W Camera G.711, 726)
• Audio Communication - 2-Way
• Max Remote Users - Search(3), Live Unicast(10), Multicast(20)
• Security - IP address filtering, User access log, 802.1x Authentication, Encryption (ID/PW, Recording, Transmission, Backup) Device Certificate(Hanwha Vision Root CA)

Web viewer

• Supported OS - Windows 10, Mac OS 11 or higher
• Supported browser - Chrome v99 or higher, Edge v99 or higher, Safari v14.0.3 or higher (as of March 2022)
• Viewer Software - SSM, Webviewer, SmartViewer, Wisenet Mobile Viewer, Wisenet Viewer

Functions

Camera Setup

• Register - Auto, Manual

PTZ

• Control - Via GUI, Webviewer, SSM, SmartViewer, Wisenet Mobile Viewer, System Controller
• Preset - 300 presets

Smart phone

• Support Model - iOS, Android
• Protocol Support - RTP, RTSP, HTTP, CGI(SUNAPI)
• Control - Live(8ch) : Multi-Profile Support Playback(4Ch Multi Playback, Max 2MP) Event push
• Max. Remote Users - Search(3), Live Unicast(10)

Redundancy

• Redundancy > ARB - Support
• Easy configuration - Setup Wizard (Language Date/Time, Password, Network, Auto Camera Configuration), P2P (QR code)
• Coaxial Control - CVBS(Pelco-C)/AHD/CVI/TVI

Interface

• Front > Indicator - LED(Status indicator) : Power(1), HDD Action(1), Alarm(1), Record(1), Network(1), Backup(1)
• Reset - Switch(1EA)
• HDMI - 1EA
• VGA - 1EA
• BNC - 8CH In / 1CH Out(Spot Output)
• Audio - Out(1EA, RCA, Line)
• Ethernet - RJ-45(10/100/1000BASE-T)
• Alarm - In 8EA, Out 4EA - Relay Out1(NO/NC/COM) - Relay Out2~4(NO/COM)
• USB - 2EA(Front USB2.0, Rear USB 3.0))
• Serial(Protocols) - RS-485/422 (Samsung-T/Pelco-D/Pelco-p) * for PTZ
• Power inlet - 1EA AC

System

• Log > Log List - Max. 100,000 (System Log, Event Log each)
• System Control - Mouse, Webviewer, System Controller(SPC-7000, SPC-6000, SPC-2000, SPC-2001)
• Language - English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Romanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai

Environmental

• Operating Temperature - 0°C to +40°C(+32℉ to +104℉)
• Operating Humidity - 20% ~ 85% RH
• Certification - UL, CE, FCC, KC, UKCA

Electrical

• Power Input - 100~240 VAC±10%, 50/60 Hz
• Power Consumption - Max. 100W (6T HDD 4ea)

Mechanical

• Color / Material - Black / Metal
• Dimension (WxHxD) - 440 x 88 x 384.8mm(17.32” x 3.46” x 15.15”)
• Weight - Approx. 6.0Kg (13.2 lb, 4TB HDD 1ea)
