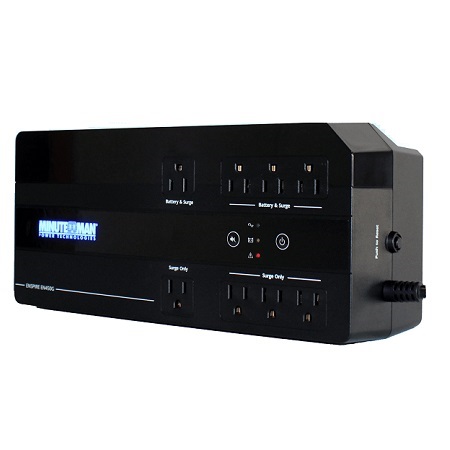

EN450G Minuteman Enspire-G Series 450VA/250W Simulated Sine Wave Standby UPS - Compact Desktop/Floor/Wall Mount

SKU: EN450G

ENSPIRE-G UNINTERRUPTIBLE POWER SUPPLY

Standby UPS with simulated sine wave for desktop/floor/wall mount

The new Minuteman Enspire-G Series UPS offers standby protection and a compact desktop/floor/wall mount profile perfect for small-load applications

Key Features and Specs
  • UPS Topography: Standby
  • Battery Load Capacity: 450VA / 250W
  • Output Signal (AC Mode): SINE
  • Output Signal (Battery Mode): Step
  • Form Factor: Compact Desktop/Floor/Wall Mount
  • Battery & Surge-protected Receptacles: 4
  • Surge-protected Only Receptacles: 4
  • USB Communications: No
  • SNMP Compatible: No
  • LCD Display: No
  • Too-less Battery Replacement: Yes
More details...
MPN: EN450G
MSRP Price: $128.99
Online Price: $112.00
Save to my Wish List

New to DWG? - Sign Up for immediate access to dealer pricing and benefits.

Already a DWG Customer? - Sign In to view pricing.



Product Details

The Minuteman Enspire-G Series UPS is a low-cost, high-performance UPS that provides the features needed to protect your valuable equipment. The Enspire-G Series will feature battery support, spike and surge protection, and USB charging ports on select models.

Specifications

  • UPS Model Number - EN450G

General Features

  • Topology - Standby
  • VA Rating - 450
  • Load Capacity - 250 Watts
  • Installation Format(s) - Desktop, Floor or Wallmount

Input

  • Nominal Voltage Range - 95 - 140VAC
  • Frequency Range - 60Hz ±6Hz
  • Maximum Input Current - 10 Amps
  • Surge Joule Rating - 1000J

Output

  • Output Voltage Range (Battery Mode) - 95 - 140VAC (120VAC ±5% until low battery warning)
  • Output Frequency Range (Battery Mode) - 60Hz ±6Hz (60Hz ±0.5Hz unless synchronized to line)
  • Output Waveform (Battery Mode) - Sine wave (Step Wave)

Batteries

  • Tool-less Replacement - Yes
  • Runtime (Full/Half Load) - 3 min / 11 min
  • Ind. Battery Bypass - Yes
  • DC Startup - Yes
  • Hot-swappable Batteries - Yes

Display & Communications

  • Front Panel Display - LED
  • Battery Function Alarms - Yes
  • Alarm Silencer - Yes
  • Shutdown Software - No
  • Communication Port(s) - None
  • Comm. Cables Included - No

Environmental

  • Operating Temp. Range - +32°F to +104°F (0°C to +40°C)
  • Operating Humidity Range - 0% to 95% (Non-condensing)
  • Operating Elevation - 0 to +10,000 ft. (0 to +3,000m)

Physical

  • USB Charging Port - No
  • Unit Dimensions (L x W x H) - 12.8" x 5.7" x 4.1"
  • Shipping Dimensions (L x W x H) - 14.8" x 5.7" x 8.9"
  • Unit Weight - 7.3 lbs.
  • Shipping Weight - 8.4 lbs

Warranty & Certifications

  • Standard Warranty - 3 Years
  • Connected Equipment Guarantee - $50,000
  • Safety Agency Approvals - cTUVus (UL1778 5th Edition), CE, FCC Class B
  • Certifications - RoHS, Energy Star 2.0, NOM

EN450G Specifications PDF
